SsangYong Rexton. Manual - part 275

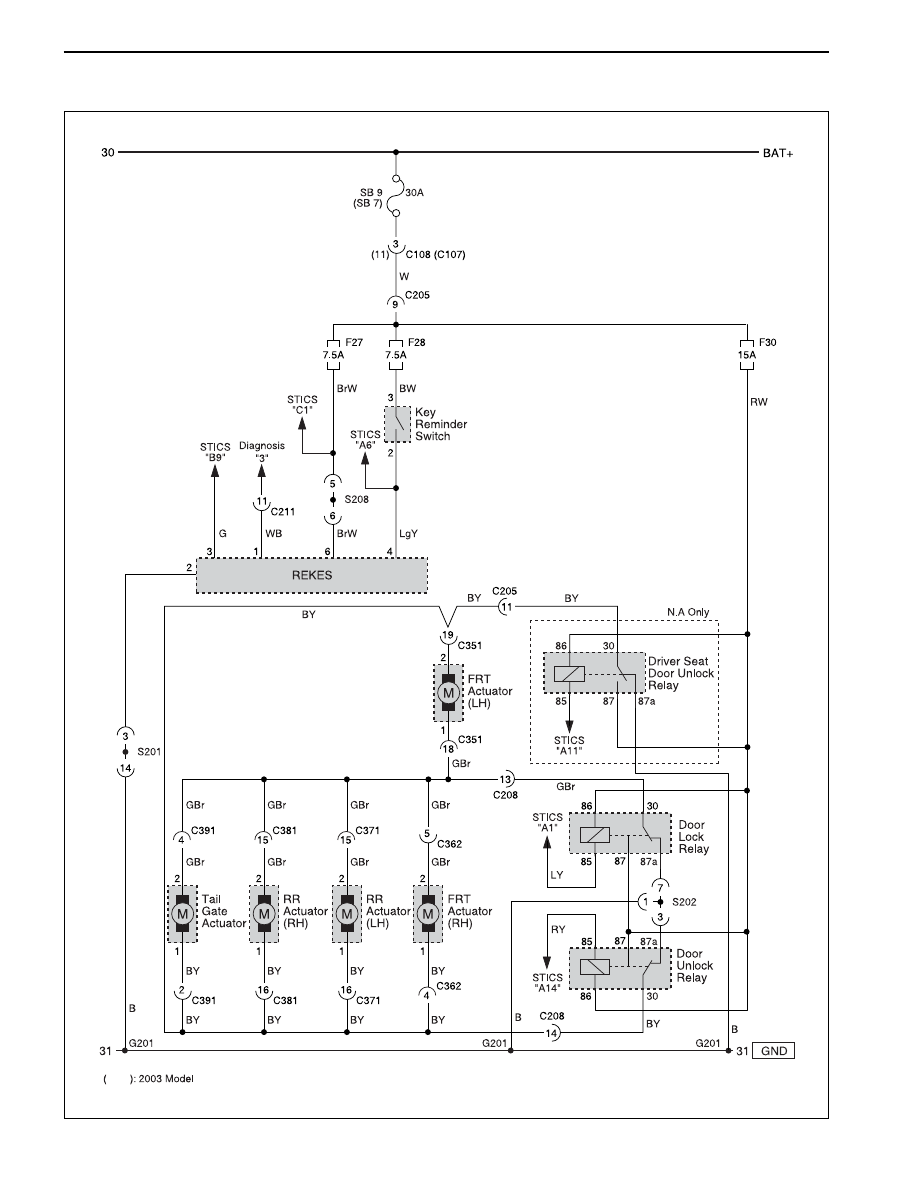

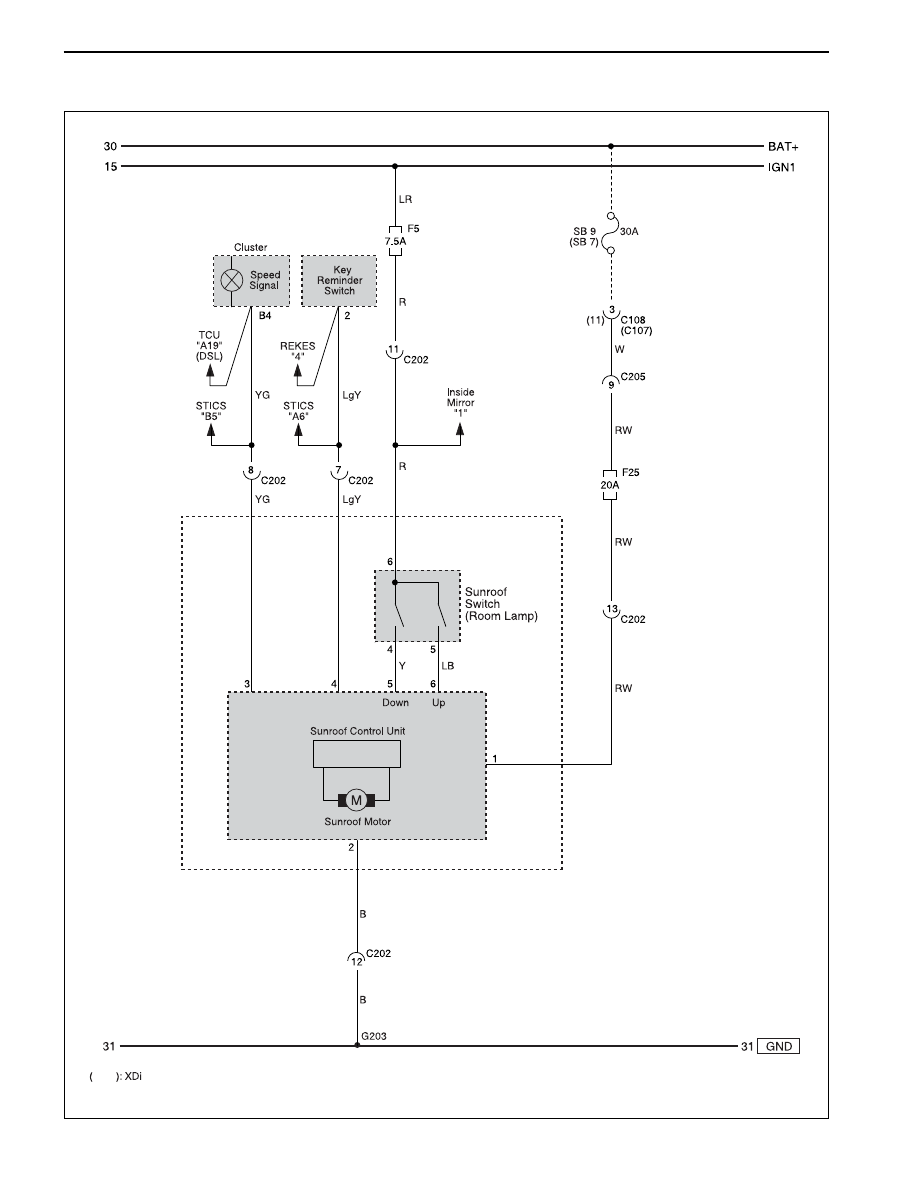

ELECTRICAL WIRING DIAGRAMS 5-133
SSANGYONG REXTON XDi (LHD)
A. CONNECTOR INFORMATION

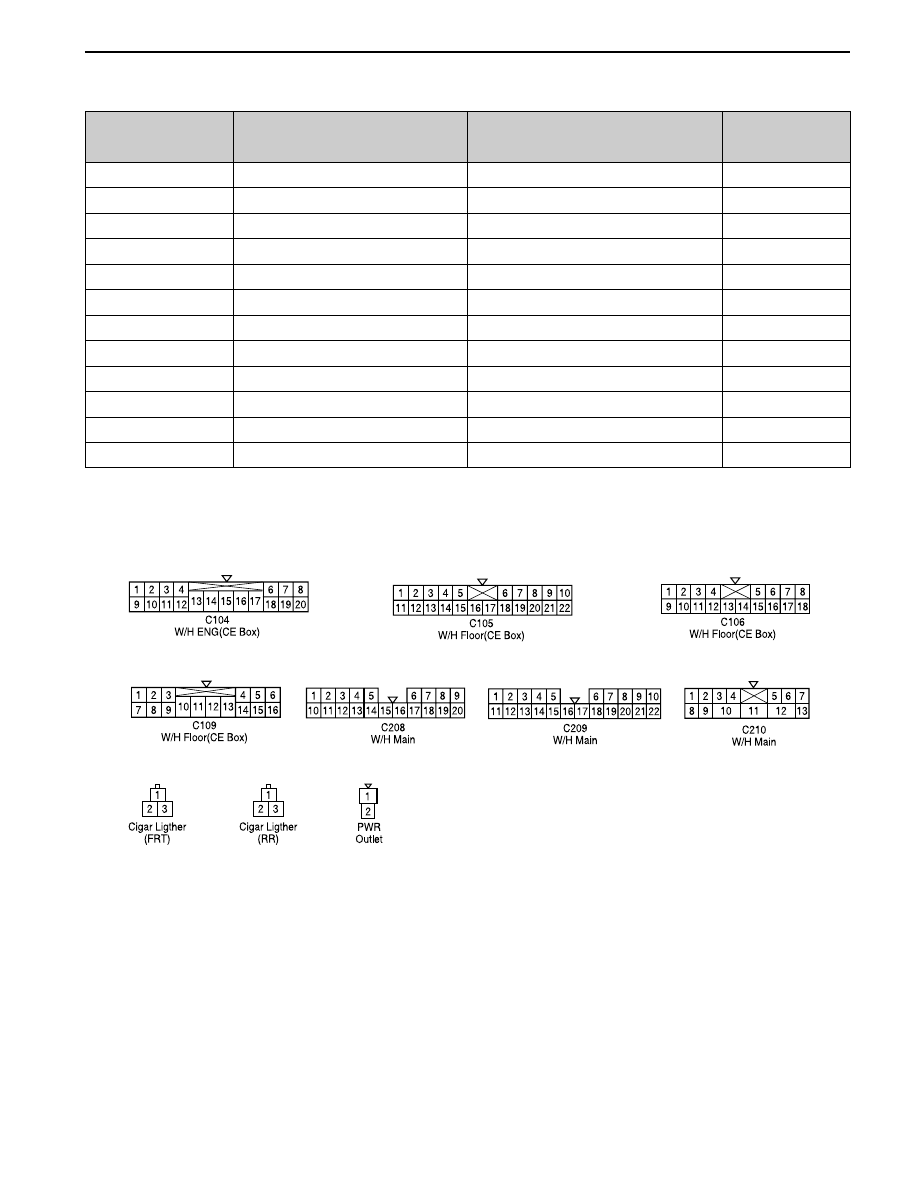

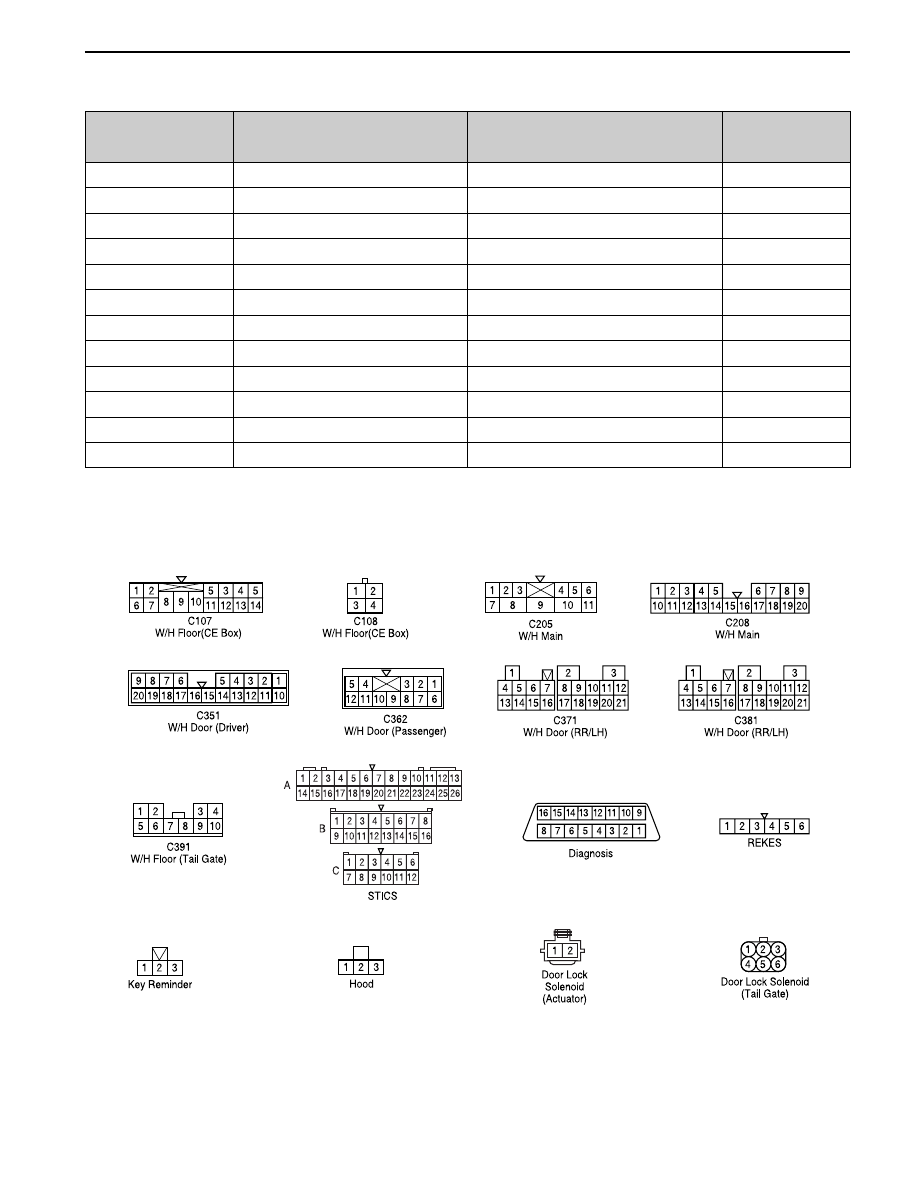

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Connector Number
(Pin Number, Color)
Engine Room Fuse Box (D) - Engine
Engine Room Fuse Box (E) - Engine
Engine Room Fuse Box (F) - Engine
Engine Room Fuse Box (M) - Engine
Main - Floor (LH)
Main - Floor (LH)
Engine - Main (RH)
W/H Main
W/H Main
W/H Engine
W/H Engine
W/H Floor
C104 (20Pin, White)
C105 (22Pin, White)
C106 (18Pin, White)
C109 (16Pin, White)
C208 (20Pin, Black)
C209 (22Pin, Yellow)
C210 (13Pin, Green)
S207 (14Pin, Black)
S208 (14Pin, Black)
G101
G203
G305
Connecting Wiring
Harness
Engine Room Fuse Box
Engine Room Fuse Box
Engine Room Fuse Box
Engine Room Fuse Box
Inside Driver Side Cowl PNL
Inside Driver Side Cowl PNL
Inside Driver Side Cowl PNL
Behind the Right the FATC
Behind the Right the FATC
Center the Engine Room Fuse Box
Under the Seat Heating SW
Behind the Quarter Grass #1
Tail Lamp
W/H Air Bag
Remark
Connector Position
