ELECTRICAL WIRING DIAGRAMS  5-117

SSANGYONG  REXTON XDi (LHD)

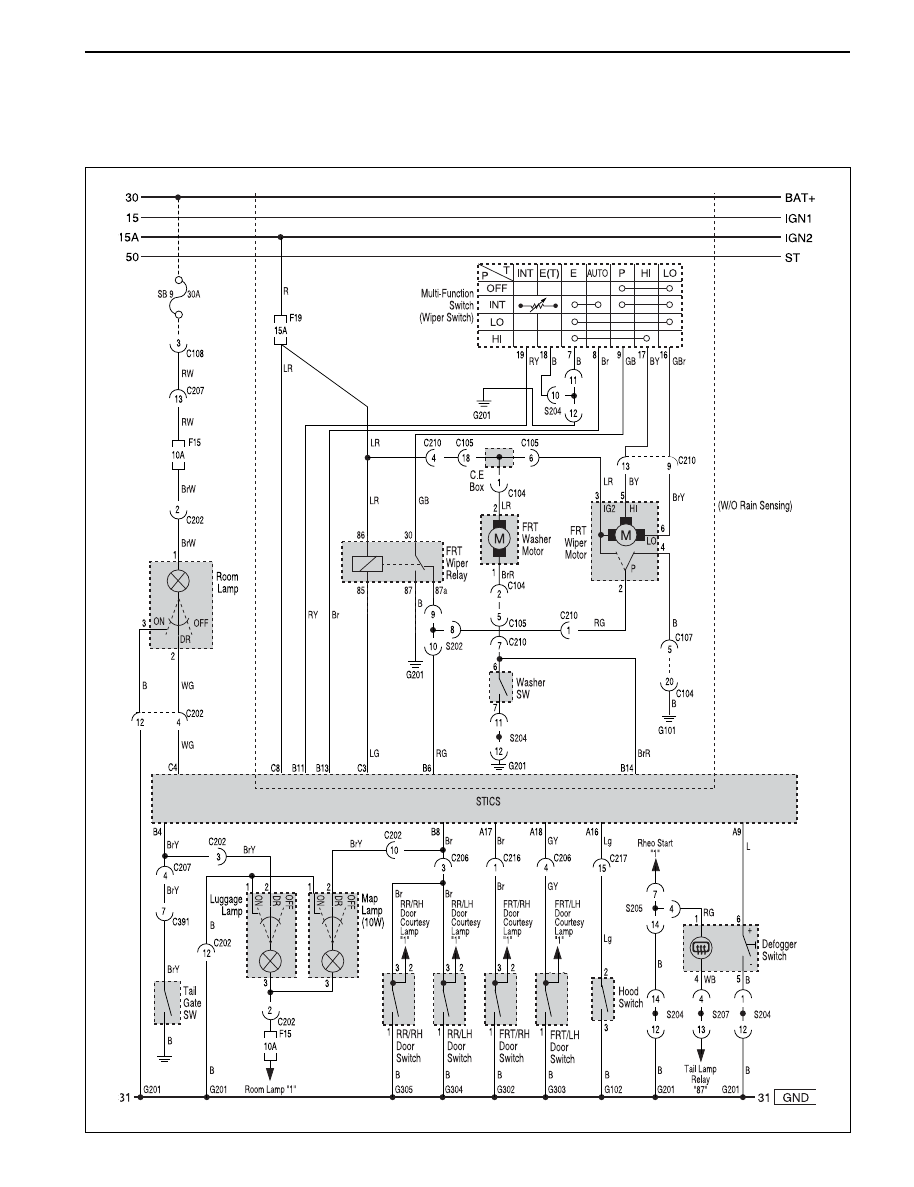

(2) FRT WIPER, DR SWITCH, LAMP (ROOM, MAP) CIRCUIT

SSANGYONG  REXTON XDi (LHD)

5-118  ELECTRICAL WIRING DIAGRAMS

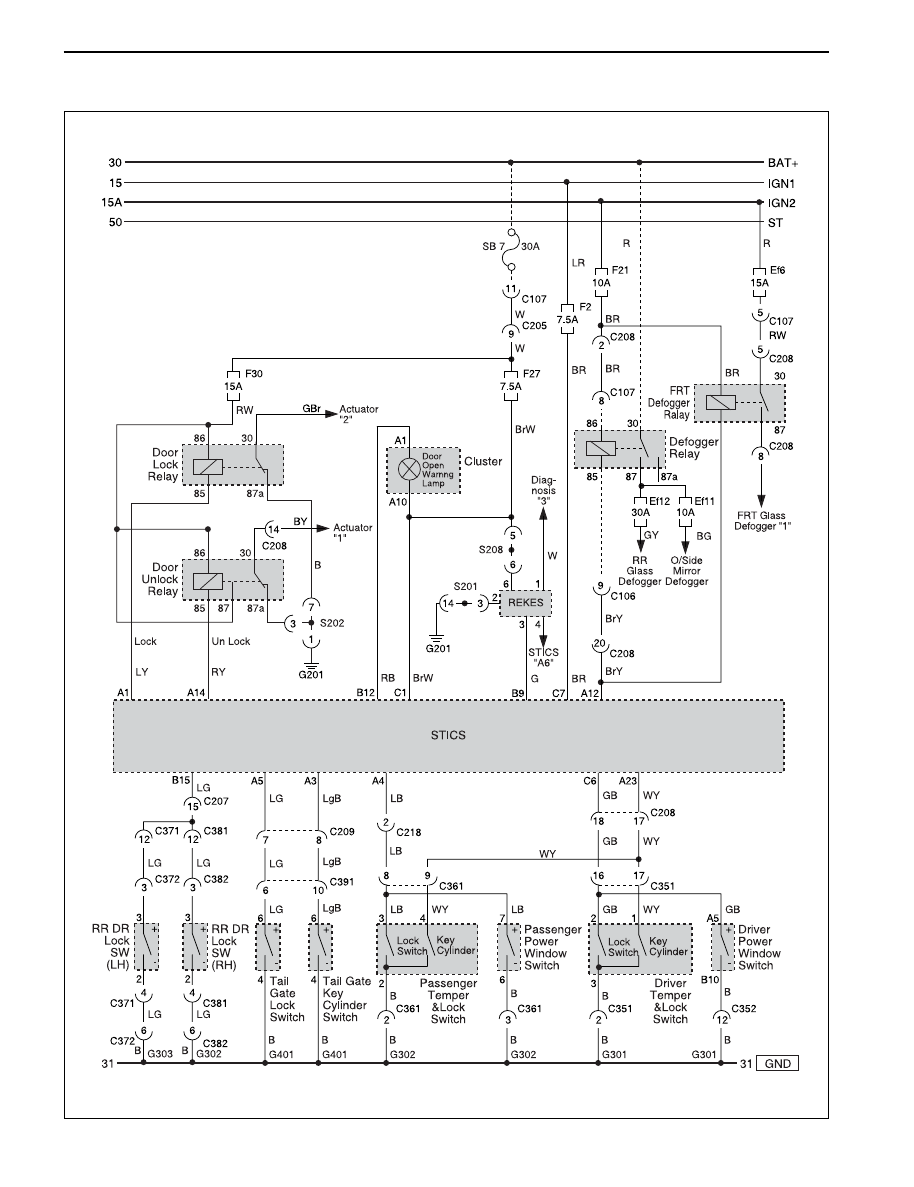

(3) DR LOCK, DEFOGGER, POWER WINDOW CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-119

SSANGYONG  REXTON XDi (LHD)

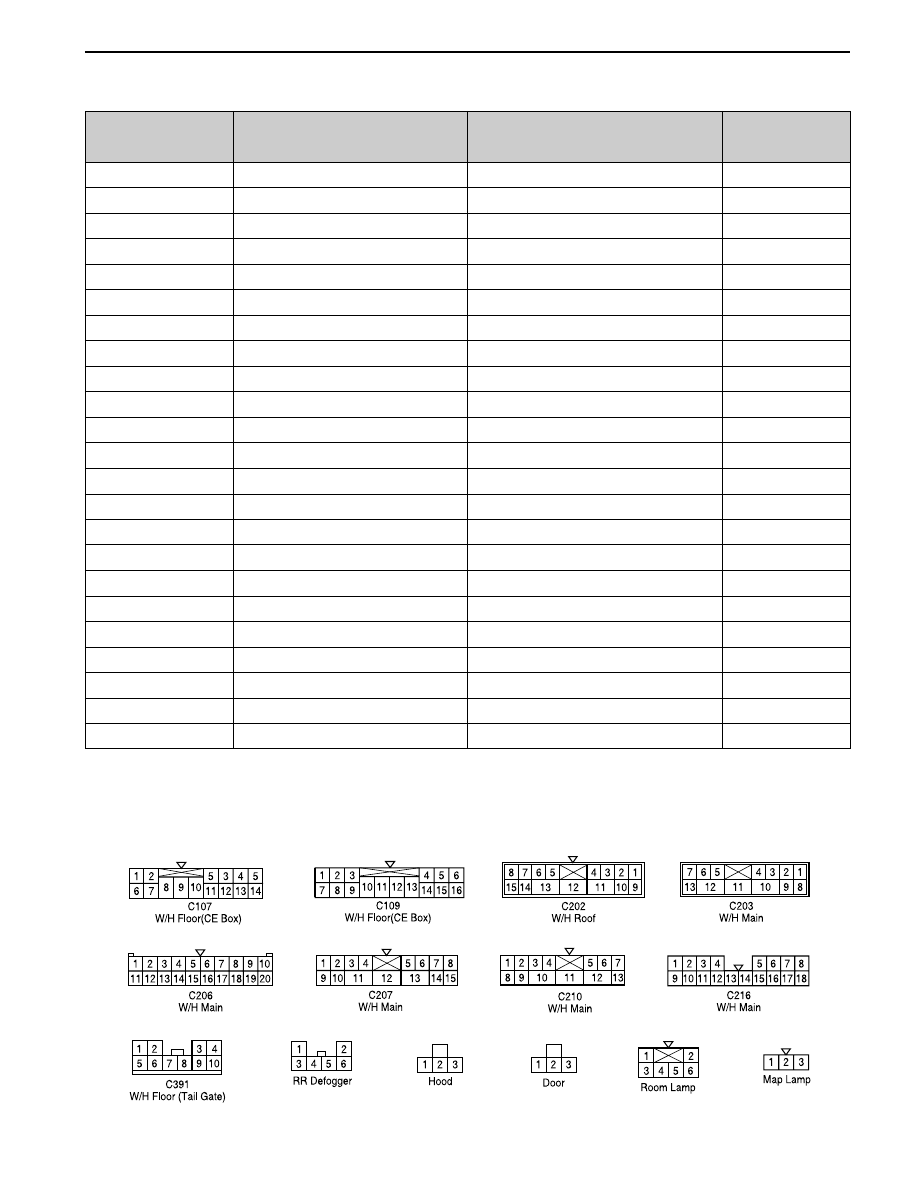

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (B) - Engine

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (M) - Engine

Main - Roof

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Engine - Main (RH)

Main - Floor (RH)

Engine - Main (RH)

Floor - Tail Gate

W/H Main

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Main

W/H Floor

W/H Floor

W/H Floor

W/H Floor

C102 (20Pin, White)

C104 (20Pin, White)

C105 (22Pin, White)

C107 (14Pin, White)

C109 (14Pin, White)

C202 (15Pin, White)

C203 (13Pin, Green)

C206 (20Pin, Black)

C207 (15Pin, Blue)

C210 (13Pin, Green)

C216 (18Pin, White)

C217 (20Pin, Black)

C391 (10Pin, White)

S202 (14Pin, Black)

S204 (14Pin, Black)

S205 (14Pin, Black)

S207 (14Pin, Black)

G102

G201

G302

G303

G304

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the I/P Fuse Box

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside the Left Side Cover the Tail Gate

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Center BATT

Inside Driver Side Cowl PNL

Under Driver Seat

Under the Left “B” Filler

Behind the Quarter Grass #1

Behind the Quarter Grass #1

GND

GND

Tail Lamp

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-120  ELECTRICAL WIRING DIAGRAMS

3) XDi

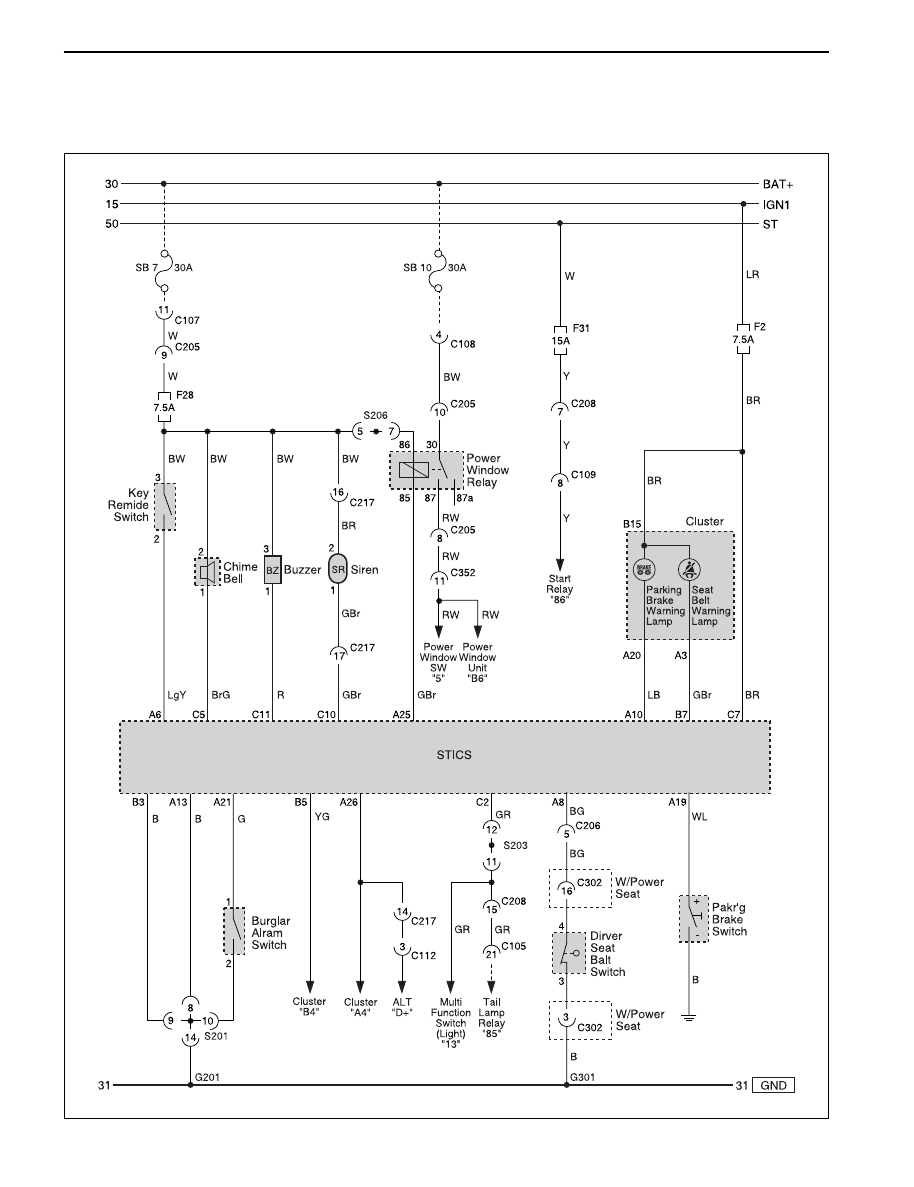

(1) POWER SUPPLY, GND, CHIME BELL, BUZZER, WARNING LAMP (PARKING BRAKE, SEAT

BELT) CIRCUIT
