SsangYong Rexton. Manual - part 268

ELECTRICAL WIRING DIAGRAMS 5-105

SSANGYONG REXTON XDi (LHD)

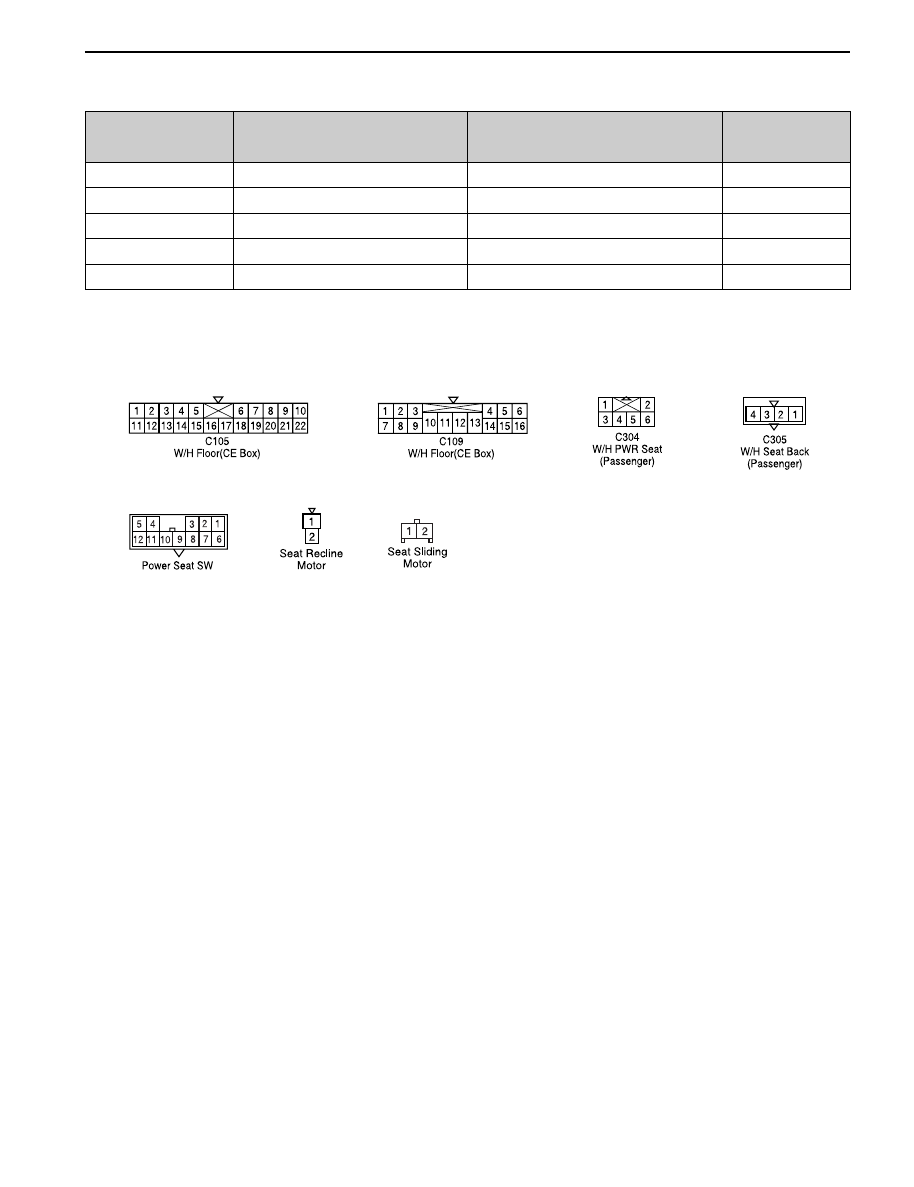

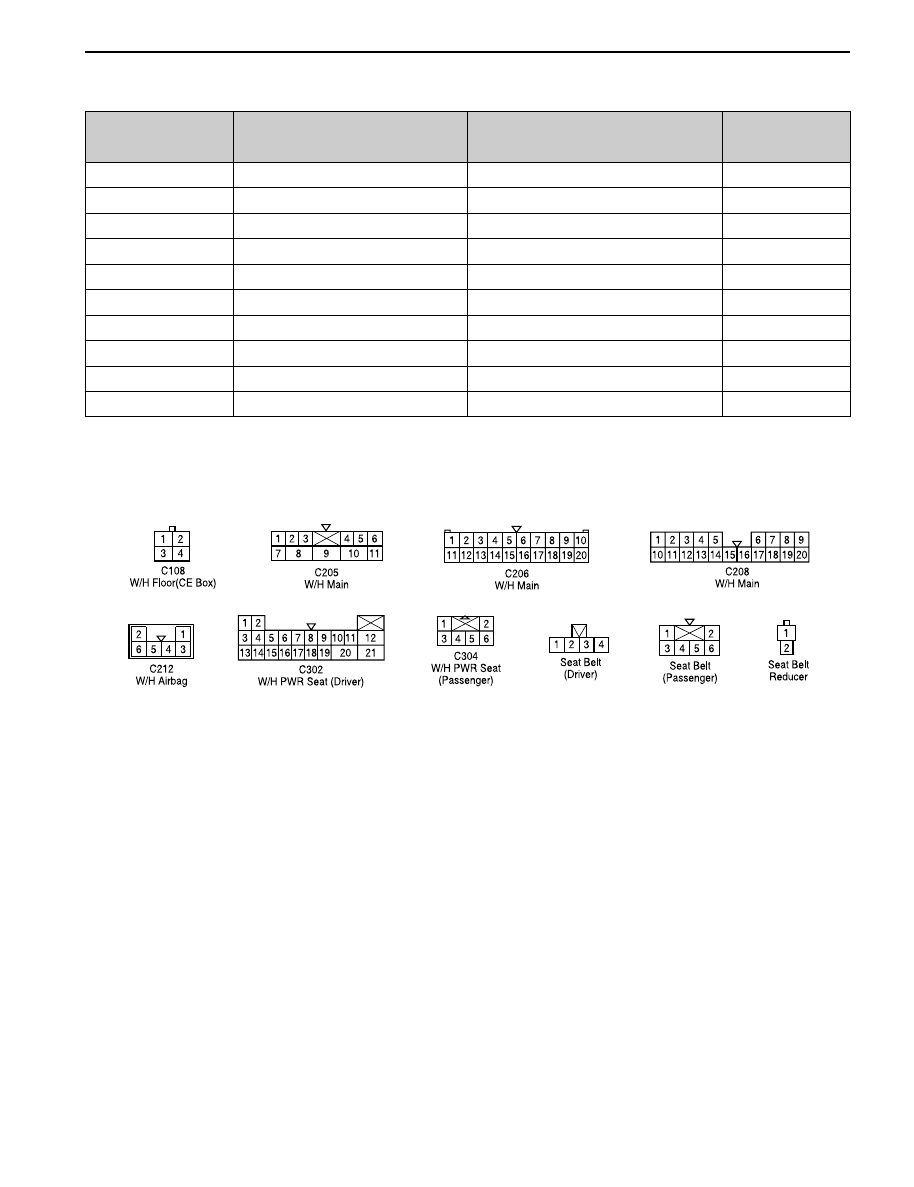

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (K) - Engine

Main - Floor (LH)

Main - Air-Bag

Floor - Driver Seat

Floor - Co-Driver Seat

W/H Floor

C108 (4Pin, Colorless)

C205 (11Pin, White)

C206 (20Pin, Black)

C208 (20Pin, Black)

C212 (6Pin, White)

C302 (21Pin, White)

C304 (6Pin, White)

G301

G302

G303

Connecting Wiring

Harness

Engine Room Fuse Box

Inside Driver Side Cowl PNL

Behind the Cluster (Inside Dash PNL)

Under the Driver Seat

Under the Co-Driver Seat

Under Driver Seat

Under the Left “B” Filler

Power Seat

ECU GND

Remark

Connector Position

SSANGYONG REXTON XDi (LHD)

5-106 ELECTRICAL WIRING DIAGRAMS

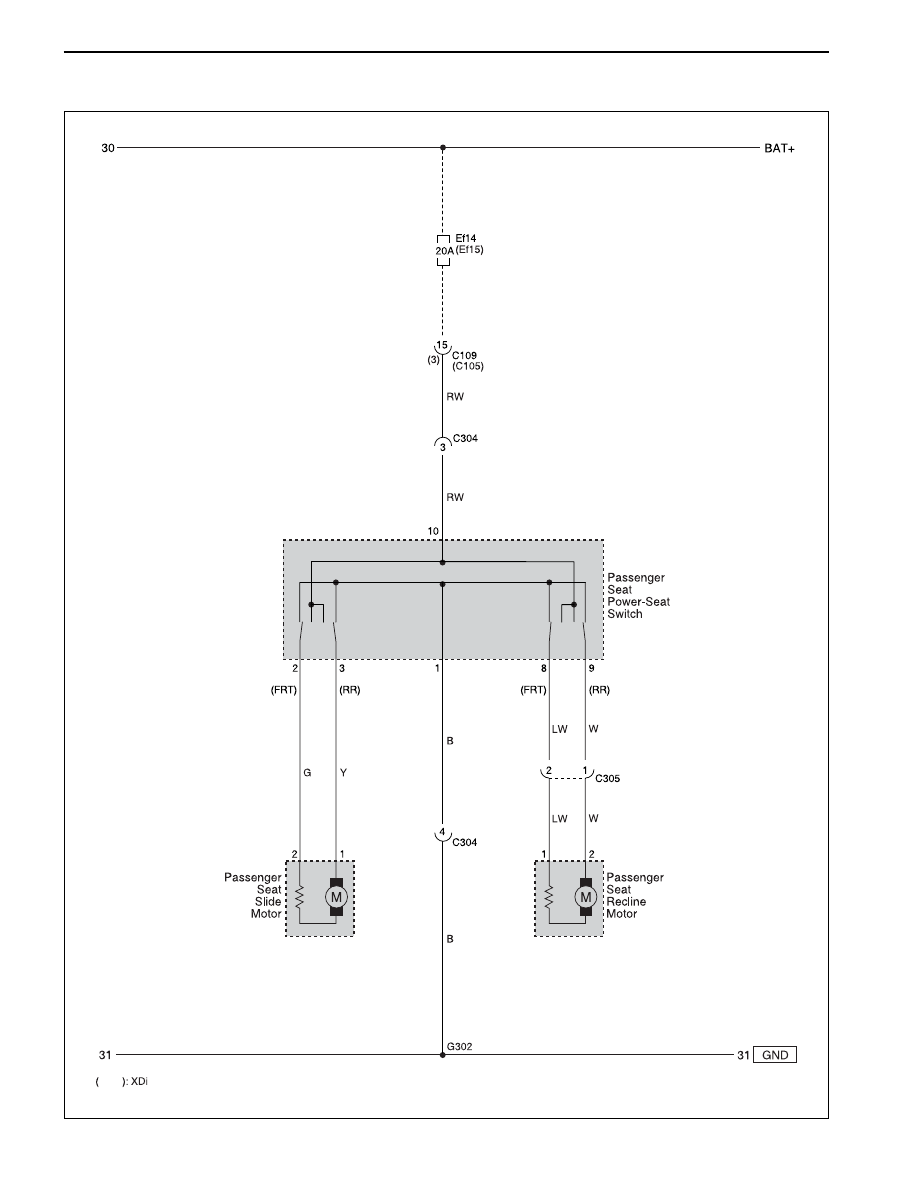

24. PASSENGER POWER SEAT CIRCUIT

ELECTRICAL WIRING DIAGRAMS 5-107

SSANGYONG REXTON XDi (LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (M) - Engine

Floor - Co-Driver Seat

Co-Driver Seat - Seat Back

W/H Floor

C105 (22Pin, White)

C109 (16Pin, White)

C304 (6Pin, White)

C305 (4Pin, White)

G302

Connecting Wiring

Harness

Engine Room Fuse Box

Under the Co-Driver Seat

Under Driver Seat

Power Seat

Remark

Connector Position

SSANGYONG REXTON XDi (LHD)

5-108 ELECTRICAL WIRING DIAGRAMS

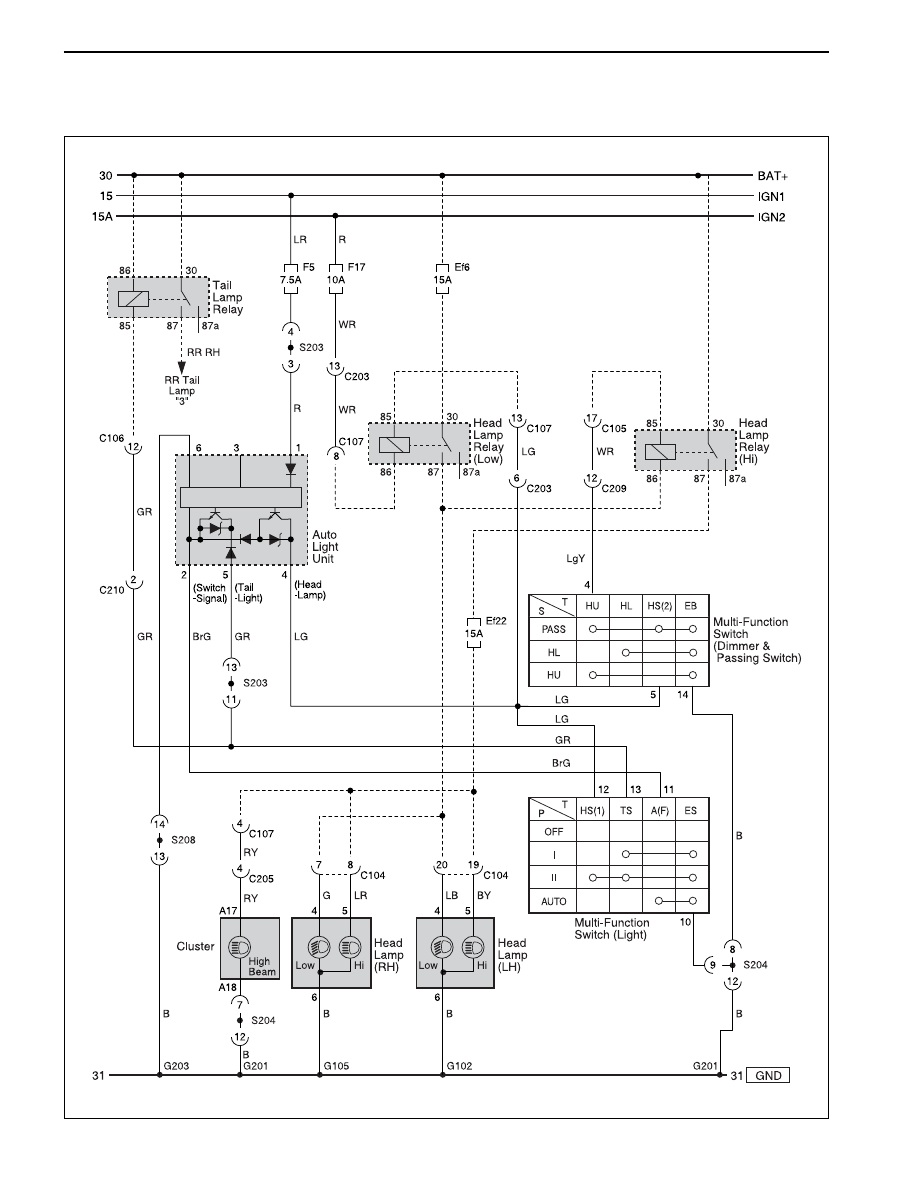

25. AUTO LIGHT CONTROL CIRCUIT

1) ~ 2002 MODEL
