SsangYong Rexton. Manual - part 263

ELECTRICAL WIRING DIAGRAMS  5-85

SSANGYONG  REXTON XDi (LHD)

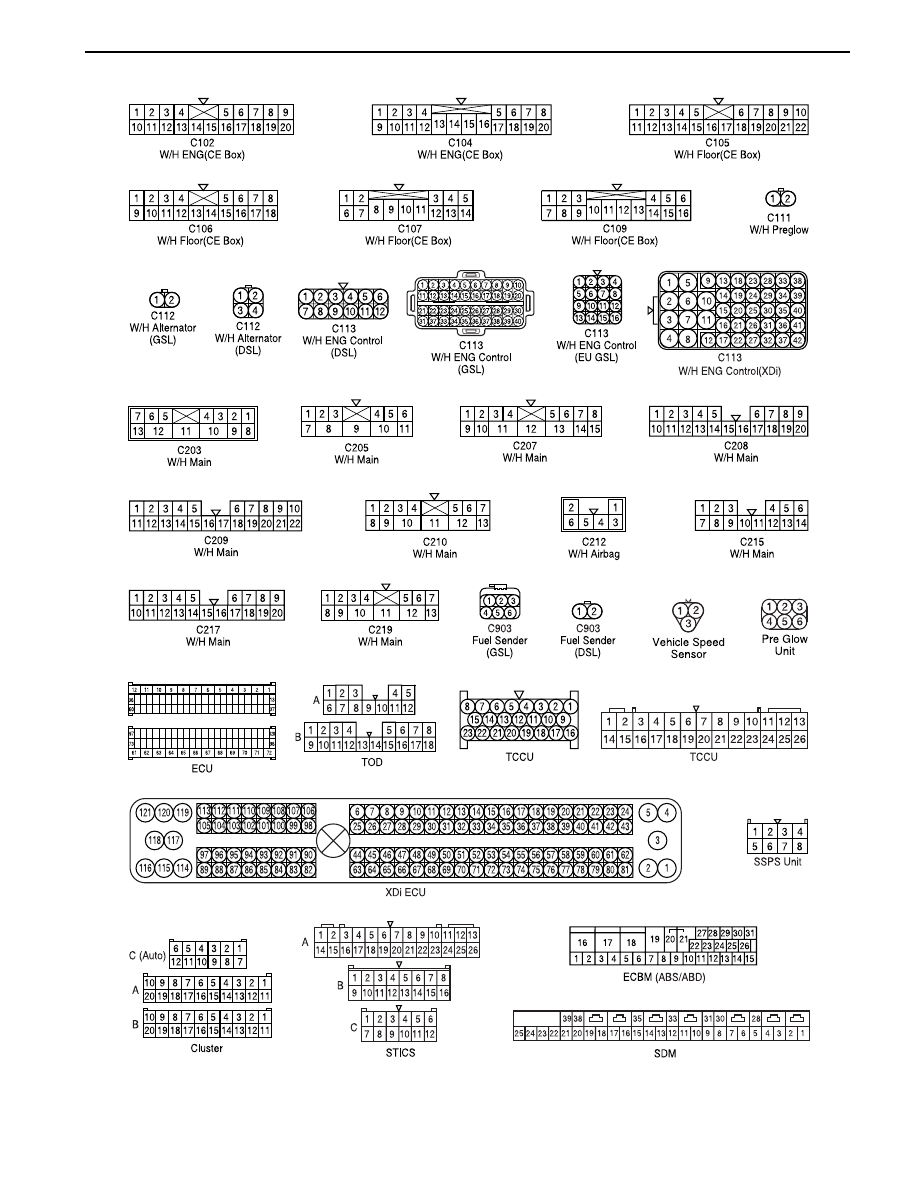

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

SSANGYONG  REXTON XDi (LHD)

5-86  ELECTRICAL WIRING DIAGRAMS

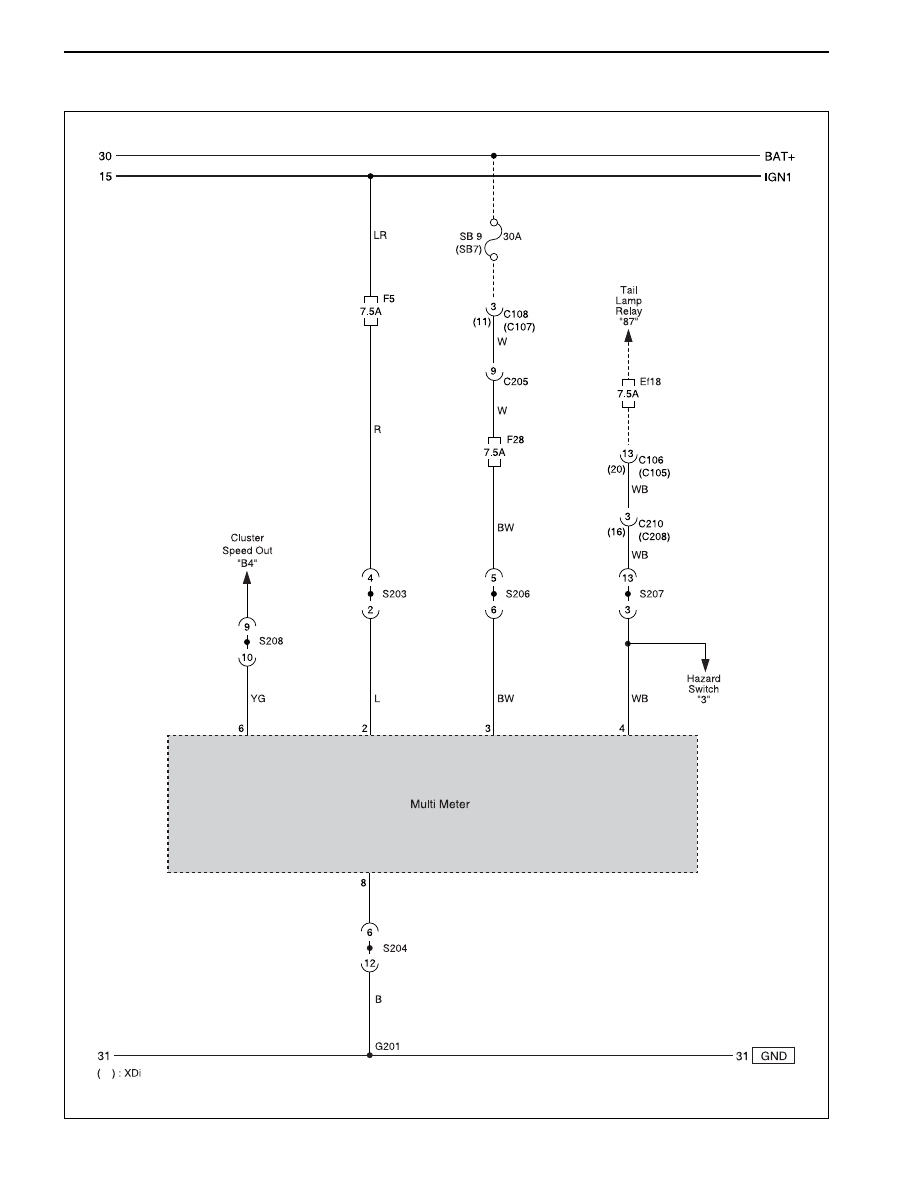

16. MULTI METER CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-87

SSANGYONG  REXTON XDi (LHD)

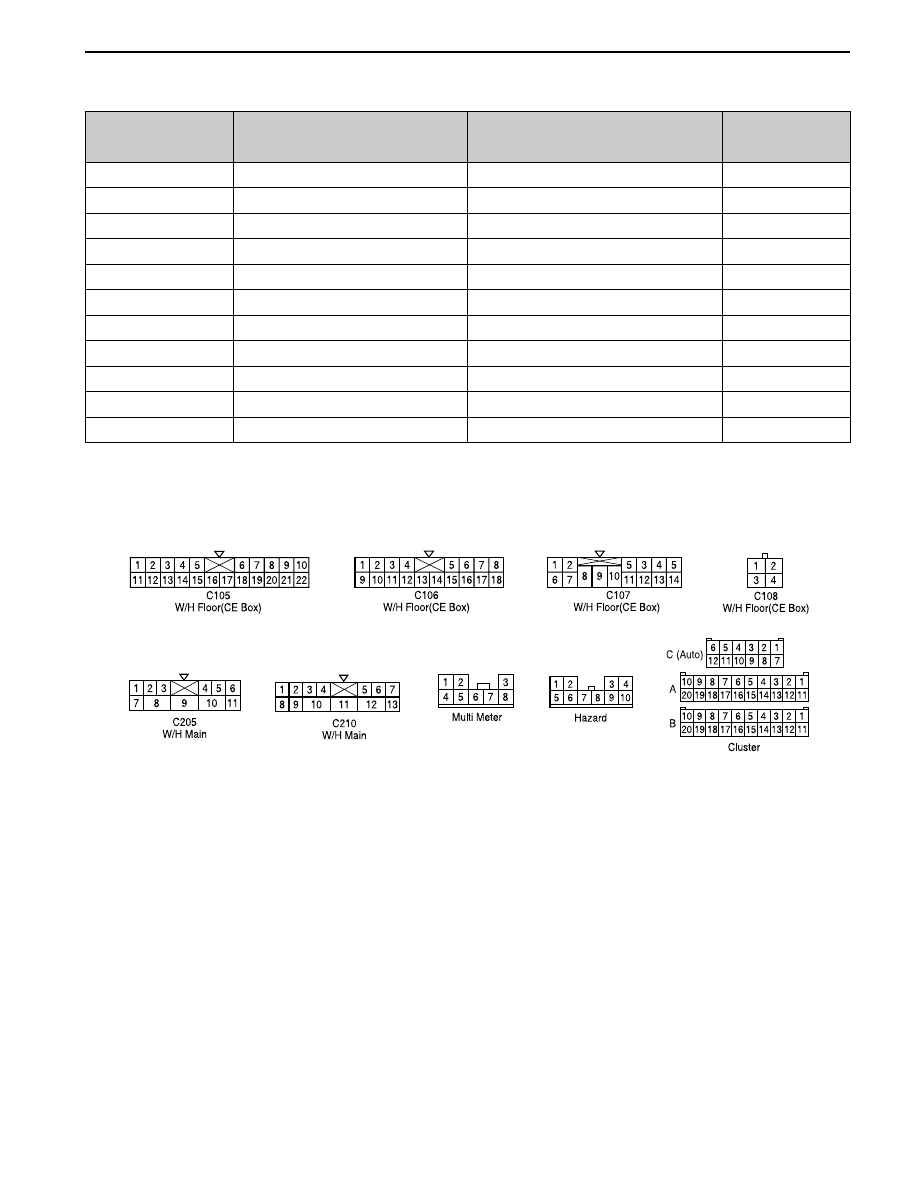

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (K) - Engine

Main - Floor (LH)

Main - Floor (LH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

C105 (22Pin, White)

C106 (18Pin, White)

C107 (14Pin, White)

C108 (4Pin, Colorless)

C205 (11Pin, White)

C210 (13Pin, Green)

S203 (14Pin, Black)

S204 (14Pin, Black)

S206 (14Pin, Black)

S207 (14Pin, Black)

S208 (14Pin, Black)

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Behind the Right the FATC

GND

Tail Lamp

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-88  ELECTRICAL WIRING DIAGRAMS

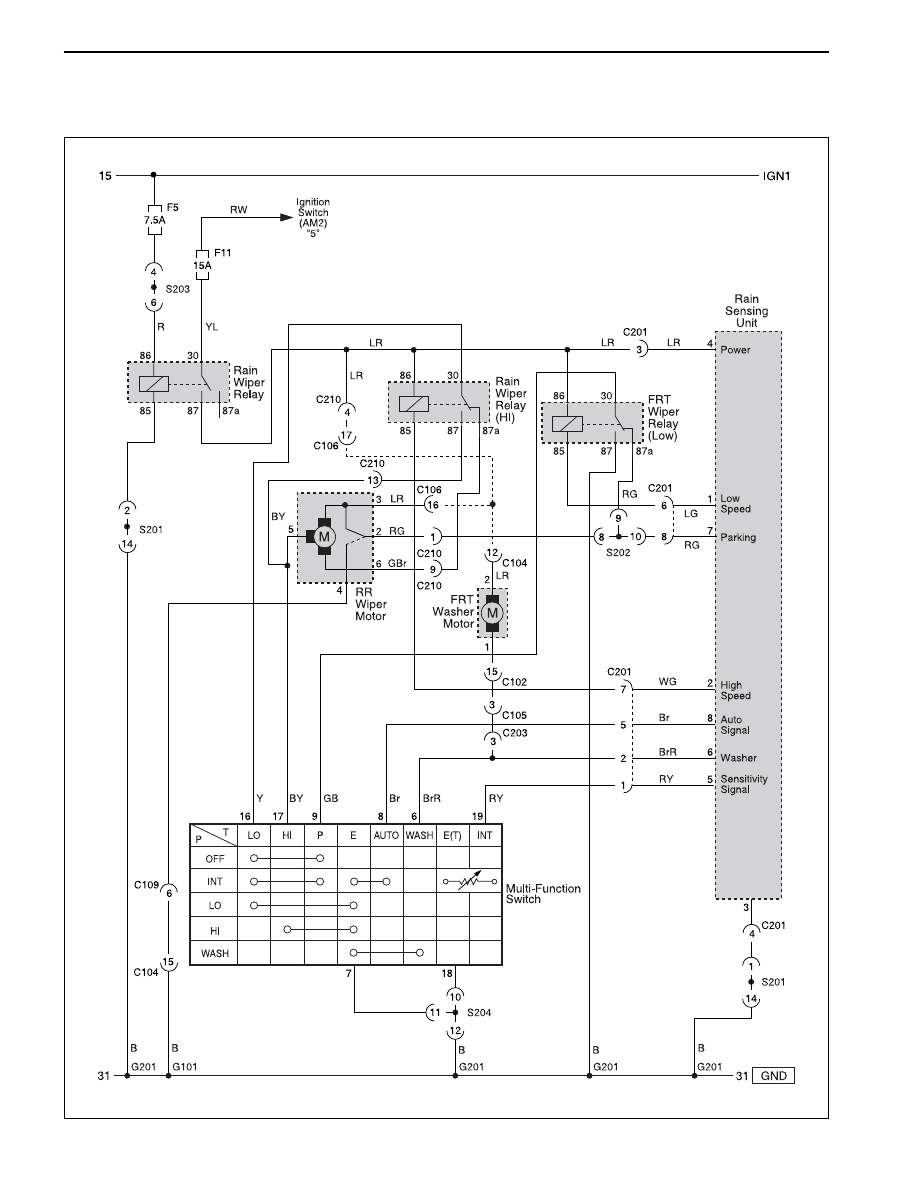

17. RAIN SENSING WIPER CIRCUIT

1) ~ 2002 MODEL
