ELECTRICAL WIRING DIAGRAMS  5-13

SSANGYONG  REXTON XDi (LHD)

2) 2003 MODEL ~

SSANGYONG  REXTON XDi (LHD)

5-14  ELECTRICAL WIRING DIAGRAMS

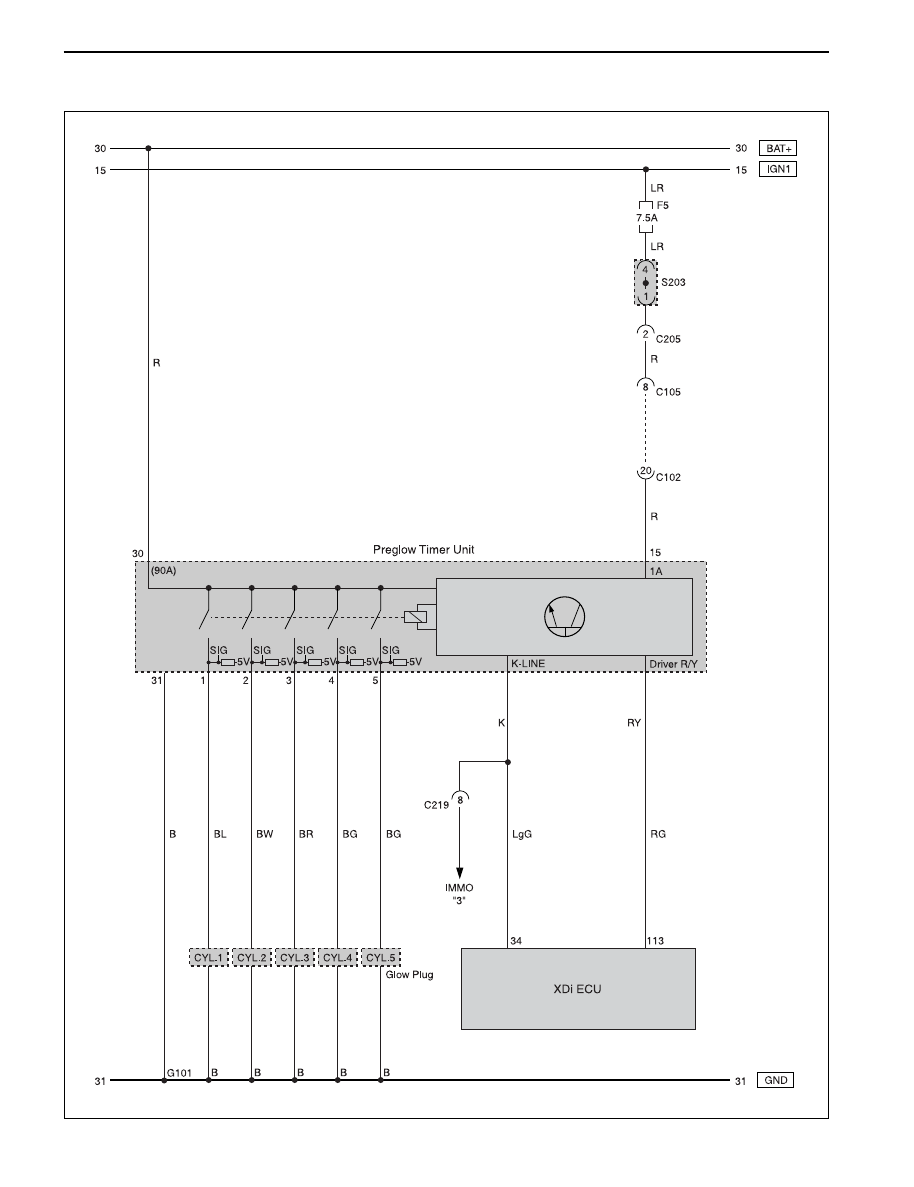

3) XDi

ELECTRICAL WIRING DIAGRAMS  5-15

SSANGYONG  REXTON XDi (LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (B) - Engine

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine - Alternator

Main - Floor (LH)

Engine - Main (RH)

Engine - Main (RH)

W/H Main

W/H Main

W/H Engine

W/H Engine

C102 (20Pin, White)

C104 (20Pin, White)

C105 (22Pin, White)

C112 (4Pin, Black)

C203 (13Pin, Green)

C219 (13Pin, Green)

C220 (15Pin, Blue)

S203 (14Pin, Black)

S204 (14Pin, Black)

G101

G102

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the Coolant Reserve Tank

Under the I/P Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left the FATC

Center the Engine Room Fuse Box

Center BATT

DSL

XDi

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-16  ELECTRICAL WIRING DIAGRAMS

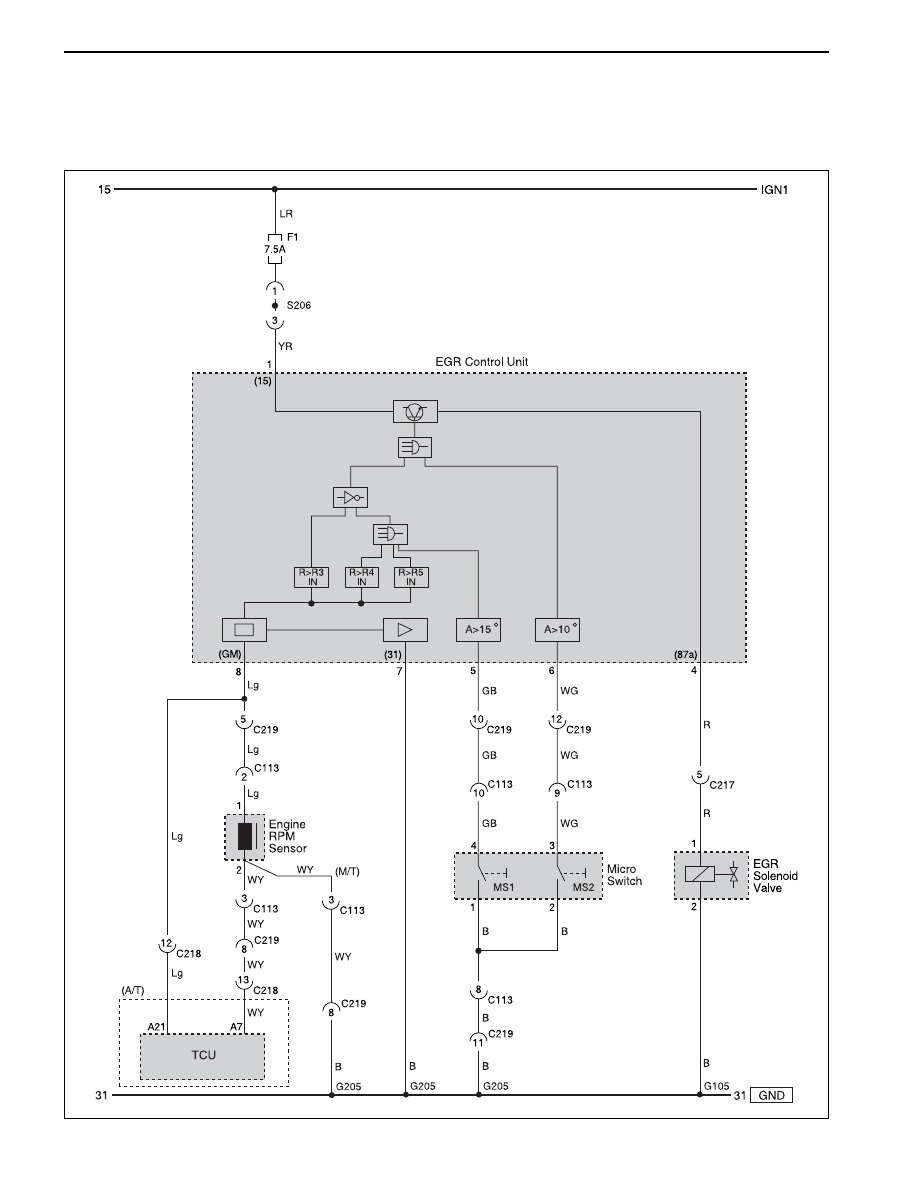

3. EGR (EXHAUST GAS RECIRCULATION) CONTROL CIRCUIT (DSL)

1) ~ 2002 MODEL

(1) GENERAL
