SSANGYONG  REXTON XDi (LHD)

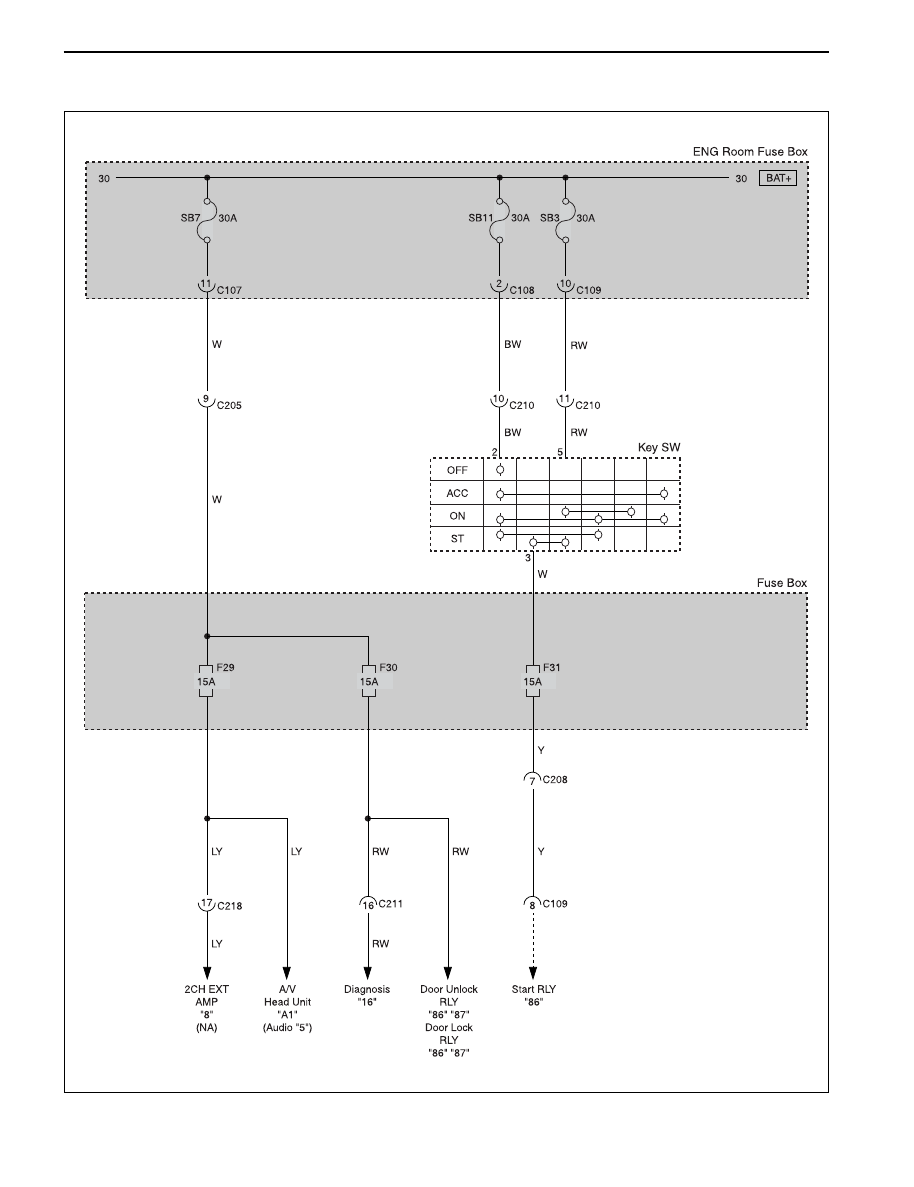

3-30  WIRING DIAGRAM FOR POWER SUPPLIES

(5) F29 ~ F31

SECTION 4

USAGE AND CAPACITY OF

FUSES IN FUSE BLOCK

TABLE OF CONTENTS

1. ENGINE ROOM FUSE & REALY BLOCK ................................................................ 4-2

2. I.P FUSE & RELAY BOX .......................................................................................... 4-10

SSANGYONG  REXTON XDi (LHD)

4-2  USAGE AND CAPACITY OF FUSES IN FUSE BLOCK

1. ENGINE ROOM FUSE & REALY BLOCK

1)  ~ 2002 MODEL

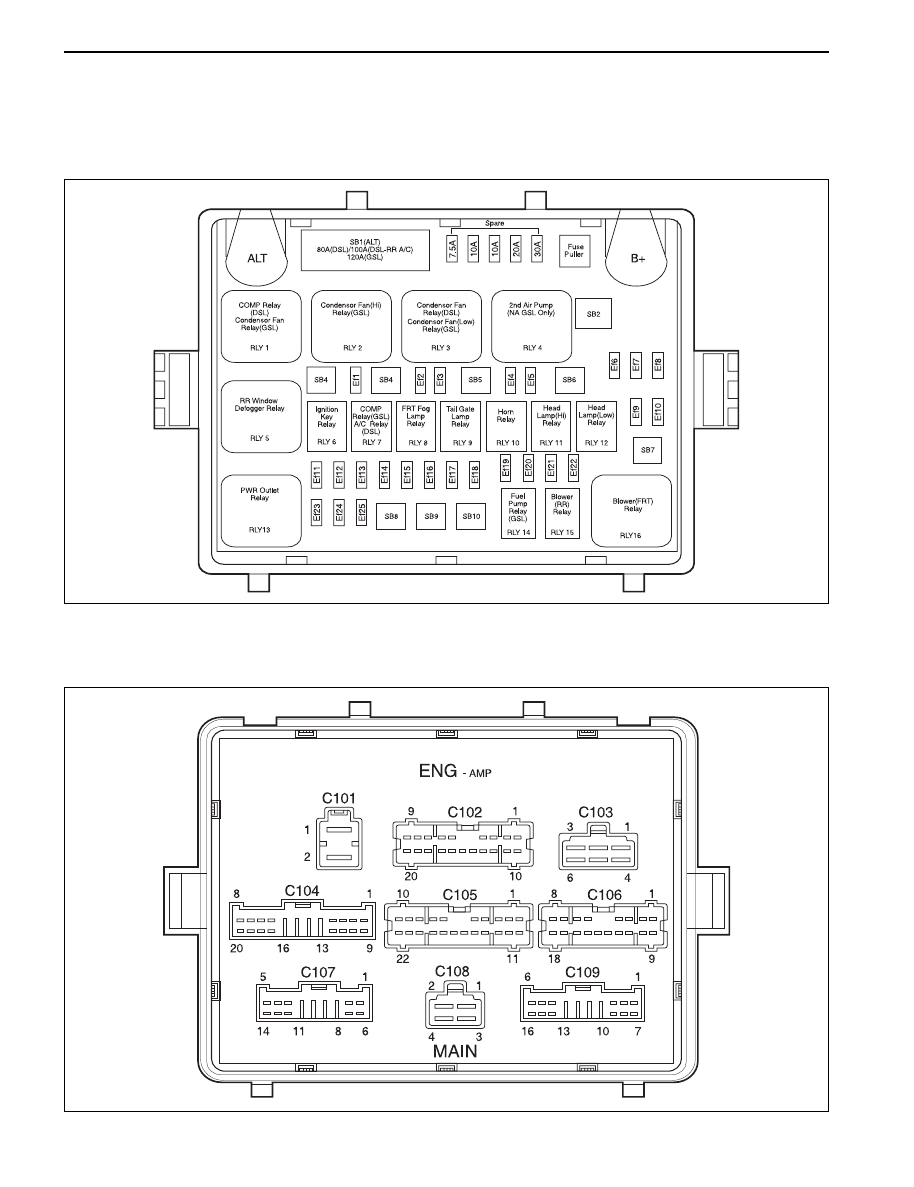

(1) FRONT

(2) REAR

USAGE AND CAPACITY OF FUSES IN FUSE BLOCK  4-3

SSANGYONG  REXTON XDi (LHD)

(3) FRONT (DSL)

(4) FRONT (GSL)
