SsangYong Rexton. Manual - part 233

SSANGYONG  REXTON XDi (LHD)

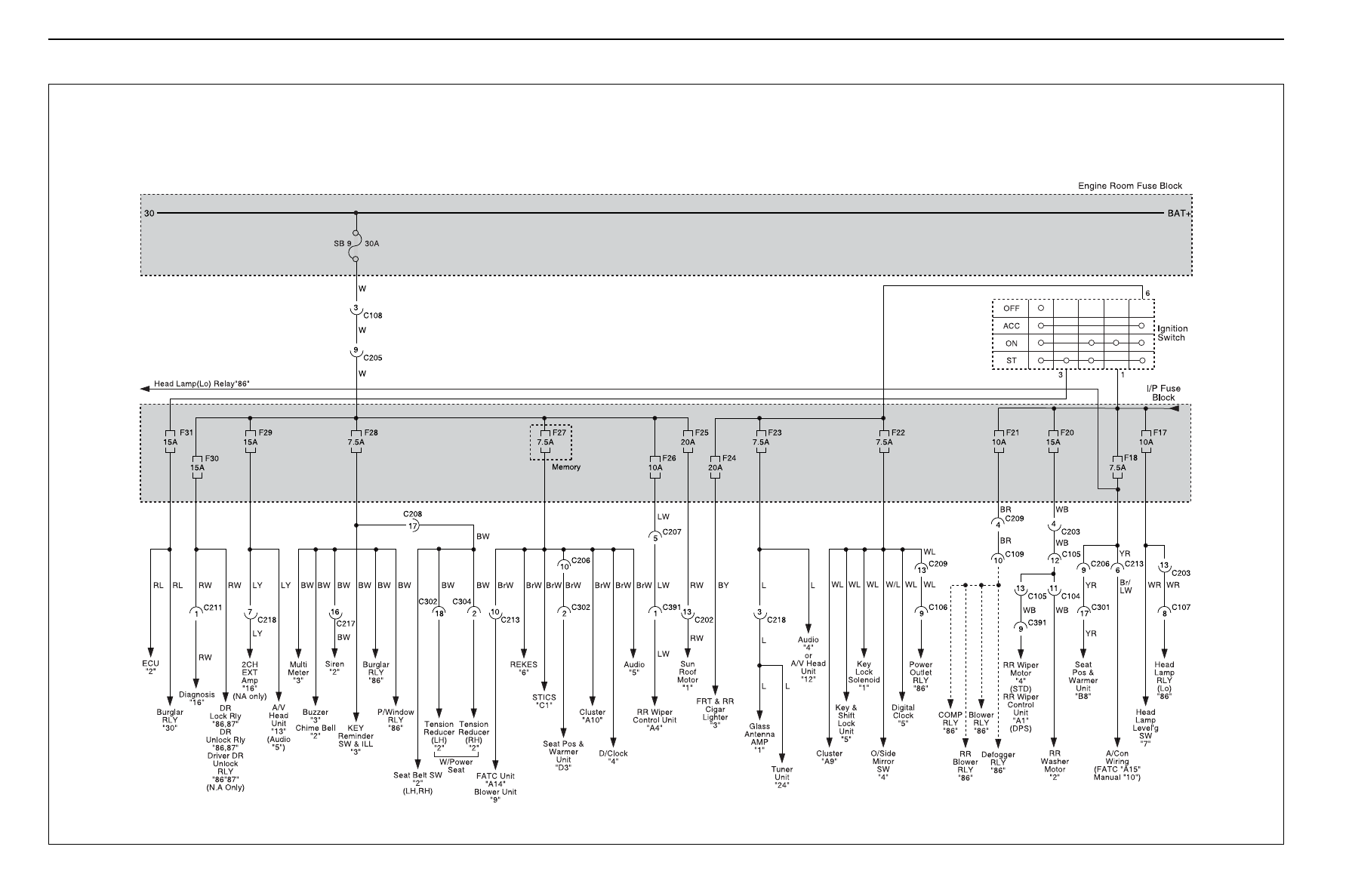

3-10  WIRING DIAGRAM FOR POWER SUPPLIES

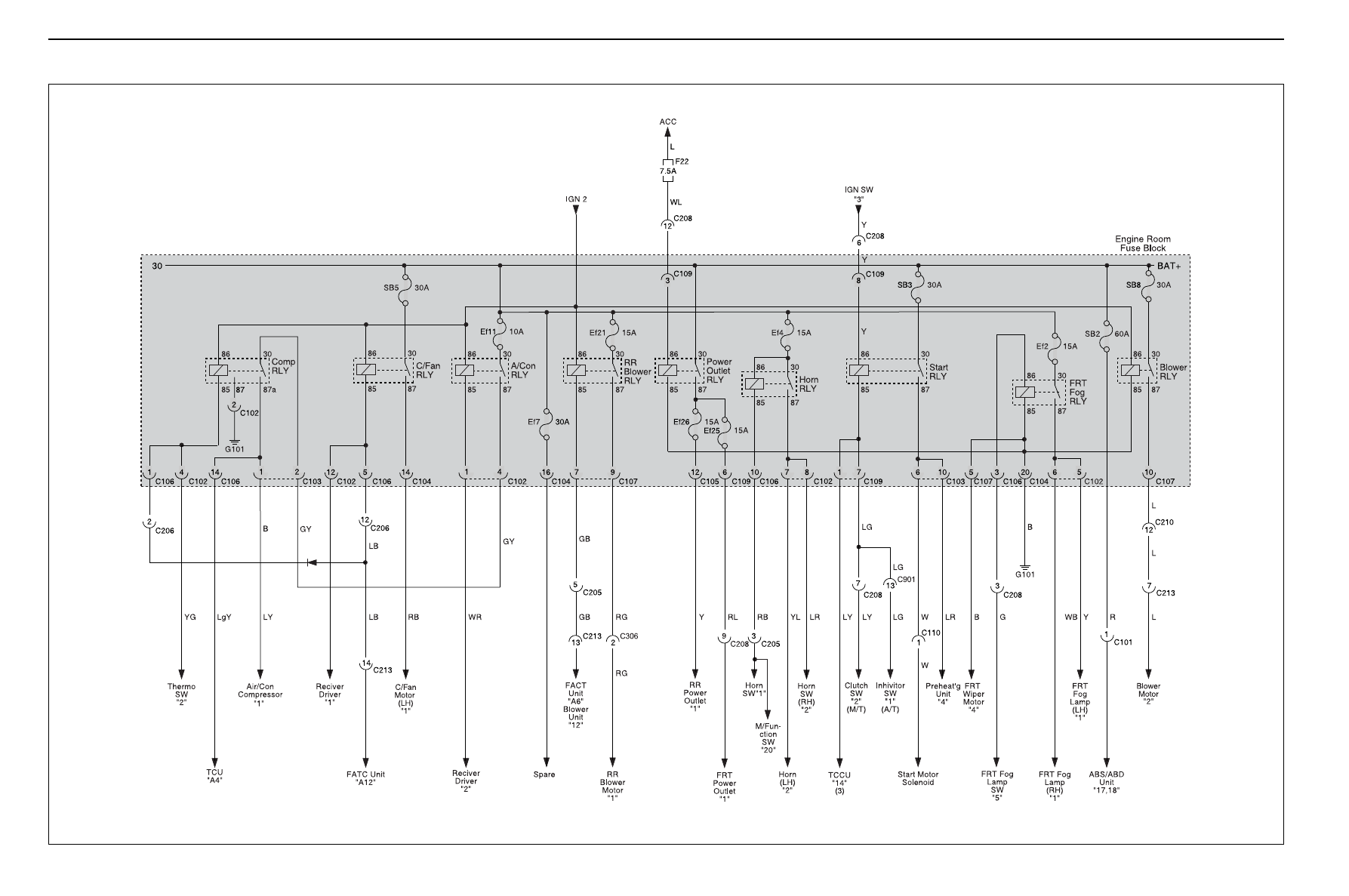

WIRING DIAGRAM FOR POWER SUPPLIES  3-11

SSANGYONG  REXTON XDi (LHD)

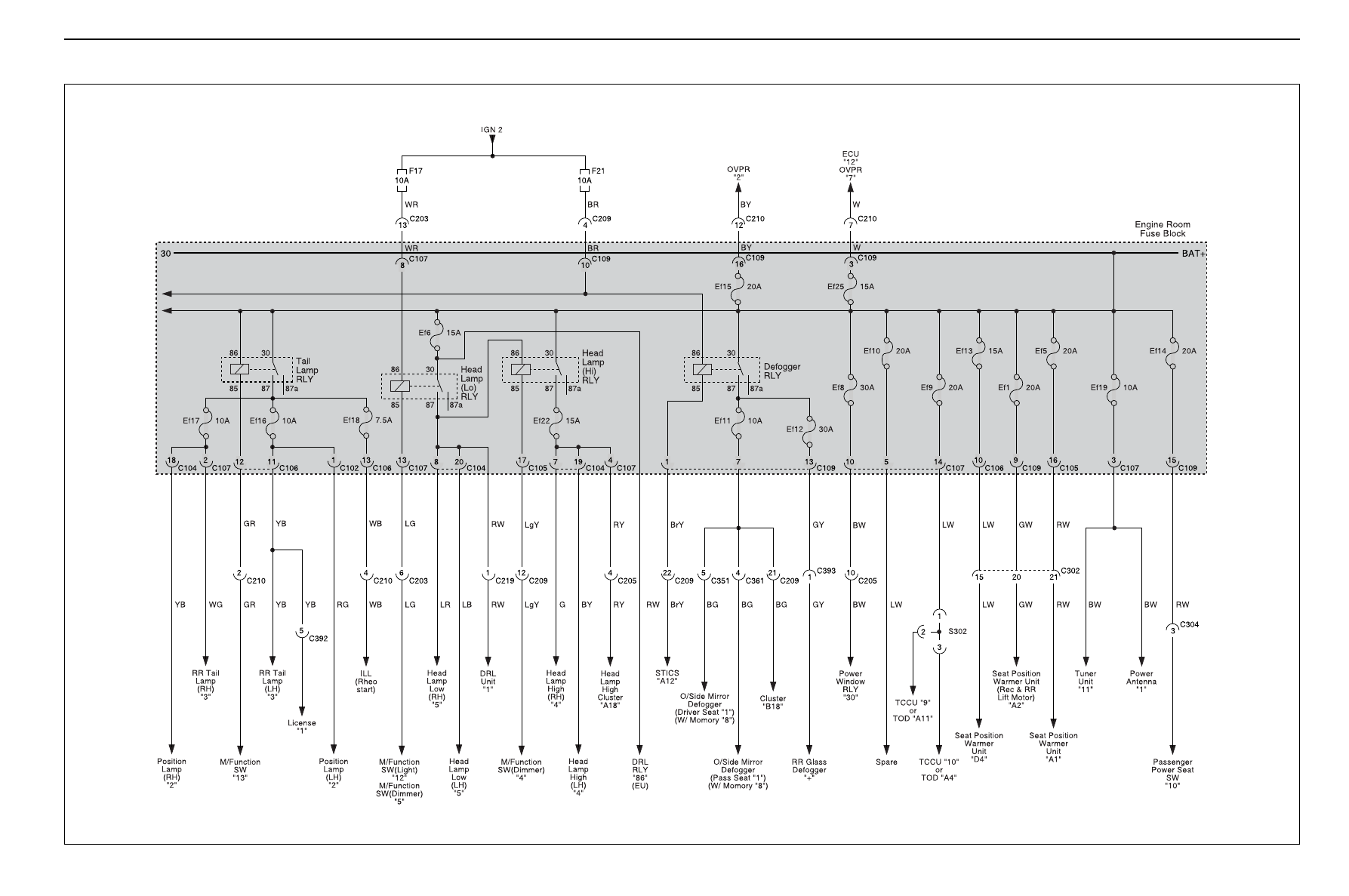

2. POWER WIRING DIAGRAM (GSL)

1)  ~ 2002 MODEL

SSANGYONG  REXTON XDi (LHD)

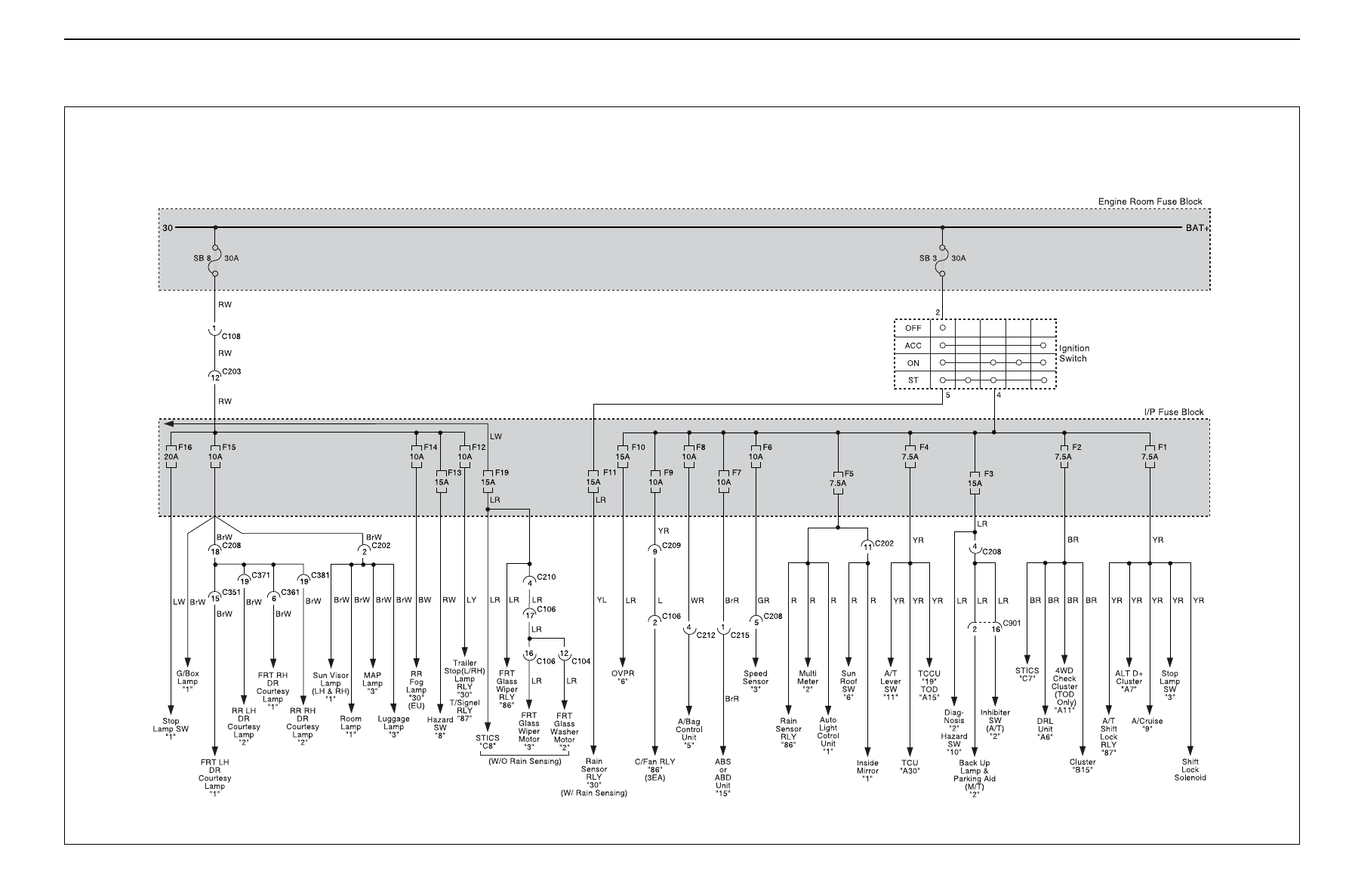

3-12  WIRING DIAGRAM FOR POWER SUPPLIES

WIRING DIAGRAM FOR POWER SUPPLIES  3-13

SSANGYONG  REXTON XDi (LHD)
