SSANGYONG  REXTON XDi(RHD)

5-56  ELECTRICAL WIRING DIAGRAMS

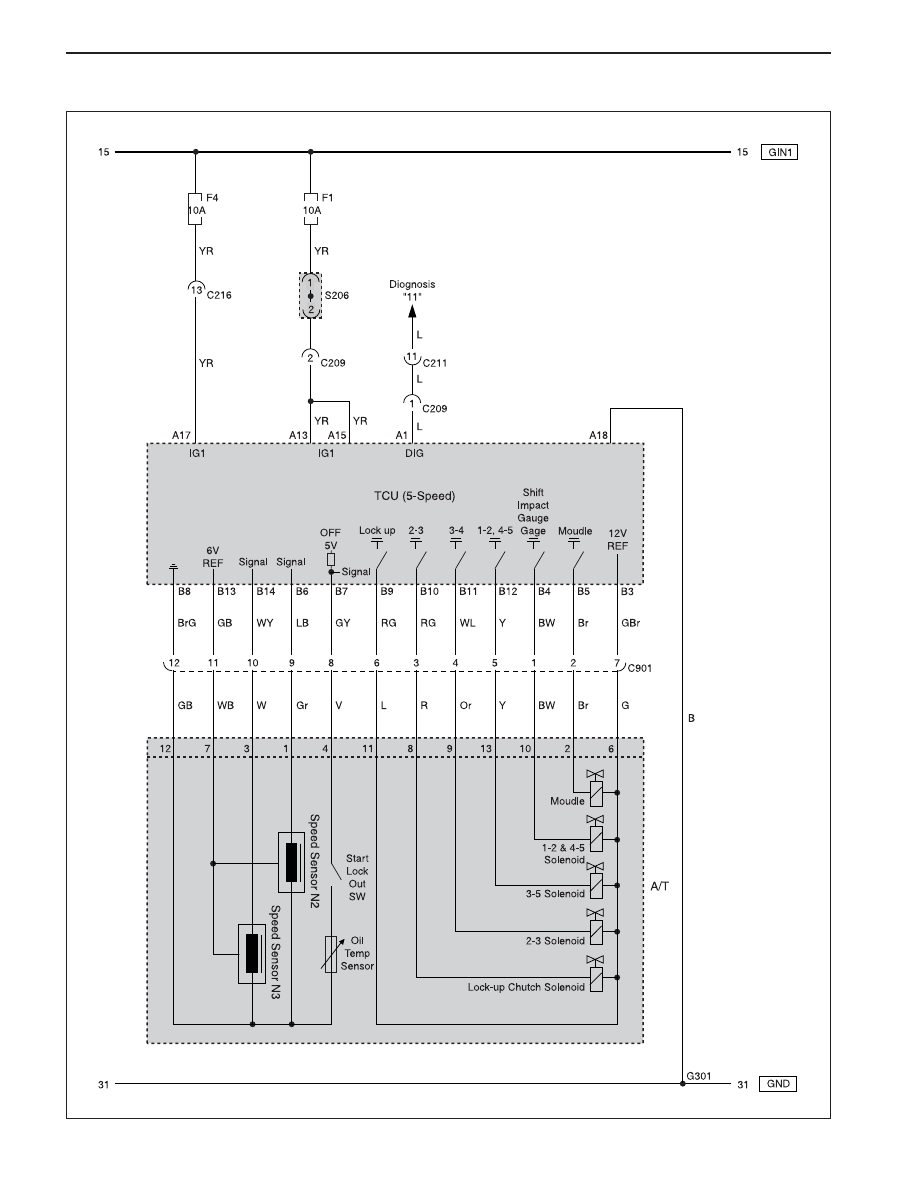

2) SOLENOID OIL TEMP SENSOR, SPEED SENSOR

ELECTRICAL WIRING DIAGRAMS  5-57

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

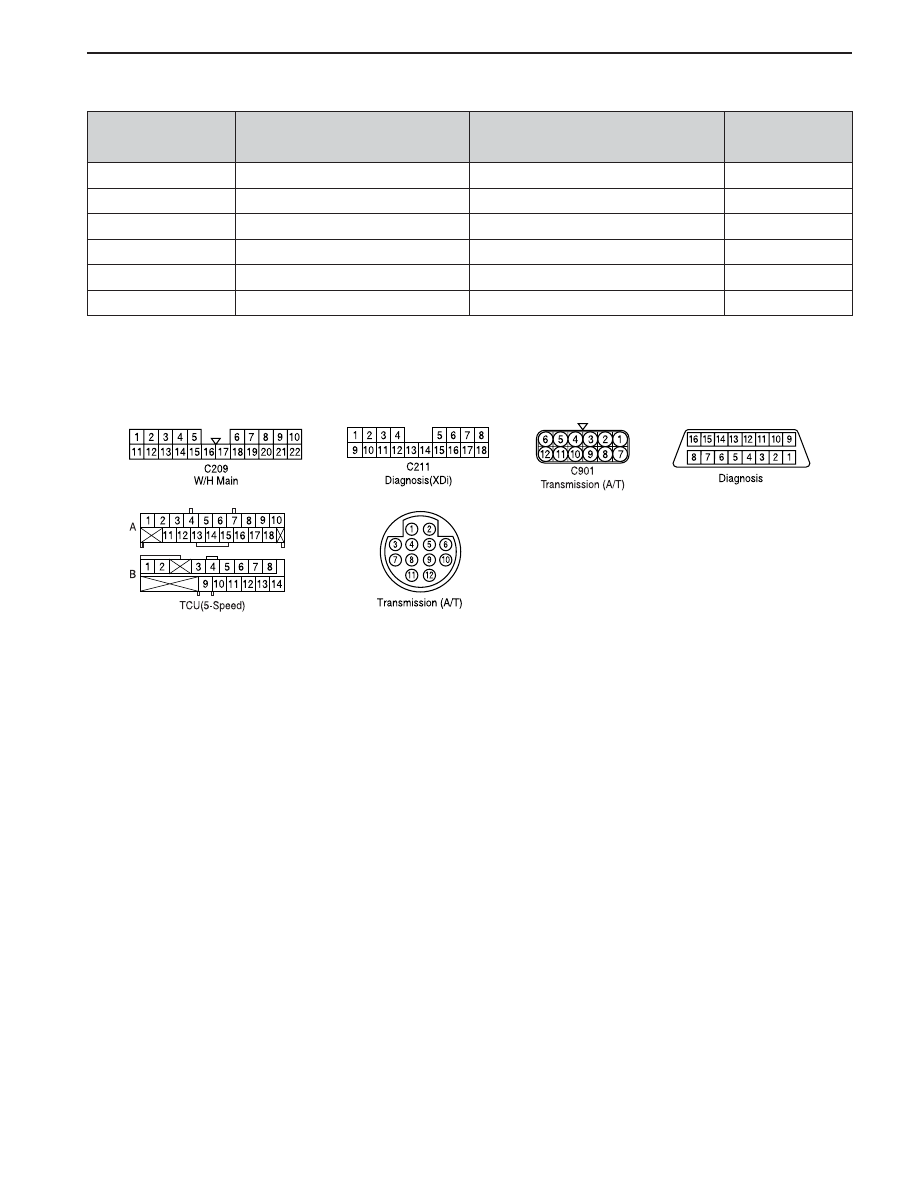

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Main - Floor(LH)

Main - Diagnosis Connector

Main - Floor(RH)

Floor - T/M

W/H Main

W/H Engine

C209(22Pin, Yellow)

C211(18Pin, White)

C216(13Pin, White)

C901(12Pin, White)

S206(14Pin, Black)

G103

Connecting Wiring

Harness

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Inside Driver Side Cowl PNL

Left the T/C(Under the Floor)

Behind the Left FATC

Behind the Left Head Lamp

XDi

XDi

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-58  ELECTRICAL WIRING DIAGRAMS

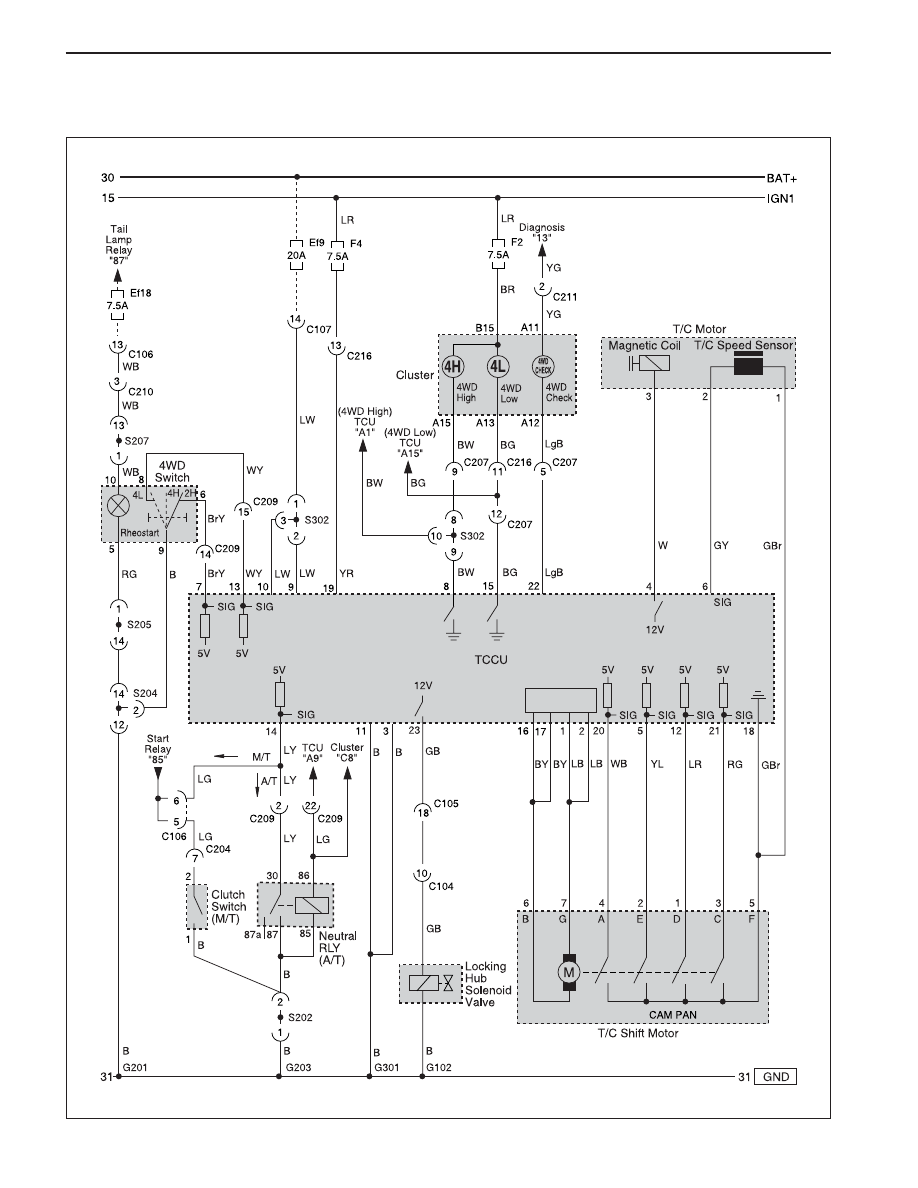

10. TCCU(TRANSFERCASE CONTROL UNIT)

1)  ~ 2002 MODEL

ELECTRICAL WIRING DIAGRAMS  5-59

SSANGYONG  REXTON XDi(RHD)

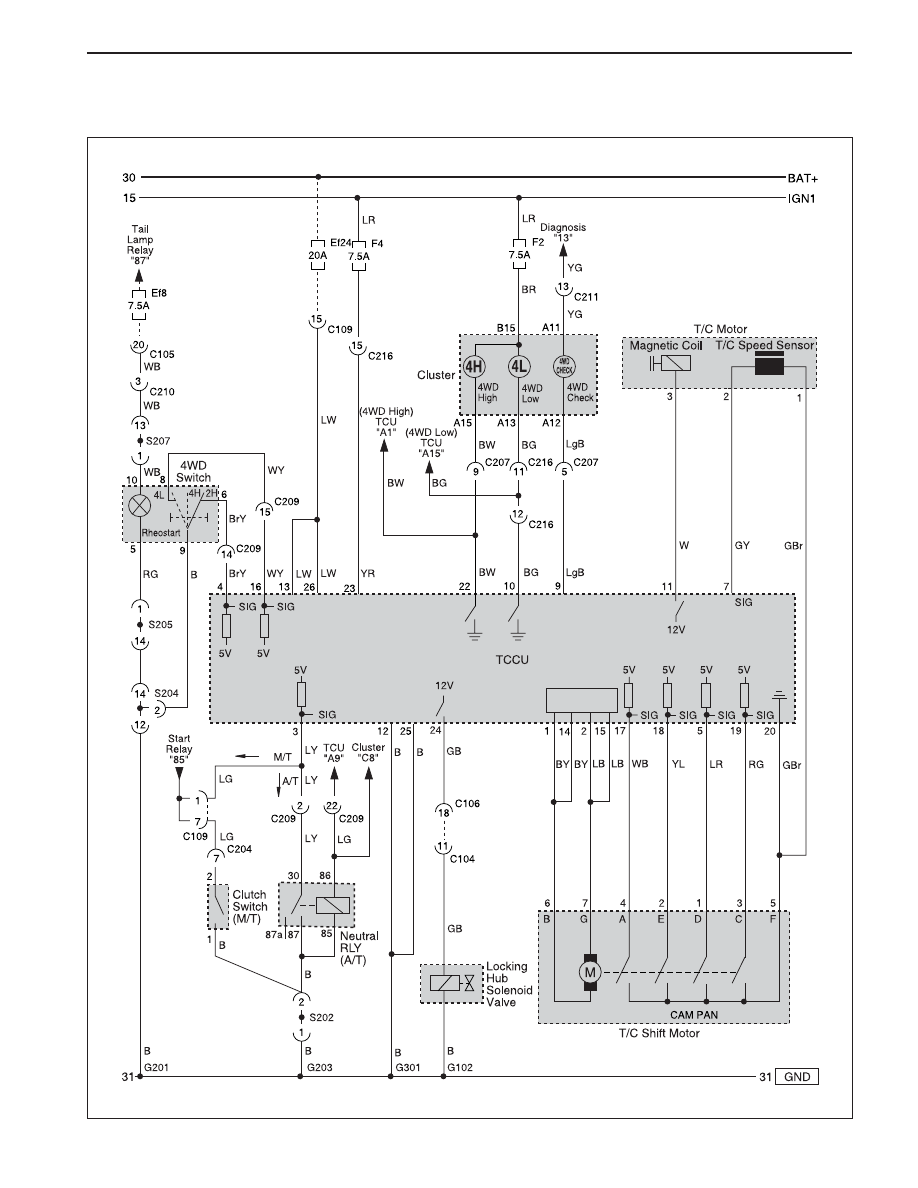

2) 2003 MODEL ~
