SSANGYONG  REXTON XDi(RHD)

5-44  ELECTRICAL WIRING DIAGRAMS

7. DIAGNOSIS CIRCUIT

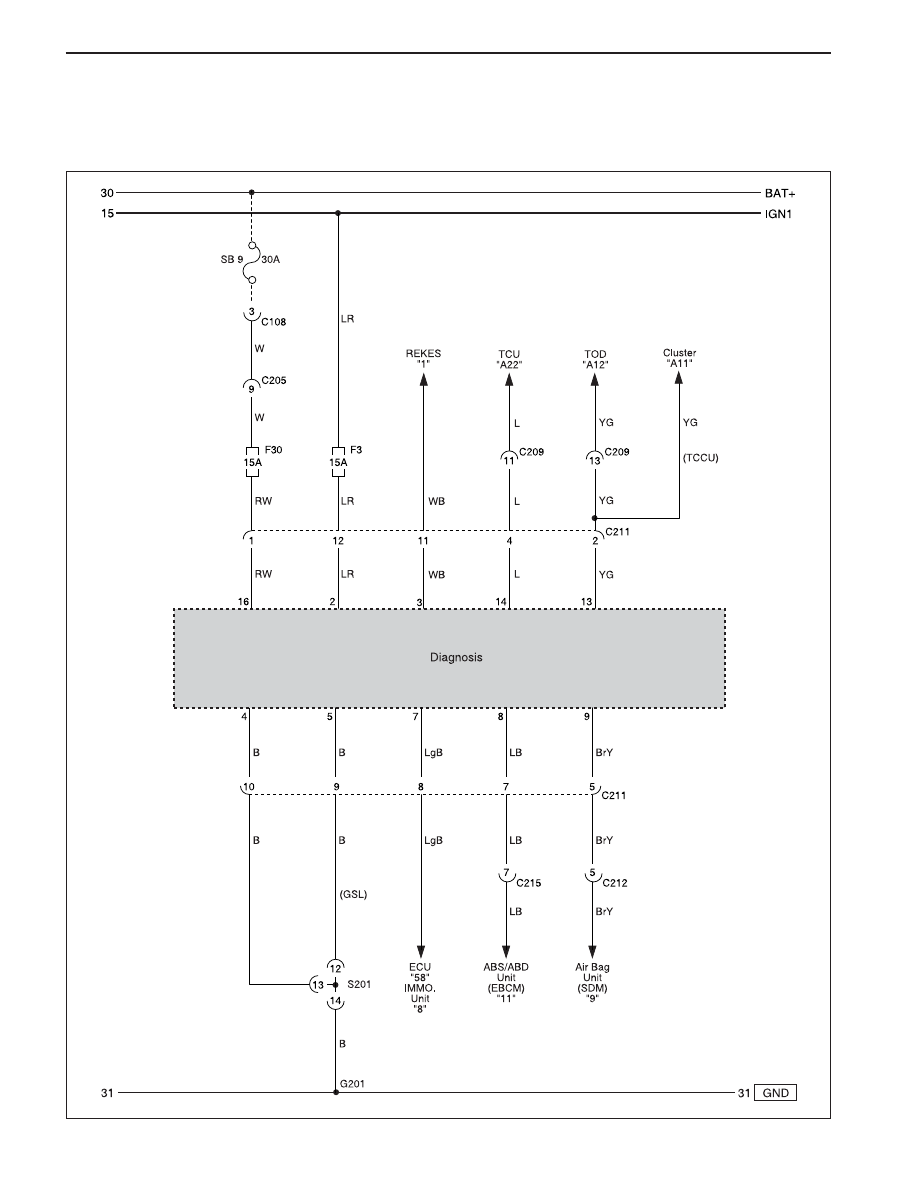

1) ~ 2002 MODEL

ELECTRICAL WIRING DIAGRAMS  5-45

SSANGYONG  REXTON XDi(RHD)

2) 2003 MODEL ~

(1) DSL, E23

SSANGYONG  REXTON XDi(RHD)

5-46  ELECTRICAL WIRING DIAGRAMS

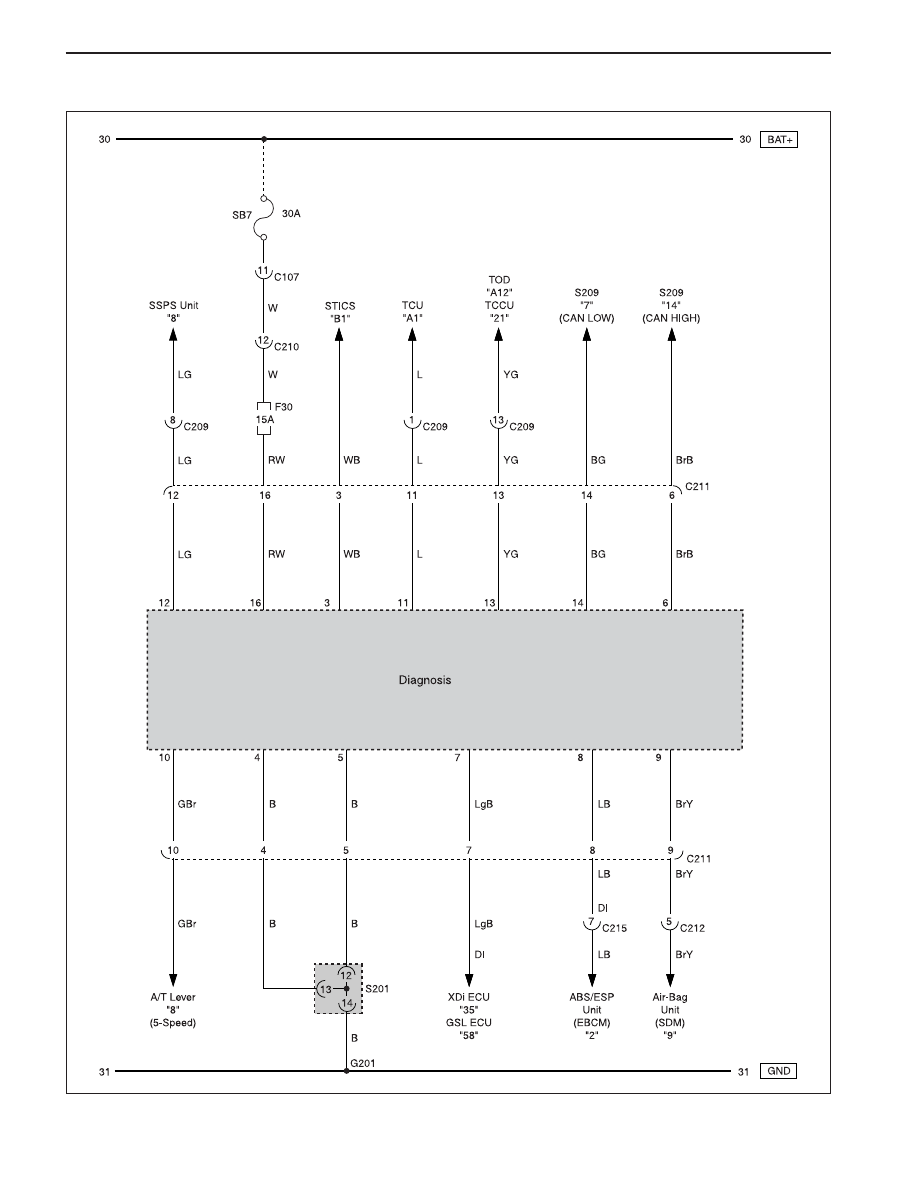

(2) XDi, E32

ELECTRICAL WIRING DIAGRAMS  5-47

SSANGYONG  REXTON XDi(RHD)

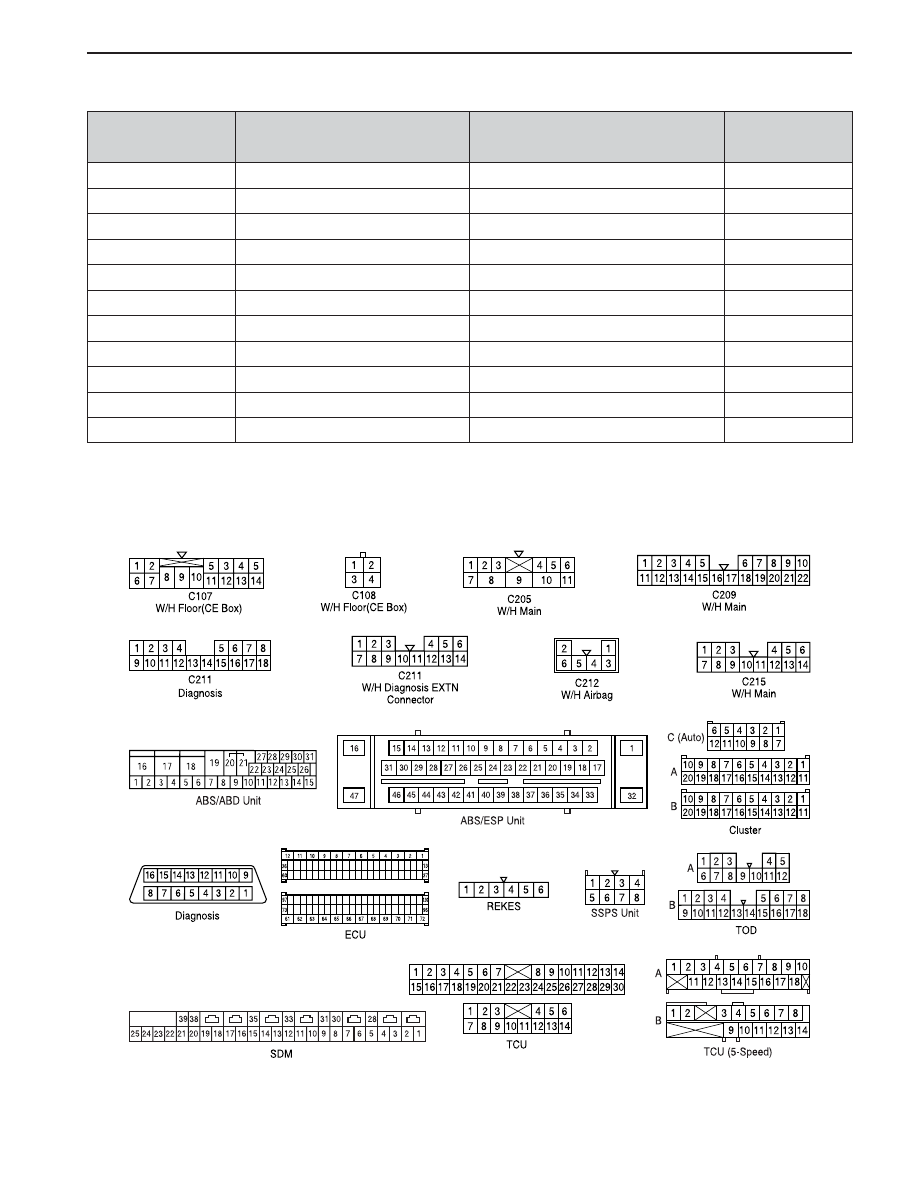

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(K) - Engine

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Diagnosis Connector

Main - Diagnosis Connector

Main - Air Bag

Engine - Main(RH)

W/H Main

W/H Main

C107(14Pin, White)

C108(4Pin, Colorless)

C205(11Pin, White)

C209(22Pin, Yellow)

C210(13Pin, Green)

C211(14Pin, White)

C211(18Pin, White)

C212(6Pin, White)

C215(14Pin, White)

S201(14Pin, Black)

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Upper the Diagnosis

Behind the Cluster(Inside Dash PNL)

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Inside Driver Side Cowl PNL

XDi

ABS, ABD

GND

Remark

Connector Position
