SsangYong Rexton. Manual - part 166





SSANGYONG  REXTON XDi(RHD)

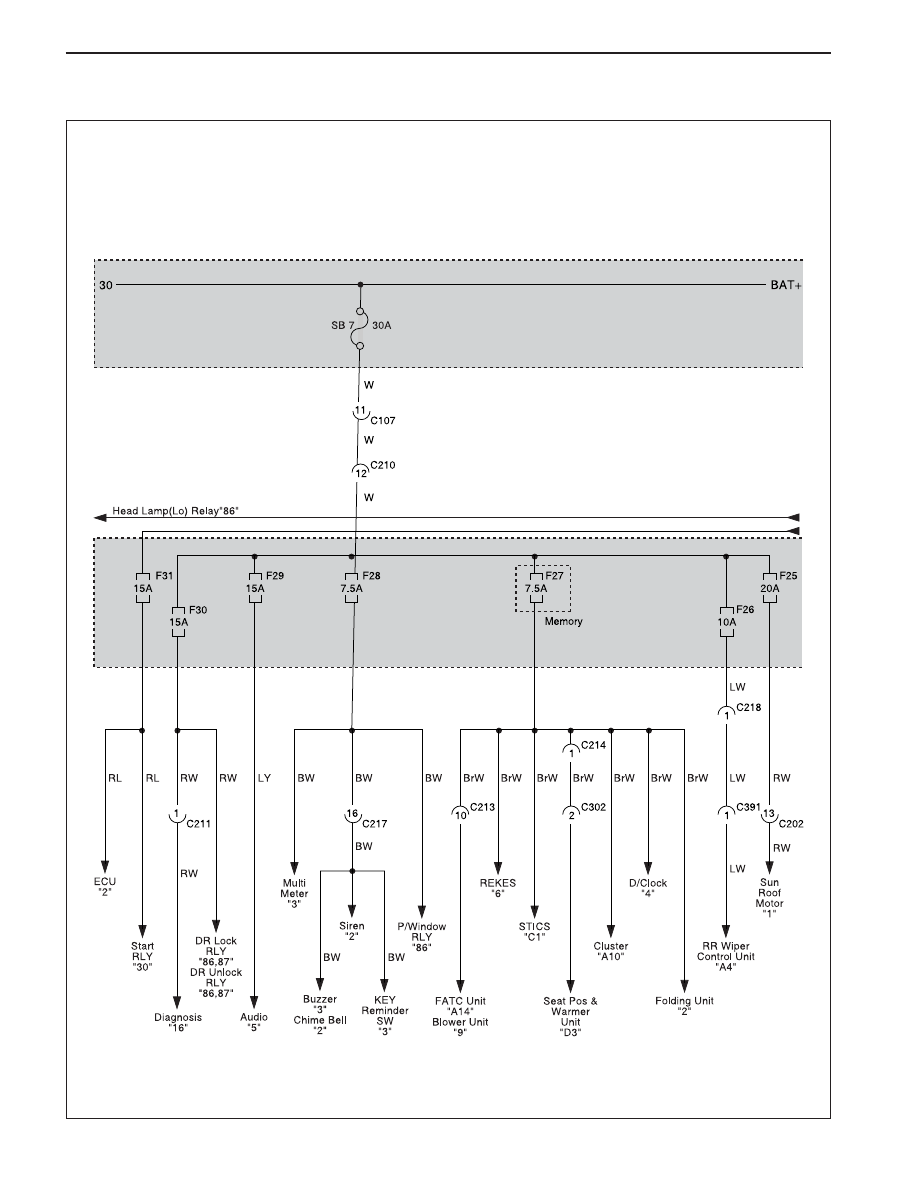

3-28  WIRING DIAGRAM FOR POWER SUPPLIES

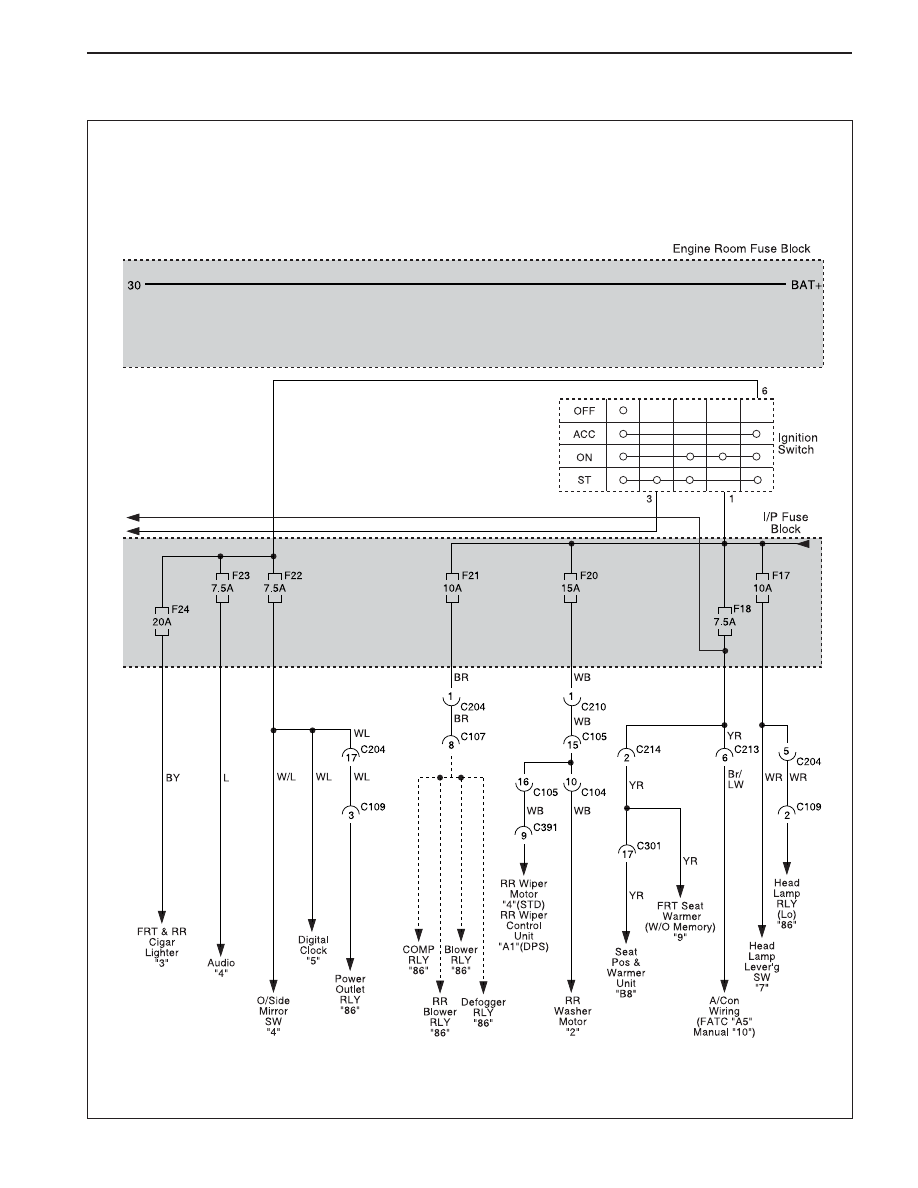

WIRING DIAGRAM FOR POWER SUPPLIES  3-29

SSANGYONG  REXTON XDi(RHD)

SSANGYONG  REXTON XDi(RHD)

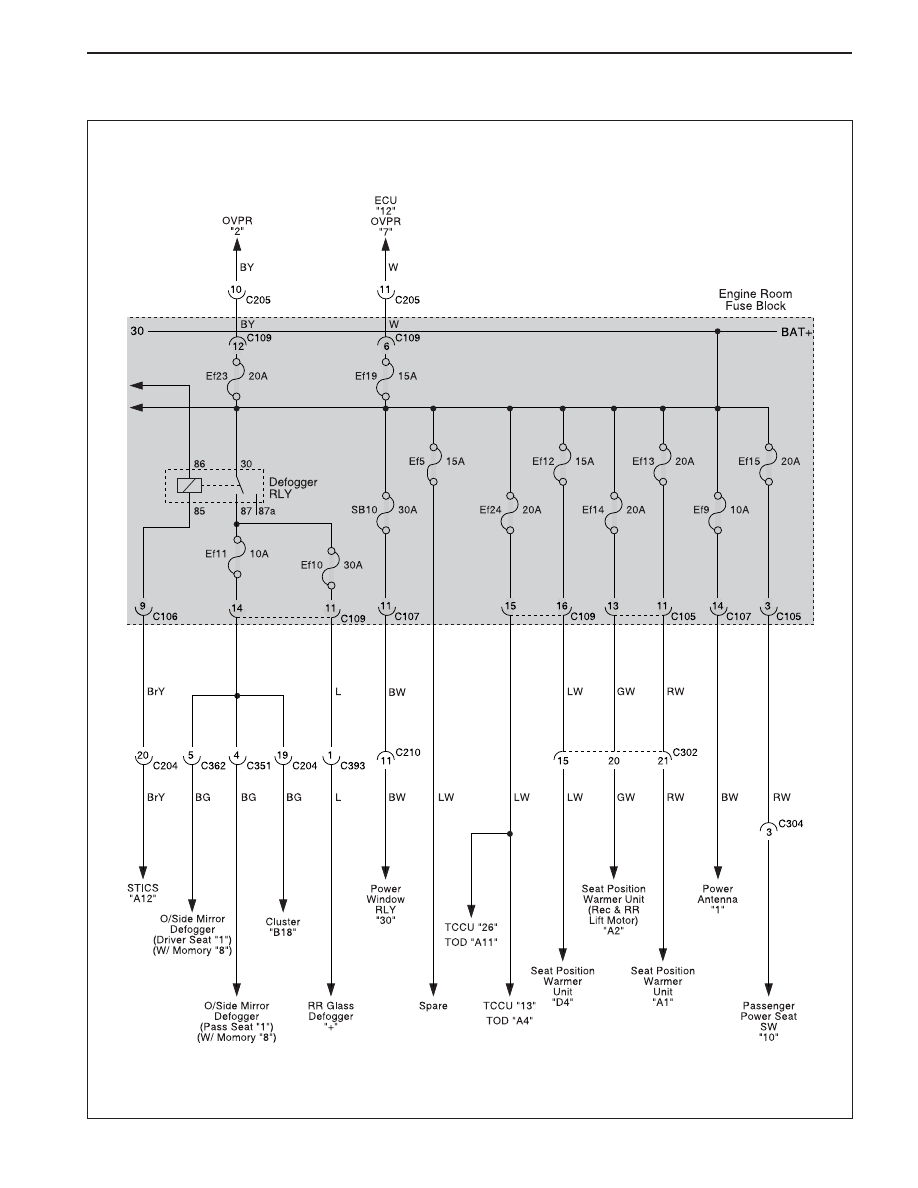

3-30  WIRING DIAGRAM FOR POWER SUPPLIES

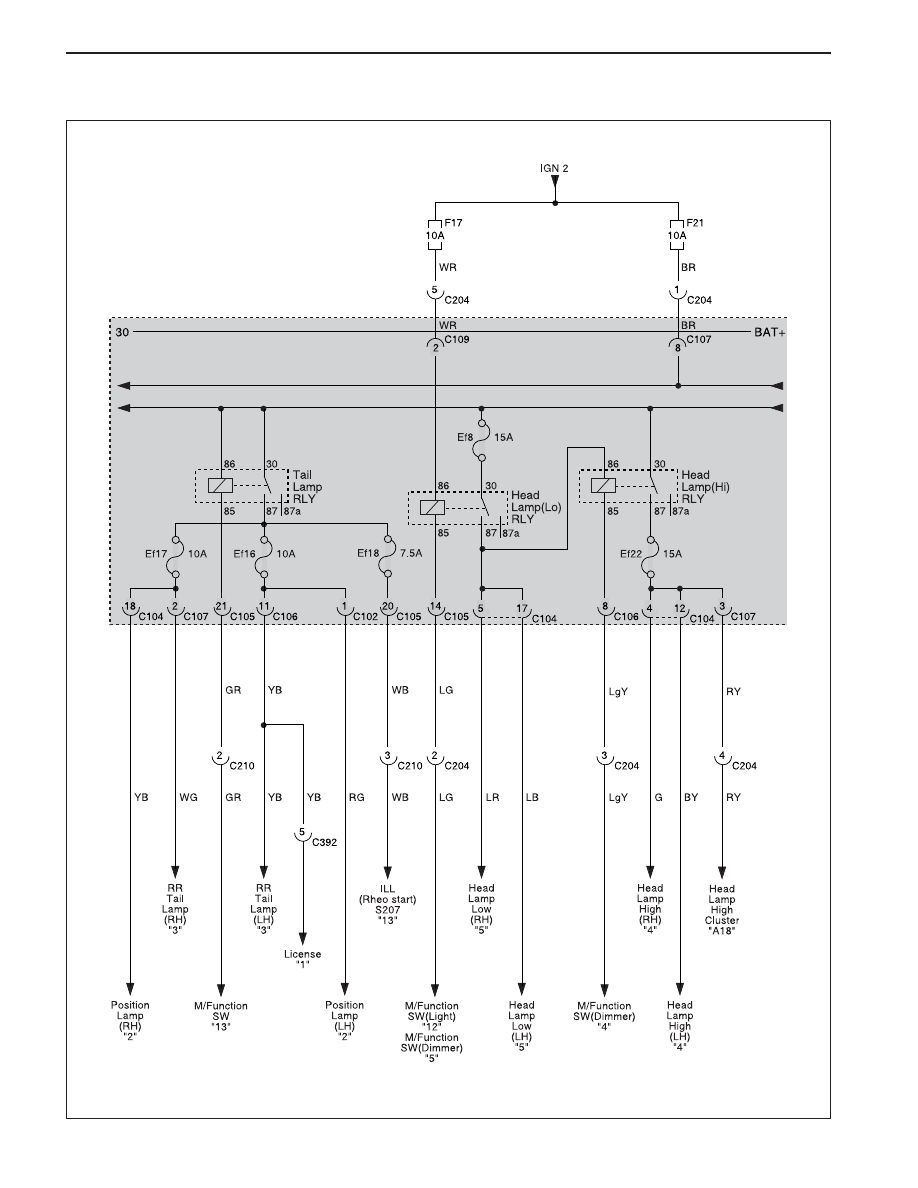

WIRING DIAGRAM FOR POWER SUPPLIES  3-31

SSANGYONG  REXTON XDi(RHD)
