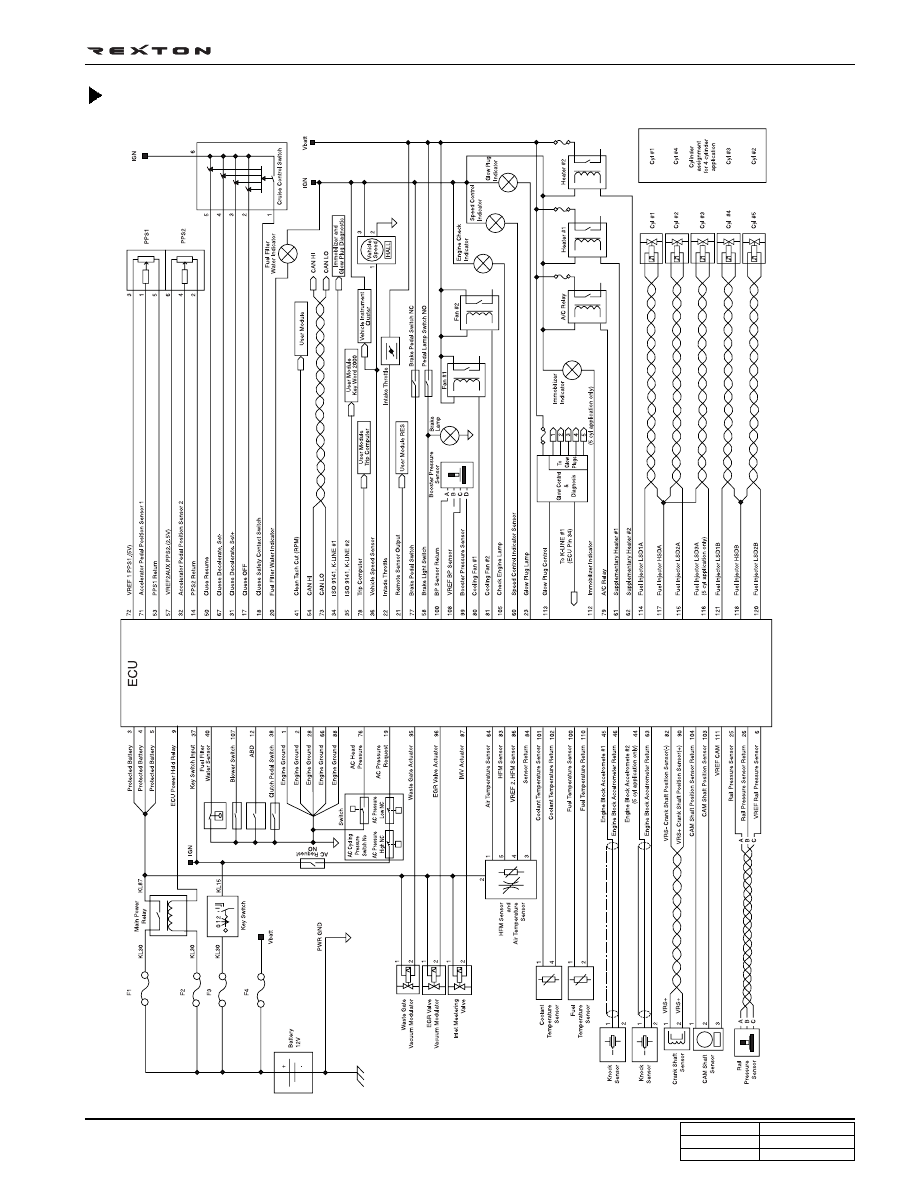

FUEL SYSTEM
DI ENG SM - 2004.4
Y220_07115
Y220_07116
Y220_07117
Y220_07118

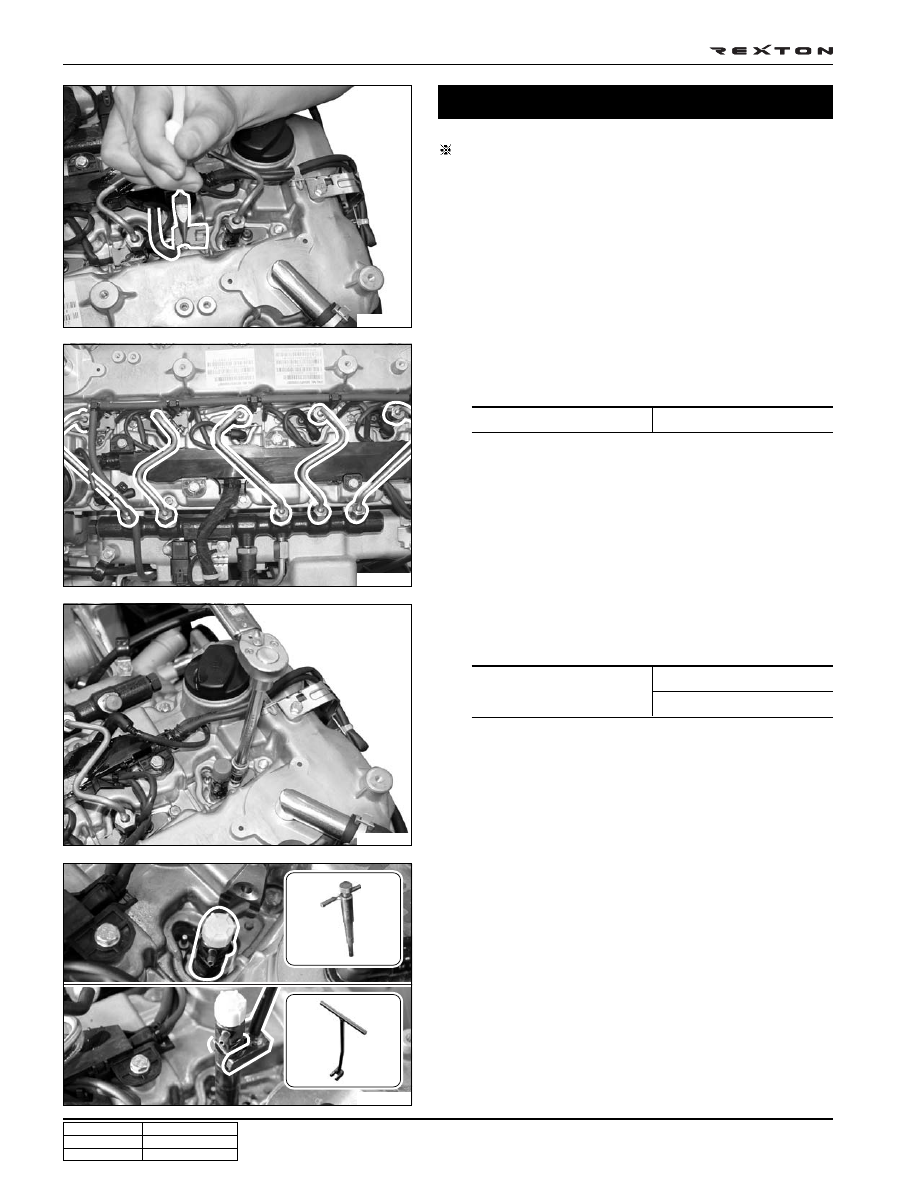

Removal and Installation
Preceding Work: Removal of engine cover
1. Disconnect the injector return hose.
3. Unscrew the bolts and remove the fuel pipes.
Installation Notice
4. Unscrew the injector holder bolts.
Installation Notice
6. Remove the injectors with a special tool.
Notice
• Plug the openings of the injectors with sealing caps.
• Pull the dropped washer out from the engine with
a special tool.
• Clean carbon deposite in hole with specific tool.
7. Install in the reverse order of removal.
8. Do not forget to update C2I with Scan 100 and cross old
C2I on label fitted on engine.
Notice
Replace the copper washer, holder bolts and washer
and fuel supply pipes with new ones.
2. Remove the relevant connector for the injector.
5. Disconnect the injector holder.
Notice
Plug the openings with sealing caps.
Installation Notice
• Replace the fuel pipes with new ones.
• Plug the openings of the common rail with sealing
caps.
Replace the bolts and washer with new ones.
Tightening torque
40 ± 10 Nm
Tightening torque
9 ± 1.0 Nm
180° ± 10°
