COOLING SYSTEM

DI ENG SM - 2004.4

COOLING SYSTEM

 00

SECTION DI06

Table of Contents

COOLING SYSTEM .................................................... DI06-3

ENGINE COOLING SYSTEM ...................................... DI06-4

Specifications ........................................................ DI06-10

INSPECTION AND REPAIR ....................................... DI06-14

Inspection .............................................................. DI06-14

REMOVAL AND INSTALLATION ............................... DI06-16

PREHEATING SYSTEM ............................................ DI06-29

Overview ............................................................... DI06-30

Preheating relay ................................................... DI06-30

Preheating system diagram .................................. DI06-31

DI06-3

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

COOLING SYSTEM

DI ENG SM - 2004.4

Y220_06001

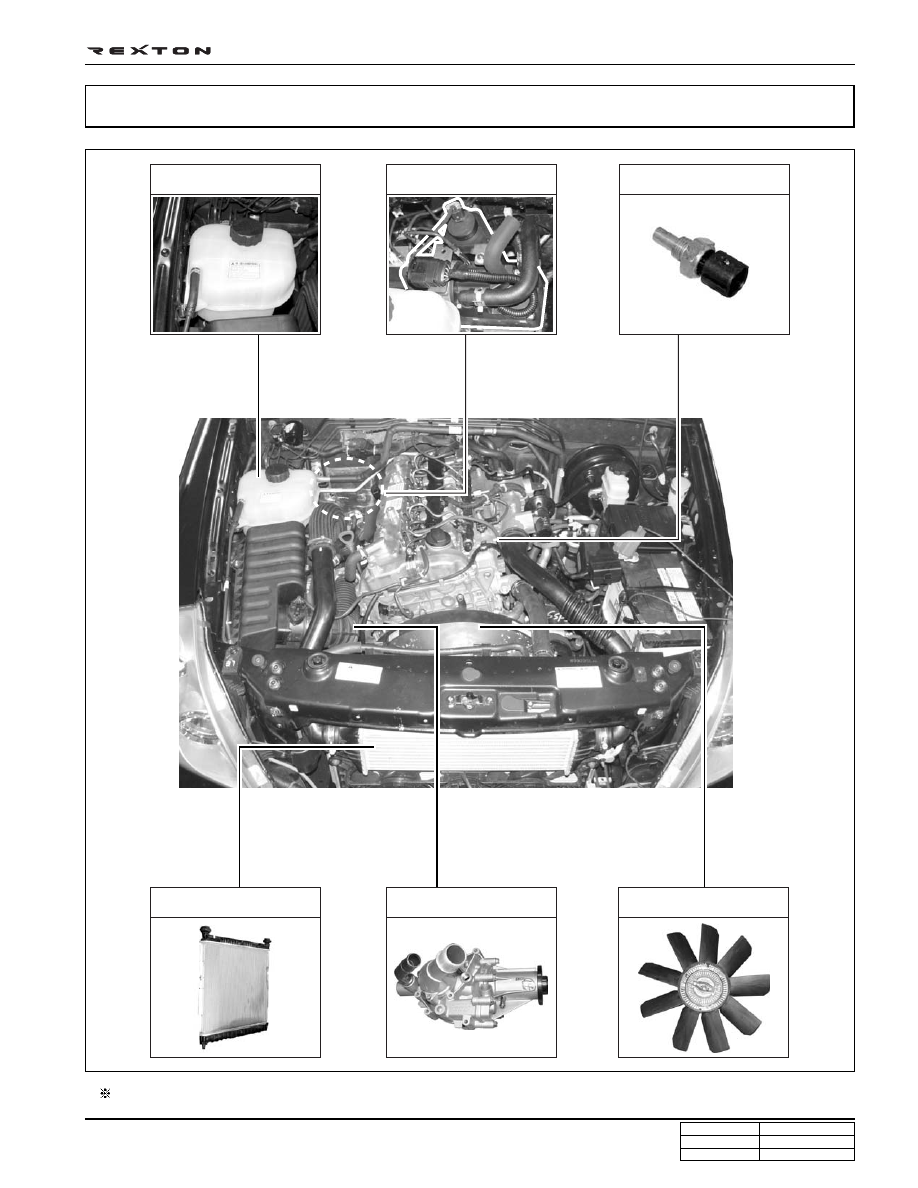

COOLING SYSTEM

FFH (Fuel Fired Heater): refer to “FFH System” in this manual.

Coolant reservoir

Radiator

Cooling fan

Water pump

FFH

Coolant temperature

sensor

DI06-4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

COOLING SYSTEM

DI ENG SM - 2004.4

Y220_06002

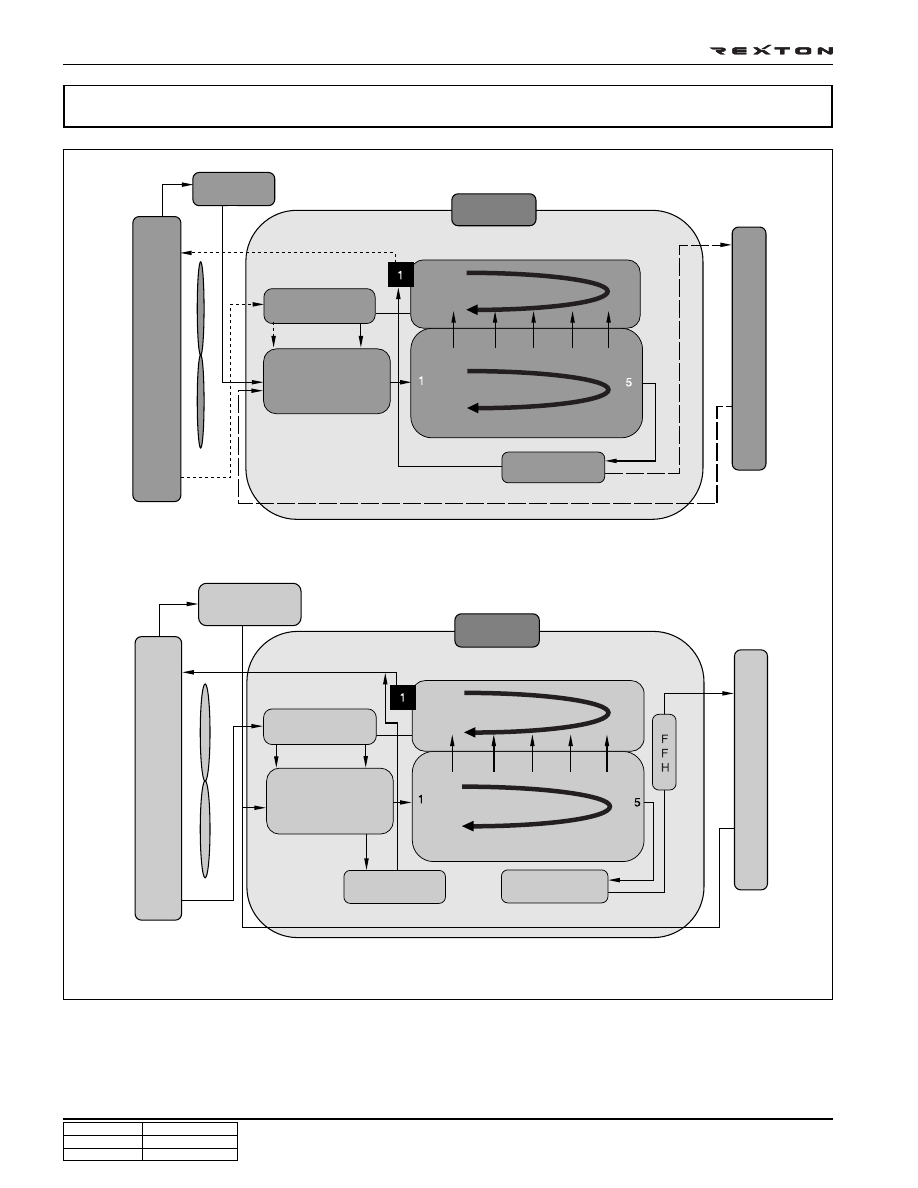

ENGINE COOLING SYSTEM

• Cylinder block side

Block #5

→ Oil cooler → Heater → Heater water pump inlet pipe → Water pump

• Cylinder head side

Cylinder head

→ Coolant outlet port (intake #1) → Radiator → Water pump

<PTC Engine Coolant Flows>

<FFH Engine Coolant Flows>

Radiator

Coolant

reservoir

Thermostat

Water pump

Engine

Cylinder head

Cylinder block

Oil cooler

Heater

Radiator

Coolant

reservoir

Thermostat

Water pump

Engine

Cylinder head

Cylinder block

Oil cooler

Heater

EGR cooler

(henceforth)

(Heater line)
