LUBRICATION SYSTEM

DI ENG SM - 2004.4

Y220_05001

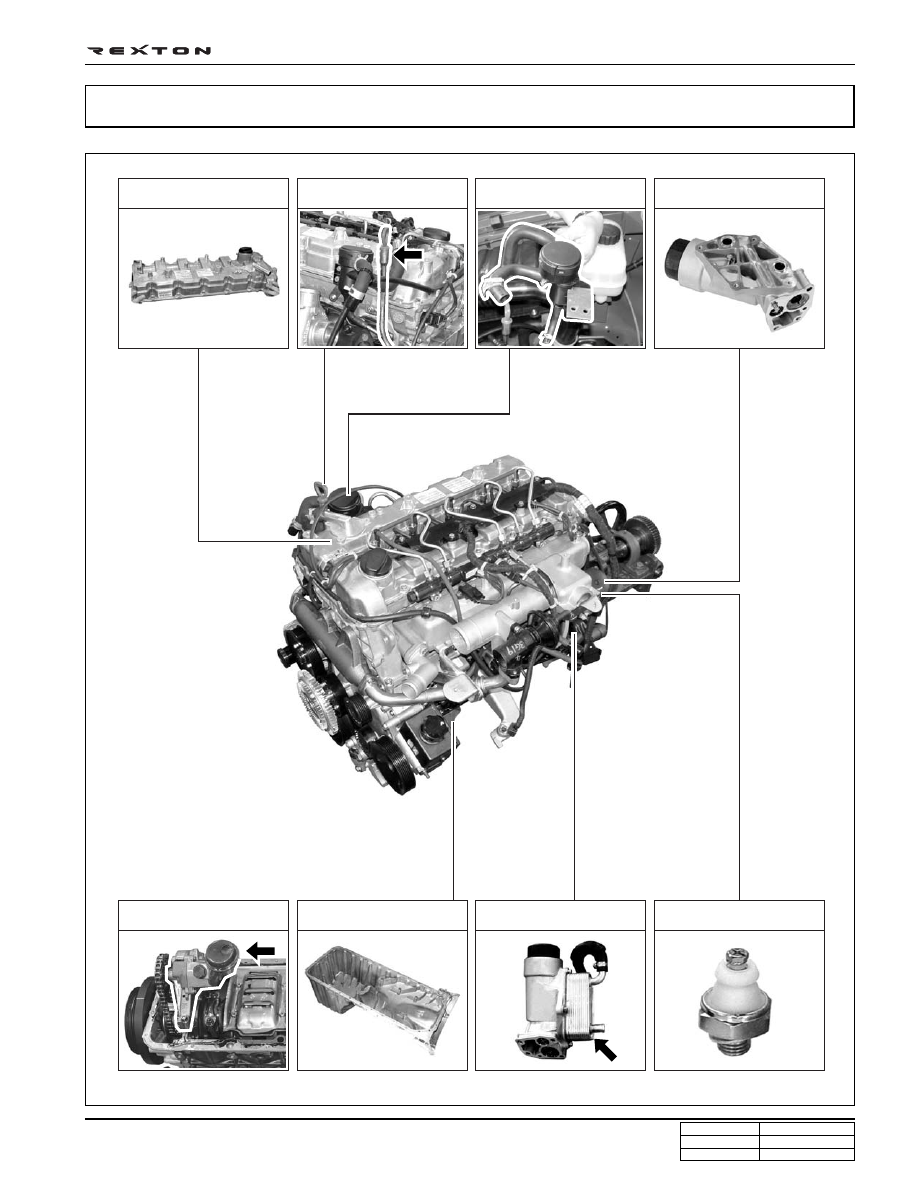

LUBRICATION SYSTEM

Cylinder head cover

Oil dipstick

Oil separator

Oil filter

Oil pump

Oil pan

Oil cooler

Oil pressure switch

DI05-4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.4

Y220_05002

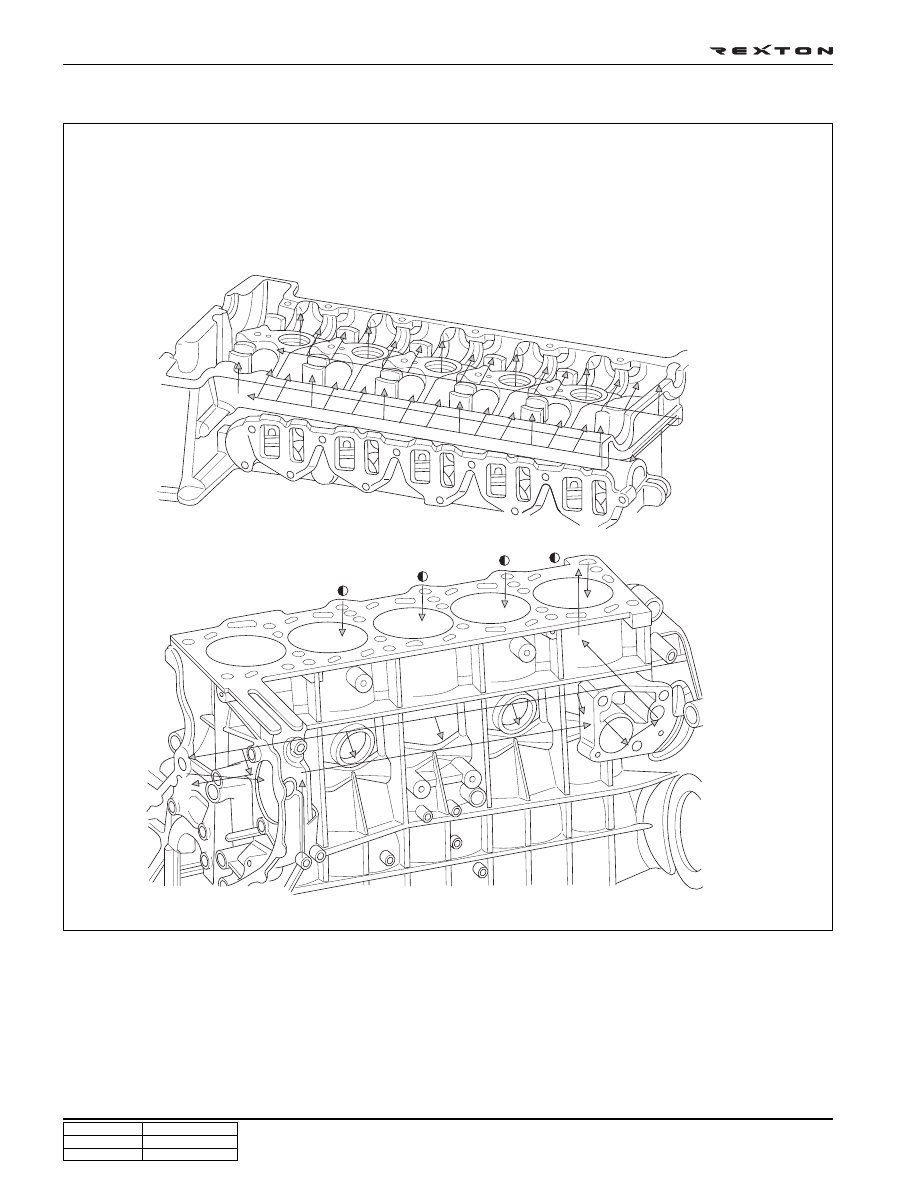

LUBRICATION SYSTEM LAYOUT

Cylinder head

Cylinder block

Main oil gallery:

φ 16

Hole to cylinder head:

φ 9

Main bearing hole:

φ 7

Chain and injection pump:

φ 7

Return hole:

φ 14

Chain nozzle:

φ 1

HP pump bearing:

φ 6

DI05-5

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.4

Y220_05003

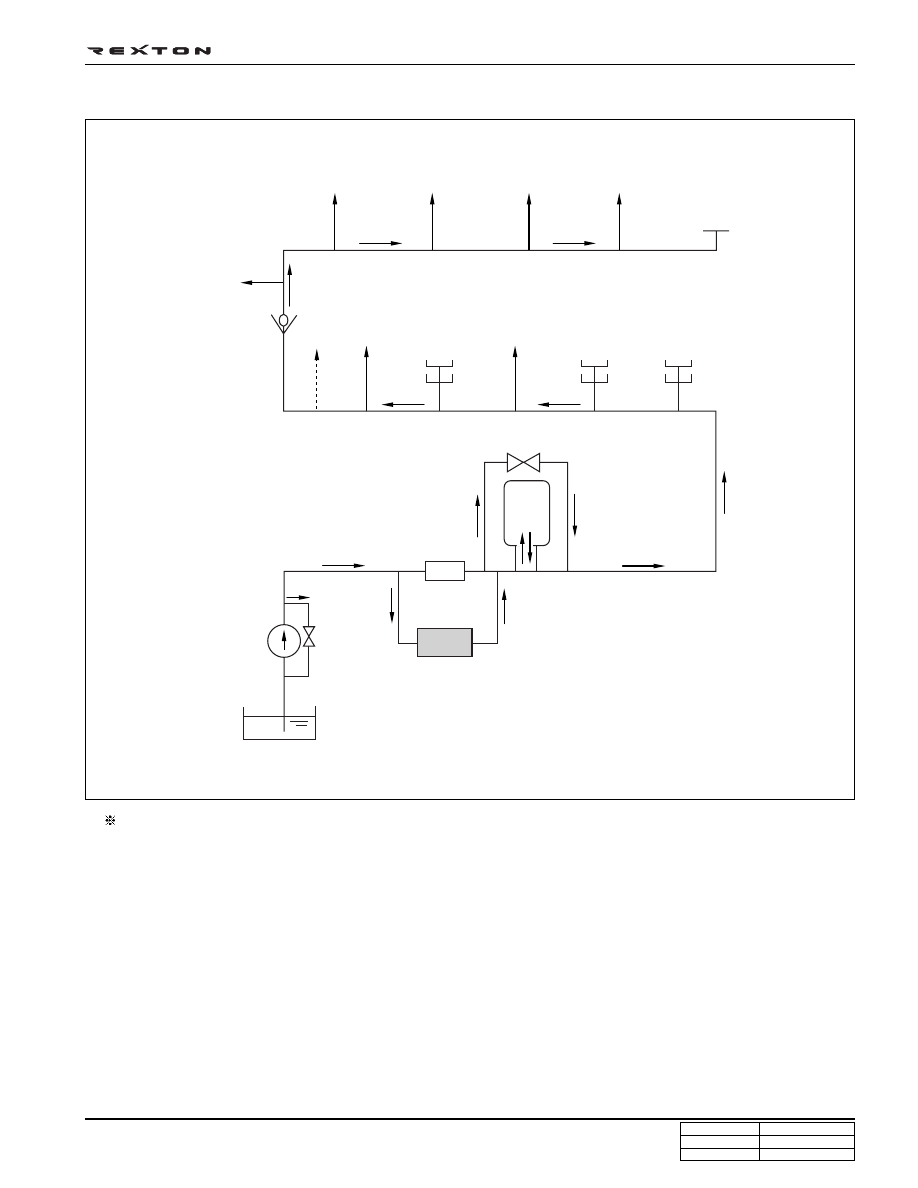

LUBRICATION DIAGRAM

1. Opening pressure of by-pass valve in oil filter: 3 ± 0.4 bar

2. To prevent instant oil shortage after stopping the engine, the return check valve is installed in oil supply line of

cylinder head.

Oil injection nozzle

REF-Roller

Camshaft bearing

Vacuum pump

Oil tensioner

check valve

Chain lubrication

Return check valve

to cylinder head

Thrust bearing

Turbo charger

Connecting rod bearing Main bearing

Clean oil gallery

Filter by-pass valve

Oil

filter

By-pass throttle

Oil cooler

Relief valve

Contaminated oil

gallery

Oil pump

Fuel tank
