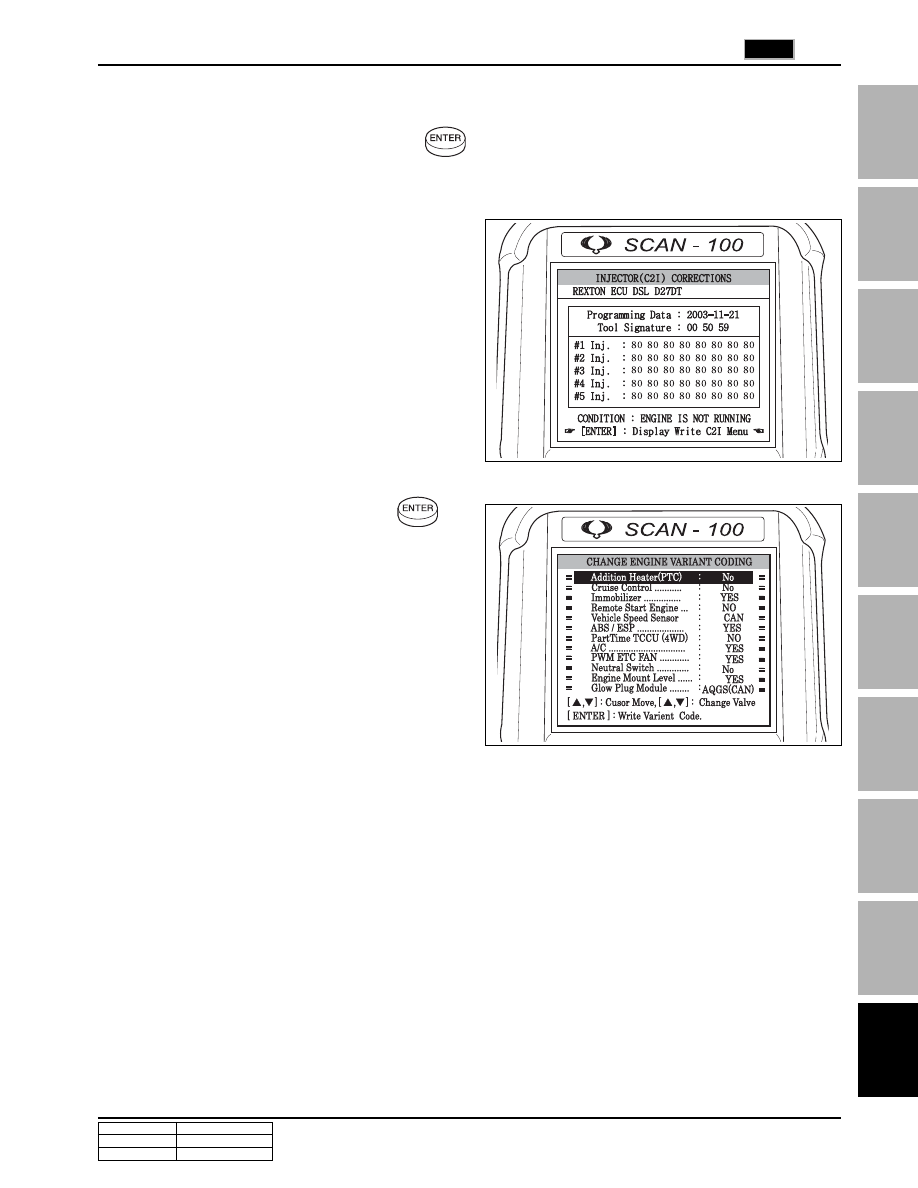

CHANGED BY EFFECTIVE DATE AFFECTED VIN 25 1491 DIAGNOSIS D27DTP/D27DT (EU4) SM - 2006.08 D27DTP/D27DT (EU4) ENGINE FUEL I N T AKE EXHAUST PRE-HEA TING LUB COOLING SWITCHABLE ECU DIAGNOSIS 11. Select “6] INJECTOR (C2I or C3I) CORRECTIONS” and press “ENTER”. Remove the engine acoustic cover and enter the 16 or 20 character code on each injector label for all injectors. Enter the correct injector code after pressing with the ignition “ON”. (The nearest injector from the radiator is number 1 and the number goes higher as it moves away.) 12. Select “7] VARIANT CODING” and press to change the item. * The figure shows that C2I is not coded. |
