SsangYong: Engine Euro 4. Manual

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1491

ENGINE ECU

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

100

101

102

103

104

105

106

107

108

109

ACC1 sensor signal

CAN - LO

A/CON pressure switch

Brake switch (stop lamp switch)

A/CON pressure switch

Cooling fan LOW

Cooling fan HIGH

Crank position sensor ground

HFM sensor (air mass signal)

HFM sensor (ground)

HFM sensor (power supply)

IMV (fuel pressure regulating valve)

Engine ground

Crank position sensor signal

Waste gate actuator vacuum modulator

EGR valve Vacuum modulator

Booster pressure sensor signal

Booster pressure sensor ground

Coolant temperature signal

Coolant temperature sensor ground

Cam position sensor signal

Cam positionsensor ground

Engine malfunction indicator light
(Instrument panel)

A/CON blower switch

Booster pressure sensor signal

Fuel temperature sensor signal

Pin No.

D27DT Engine

Remarks

←
←
←

←
←

←
←
←
←
←
←

←
←
←

←

←
←

←
←
←
←
←
←
←

Pressure difference sensor signal

←
←
←

D27DT + CDPF Engine

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1491

ENGINE ECU

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

Each pin number for D27DT engine and D27DT engine with CDPF is same. However, their engine ECUs are not
same.

With the CDPF, the functions related to the following sensors are added to the ECU pins.

1. Exhaust gas temperature sensor: ECU pin #13, #31 (front exhaust gas temperature sensor),

ECU pin #67, #68 (rear exhaust gas temperature sensor)

2. Pressure difference sensor (DP sensor): ECU pin #51, 65 and 106

3. Throttle body vacuum modulator: ECU pin #22

110

111

112

113

114

115

116

117

118

119

120

121

Fuel temperature sensor ground

Cam position sensor power supply

Immobilizer warning lamp

Glow plug control signal (R / Y)

Injector # 1

Injector # 4

Injector # 3

Injector power supply (#1. 3. 4)

Injector power supply (#2, 5)

Injector # 5

Injector # 2

Pin No.

D27DT Engine

Remarks

←
←
←
←
←
←
←
←
←

←
←

D27DT + CDPF Engine

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1491

ENGINE ECU

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

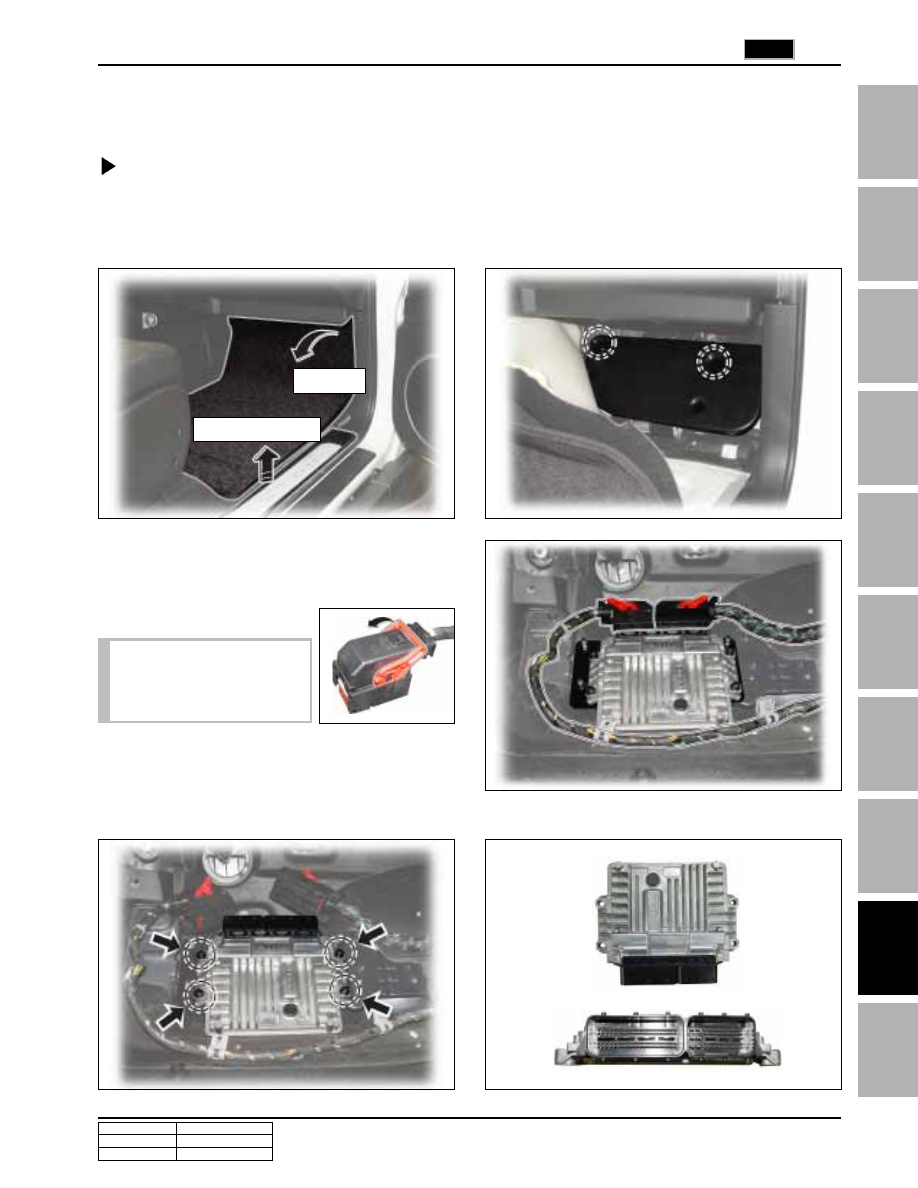

2. Remove the LH/RH connectors of the ECU unit.

3. Unscrew four ECU unit mounting nuts and remove the ECU unit.

B. Carpet

A.Door scarf panel

3. REMOVAL AND INSTALLATION OF ENGINE ECU

(BASED ON D27DTP (POWER UP) ENGINE)

Removal and Installation

Ú Preceding Work: Disconnect the battery negative cable.

1. Open the passenger’s door and remove the carpet (B) and door scarf panel (A). lift the front side of the floor mat

and cover mounting nuts on the ECU unit and remove the ECU unit cover.

• Push the fixing lever on the

connector to the front to
disconnect the connector.

NOTE

MEMO

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................
