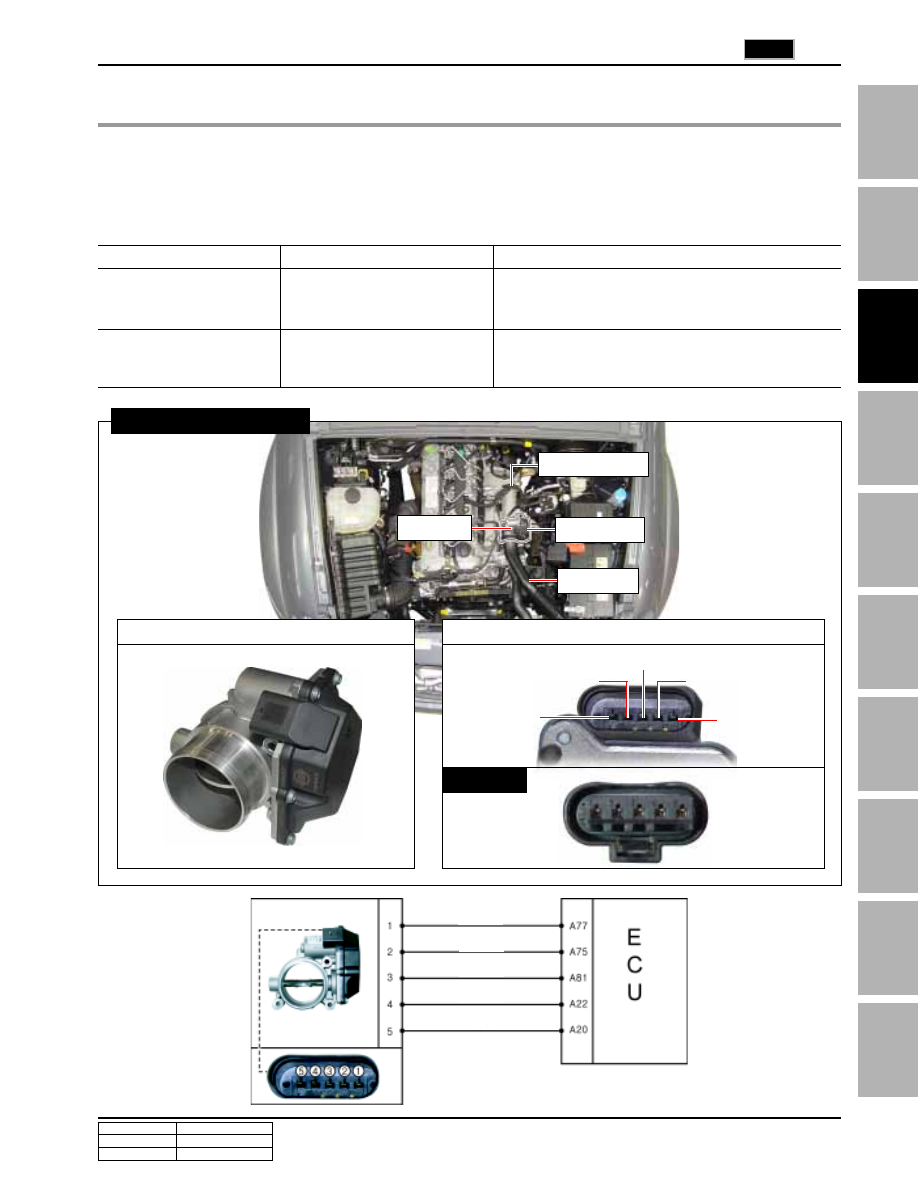

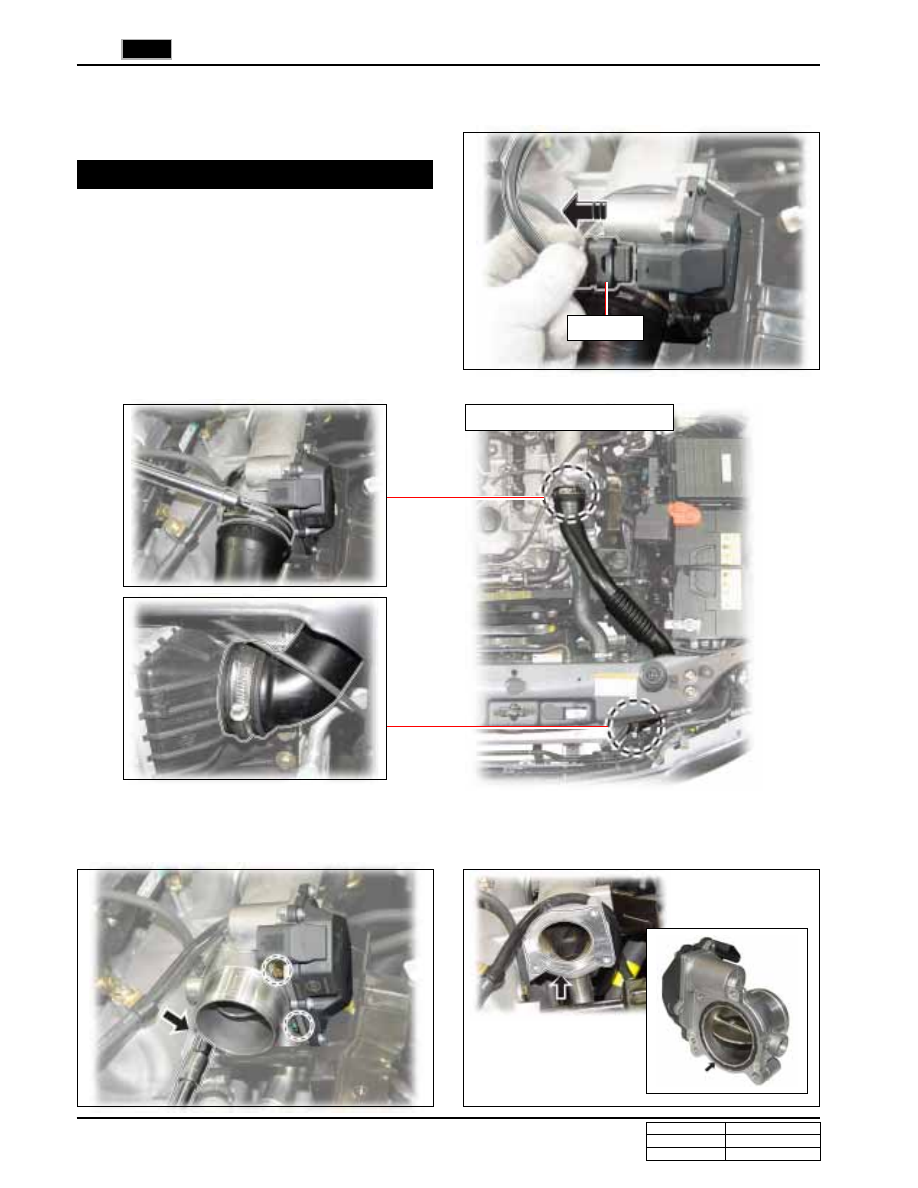

CHANGED BY EFFECTIVE DATE AFFECTED VIN 5 1715 INTAKE SYSTEM D27DTP/D27DT (EU4) SM - 2006.08 D27DTP/D27DT (EU4) ENGINE FUEL I N T AKE EXHAUST PRE-HEA TING LUB COOLING SWITCHABLE ECU DIAGNOSIS 1. OVERVIEW AND LOCATION The throttle body is installed for the vehicle with D27DTP (POWER UP) engine and D27DT engine with CDPF. THROTTLE BODY Throttle Body Connector 4. Motor (-) 5. Motor (+) 3. Sensor (-) 2. Sensor output 1. Sensor (+) Cable side Throttle body Connector Intake manifold Intake duct D27DTP (POWER UP) Engine Engine D27DTP (POWER UP) engine D27DT + CDPF Function Preventing the engine from turning off with flutter- Increasing the temperature of the exhaust gas by Control type Electric signal of engine ECU Vacuum ON/OFF control via Sensor (+) Motor (-) Motor (+) Sensor (-) Sensor output |
