7

1881

FUEL SUPPLY SYSTEM

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

I

N

T

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

2. NEW DTCS FOR CHANGES IN INJECTOR SPECIFICATIONS

Engine

Malfunction

Indicator

light

P0171

P0172

P0173

P0174

P0175

P0147

P0148

P0611

P0612

Insufficient MDP
of Injector #1

Insufficient MDP
of Injector #2

Insufficient MDP
of Injector #3

Insufficient MDP
of Injector #4

Insufficient MDP
of Injector #5

Impossible to
learn Idle MDP

Impossible to
Learn Drive
MDP

No Data for C3I

Internal Error in
C3I Data

- MDP learning value is decreased due to aged in-

jector #1.

- MDP learning value is decreased due to aged in-

jector #2.

- MDP learning value is decreased due to aged in-

jector #3.

- MDP learning value is decreased due to aged in-

jector #4.

- MDP learning value is decreased due to aged in-

jector #5.

- Causes (Idle range MDP learning)

• The MDP is not learned again until driving over

50,000 km after the MDP is learned.

- Conditions for MDP learning (Idle)

• Leaning twice for each cylinder (attempt ev-

ery 5 sec.)

• Initial MDP learning: coolant temperature > 60°C

• Fuel temperature: 0 ~ 80°C

• Vehicle speed: Idle.

• The tachometer’s needle vibrates while learn-

ing idle MDP.

• Replace ECU after learning.

- Causes

• It occurs twice for each cylilnder if MDP is not

learned again until driving over 50,000 km af-
ter the MDP is learned.

- Actions

• Check knock sensor and wiring.

• Check injector specification.

• Check C3I/C2I.

- C3I

• There is no C3I data in ECU or the checksum is

faulty.

- C3I

• The error is occurred while sending C3I data

in ECU to RAM.

DTC

Trouble

Limp

Home

Mode

Delayed

Engine

Stop

Torque

Reduction

(max.

20%)

Help

Torque

Reduction

(max.

50%)

Immedi-

ately

Engine

Stop

O

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

8

1881

FUEL SUPPLY SYSTEM

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

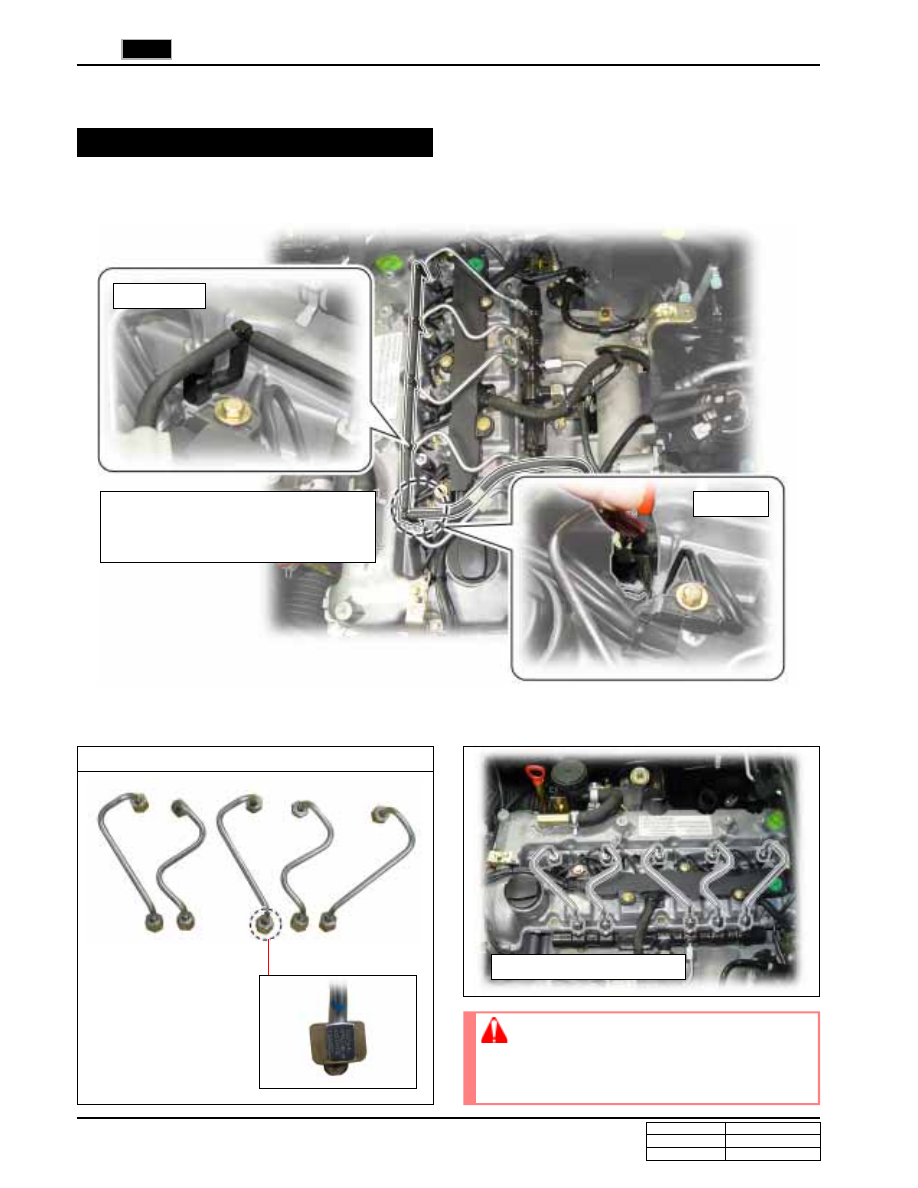

3. REMOVAL AND INSTALLATION OF INJECTOR

Return hose

Connector

• Plug the hole with protective cap.

• Do not spill the oil when disconnecting

the hose.

2. Unscrew the mounting nuts (17 mm) on the high pressure line and disconnect the fuel pipes. Before disconnecting

it, remove the foreign material around the injector and the fuel pipe with an air gun.

Fuel Pipe

When installing, position
the number on the pipe to
face the common rail.

Removal and Installation

Ú

Ú

Ú

Ú

Ú Preceding Works: Remove the engine cover and disconnect the negative battery cable.

1. Disconnect the fuel return hose and the connector from the injector.

Tightening torque: 40 ± 4 Nm

• When installing, replace the fuel pipe with new one.

• Plug the fuel hole to the common rail with a pro-

tective cap.

NOTICE

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

9

1881

FUEL SUPPLY SYSTEM

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

I

N

T

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

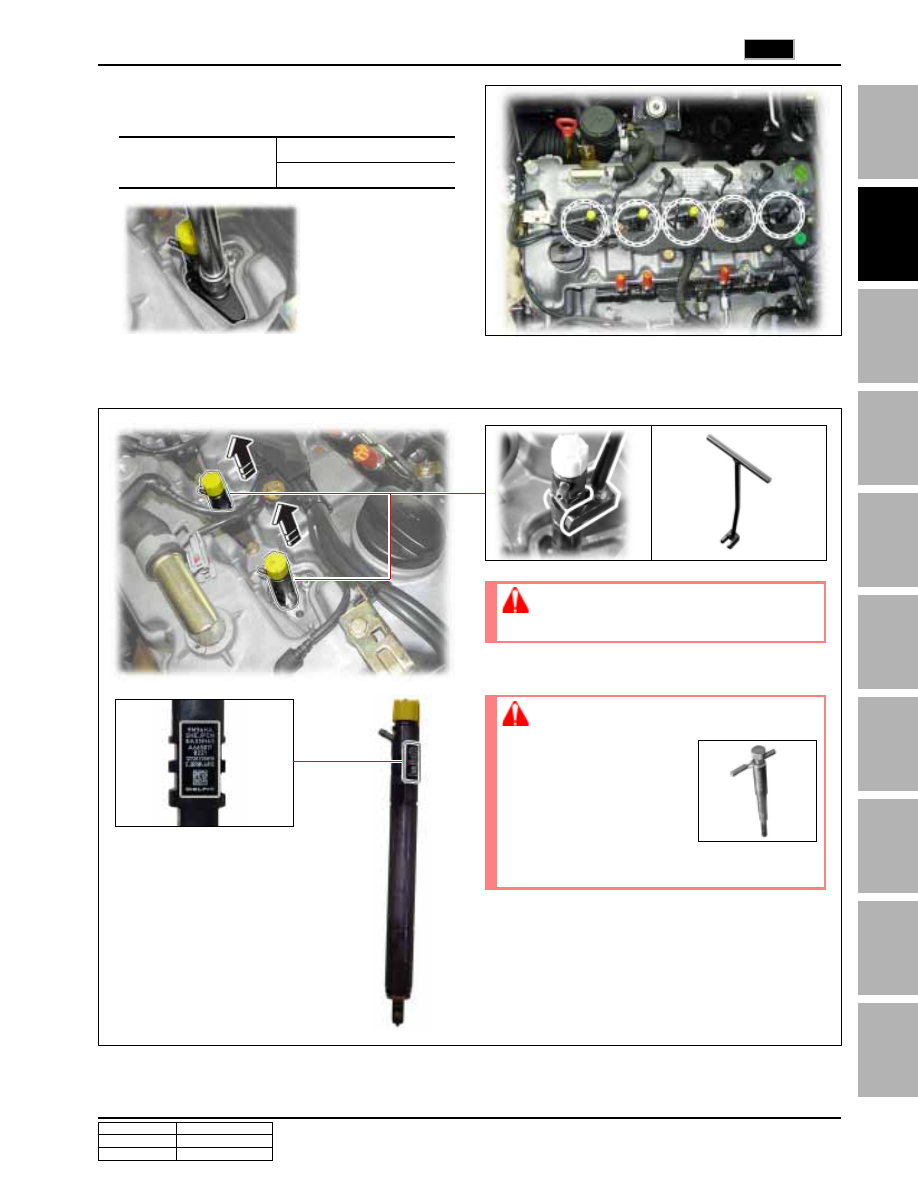

3. Before removing the injector, clean the area around

it. Unscrew the bolts and remove the injector holder.

Tightening torque

10 ± 1.0 Nm

180° ± 20°

4. Remove the injector using a special tool.

5. Install in the reverse order of removal. However, do not remove the protective cap from new injector before installing.

6. Perform the C3I coding for D27DTP engine or C2I coding for D27DT engine.

* When installing the

holder, replace the
holder mounting
bolts with new ones.

• Plug the injector with a protective cap.

NOTICE

• If the washer is not removed

together with the injector, re-
move the washer from the
engine using the special tool
shown in the figure.

• When removing the injector,

replace copper washer,
holder mounting bolts and injector’s fuel supply
pipe with new ones.

NOTICE

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

10

1881

FUEL SUPPLY SYSTEM

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

2. The “INJECTOR (C2I or C3I) CODING” screen showing the current C2I or C3I coding values of #1 to #5 injector is

displayed. If necessary, press

 key and enter the value.

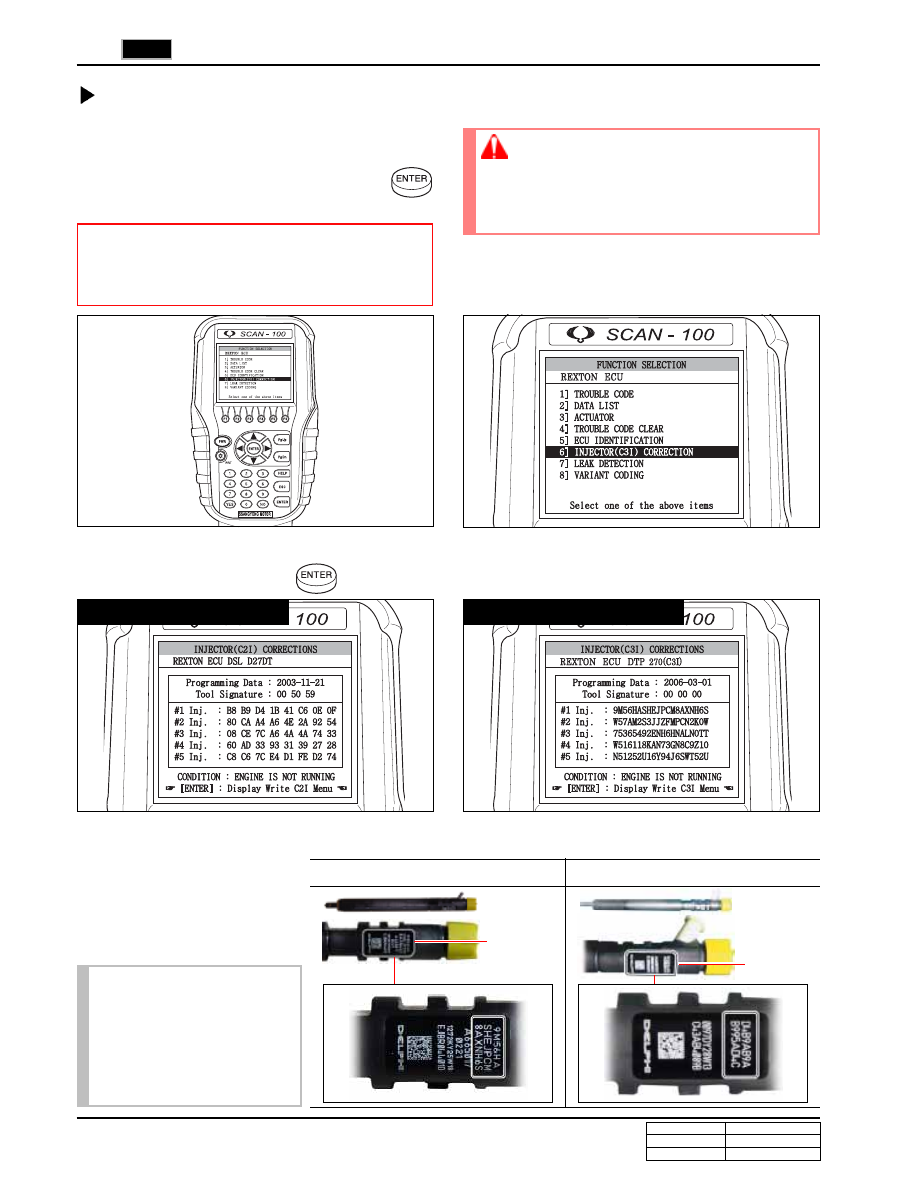

Injector Coding (C2I/C3I)

Ú

Ú

Ú

Ú

Ú Preceding Work:

Perform the “Entering Diagno-

sis Procedures”

1. Select “6] INJECTOR (C2I) CODING” and press

on “FUNCTION SELECTION” screen.

C3I Label

D27DTP (POWER UP) Engine

D27DT Engine

3. If you have replaced the ECU, enter the C2I or C3I value for the relevant injector.

* Coding of D27DTP (POWER UP) Engine Injector:

C3I (20 digits)

* Coding of D27DT Engine Injector: C2I (16 digits:

samp with current version)

D27DT Engine: C2I Coding

D27DTP Engine: C3I Coding

C2I Label

• If the injector/ECU has been replaced or the injec-

tor system failure is suspected, go to C2I or C3I
Coding item and check the injector and coded in-
jector C2I or C3I value.

NOTICE

• The C2I value of injector is on

the label.

• C2I coding number: 16 digits

(ex, C0 2D 835....)

• C3I coding number: 20 digits

(ex, ZD87E03R....)

NOTE
