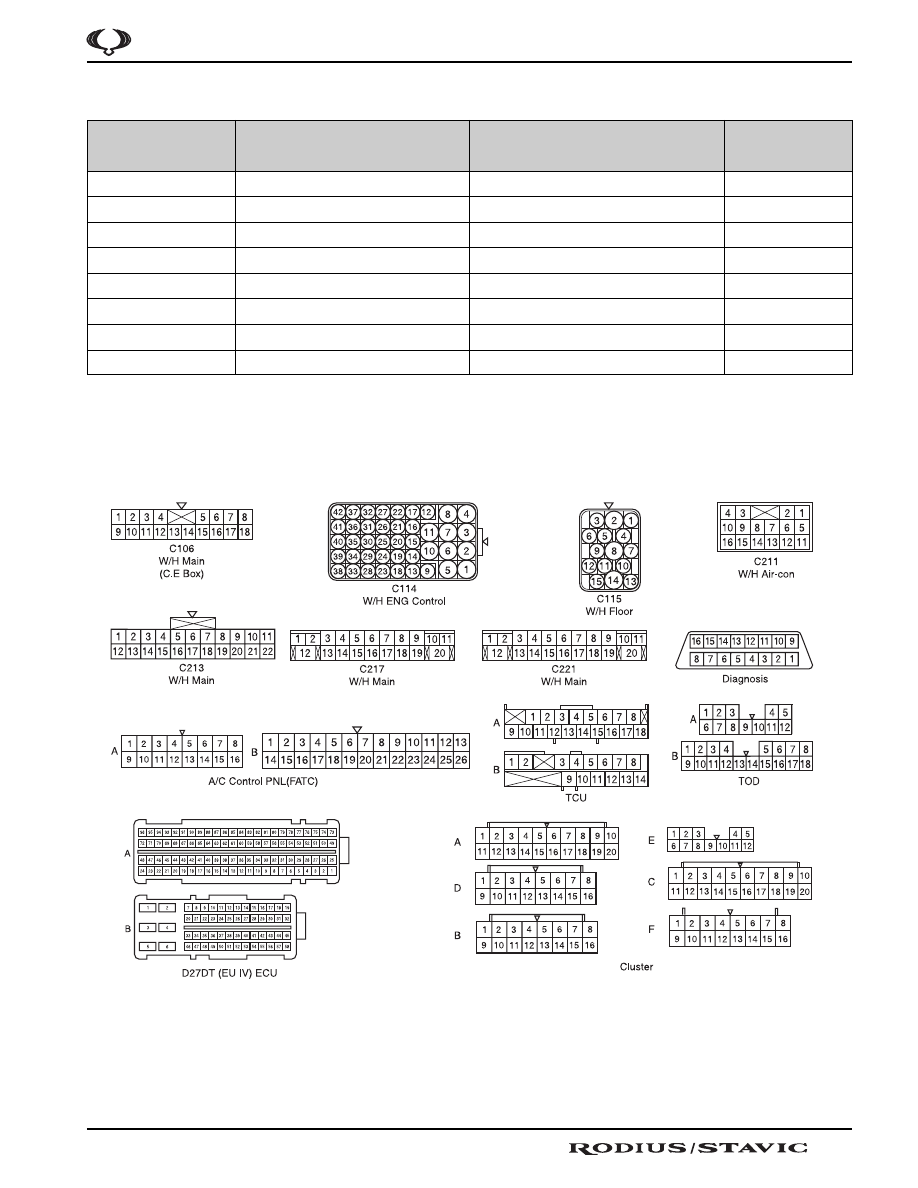

Wiring Diagram for Power Supplies  5-13

Electrical Wiring Diagram

(LHD)

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box - Main

Engine - Engine Control

Engine - Floor (RH)

Main - W/H Air-Bag

Main - Floor (LH)

Main - Floor (RH)

Main - Floor (RH)

W/H Main

C106 (18Pin, White)

C114 (42Pin, Black)

C115 (15Pin, Black)

C211 (16Pin, White)

C213 (22Pin, White)

C217 (20Pin, Green)

C221 (20Pin, Gray)

G205

Connecting Wiring

Harness

Engine Room Fuse Box

Right Engine Room Dash PNL

Under the Coolant Reserve Tank

RR A/V Unit

FRT TGS Lever

Inside Passenger Side Cowl PNL

Inside Passenger Side Cowl PNL

Beside the ENG ECU

Remark

Connector Position

ECU GND

5-14  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

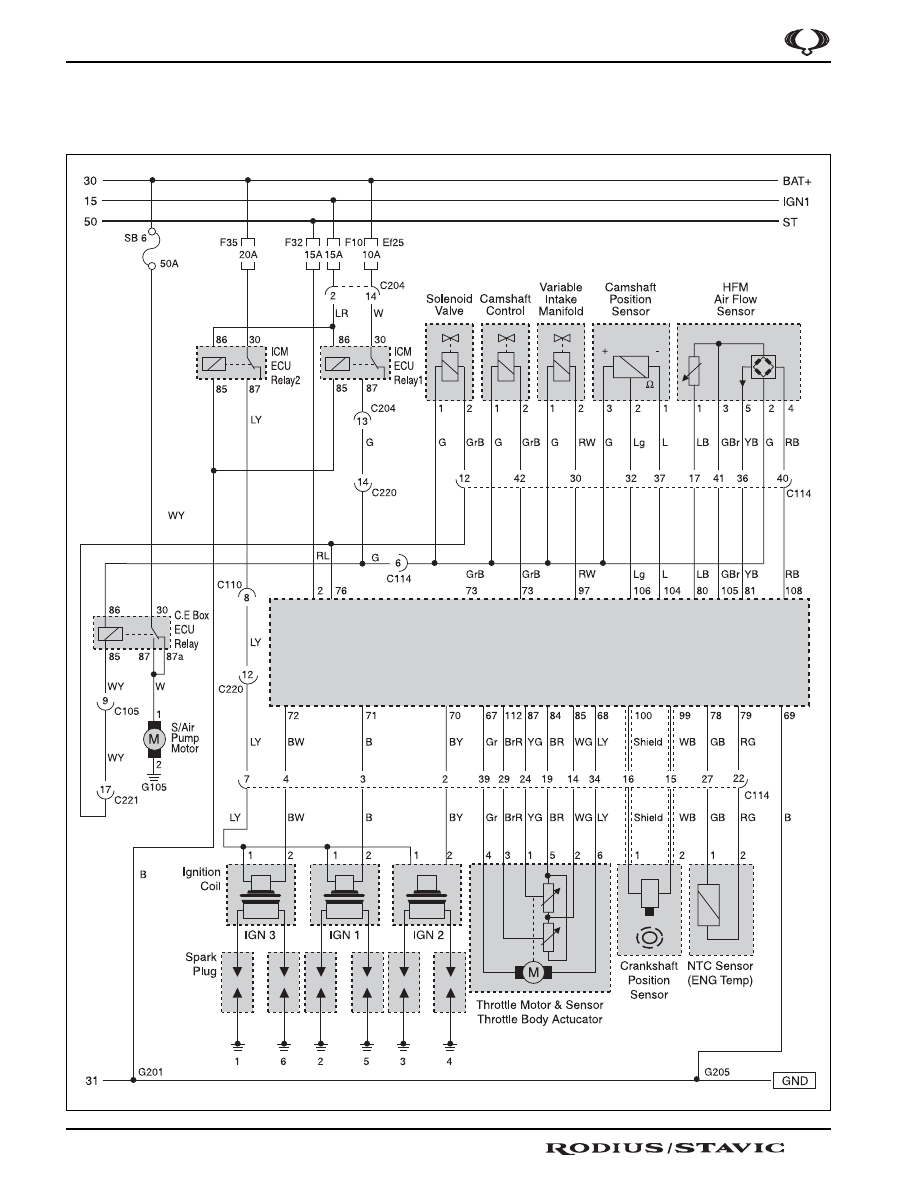

4. ECU (GSL G32)

1) IGN COIL, CPS, AIR FLOW SENSOR, THROTTLE SENSOR, TPS



ECU (E32)

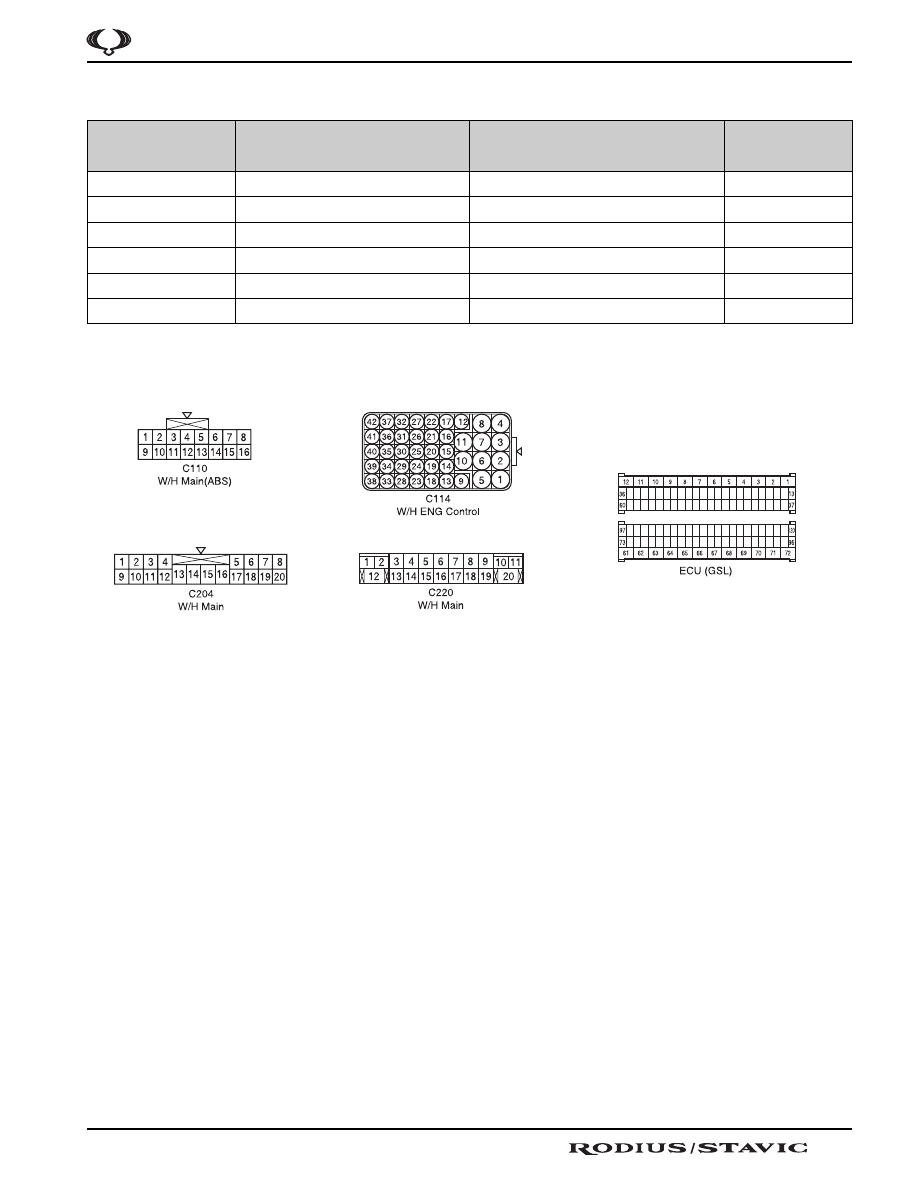

Wiring Diagram for Power Supplies  5-15

Electrical Wiring Diagram

(LHD)

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine - Main

Engine - Engine Control

Main - ICM Box

Main - Floor (RH)

W/H Main

W/H Main

C110 (16Pin, White)

C114 (42Pin, Black)

C204 (20Pin, White)

C220 (20Pin, Brown)

G201

G205

Connecting Wiring

Harness

Engine Room Fuse Box

Right Engine Room Dash PNL

ICM Box (IP Relay Box)

Inside Passenger Side Cowl PNL

Inside Driver Side Cowl PNL

Beside the ENG ECU

Remark

Connector Position

ABS (ESP)

GSL

ECU GND

5-16  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

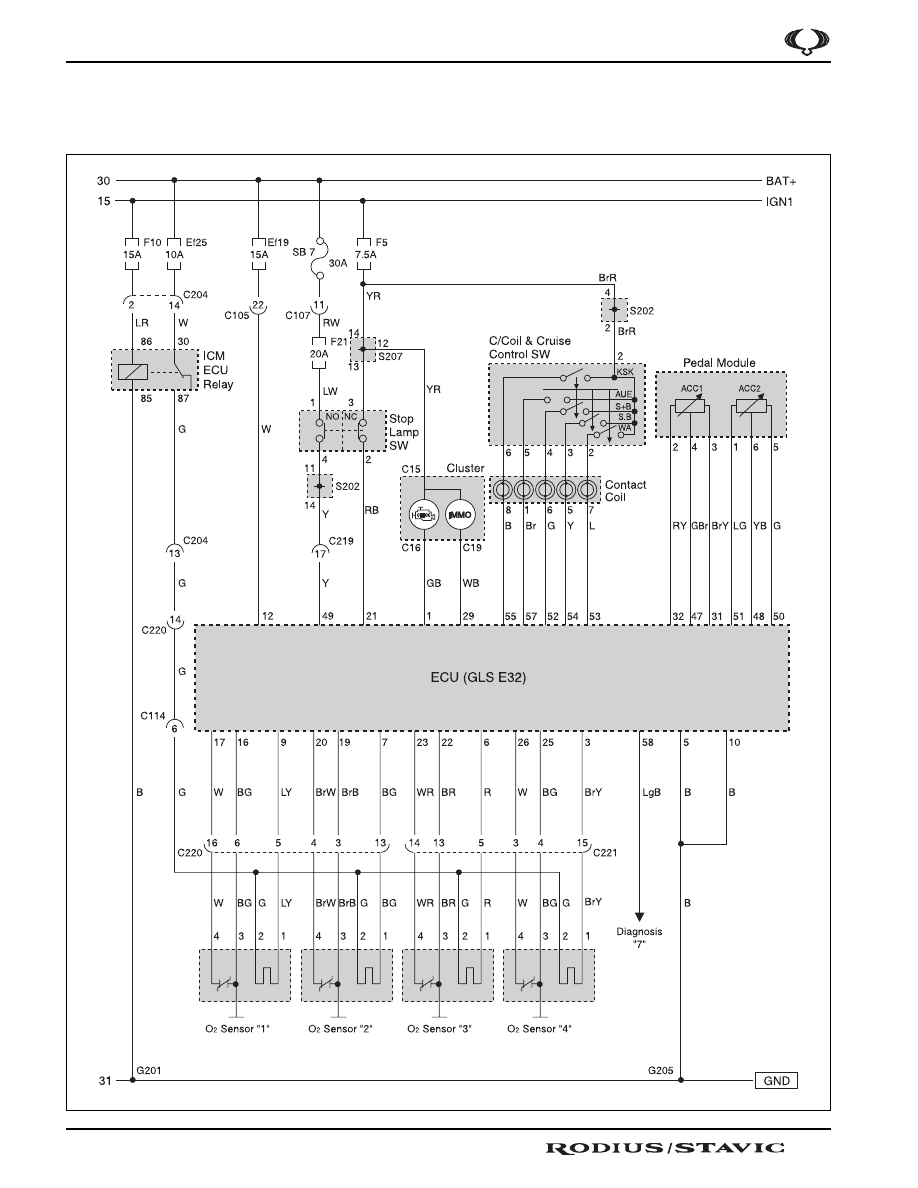

2) O

2

 SENSOR, PEDAL MODULE, CRUISE CONTROL SW, STOP LAMP SW
