Wiring Diagram for Power Supplies  4-11

Electrical Wiring Diagram

(LHD)

30

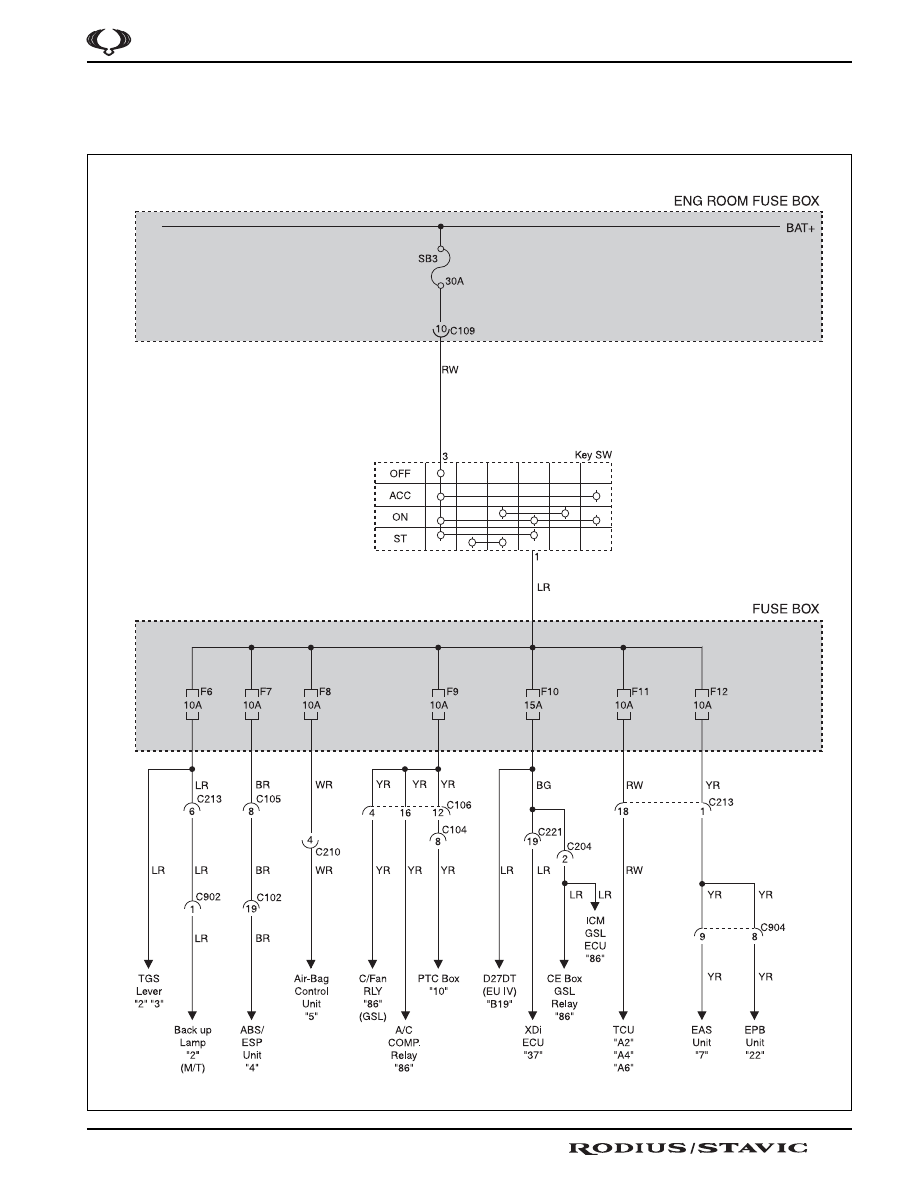

2) F6 ~ F12

4-12  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

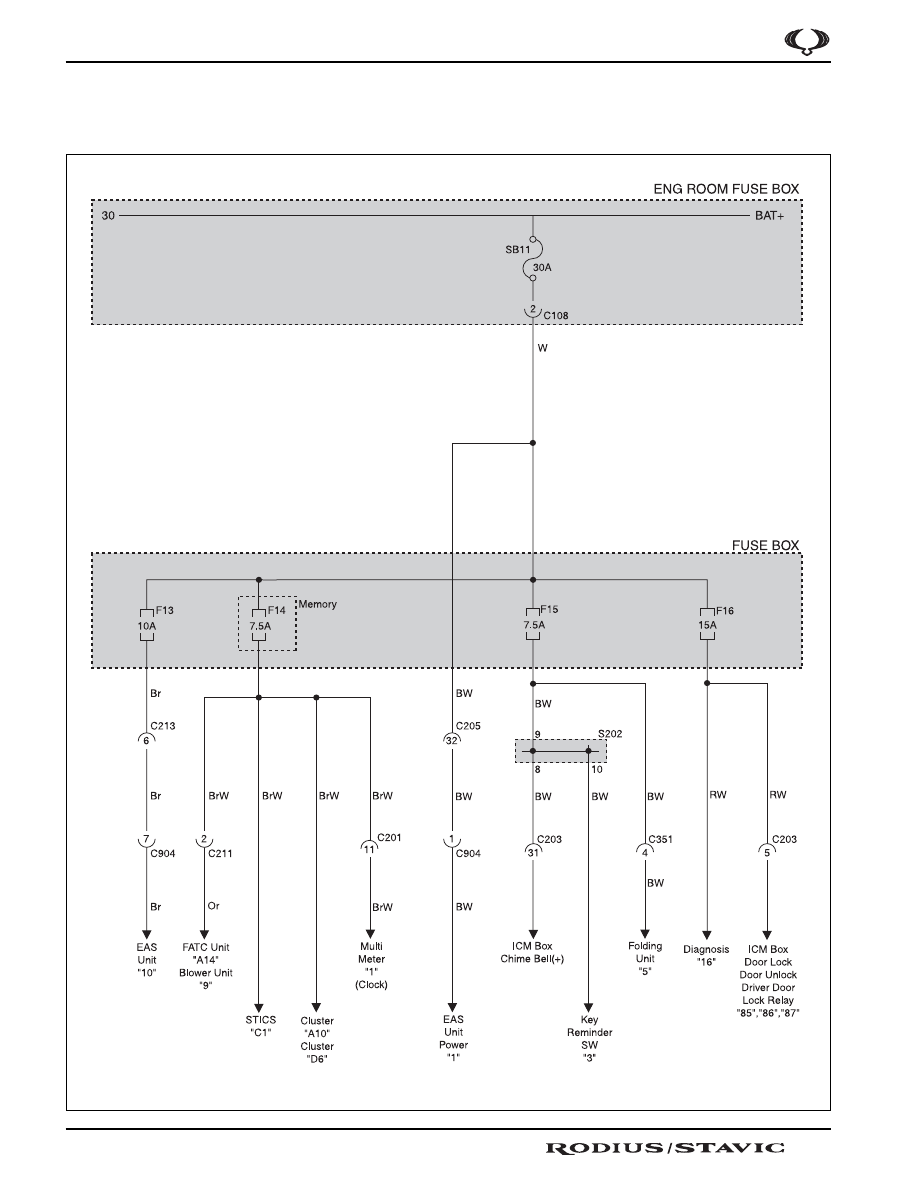

3) F13 ~ F16

Wiring Diagram for Power Supplies  4-13

Electrical Wiring Diagram

(LHD)

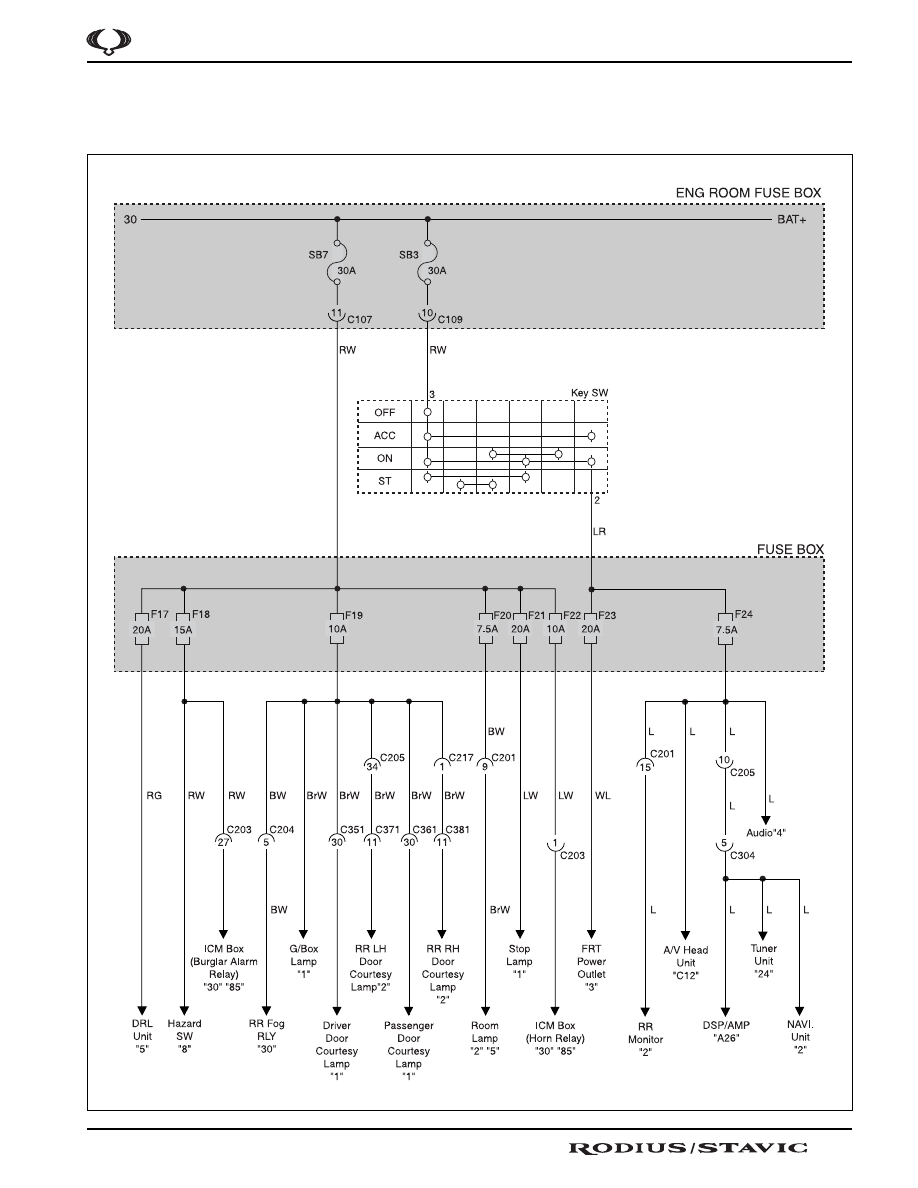

4) F17 ~ F24

4-14  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

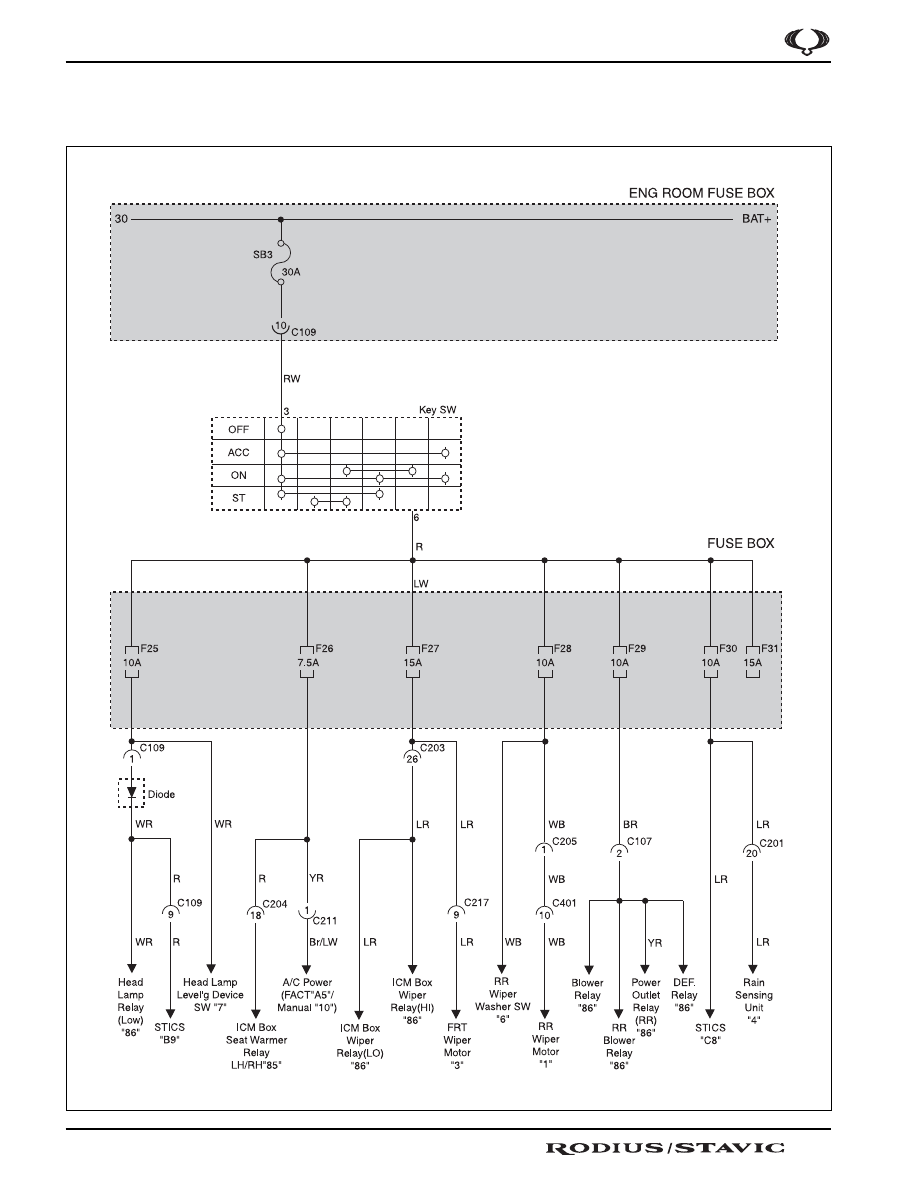

5 ) F25 ~ F31
