Electrical Wiring Diagram

Wiring Diagram for Power Supplies  2-7

(LHD)







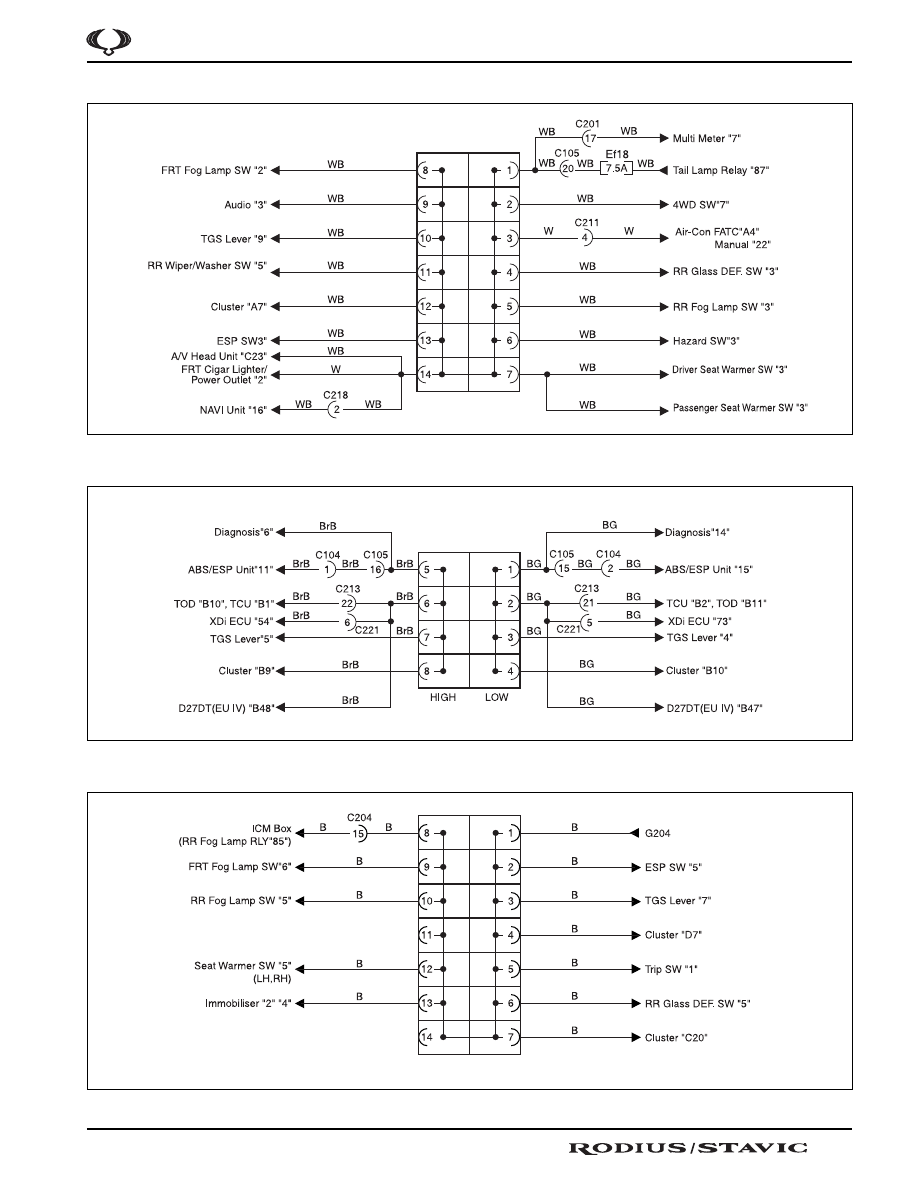

• S204 (ILL)

• S206 (GND)

• S205 (CAN)

Electrical Wiring Diagram

2-8  Wiring Diagram for Power Supplies

(LHD)











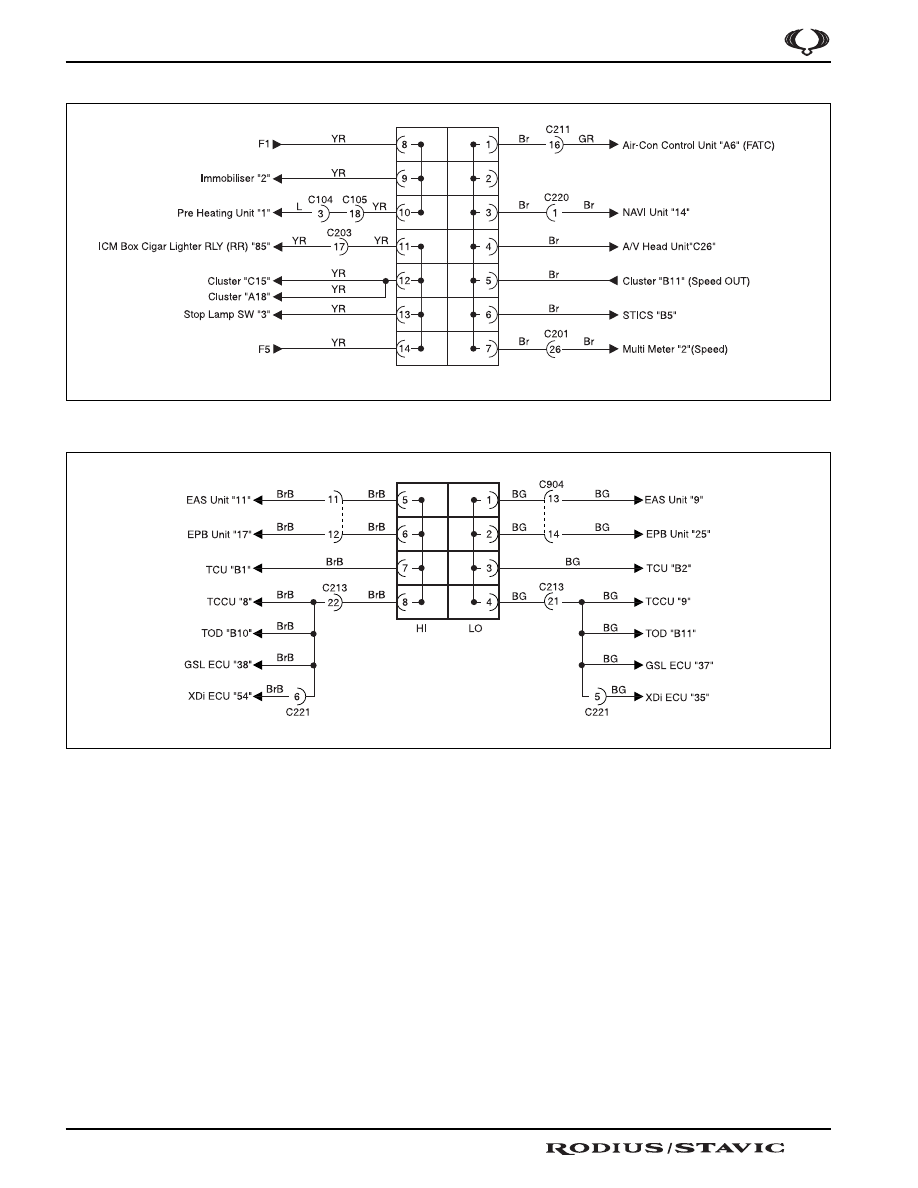

• S207

• S301 (EPB/EAS, CAN)

Electrical Wiring Diagram

Wiring Diagram for Power Supplies  2-9

(LHD)

3) GROUND

Connector

Number

W/H Engine

W/H Engine

W/H Engine

W/H Engine

W/H Engine

W/H Main

W/H Main

W/H Air-bag

W/H Main

W/H Main

W/H Main

W/H Floor (RH)

W/H Floor (LH)

W/H Floor (LH)

W/H Floor (LH)

W/H Floor (LH)

W/H Floor (RH)

W/H Tail Gate

W/H Floor (LH)

W/H EPB/EAS

G101

G102

G103

G104

G105

G201

G202

G203

G204

G205

G206

G207

G301

G302

G303

G304

G305

G401

G402

G901

Connecting Wiring

Harness

Behind the Washer Tank

Behind the Washer Tank

Behind the Air Cliner Housing

Behind the Air Cliner Housing

Behind the Air Cliner Housing

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Beside the SDM

Behind TGS Lever

Beside the ENG ECU

Inside Passenger Side Cowl PNL

Inside Passenger Side Cowl PNL

Under Driver Seat

Under Driver Seat

Inside the LH Quarter Trim

Inside the LH Quarter Trim

Inside the RH Quarter Trim

Center the Tail Gate

Left the Tail Gate

Inside the LH Quarter Trim

W/H Air Bag

ECU GND

EPB/EAS

Remark

Connector Position

4-2  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

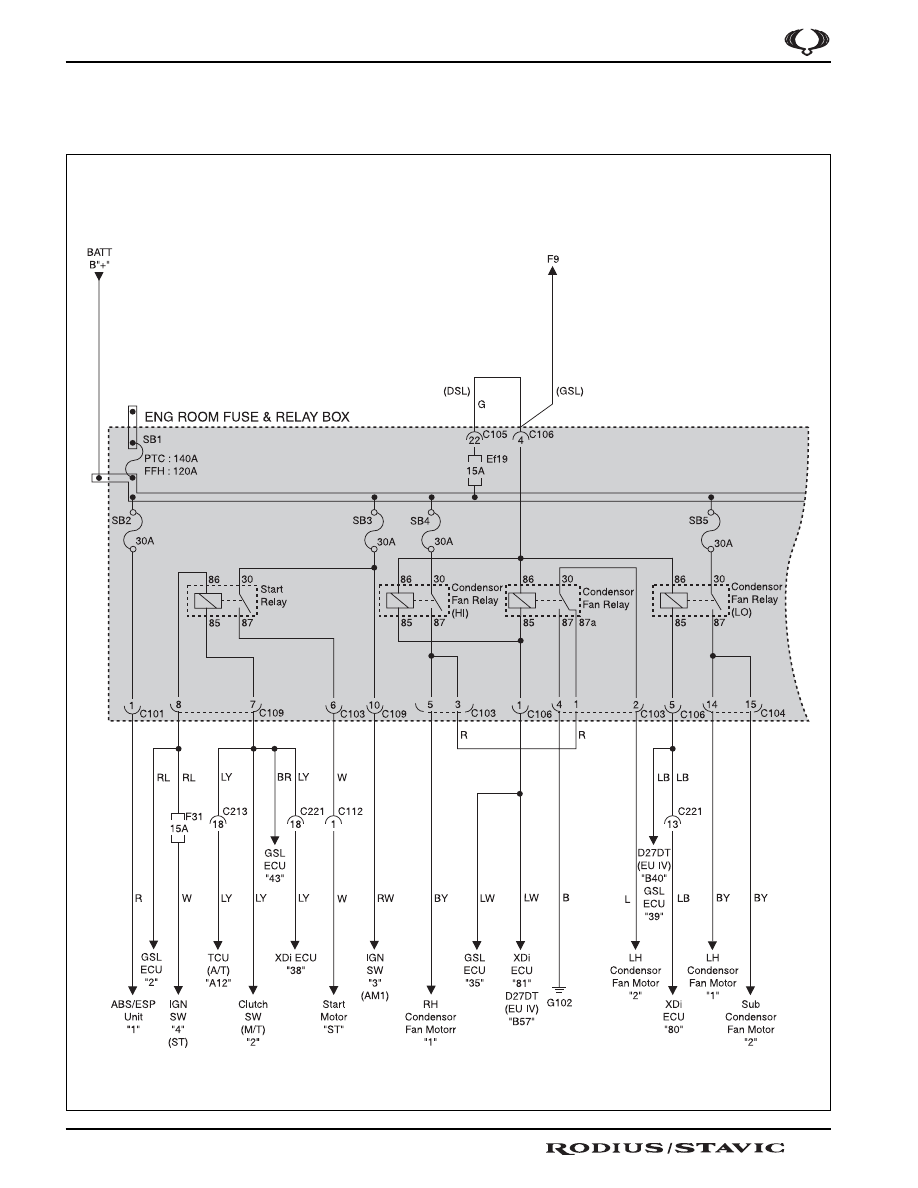

1. ENG ROOM FUSE BOX

1) SB1 ~ SB5
