BRAKE - GENERAL

STAVIC - 2004.09

4J

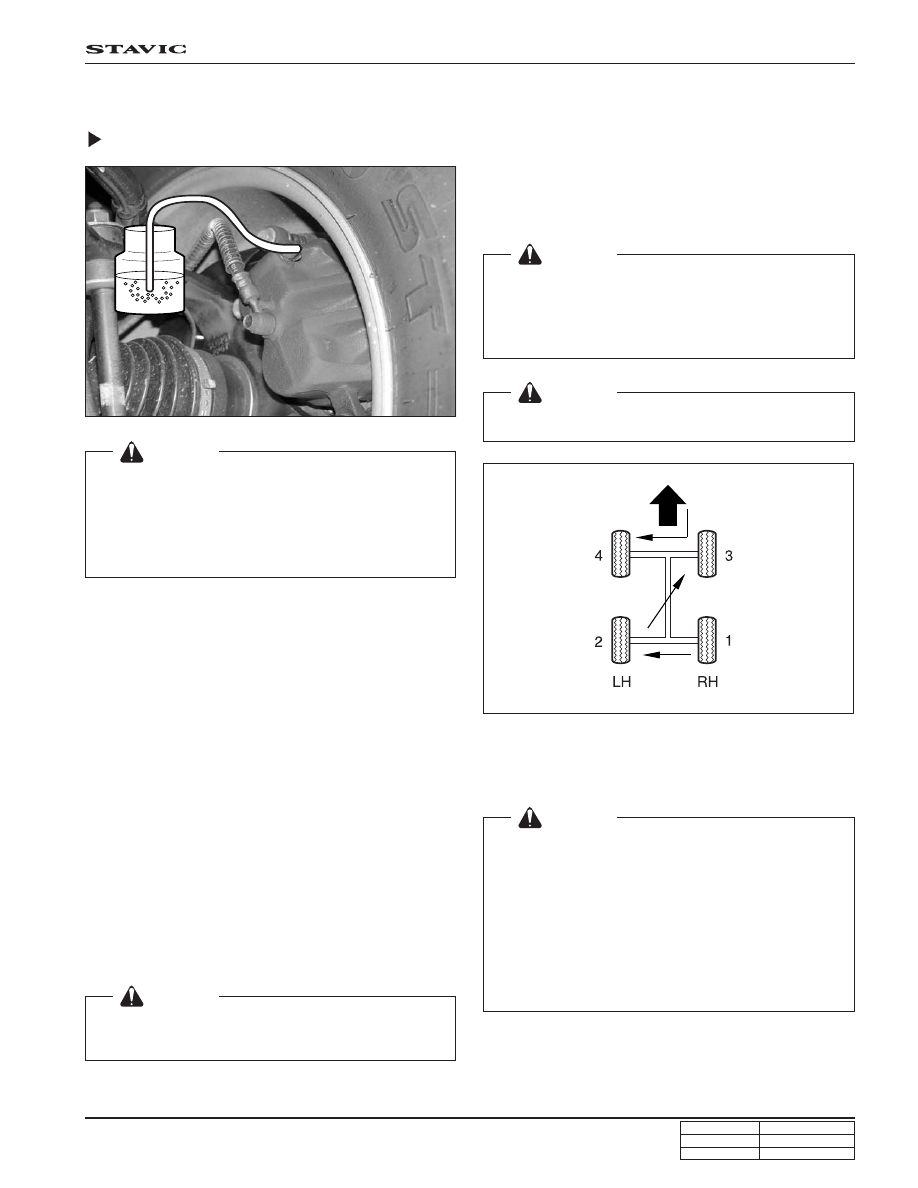

1. Apply the parking brake and start the engine when

the shift lever is at “P” position.

2. Connect the oil supply device (air bleeding device)

with air compressor to brake reservoir. The oil supply
device should be filled with sufficient oil.

3. Loosen the air bleed screw in caliper and place an

empty container under the screw.

4. Bleed the air in each wheel by using diagnostic device

(Scanner). At this time, the modulator motor runs for
180 seconds.

5. Simultaneously, run the oil supply device to supply

oil and depress the brake pedal repeatedly.

This procedure needs at least 3 persons for doing
below jobs:

1. Collect the bleeding oil into the container.

2. Depress the brake pedal repeatedly.

3. Check the conditions of oil supply device.

6. Repeat the step 4 through 5 until clear brake fluid

comes out of air bleed screw.

7. Perform the same procedures at each wheel.

8. Always start to bleed the air at the farthest wheel

from the brake master cylinder. Observe the sequence
number as shown in the above figure.

5. INSPECTION

Air Bleeding (With ABS)

 [Notice]

Bleed air in the following order:

Right rear brake



→

→

→

→

→

Left rear brake



→

→

→

→

→

Right front brake

→

→

→

→

→

Left front brake

Check the fluid level repeatedly during air bleeding, and
add fluid if needed.

 [Notice]

Keep the brake pedal depressing until the bleed screw is
fully tightened.

 [Notice]

Repeat the step 4 through 5 until clear brake fluid comes
out of air bleed screw.

After bleeding the air, make sure that the brake system is
properly operated.

 [Notice]

Replace the brake oil at every 2 years.

 [Notice]

• Always bleed the air after replacing the brake fluid or

master cylinder, caliper, brake hose and pipe.

• Never reuse the used brake fluid.

• Do not pump the brake pedal too fast. It may cause

some troubles for air bleeding operation.

• Be careful not to splash the brake fluid on painted

area or body.

• Check the connection areas for leaks after air bleeding.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

10

BRAKE - GENERAL

STAVIC - 2004.09

4J

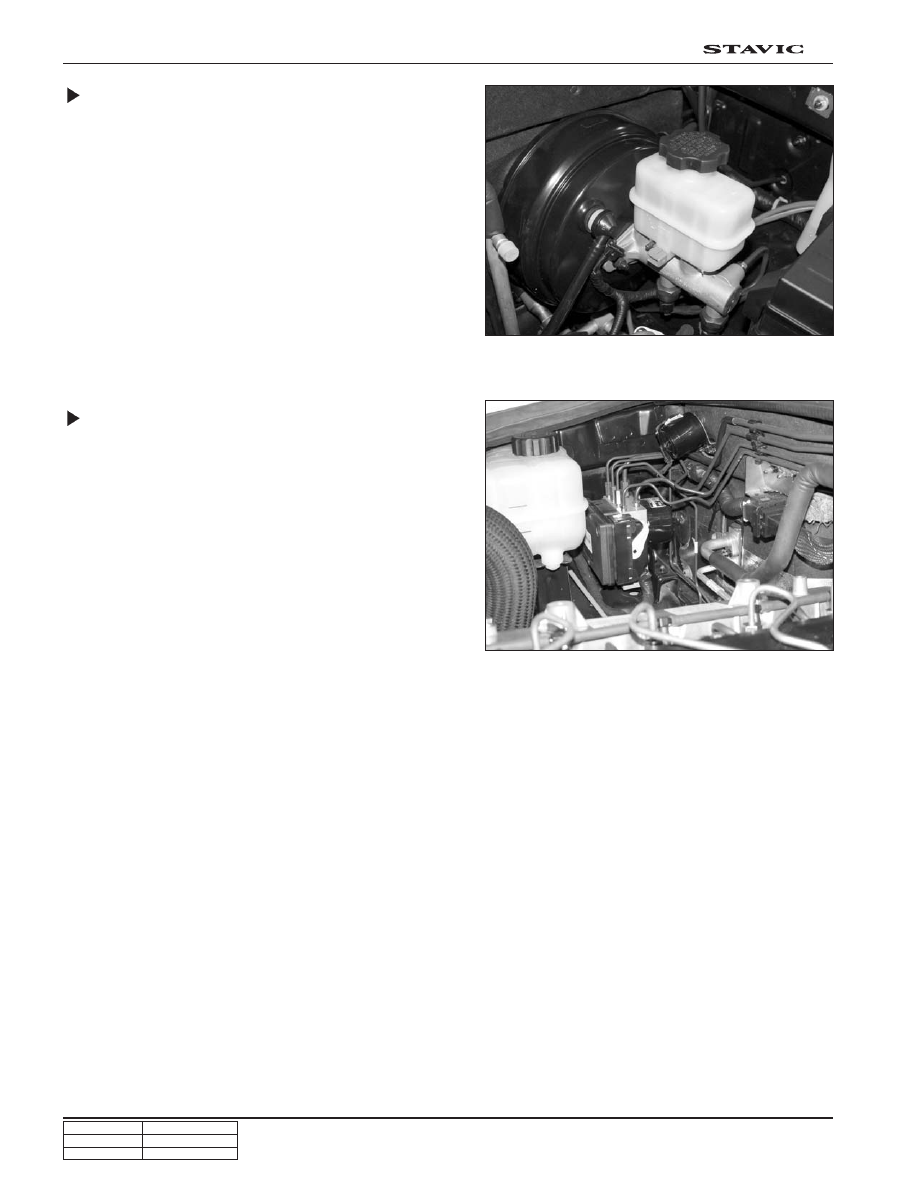

After Replacing Master Cylinder

1. Add oil after replacing the master cylinder.

2. Pump the brake pedal several times until the hydraulic

pressure is generated. Then, keep the pedal depressing.

3. Loosen the pipe screw at the outlet port in master cylinder

to bleed the air.

4. Repeat step 3 until clear brake fluid comes out of air

bleed screw.

5. If the hydraulic pressure is not properly generated during

pumping the brake pedal, bleed the at the outlet pipe in
hydraulic unit and wheel.

After Replacing Hydraulic Unit

1. Add oil after replacing the hydraulic unit.

2. Pump the brake pedal several times until the hydraulic

pressure is generated. Then, keep the pedal depressing.

3. Loosen the pipe screw at the outlet port in hydraulic unit

to bleed the air.

4. Repeat step 3 until clear brake fluid comes out of air

bleed screw.

5. If the hydraulic pressure is not properly generated during

pumping the brake pedal, bleed the at the wheel.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

11

BRAKE - GENERAL

STAVIC - 2004.09

4J

6. REMOVAL AND INSTALLATION

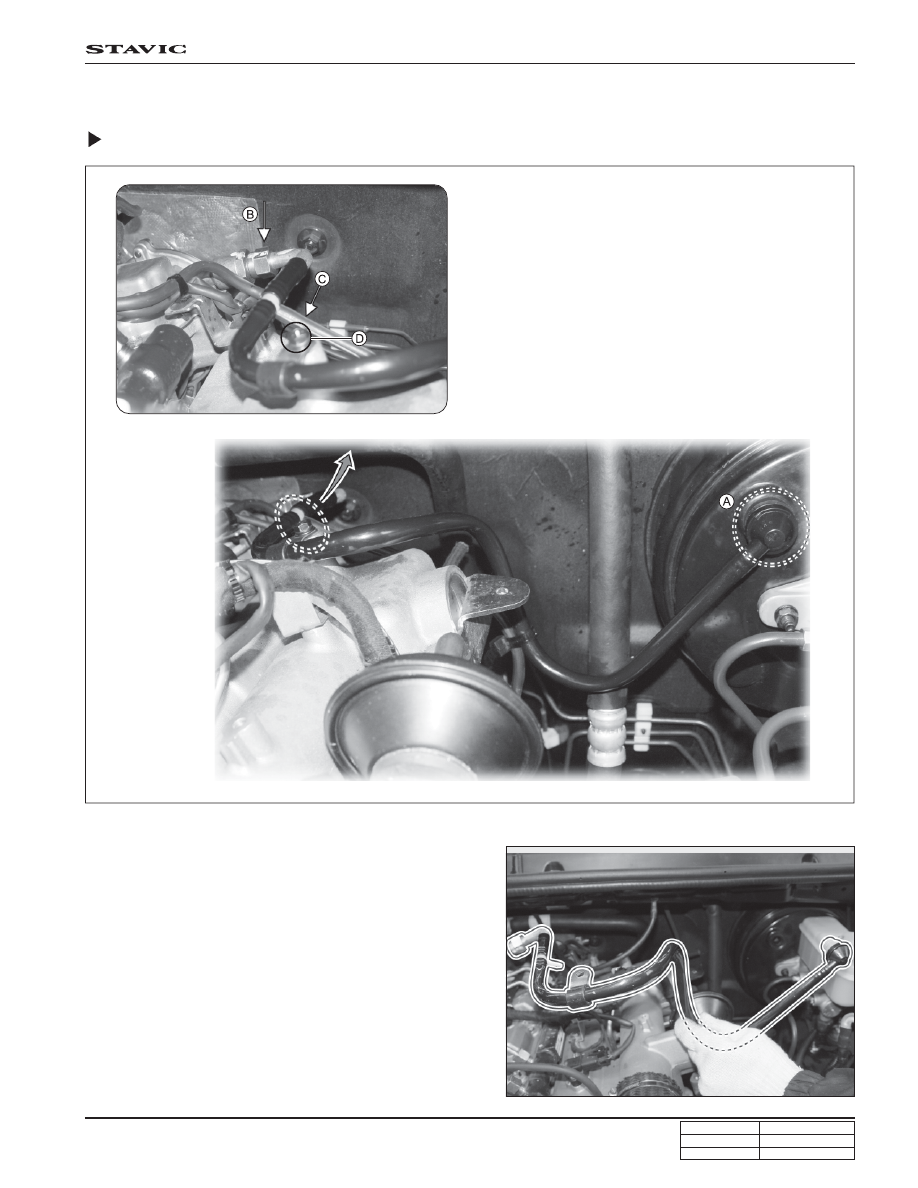

Vacuum Hose - Brake Booster

1. Disconnect vacuum hose (A) from brake booster.

2. Remove vacuum hose mounting nut (B).

3. Disconnect vacuum hose (C - Vacuum modulator side).

4. Disconnect vacuum hose & bracket (D)

5. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

12

BRAKE - GENERAL

STAVIC - 2004.09

4J

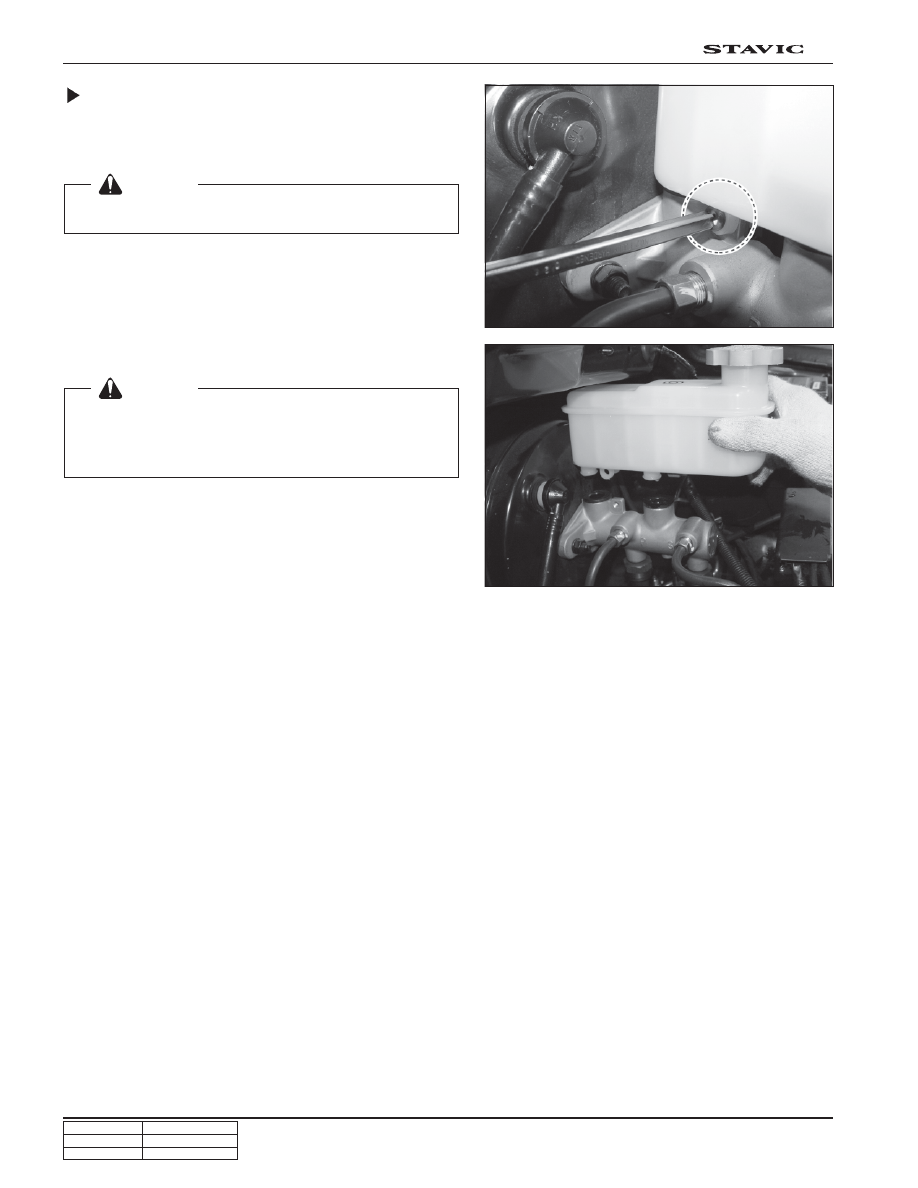

Brake Fluid Reservoir Tank

1. Open the tank cap and drain the brake oil.

2. Disassemble brake fluid reservoir from master cylinder.

 [Notice]

Do not apply excessive force to remore the reservoir.

3. Install in the reverse order of removal.

 [Notice]

•

Use only specified brake fluid.

•

After replacing the brake fluid reservoir be followed air-
breeding job moust.
