SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 393

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

15

WHEELS & TIRE

STAVIC - 2004.09

4H

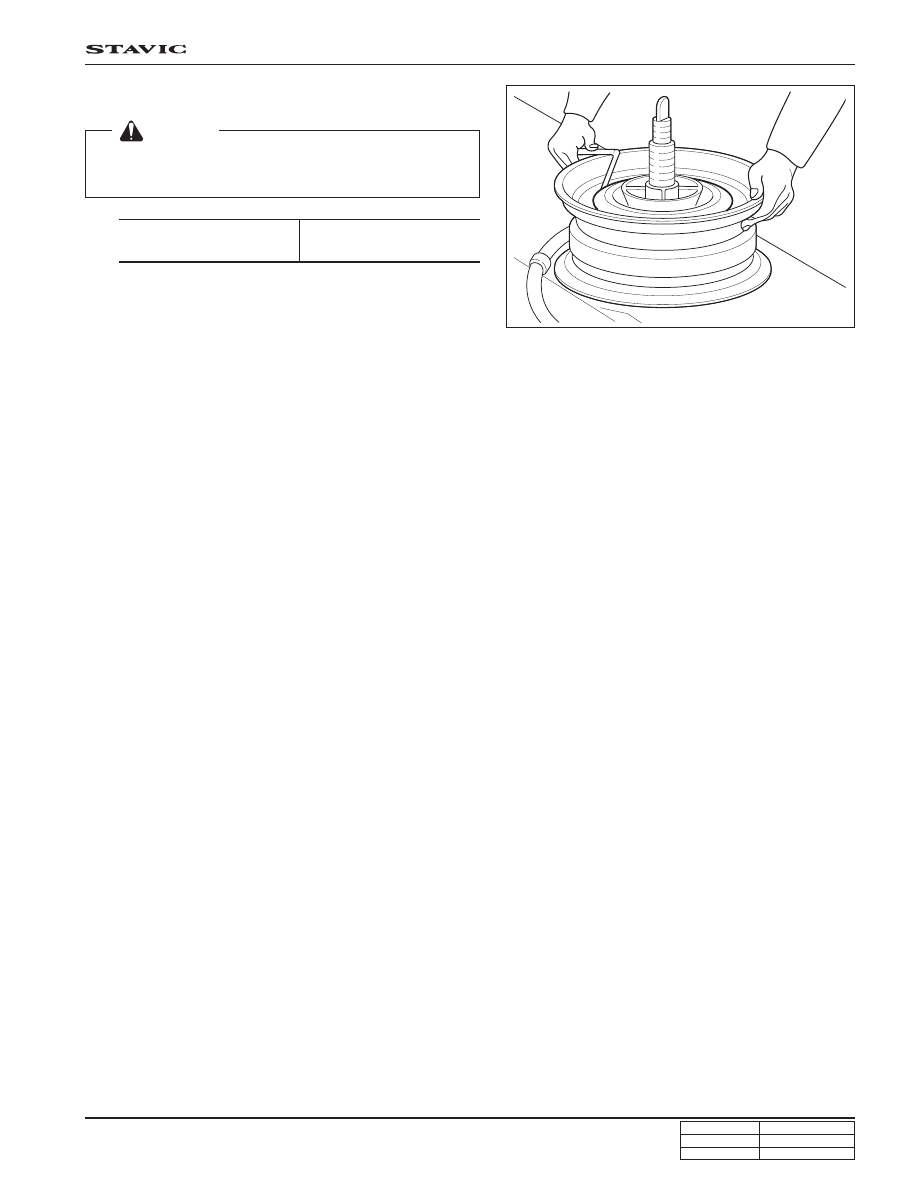

6. Set the tire pressure to the specifications.

Specification of the

tire pressure

30 psi (2.1 kg

⋅

cm

2

)

 [Notice]

Do not remove the tire from the equipment before setting the
tire pressure.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

16

WHEELS & TIRE

STAVIC - 2004.09

4H

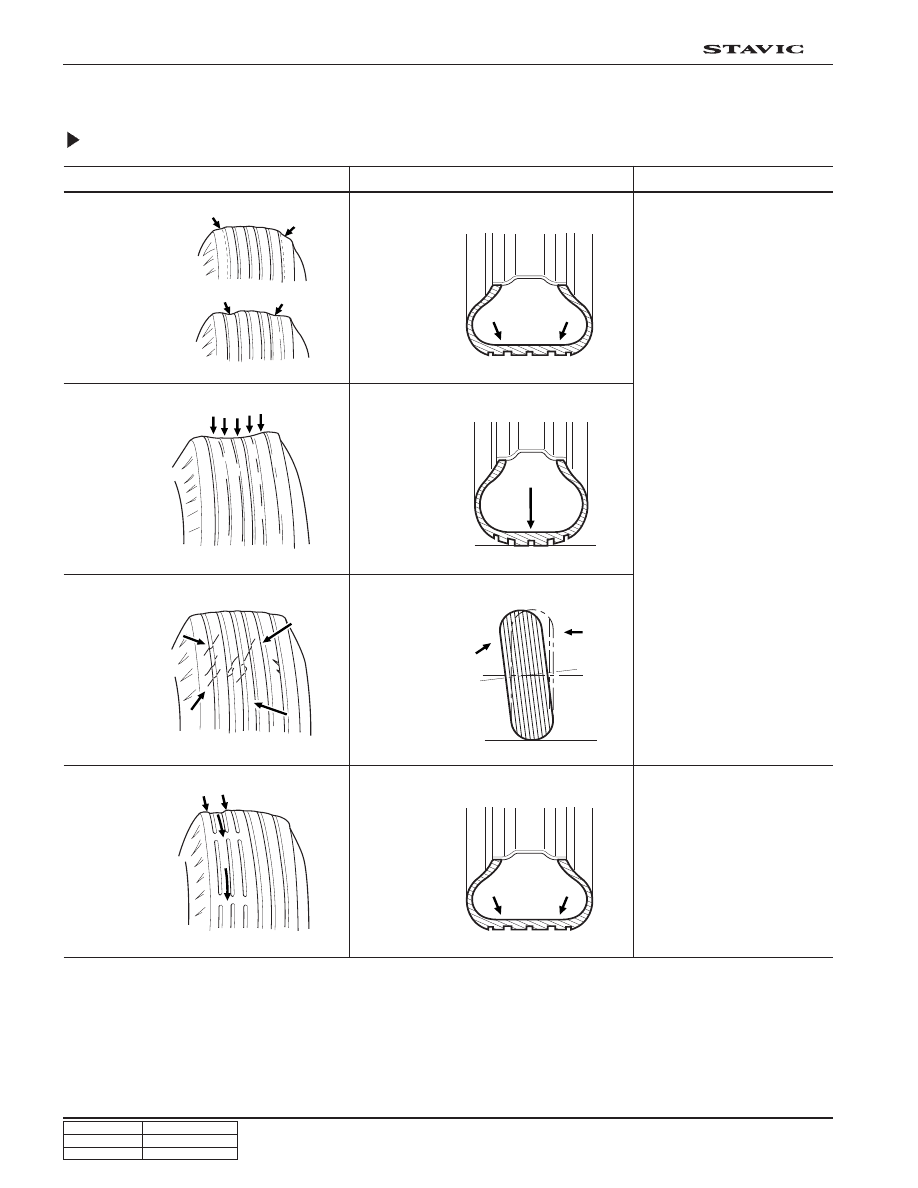

7. INSPECTION

Visual Inspection

Condition

Cause

Action

Adjust inflation pressure

Rapid wear at

shoulders

Under inflation or lack of rotation

Rapid wear at center

Over inflation or rotation

Tread damage

Low the inflation pressure

Adjust camber

Uneven wear

Incorrect  camber

Incorrect toe-in

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

17

WHEELS & TIRE

STAVIC - 2004.09

4H

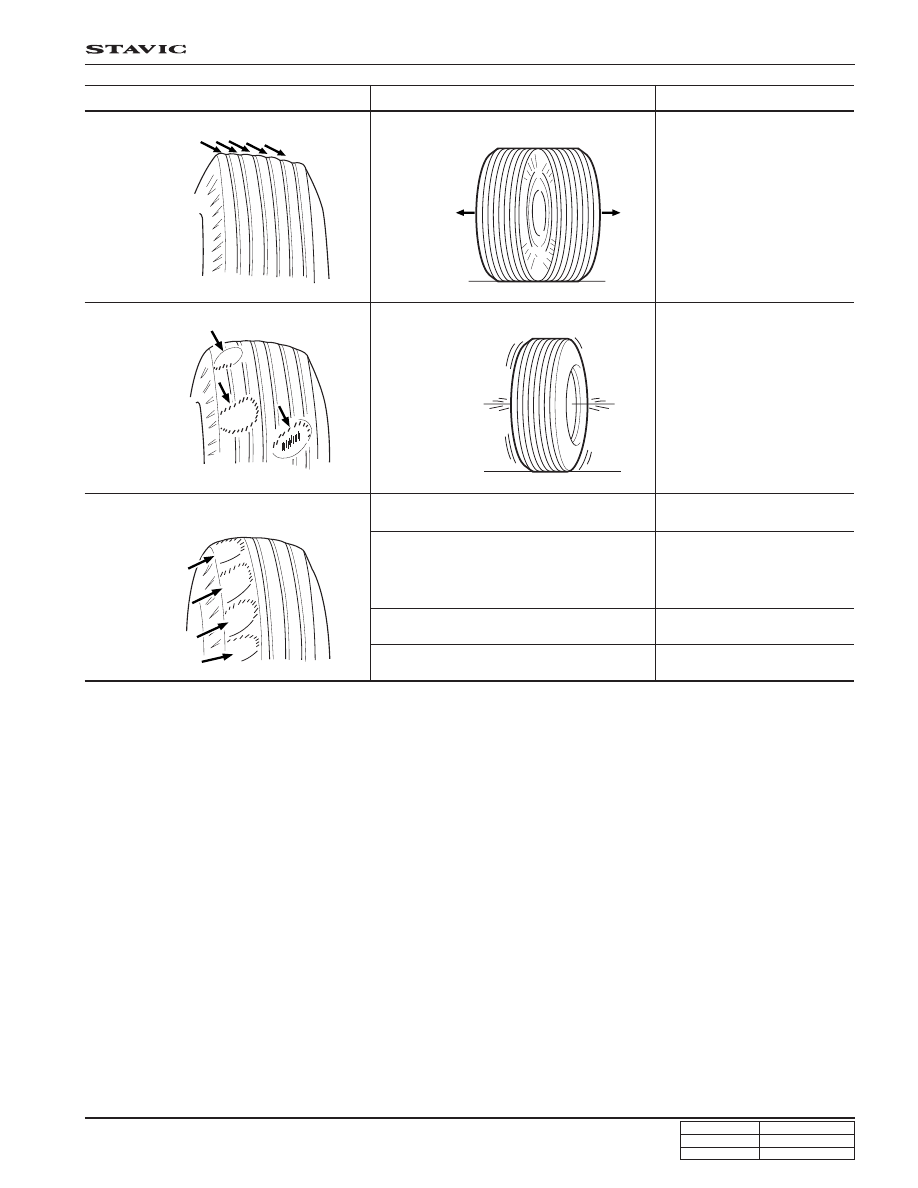

Unbalanced wheel

Wheel bearing play

Ball joint play

Faulty shock absorber

Adjust

Check play

Check pre-load

Check

Check

Condition

Cause

Action

Adjust toe-in

Feathered edge

Incorrect toe-in

Bold spot

Unbalanced wheel

Sharply wear at the tread outside

Adjust wheel balance

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

18

WHEELS & TIRE

STAVIC - 2004.09

4H

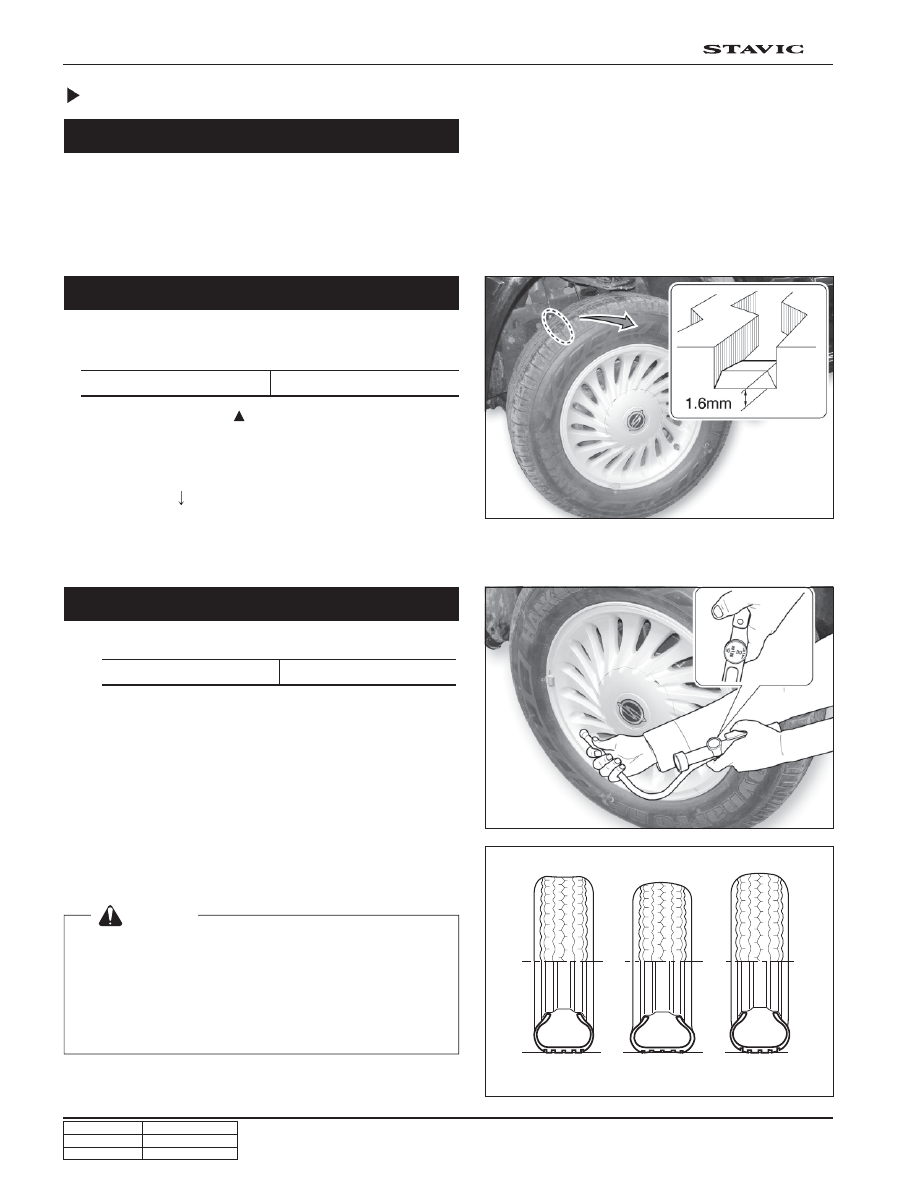

General Inspection

Limit of the Tread Wear

1.6 mm

Front / Rear

35 psi

Tread

Tire Wear

Tire Inflation Pressure

Inspect the tread condition on the tire surface and various
damages resulting from the foreign material, crack, stone or
nail etc. If there is any damage in the tire, repair or replace it.

2. Inspect the pressure of the tire surface and check the

inflation pressure.

• Measure the depth of the tire tread. If the depth of the tread

is below the specified value, replace the tire.

1. Inflation pressure

• You can see the mark ‘

    ’ in the groove, this is the indicator

of the tread wear limit.

• The limit of the tread wear for all season tires are 1.6 mm

as same as the general tires and the platform mark
indicates as ‘ ’.

 [Notice]

•

Lower than recommended pressure can cause tire squeal
on turns, hard steering, tire cord breakage and tire rim
bruises, etc.

•

Higher than recommended pressure can cause hard ride,
tire bruising or damage and rapid tread wear at the center
of the tire.

Sufficient

Excessive

Insufficient
