FRONT SUSP & AXLE

STAVIC - 2004.09

3. REMOVAL OF SUB FRAME

Preceding Work: 1. Secure the frame and remove the tires

2. Remove the front propeller shaft.

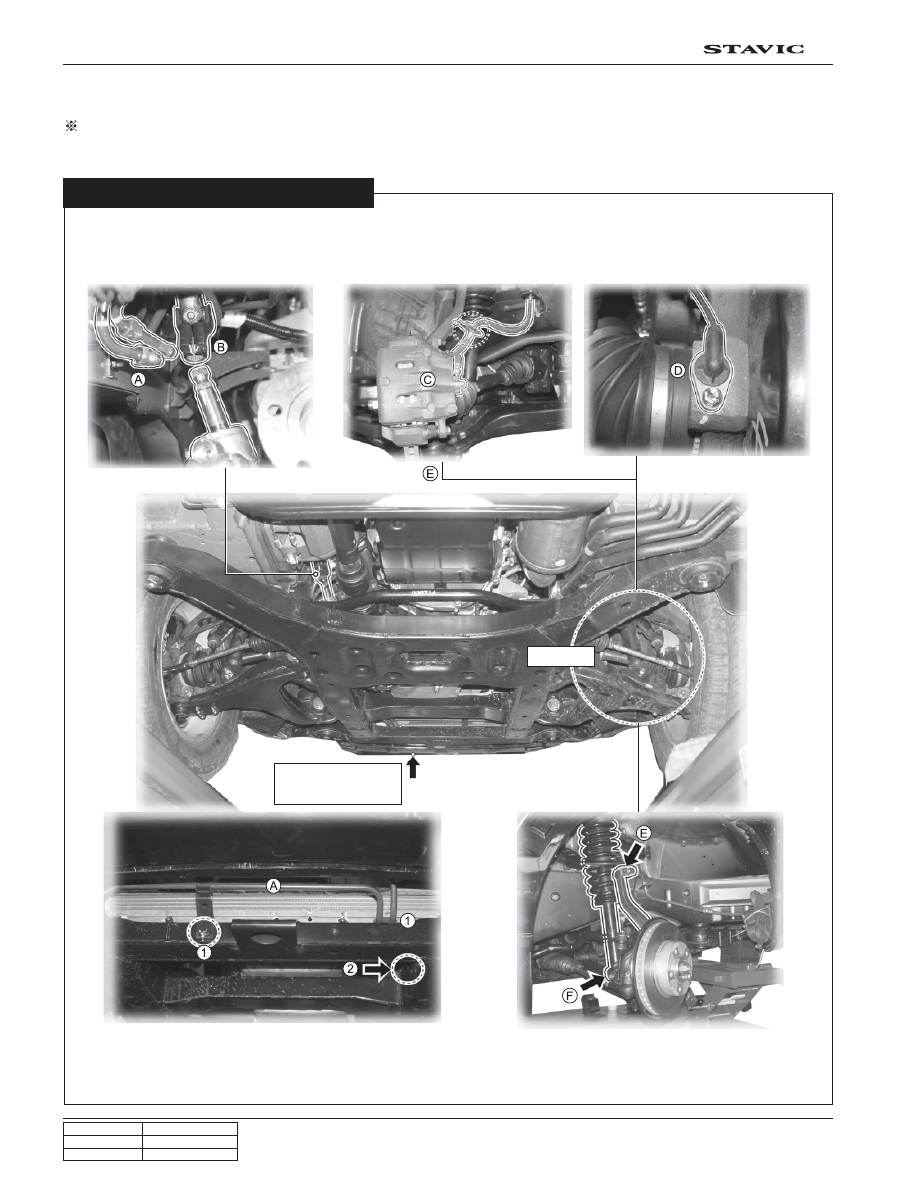

Sub Frame Connected Area

1. Remove the power steering pipes

(A: High, Low pressure) and lower arm
shaft (B) at the rear side of syb frame.

2. Remove the front calier (C) and wheel speed sensor (D)

(Fix the caliper and speed sensor on the body. Disconnect the brake
hose clip)

Wheel

3. Unscrew the power steering pipe (A) mounting bracket

(1, 2) and release them

4. Unscrew the knuckle upper bolt (E) and

shock absorber lower bolt/nut (F) and then,
remove the shock absorber from knuckle.

Power steering

pipes (Front)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

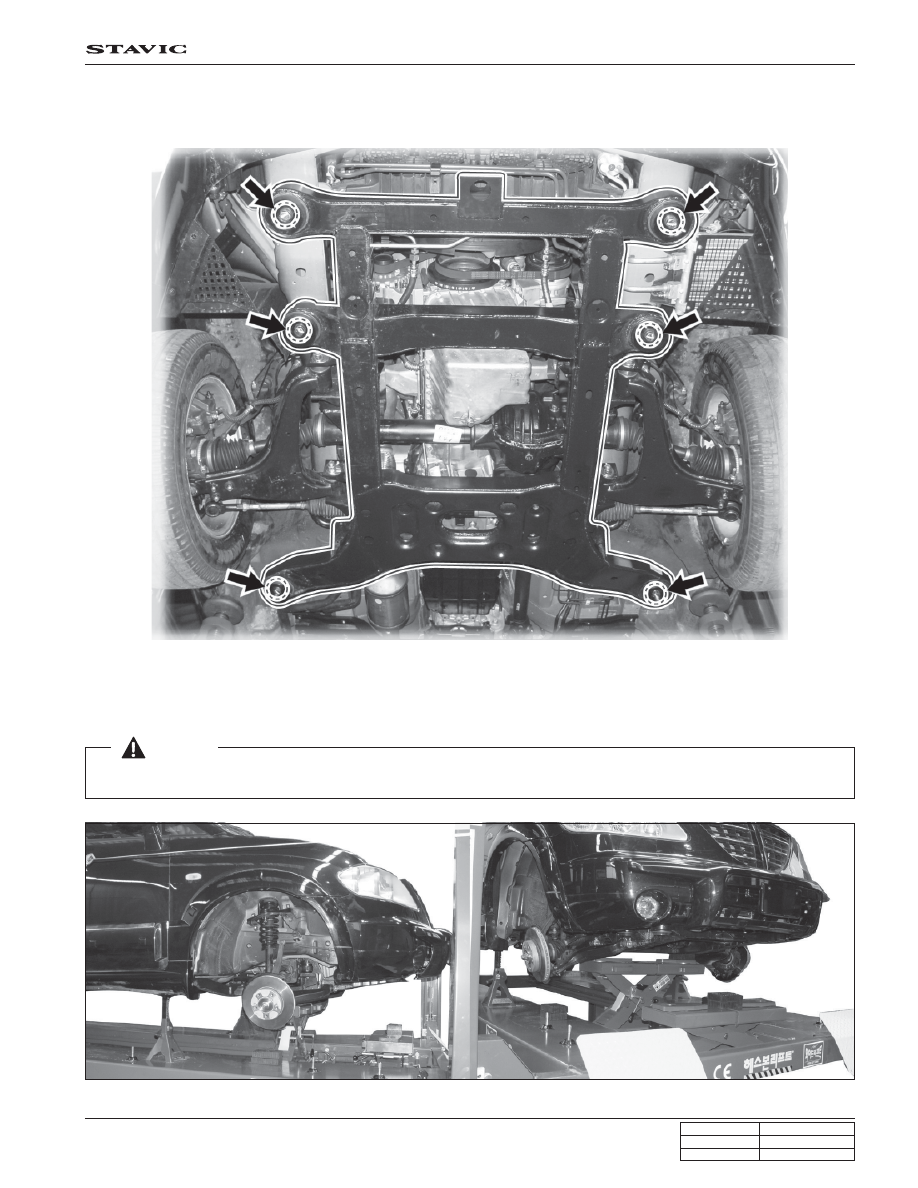

5. Leave mark with a marking painter on the sub frame mounting bolts (19mm - 4EA).

(Tightening torque: 95 ~ 142 Nm)

6. Locate two sypplement lifts under sub frame (Front/Rear) and unscrew the sub frame mounting bolts (19mm -

6EA). And then, drop the lifts slowly.

[Notice]

Apply rubber blocks under sub frame to prevent the frame and other components from damage.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

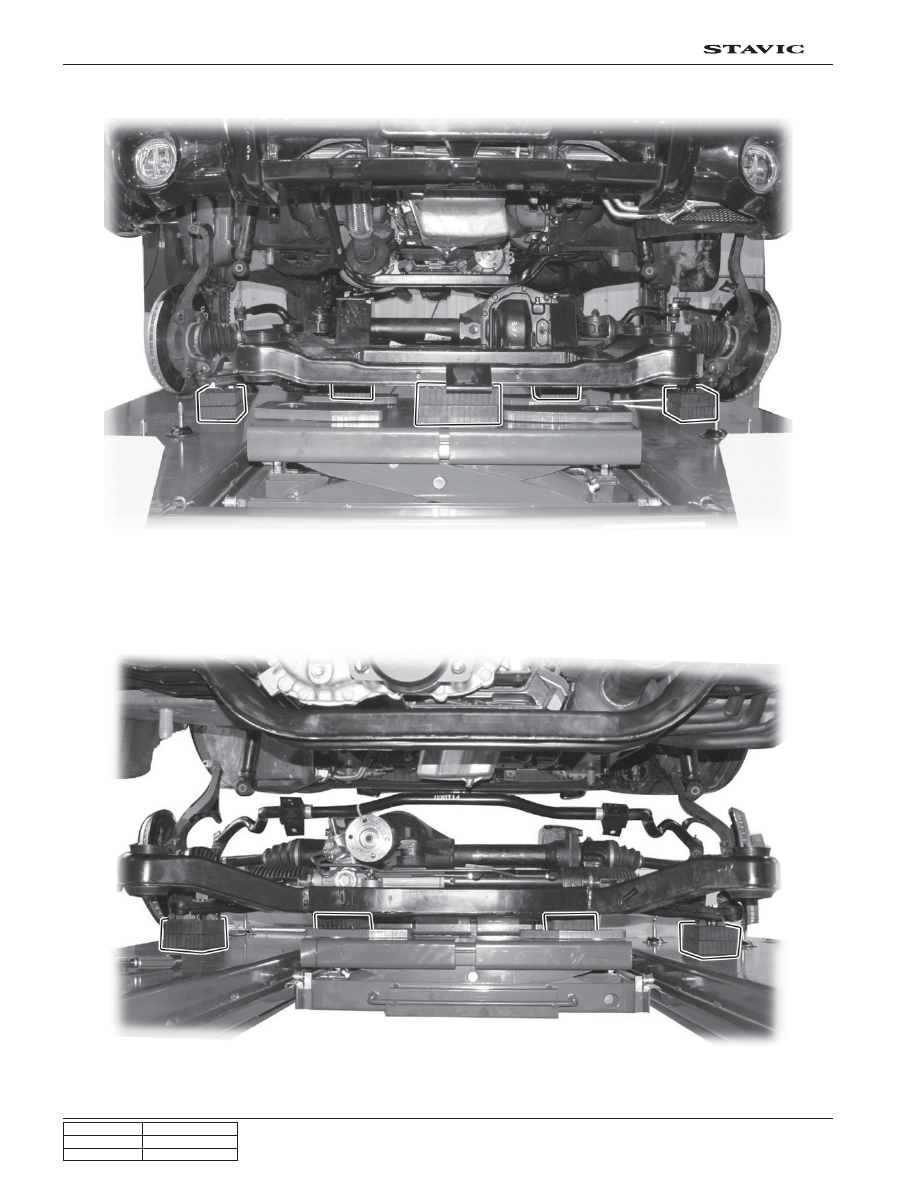

Rubber block at the front side

Rubber blocks at the rear side

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

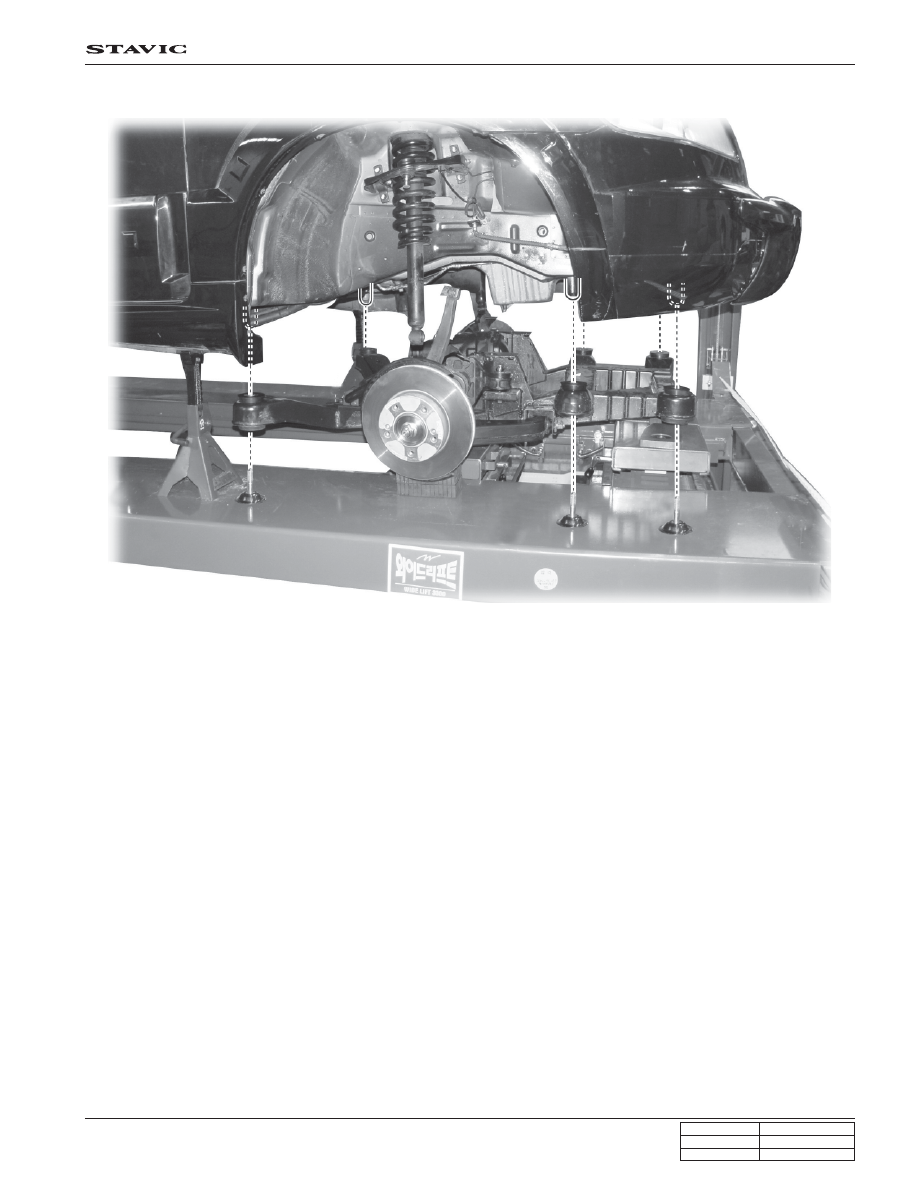

7. Installation is in the reverse order of removal (Keep the exact mount holes and tightening torque)
