SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 314

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

76

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

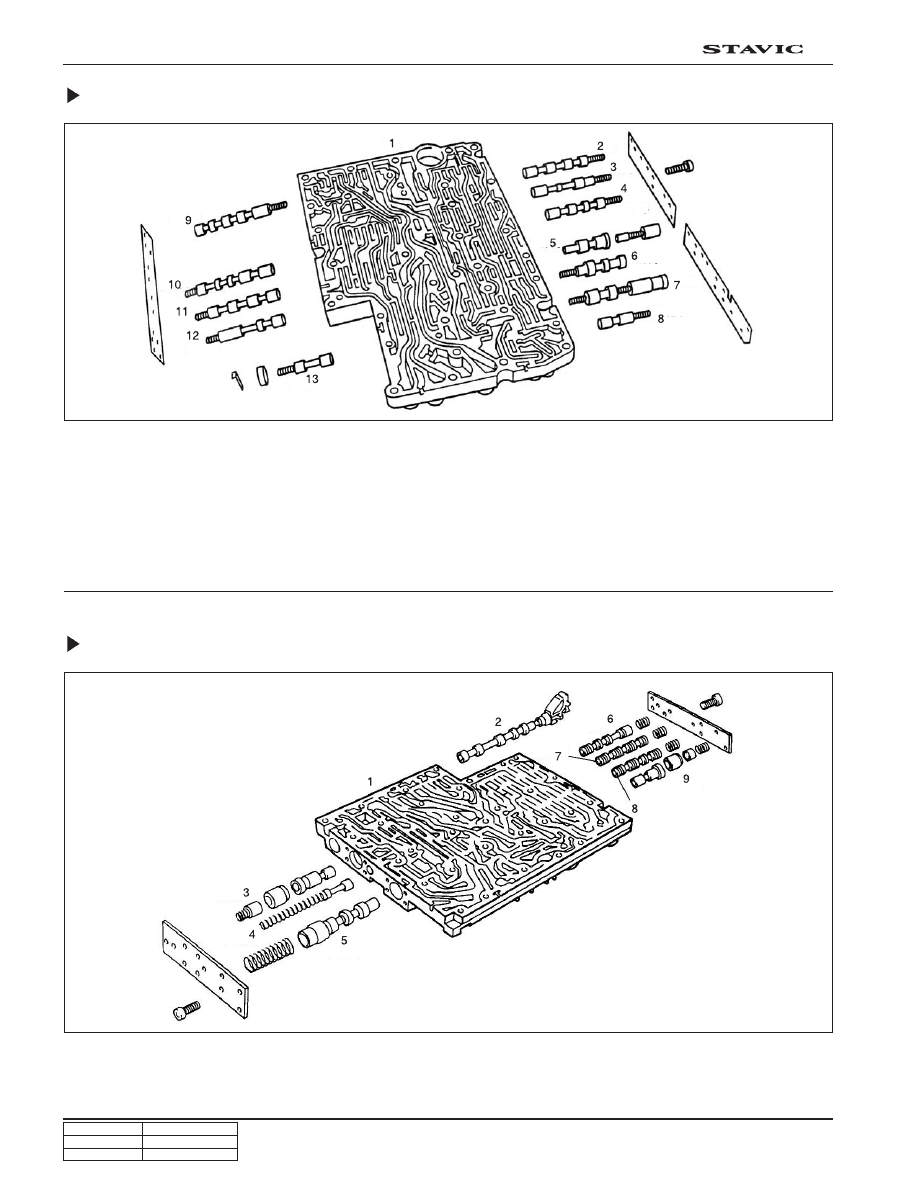

Left Section

Right Section

1. Valve housing
2. Selector valve
3. 2-3 overlap control valve

4. Lubricating pressure control valve
5. Operating pressure control valve
6. 3-4 holding pressure shift valve

1. Shift housing
2. 1-2/4-5 command valve
3. 1-2/4-5 holding pressure shift valve
4. 1-2/4-5 shift pressure shift valve
5. 1-2/4-5 overlap control valve
6. Shift pressure control valve
7. Regulating pressure control valve

8. Shift valve pressure control valve
9. Torque converter lockup clutch control valve

10. 2-3 shift pressure shift valve

11. 2-3 command valve

12. 2-3 holding pressure shift valve
13. Shift valve B2

7. 3-4 command valve
8. 3-4 shift pressure shift valve
9. 3-4 overlap control valve

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

77

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

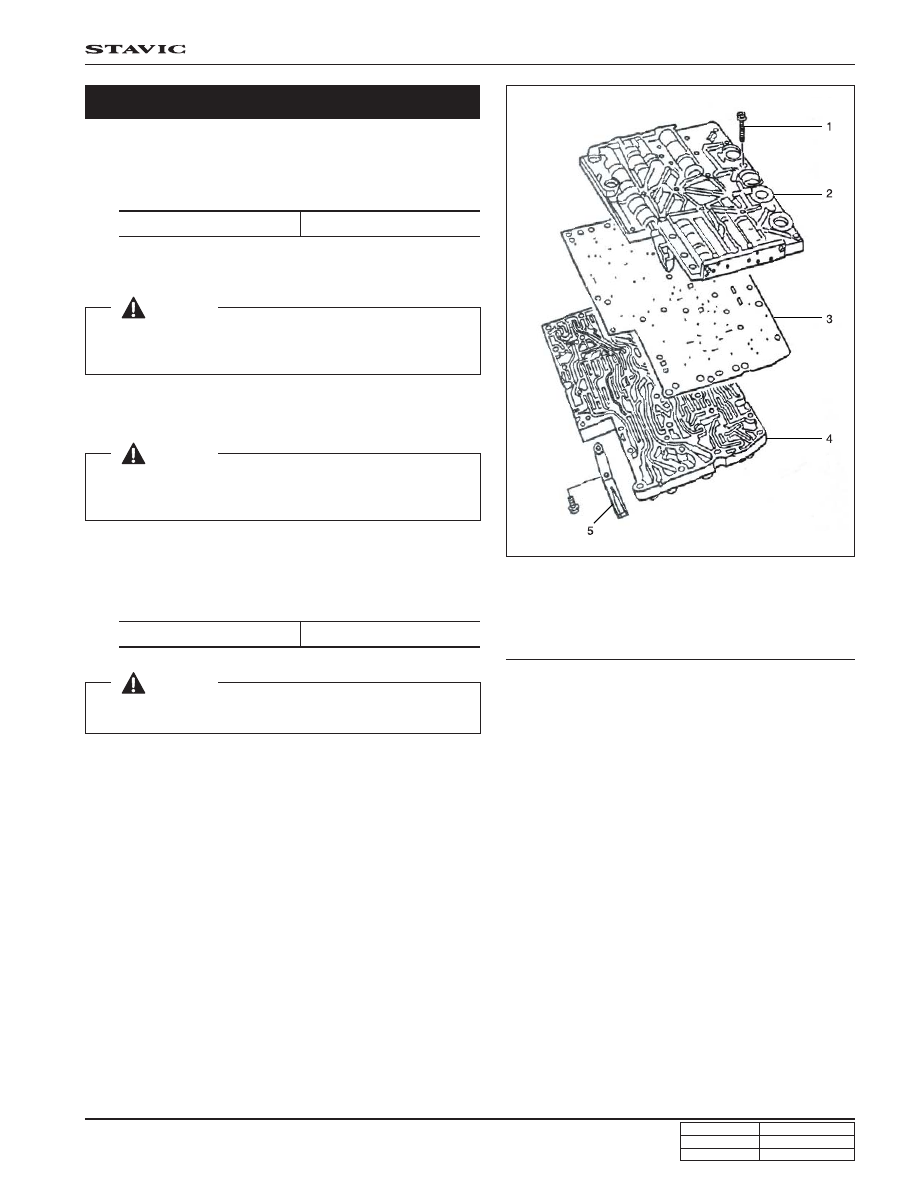

1. Bolts (29)

2. Valve housing

3. Sealing plate

4. Shift housing

5. Leaf spring

1. Remove the leaf spring (5).

2. Remove the bolt (1).

Installation Notice

3. Remove the shift housing (4) from valve housing (2).

4. Remove the sealing plate (3).

5. Unscrew the bolts from shift housing and valve housing

and remove the side cover.

Installation Notice

6. Install in the reverse order of removal.

 [Notice]

Before installation, make sure to insert the dowel pin into
correct position.

 [Notice]

Be careful not to lose 4 plastic balls and 8 steel balls in shift
housing.

 [Notice]

Check the valves for damage, and replace if necessary.

Disassembly and Reassembly

Tightening torque

8 Nm

Tightening torque

14 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

78

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

4WD

2WD

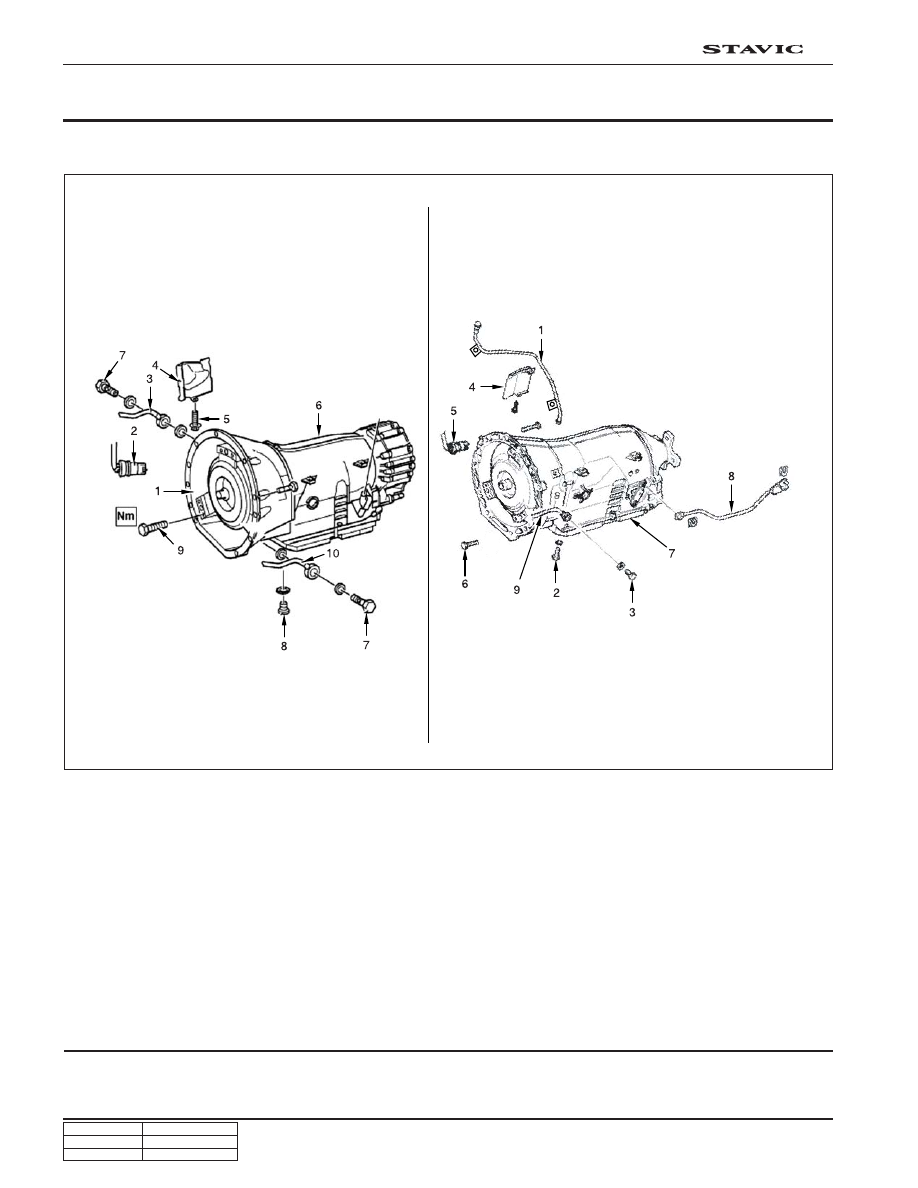

REMOVAL AND INSTALLATION (DC 5-SPEED A/T)

COMPONENTS

4WD

1. Torque converter housing

2. Plug connector

3. Oil line

4. Shield

5. Bolts

6. Transfer case adapter housing

7. Union plugs

8. Drain plug

9. Torque converter bolts

10. Oil line

2WD

1. Oil filler pipe

2. Drain plug

3. Union bolt

4. Shield

5. Plug connector

6. Torque converter bolts

7. Transmission assembly

8. Shift rod

9. Oil line

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

79

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

REMOVAL AND INSTALLATION

Transmission Assembly

Preceding Work: 1) Disconnect battery negative cable

2) Make sure the vehicle stand stable with safty wedge under tires
3) Put the shifting lever in “N”
4) Remove skid plate

*

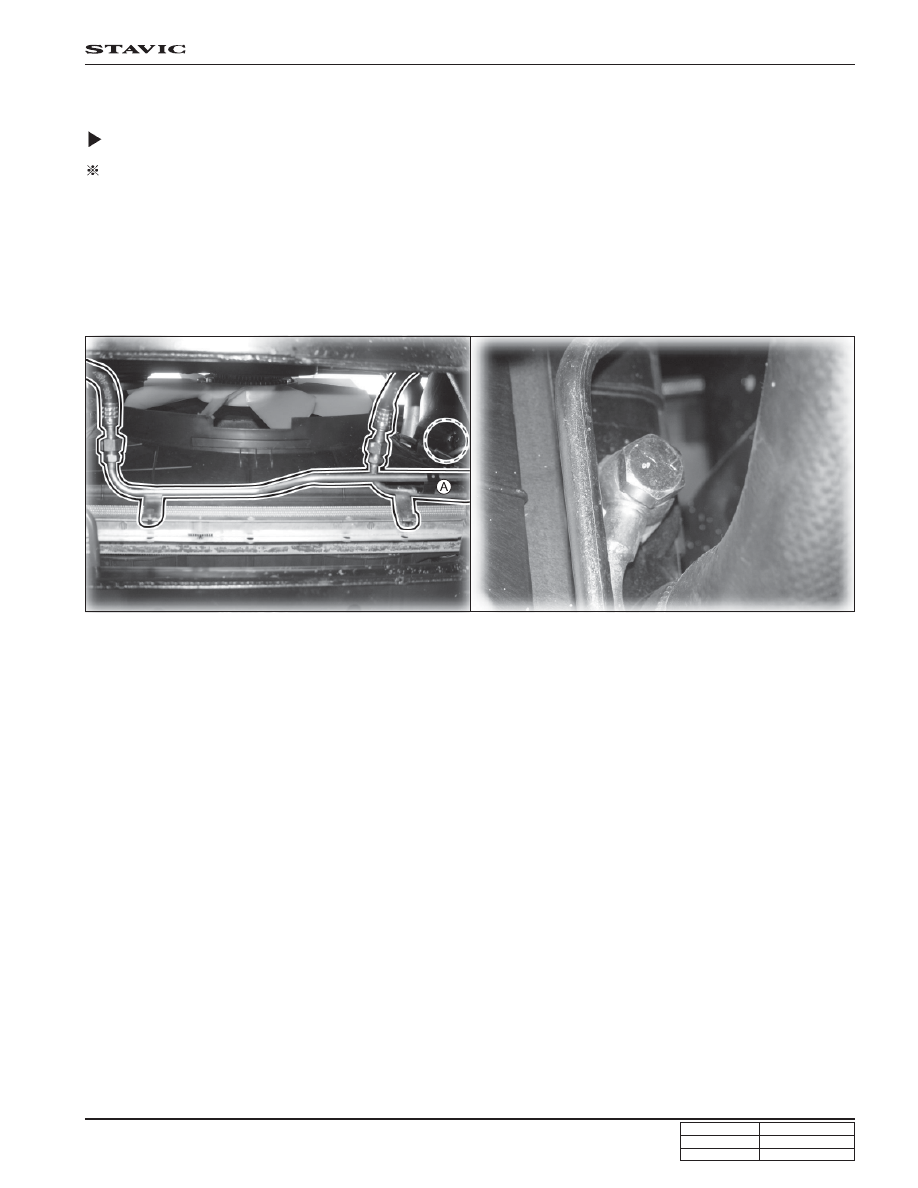

Check  point
Make sure that the oil cooler pipe hose is not twisted, oil cooler pipe (radiator side) is not clogged. If it is contami-
nated with foreign materials, thoroughly clean before replacing transmission assembly (This work is necessary
when removing and installing the radiator).
