1. Separate the front center speaker as shown in

below figure.

2. Disconnect the connector from the front center

speaker assembly.

3. Unscrew the screws from the removed front center speaker assembly and remove the front center

speaker.

Front Center Speaker

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

28

2G

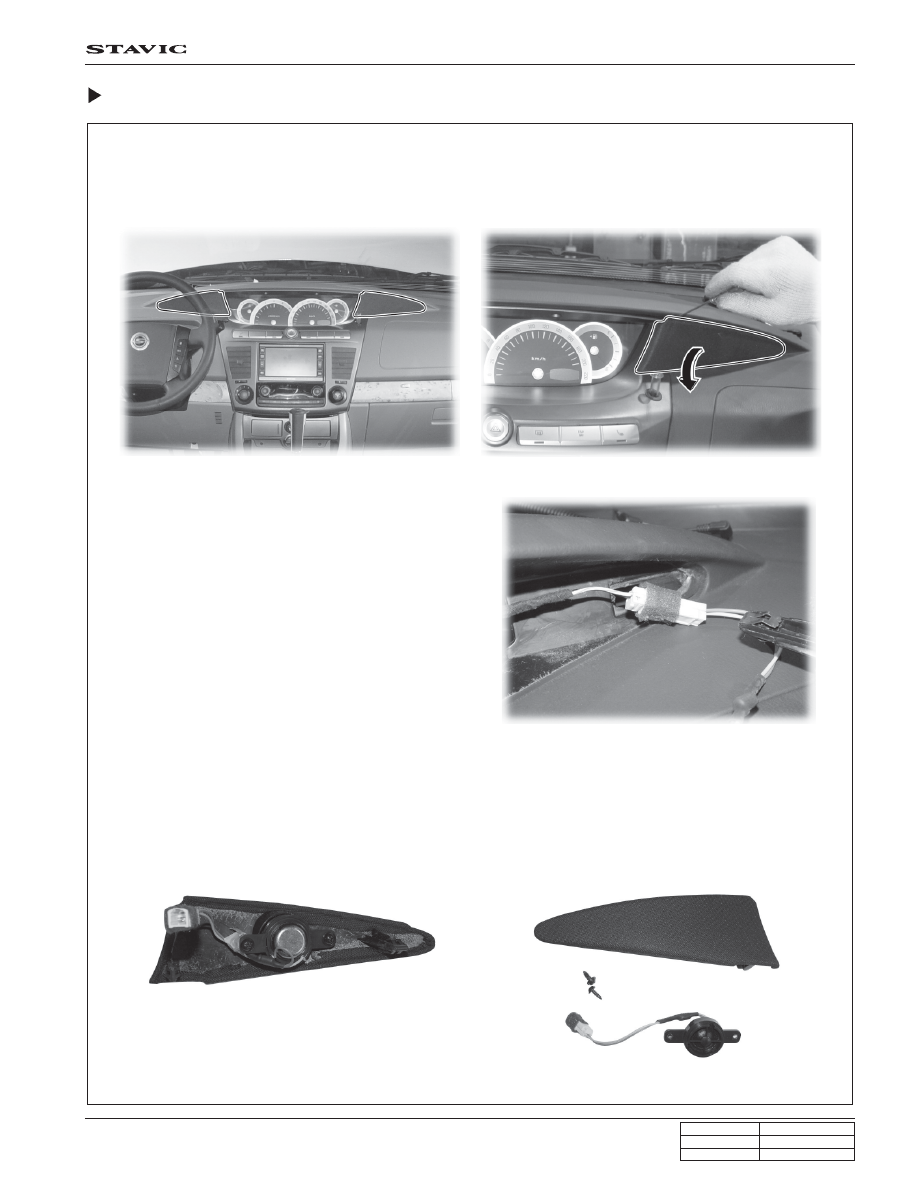

1. Remove the instrument panel.

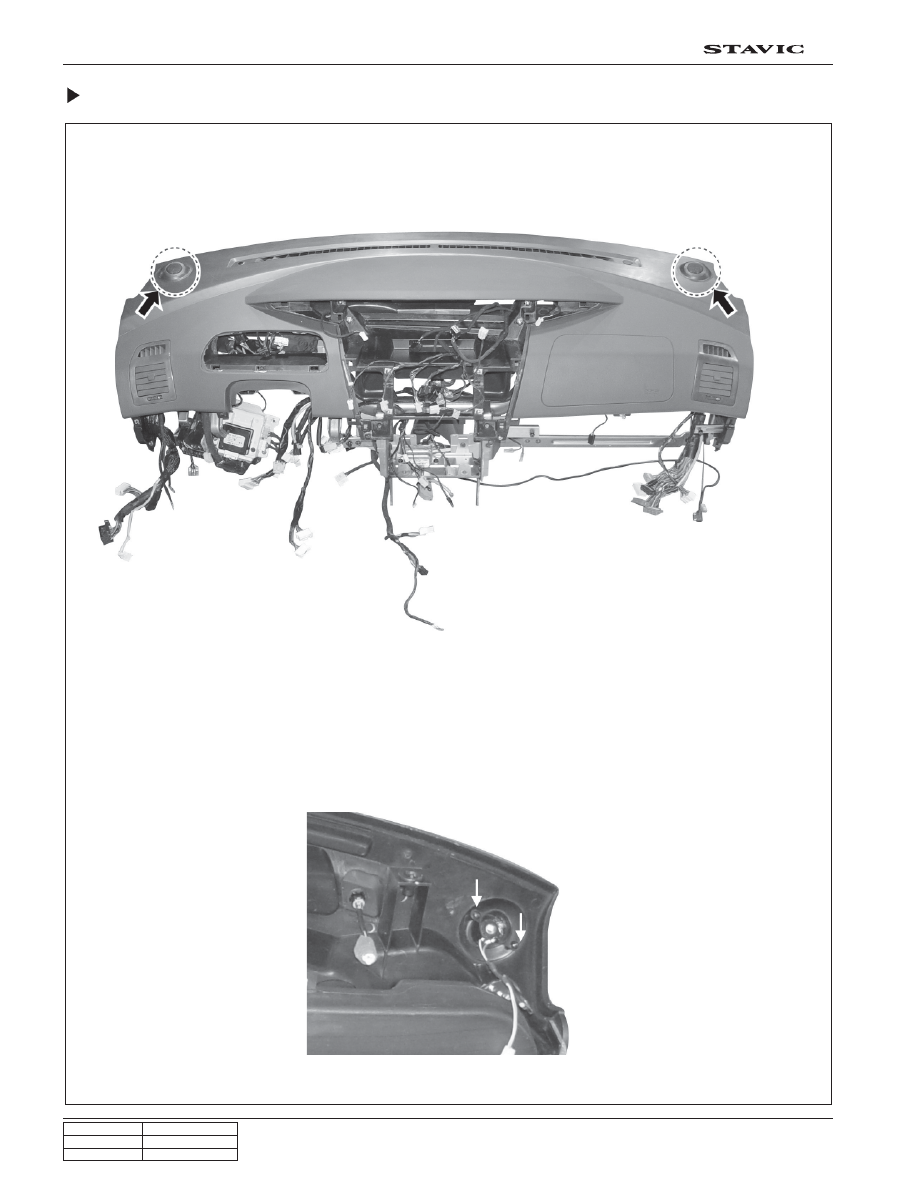

2. Disconnect the tweeter speaker connector from the removed instrument panel, unscrew the screws and

remove the tweeter speaker.

Front Tweeter Speaker

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

29

2G

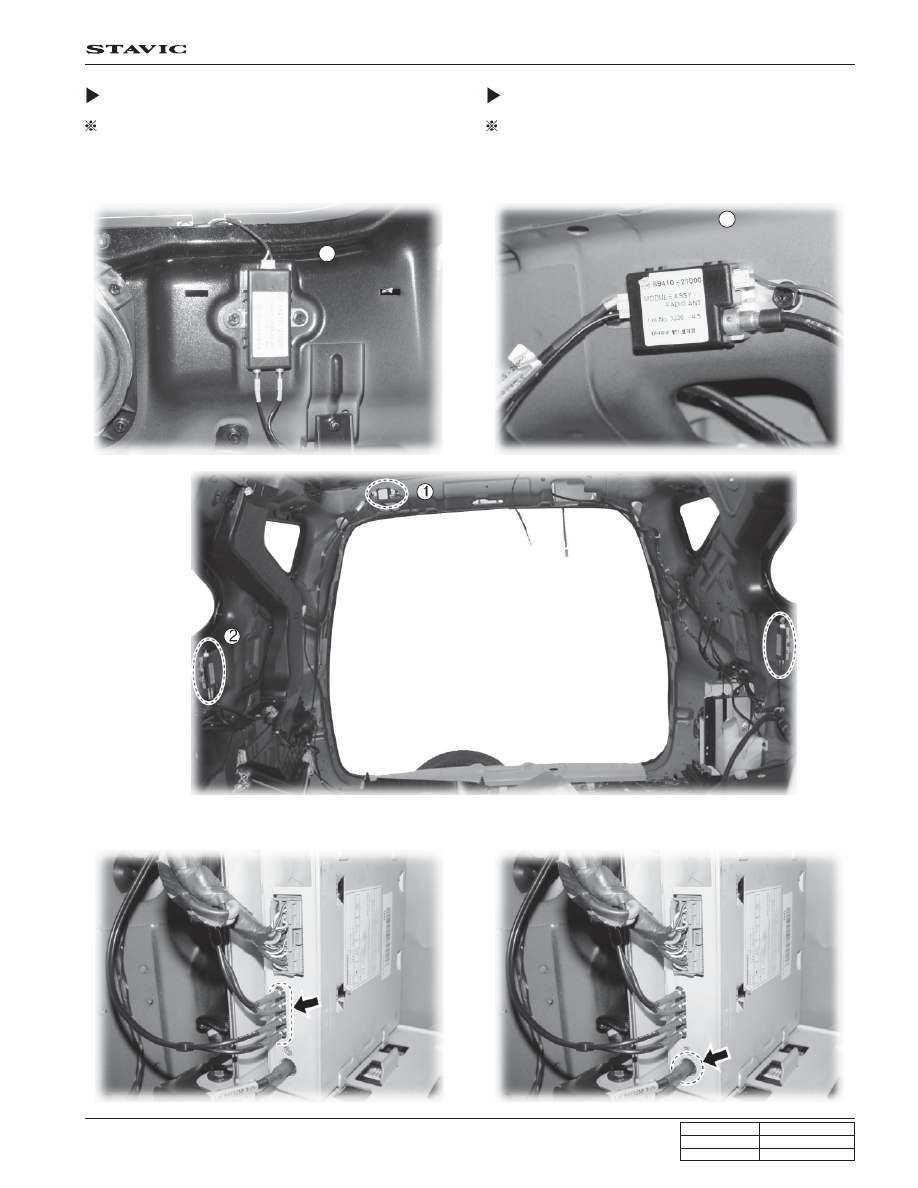

Radio Antenna Module

Preceding works:

Removal of luggage room lamp,Removal of third
and fourth row seats, Removal of rear quarter upper
and lower trims, Removal of rear headlining

TV antenna connections

Radio antenna connection

TV Antenna Module (LH/RH)

Preceding work: Removal of rear quarter upper

panel

1

2
