SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 263

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

15

2G

Terms on DVD System

5.1 channel

As the technology that can digitalize audio and video data and analog audio source, it became possible to separate
audio source into various speakers to realize vivid and dynamic sound.

In general, 5 from 5.1 channel means the function that can divide audio source into 2 front speakers, 1 center speaker
and 2 rear speakers. 0.1 means woofer speaker. Above explanation is based on home theater and has no relation with
the number of speakers. It can be said 5.1, 6.1 and 7.1 channel by the digital audio source dividing function and effect
comes out through speakers.

5.1 channel on the STAVIC has 2 front speakers, 3 center speakers and 2 rear speakers to realize 5 channels and
subwoofer with built-in AMP is in charge of 0.1 channel.

According to vehicle shapes and structures and how to deliver the sound, there can be 1 or 2 center speakers and 3
speakers like in STAVIC that carries a lot of people.

Dolby digital (AC-3)

It encodes/decodes by each 6 channels respectively. It has been developed from the technology called Dolby surround
(Dolby Pro Logic) that can divide current 2 channels into 4 channels.

DTS (Digital theater systems)

A system that developed by Digital Theater Systems, California, USA, and designed to play digitalized film audio tracks.
It is a sound track for DVD titles in NTSC.

DSP (Digital Signal Processor)

Audio source is digitalized and can set the atmosphere proper for the place. AV system on STAVIC has 4 fields -
STADIUM, HALL, CHURCH and CLUB.

DTS-DVD

Recently, it is using as music format for DVD titles. Dolby Digital or PCM type is poplar for DVD-VIDEO, but DTS
function is increasing for high-end AMP or players. In case of DTS, level of sound division and every details are recorded
(DVD title) and has 1/3 of compression ratio compared with Dolby Digital 5.1. So a title, having large capacity, that
formatted by DTS function cannot record other supplement and subtitles.

However, it is very sensitive to sound so people accustomed to 5.1 channel prefer DTS titles.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

16

2G

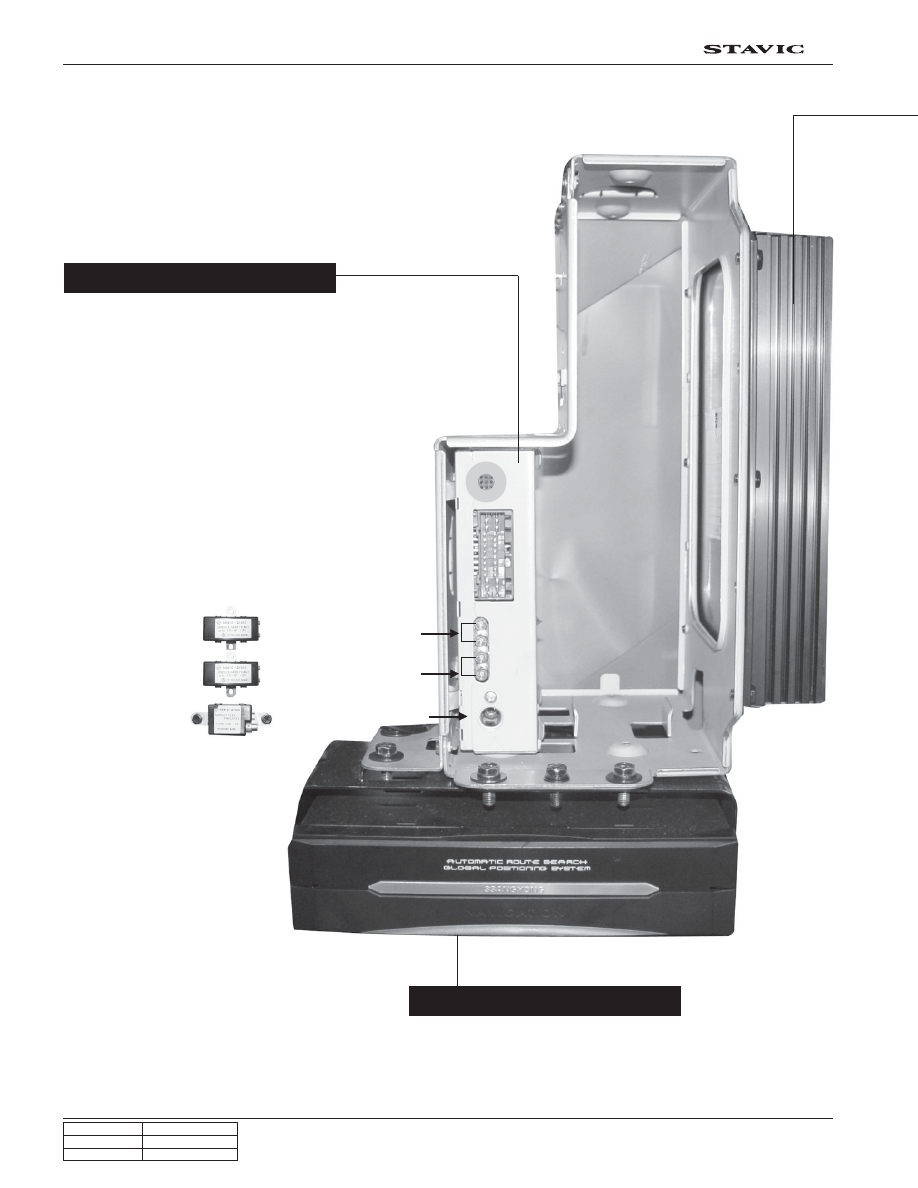

2) Tuner / 5.1 Channel AMP with Built-in DSP / DVD Navigation

(DVD System Basic)

TV antenna module RH

TV antenna module LH

Radio antenna module

2 channels

2 channels

Tuner

Tuner, AMP and navigation units are installed together at bot-
tom of driver side rear quarter door panel. Remove the lower
quarter trim panel to replace the units.

A tuner filters and cuts unnecessary signals among
received signals and then precisely adjusts input
signals. Installed tuner has following functions.

Connecting terminal of the tuner receives amplified
signals from each TV antenna module locating rear
quarter glass that receives TV signals from glass
antenna and then inputs to left and right channel.

AM/FM radio module on the roof panel rear end re-
ceives amplified signals from glass antenna and then
transmits to tuner input (1 channel).

DVD Navigation

Navigation unit in this vehicle transmits huge amount of data on the
DVD CD directly to AV head unit, without via tuner and AMP. It has
3D view function for roads and buildings and supporting data. GPS
antenna to receive/send vehicle position from/to satellite is located
behind the Instrument panel.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

17

2G

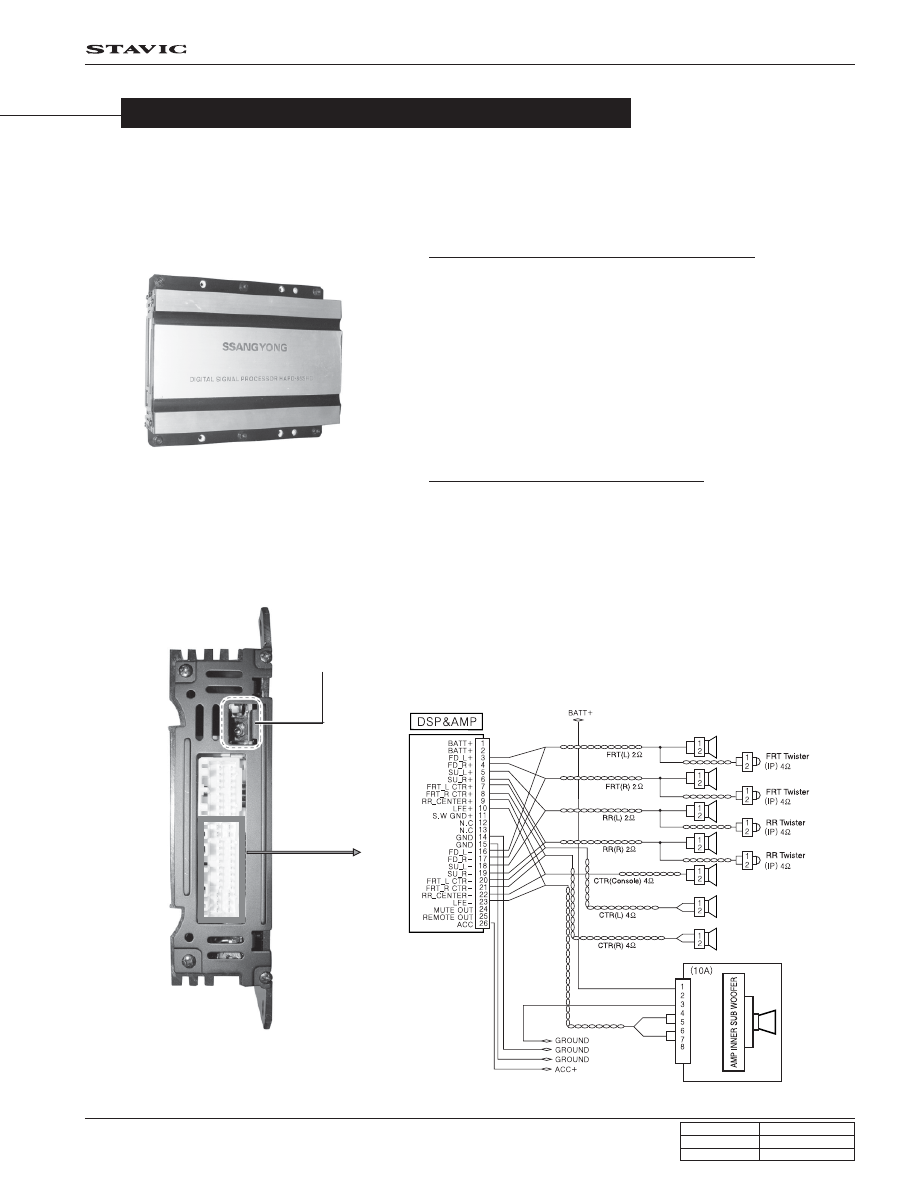

DVD system displays high quality pictures and separates digital audio sources to give digital effects according to speaker
arrangement. A chipset that can treat digital audio source signal is installed on the exterior AMP and has following function.

* AC-3, DTS 5.1 channel decoder (Decoder: separates and analyzes

audio source)

* Dolby Pro Logic, Dolby Pro Logic II function

* Sound filed setting (HALL/CHURCH/STADIUM/CLUB)

* Equalizer mode (Classic/Jazz/Pop/Rock)

* Speaker output control (All/driver’s side/passenger’s side/rear seats)

Terminals on the below connector control speaker output. Terminals de-
code according to speakers like front, rear, center and tweeter and out-
put separated sound. Decoded signal goes to subwoofer that has built-in
AMP and the AMP in the woofer outputs sound directly.

1. DSP (Digital Signal Processor) function

Appearance

Connector

2. Speaker control (Basic function)

5.1 channel power amplifier with built-in DSP

Optical fiber cable

(AV head unit)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AV SYSTEM

STAVIC - 2004.09

18

2G

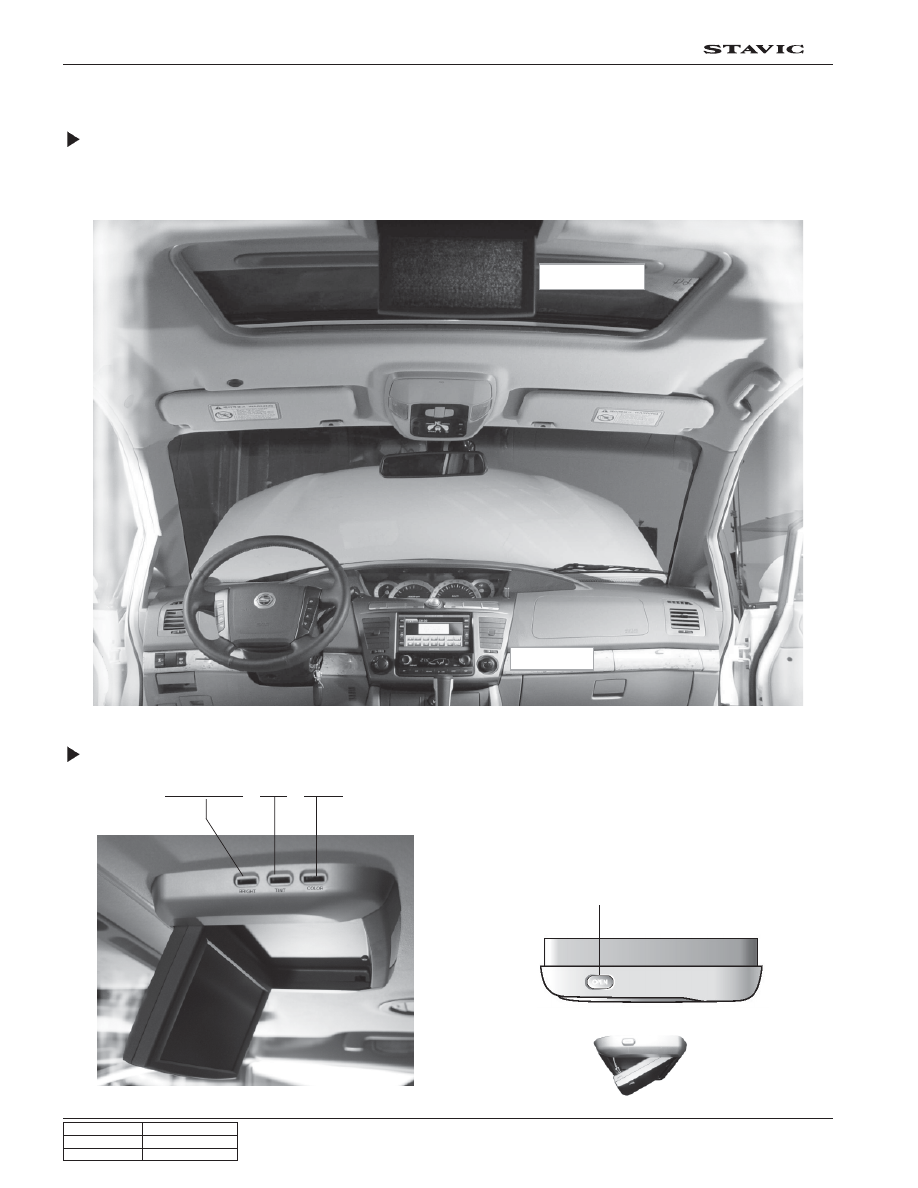

3) Rear Monitor (Roof Monitor)

Location

The size of rear monitor is 7 inch. When pressing the OPEN button, the power is supplied and the rear monitor slide
down by approx. 25

°. After then, manually adjust the monitor to desired angle. Its angle can be adjusted by 100°.

Rear monitor Brightness / Tint / Color control dial

OPEN switch

When pressing the OPEN button, the power is sup-
plied and the rear monitor slide down by approx. 25°.

OPEN switch (Power supply button)

Front monitor

Rear monitor

Monitor Control
