3) Speed Sensing Indicator

The flashing interval of the road signs changes gradually ac-
cording to the vehicle speed.

Flashing interval according to the vehicle speed

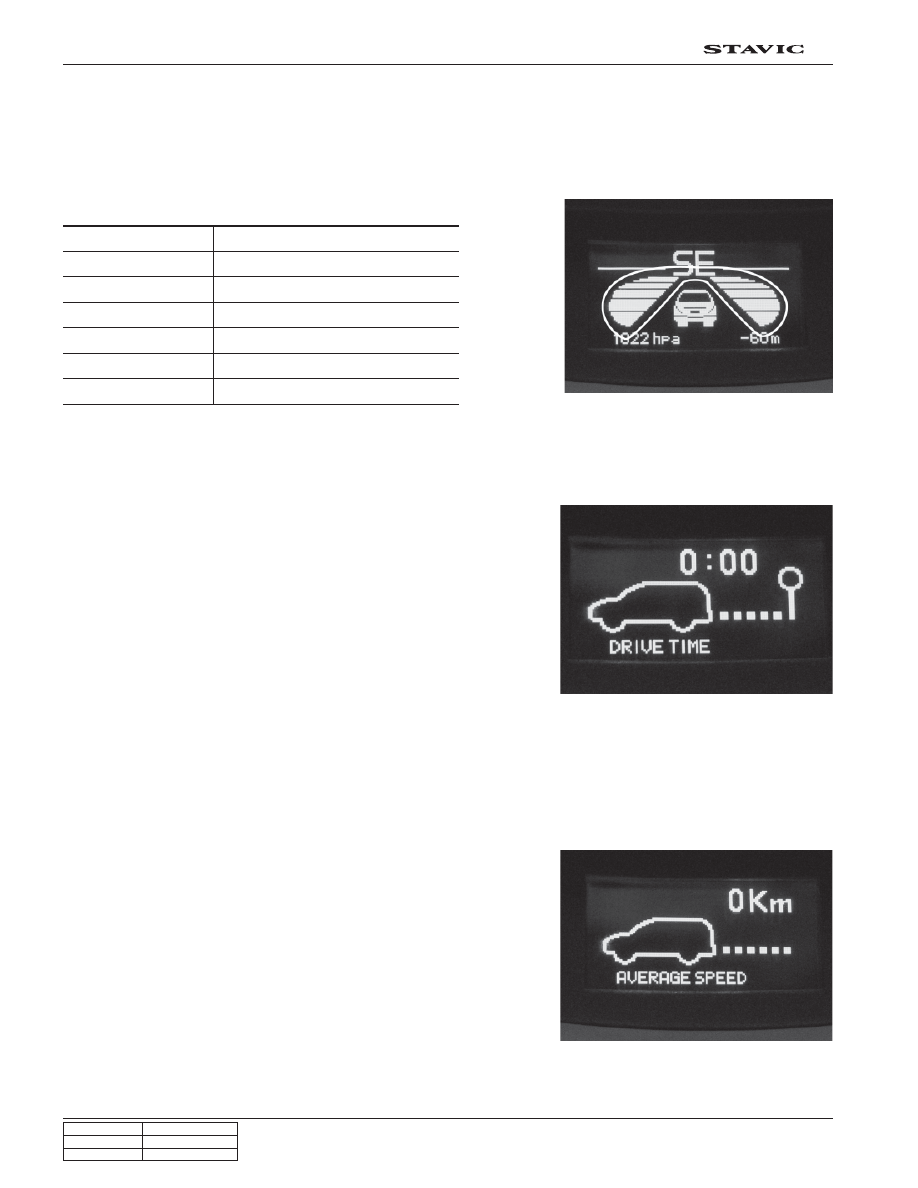

4) Driving Time

- It indicates the driving time from start up to now.

- It can be reset to 0 when turning the ignition key to “OFF”

position or pressing UP or DOWN button for a specific
period of time.

- Indication range: 0:00 ~ 23:59

5) Average Speed

- It indicates the average vehicle speed from start up to

now.

- It can be reset to 0 km/h when turning the ignition key to

“OFF” position or pressing UP or DOWN button for a
specific period of time.

- Indication range: 0 ~ 120 km/h

Vehicle speed

below 1.8 km/h

below 40 km/h

below 60 km/h

below 80 km/h

below 100 km/h

over 100 km/h

Flashing interval

stays ON

1 second

0.8 seconds

0.5 seconds

0.3 seconds

0.2 seconds

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

MULTIMETER

STAVIC - 2004.09

11

2F

6) Parking Aid Signal Mode

The rearview display appears when placing the gear selector lever to “R” position.

This message appears when the

parking aid sensor is defective.

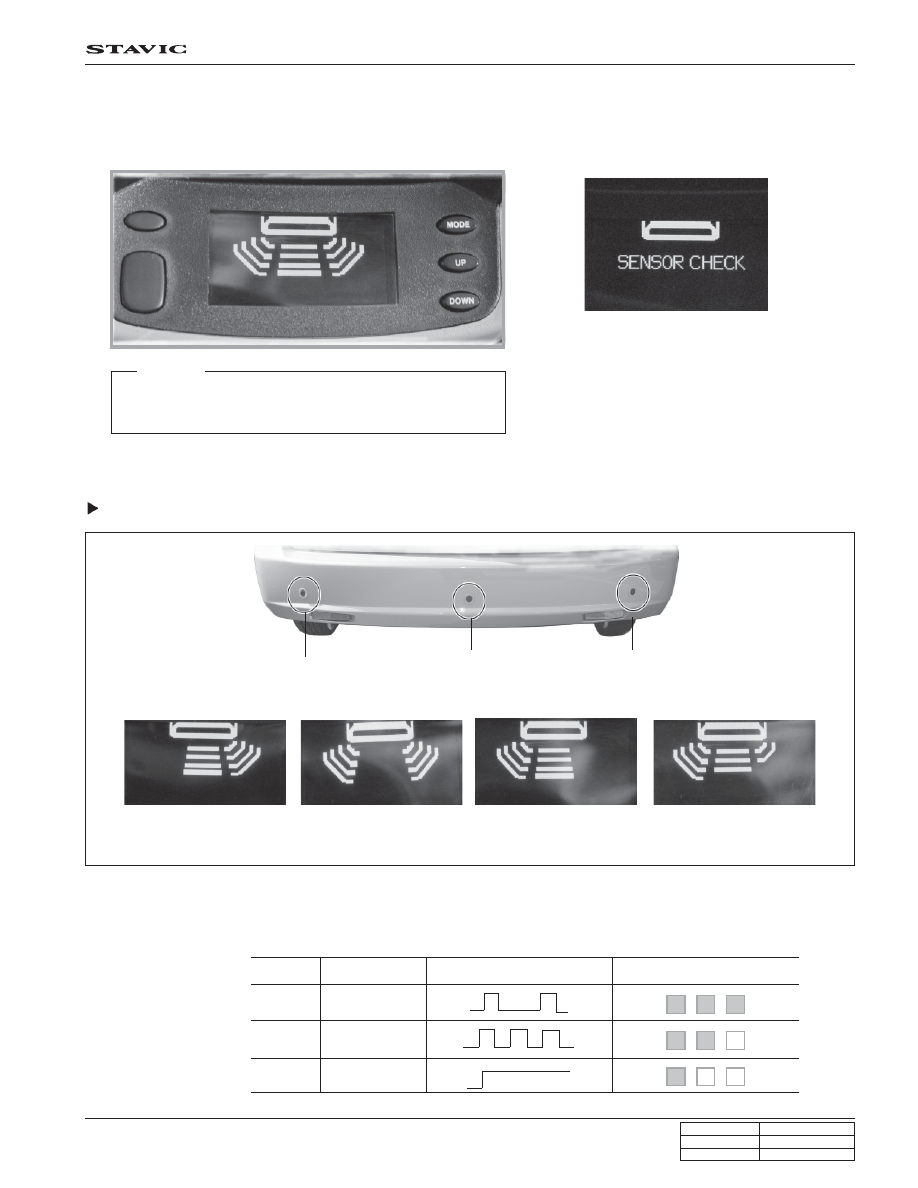

Display changes according to the distance between rear bumper and rear obstacle

All displaying bars are displayed when the distance between rear bumper and obstacle is over 120 cm.

The number of displaying bars is decreased and the alarm interval becomes faster as the obstacle approaches.

Rear left sensor

Rear center

sensor

Rear right

sensor

Detecting obstacle at rear

left of the vehicle

Detecting obstacle at rear

center of the vehicle

Detecting obstacle at rear

right of the vehicle

Detecting obstacle at rear right

and rear center of the vehicle

 [Note]

The display returns back to previous mode screen when
placing the selector lever to other positions.

Step

Step 1

Step 2

Step 3

Distance

80 ~ 120 cm

50 ~ 80 cm

below 50 cm

Alarm interval (msec)

Display

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

MULTIMETER

STAVIC - 2004.09

12

2F

7) Battery Mode

- The screen shows fully charged battery when the battery voltage is over 12 V.

- It indicates the current battery voltage by 0.1 V.

- When the battery voltage goes below 9 V, current display is changed to battery voltage mode and “LOW VOLTAGE”

message flashes.

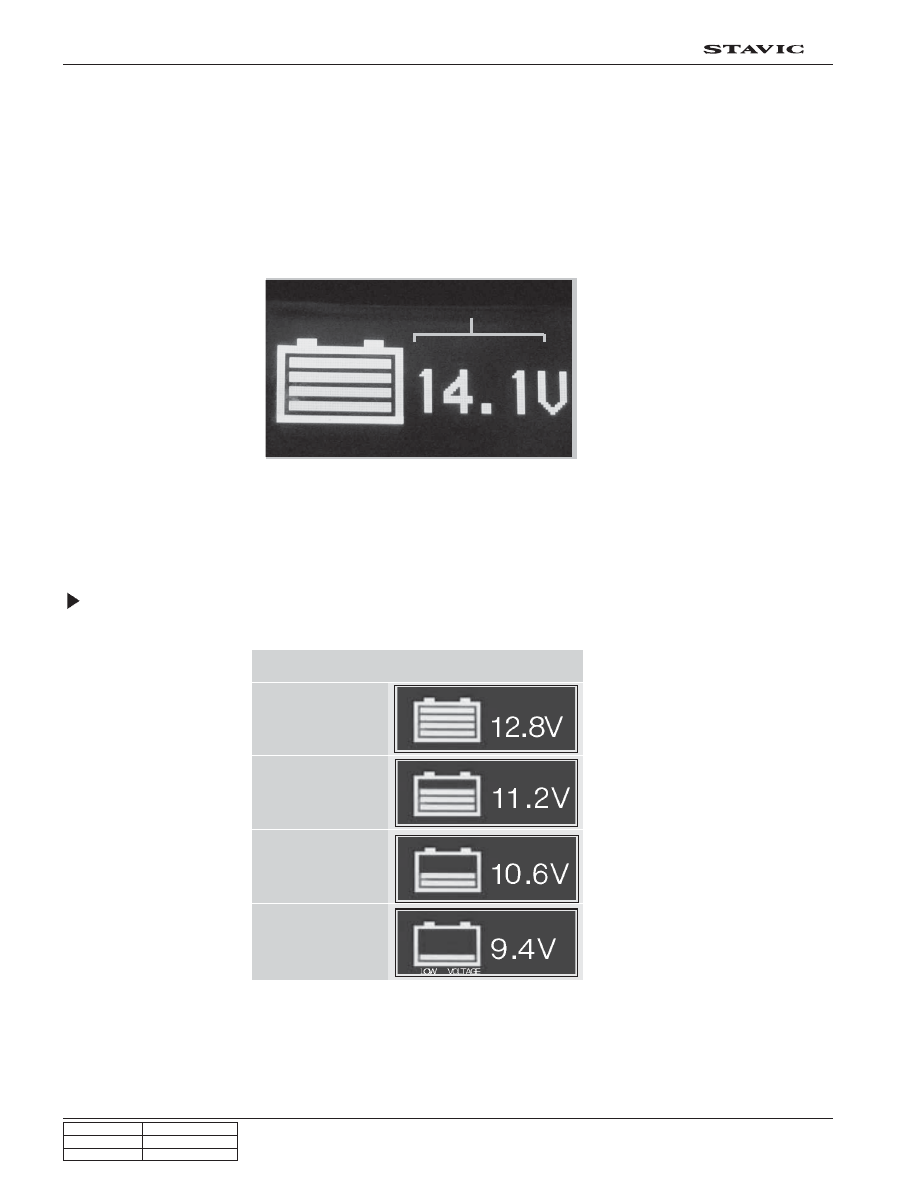

Charging Level

Charging level

Battery voltabe

Over 12.0 V

(fully charged)

11.9 ~ 11.0 V

10.9 ~ 10.0 V

9.9 ~ 9.0 V

Battery voltage

Indication

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

MULTIMETER

STAVIC - 2004.09

13

2F

REMOVAL AND INSTALLATION

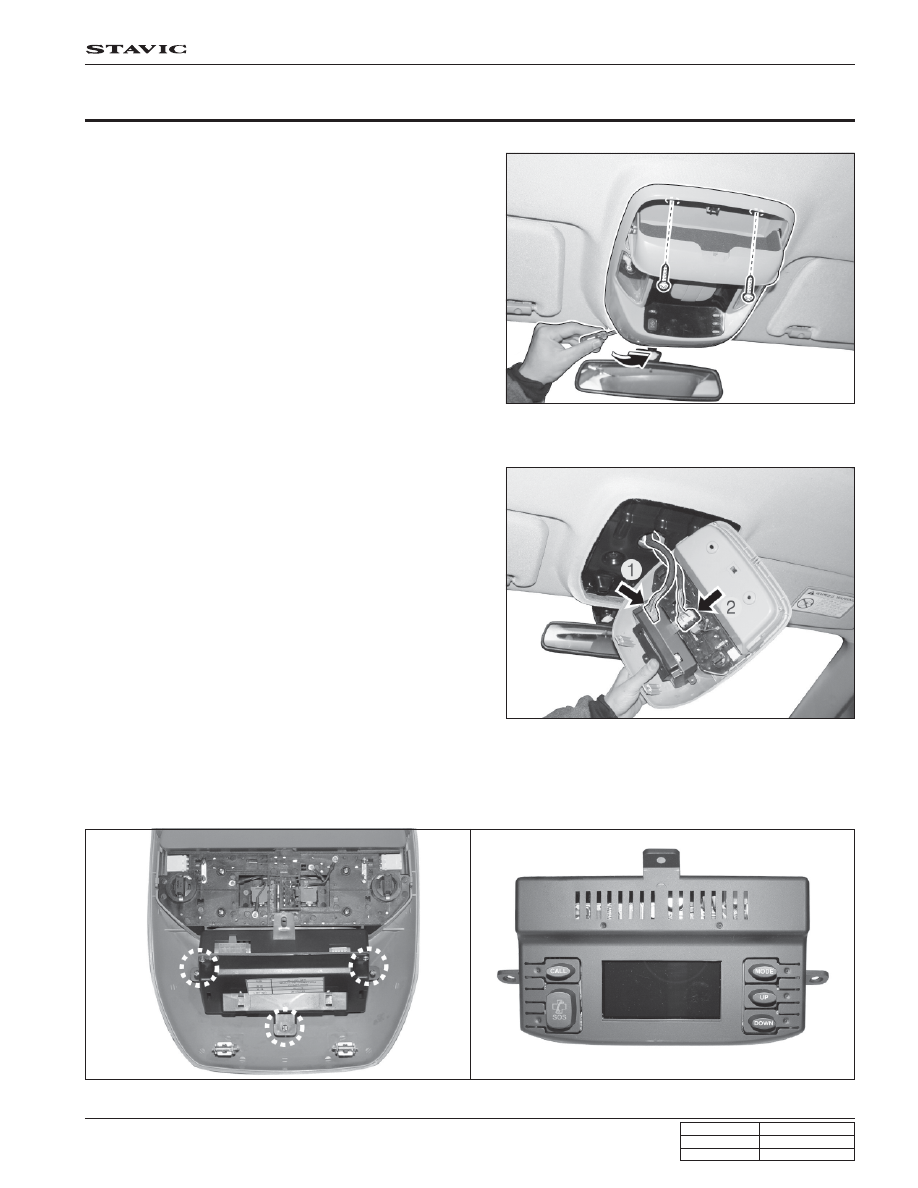

1. Open the sunglasses box, remove two screws from the

box, and pry off the overhead console with a flat blade
screwdriver.

2. Disconnect the multi-meter connector and the room lamp

connector and remove the overhead console.

3. Unscrew three screws from the back of the overhead console and remove the multi-meter.
