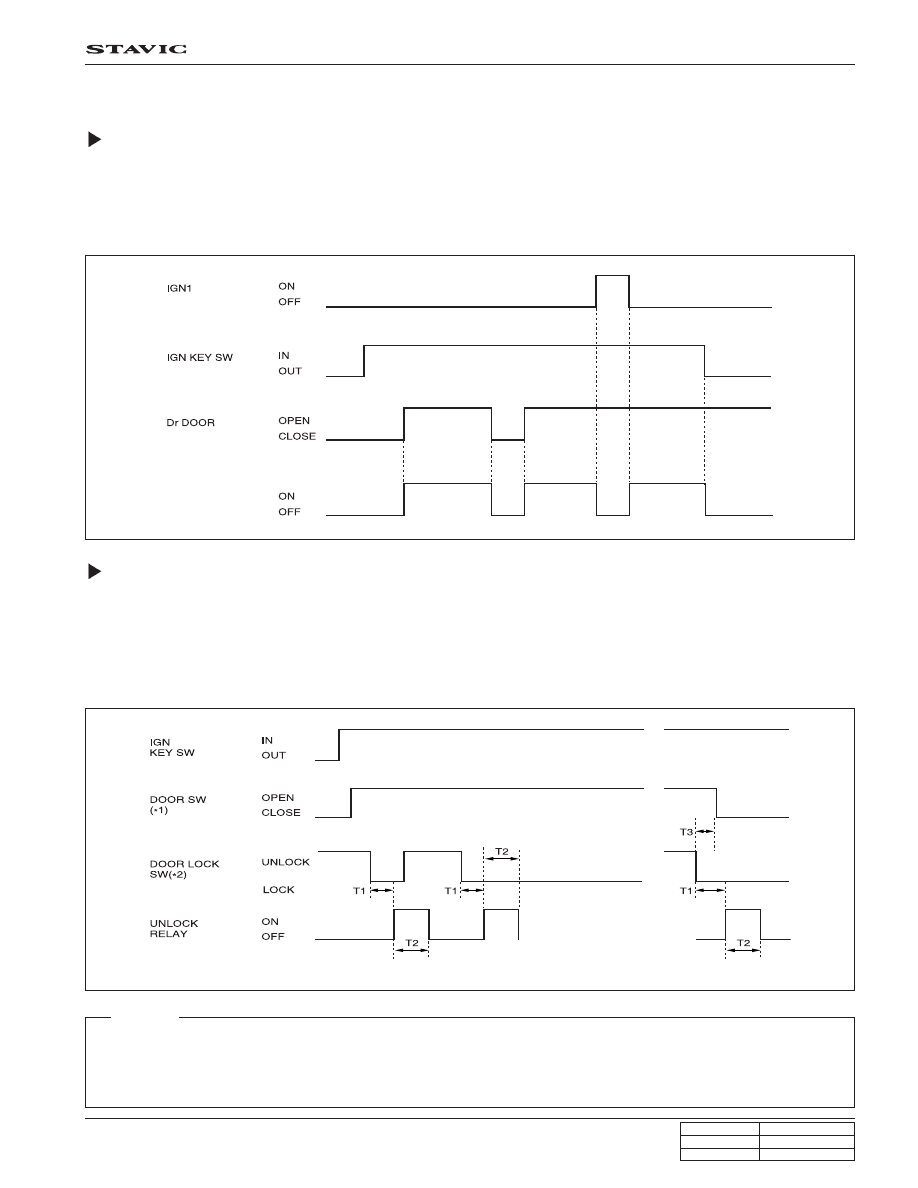

2) Ignition Key Reminder

Key Reminder Warning

1. The chime buzzer output in the ICM box continues when opening the driver’s door while the ignition key is inserted

into ignition switch.

2. When removing the ignition key or closing the driver’s door during chime buzzer output, the output turns off.

3. This function is not available when the ignition switch is “ON”.

Key Reminder

1. This function does not work if the vehicle speed is over 3 km/h.

2. The system outputs “UNLOCK” for 5 seconds (T2) from 0.5 seconds after the driver’s door is opened and the door

lock switch is changed to “LOCK” (while the ignition key is in ignition switch).

3. The system outputs “UNLOCK” for 5 seconds (T2) when the door lock switch is changed to “LOCK” from “UNLOCK”

and the driver’s door is closed within 0.5 seconds (T1) (while the ignition key is in ignition switch).

CHIME BUZZER

T3: within 0.5s

T1: 0.5s

T2: 5s

 [Note]

Operating conditions for (*1) and (*2)

(*1): Driver’s door is opened and driver’s door lock switch is turned to LOCK

(*2): Passenger’s door is opened and passenger’s door lock switch is turned to LOCK

18

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

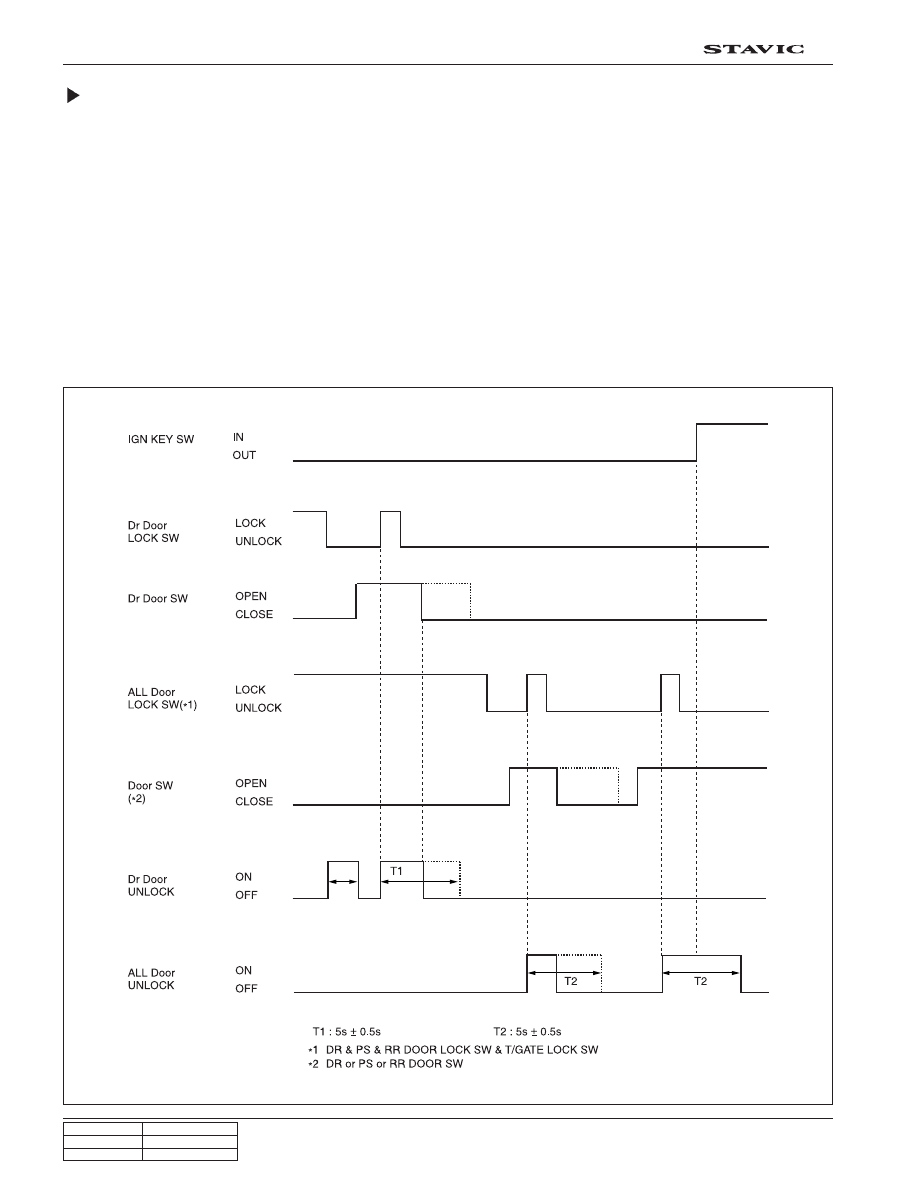

All Door Lock Prevention Function when a Door is Opened

1. When a door is opened, all doors should be unlocked for 5 seconds if inputs LOCK signal.

- The LOCK signal means the central door locking (REKES, central door lock switch, knob switch) except LOCK

input by rear door knob.

- After unlocking and opening only the driver’s door with remote control key under armed mode (driver’s door is

unlocked but passenger’s and rear doors are locked), only the driver’s door generates unlock signal when trying to
lock the driver’s door with the driver’s door opened.

- Above operations is regardless of key positions and have priority over the ignition key reminder function.

2. When the door is closed during unlock output for 5 seconds under item 1 condition, the unlock output stops.

- All doors except tailgate and hood output “UNLOCK” for 5 seconds (T1) when the “LOCK” signal is inputted (while

the ignition key is removed and a of door is opened).

- When the door is closed during unlock output for 5 seconds, the unlock output stops.

19

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

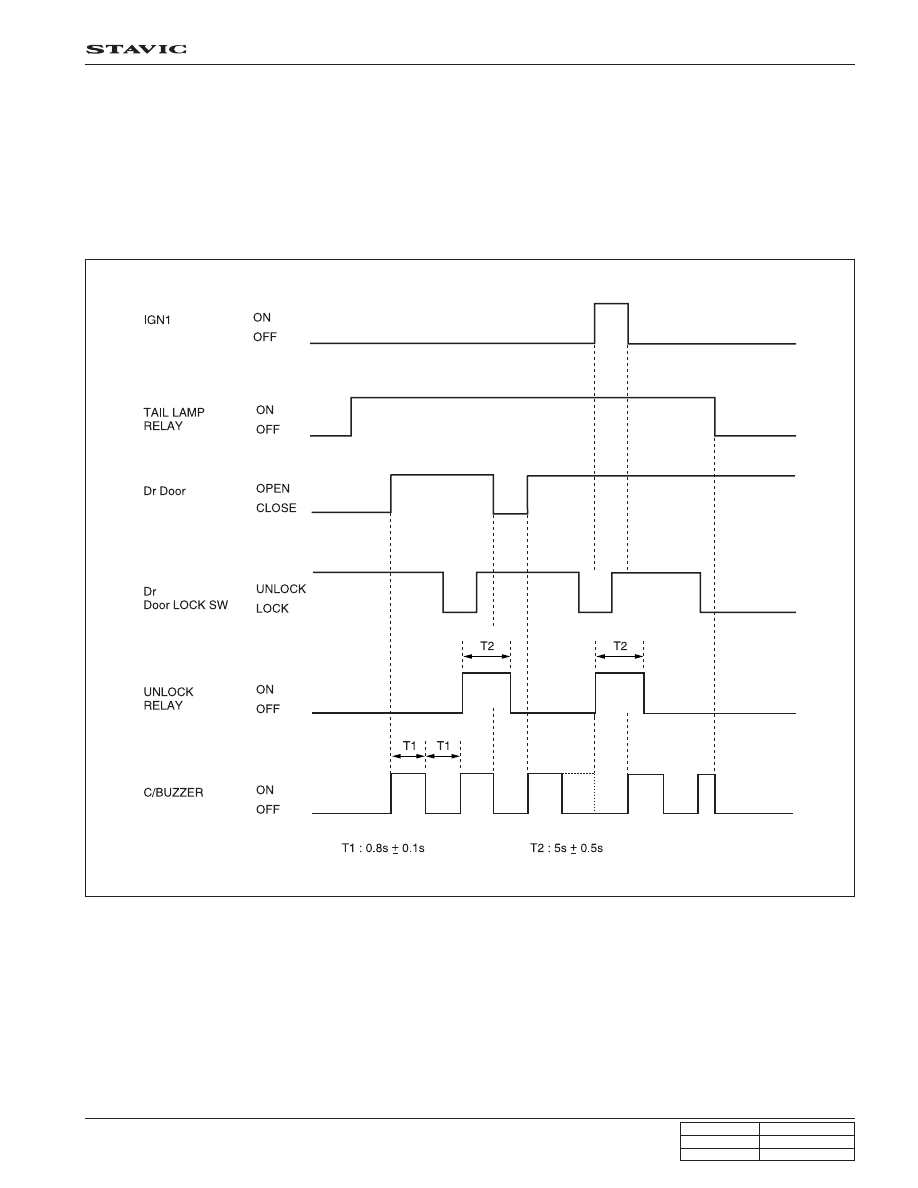

3) Mark Lamp Left on Warning

1. The chime buzzer in the ICM box sounds with the interval of 0.8 second when opening the driver’s door while the tail

lamp is turned on and the ignition key is removed.

2. The buzzer output stops when turning off the tail lamp and closing the driver’s door.

3. The system outputs “UNLOCK” for 5 seconds when the driver’s and passenger’s door lock switch is locked (while

the tail lamp is turned on and the driver’s door is opened).

4. This function is not available when the ignition key is in “ON” position.

20

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

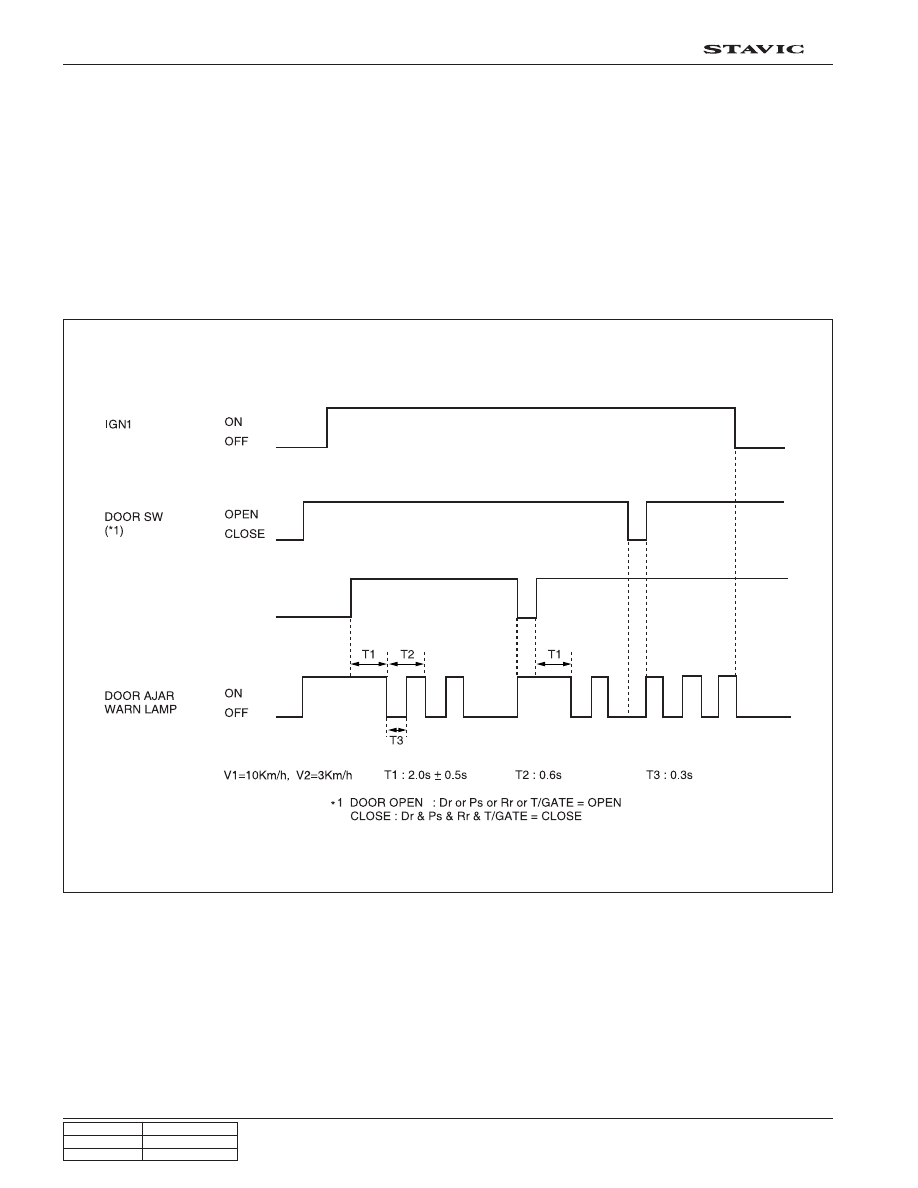

4) Door Ajar Warning

1. The warning light in indicator display comes on when opening any of driver’s door, passenger’s door, rear door or

tailgate while the vehicle speed is below 6 km/h (V1).

2. The warning light goes off when closing the door under step 1.

3. The warning light blinks when the vehicle speed is over 10 km/h (V1) for more than 2 seconds while the warning

light is turned on.

4. The warning light blinks when a door is opened while the vehicle speed is over 10 km/h (V1) (while the warning light

is turned off).

5. The warning light goes off when closing the door under step 3.

6. The warning light comes on when the vehicle speed is below 3 km/h (V2) under step 3.

OVER V1

BELOW V1

VEHICLE SPEED
