12

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

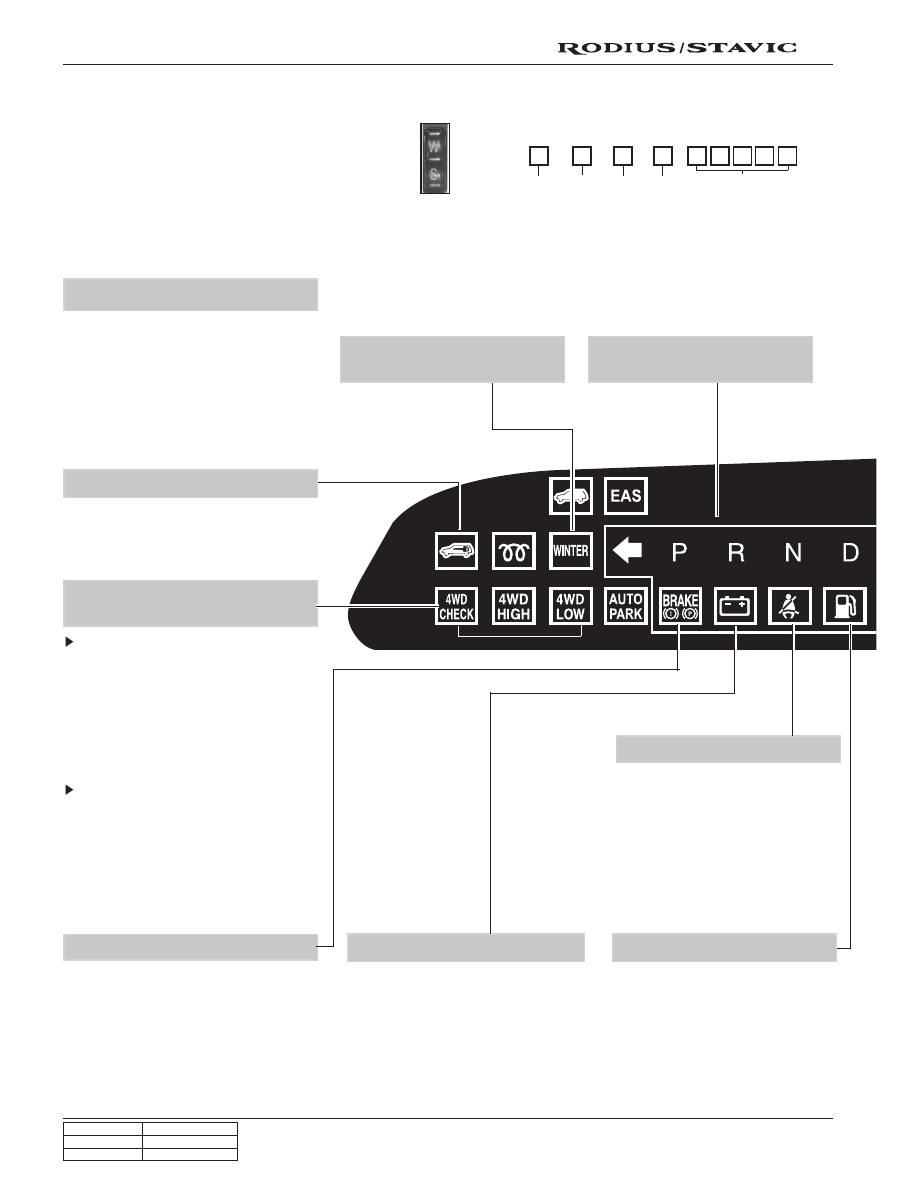

CLUSTER / WARNING & INDICATOR PANEL

RODIUS/STAVIC - 2005.07

2B

This indicator comes on when the ignition
switch is turned on and stays on for a short
time or may go off right away. When the glow
plugs are sufficiently heated for cold starting,
the light will go out. Then, start the engine.

In the vehicle equipped with direct injection
type engine, this indicator may come on very
shortly or may not come on.

4WD CHECK Warning Light

This warning light comes on when the igni-
tion switch is turned to “ON” and should go
out if the system is normal. If “4WD CHECK”
warning light stays on or “4WD LOW” indica-
tor blinks continuously, it may indicate that
there is something wrong in the immobilizer
system.

4WD LOW indicator*

When shifting the driving mode between “4WD
LOW” and “4WD HIGH”, this indicator blinks
until the shifting operation is completed. After
completion of mode change, the indicator goes
out.

This indicator indicates the operating condi-
tions of immobilizer system. This indicator
comes on when the ignition key is communi-
cating with the engine control unit (during
engine starting) and goes out after starting
the engine. If this indicator blinks, it may indi-
cate that there is something wrong in the im-
mobilizer system.

Immobilizer Indicator

The indicator comes on when the Win-
ter mode (W) switch near the gear se-
lector lever is pressed. Use this mode
to drive off smoothly under icy and slip-
pery road. In this mode, the vehicle
drives off with second gear in forward
and reverse driving.

4WD CHECK Warning Light /

4WD LOW indicator

Brake Warning Light

When the ignition is switched on, this warn-
ing light comes on and should go out. This
warning light comes on when the parking
brake is applied and/or the brake fluid level is
lower than specified level. If the vehicle is
driven for over 2 seconds (over 10 km/h) while
the parking brake is applied, the parking brake
warning light comes on and warning buzzer
sounds.

The seat belt warning light comes on
and the seat belt warning chime sound
for 6 seconds when the ignition switch
is turned to “ON” position unless the
driver’s seat belt is securely fastened.
This reminding operation stops when
the driver fastens the seat belt even
during its operation period.

Seat Belt Reminder

This warning light comes on when the
ignition switch is turned on and go off
when the engine is started. If this light
doesn’t go off after engine starting or
comes on while driving, it means there
is a malfunction in the system. The bat-
tery voltage is also displayed on the multi
meter.

Glow Indicator (For Diesel Engine)

This indicator shows the automatic
transmission selector lever position.

When the selector lever is at "D" posi-
tion while driving, "D" indicator and cur-
rently selected gear indicator are com-
ing on. If you move the selector lever to
left or right direction, only the selected
gear indicator comes on.

Parking Reverse Neutral Driving

Driving gears

P

R

N

D

1

2

3 4

5

5. WARNING & INDICATOR PANEL

Auto Shift Indicator

(for automatic transmission)

Winter Mode Indicator

(For Automatic Transmission)

This warning light indicates that the fuel
will soon be exhausted. The time it takes
to turn on, however, varies according to
the vehicle operating conditions or gradi-
ent of the road.

Low Fuel Level Warning Light

Battery Charge Warning Light

13

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

RODIUS/STAVIC - 2005.07

2B

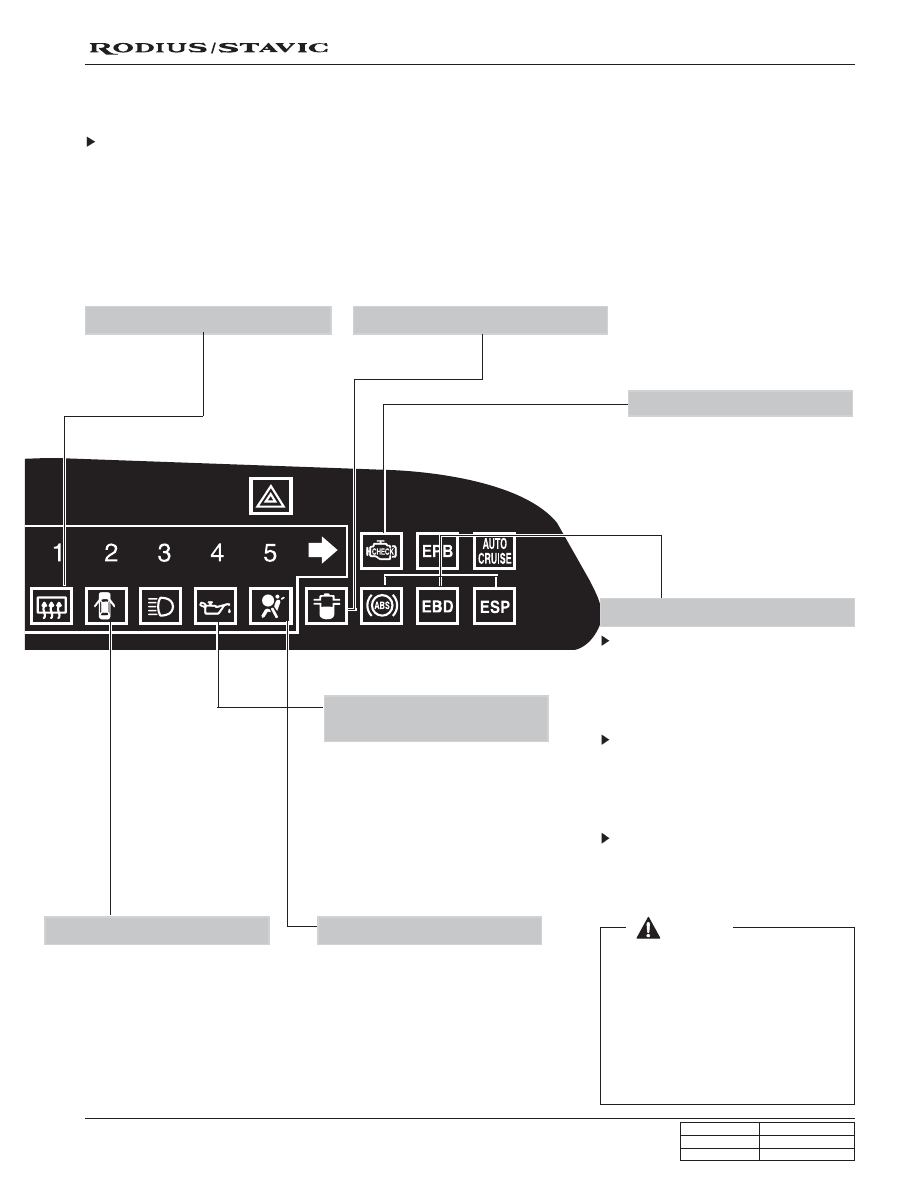

This warning light comes on when the
ignition is switched on and should go
out when the engine is started. If the
light comes on while driving, it indicates
that the oil pressure is dangerously low.
Check the oil lines and lubricating sys-
tem for leak.

This light comes on when a door or tail-
gate is either opened or not closed
completely. If you drive over 10 km/h of
vehicle speed without closing the door,
the warning light blinks.

Defogger Indicator

Engine Oil Pressure Warning

Light

Windshield Heated Glass Tailgate
Heated Glass, Outside Rearview Mir-
ror Heated Glass (controlled by STICS)

The outside rearview mirror heated glass op-
erates for 12 minutes when turning on the seat
warmer switch while the engine is running. If
the seat warmer switch is pressed again
within 10 minutes after completion of the first
operation, the seat warmer operates for 6 min-
utes just for once.

Door Open Warning Light

When the ignition is switched on, this
warning light illuminates and then
should go out, to confirm that the air
bag is operational. If it does not come
on, or if it does not go out, or if it flashes
o r   i l l u m i n a t e s   c o n t i n u o u s l y   w h i l e
driving, it means that there is malfunc-
tion in the system.

Air Bag Warning Light

When the water level inside water separator
in fuel filter exceeds a certain level, this warn-
ing light comes on and buzzer sounds. Also,
the driving force of the vehicle decreases. If
these conditions occur, immediately drain the
water from fuel filter and water separator.

For the draining procedures, refer to “Engine”
section in this manual.

Water separator warning light

ESP Warning Light

This warning light comes on when pressing
the “ESP OFF” switch or the ESP system is
defective. If the ESP function operates while
driving, this warning light flickers and the
alarm sounds.

EBD Warning Light

This warning light comes on when the igni-
tion switch is turned to ON and should go out
if the system is normal. If the EBD system is
abnormal, both EBD warning light and ABS
warning light come on simultaneously.

ABS Warning Light

This warning light comes on when the igni-
tion switch is turned to ON and should go out
if the system is normal.

ABS / EBD ESP Warning Light

 [NOTE]

The vehicle equipped with ABS
performs self-diagnosis on the system
when the engine is started and drives
off. During the diagnosis, brake pedal
vibration and noise may be apparent
when the driving motors discharges
the hydraulic pressure from the
internal hydraulic device. This means
the ABS is properly functioning.

This warning light comes on when the ig-
nition switch is turned to ON and goes out
if the engine is in normal condition. If the
light stays on or comes on while driving,
some of engine control components includ-
ing sensors and devices are defective.
When this warning light comes on, the
vehicle operates in safety mode to main-
tain minimum driving conditions and to pre-
vent the system from being damaged. In
this mode, the engine driving force may
be decreased or the engine may stall. For
more details, refer to “Engine” section in
this manual.

Engine Check Warning Light

14

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

RODIUS/STAVIC - 2005.07

2B

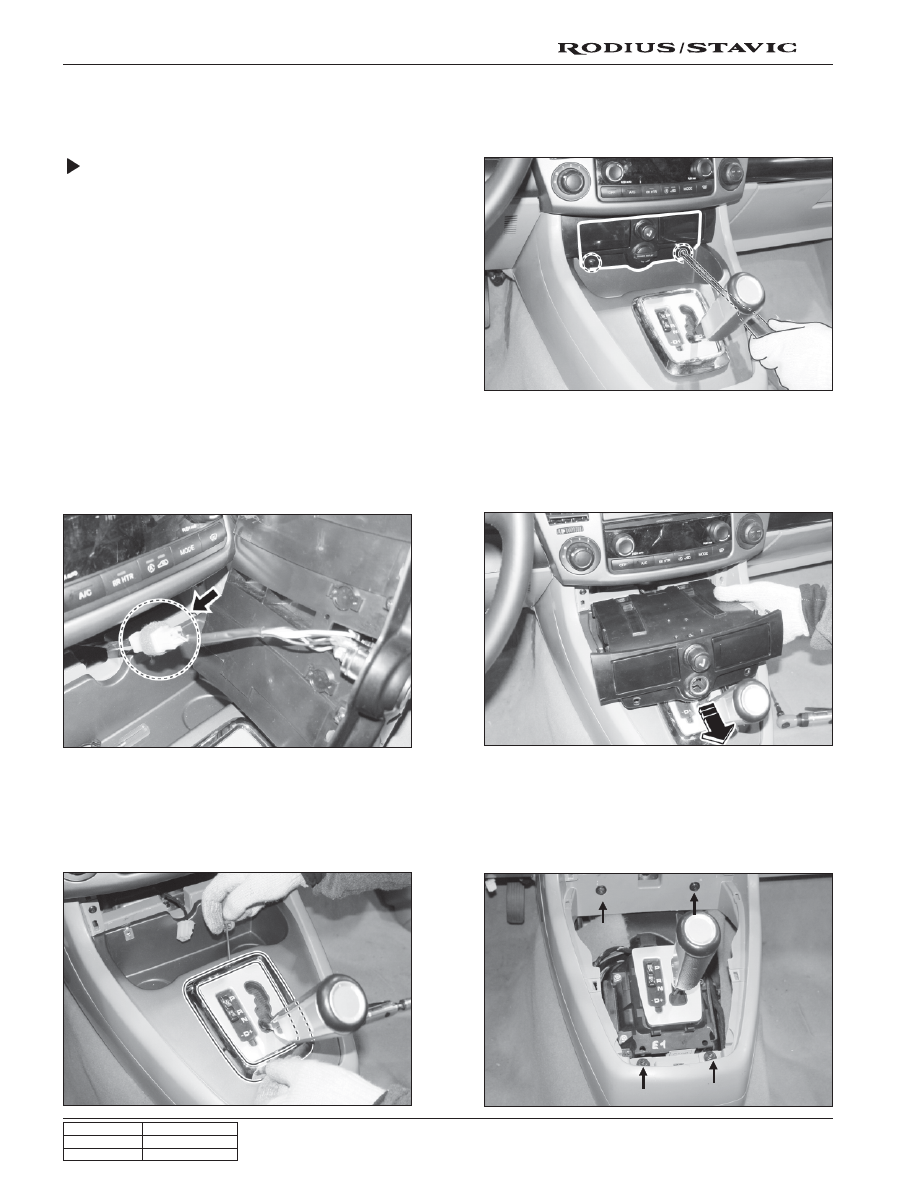

2. Pull out the front cup holder, disconnect the cigarette connector and the power socket connector, and remove the

front cup holder.

3. Carefully pry off the chrome coated cover from the selector lever cover, unscrew the screws and remove the

selector lever cover.

6. REMOVAL AND INSTALLATION OF METER CLUSTER AND INDICATOR

DISPLAY

Meter Cluster

1. Remove the screws from the front cup holder.

15

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

RODIUS/STAVIC - 2005.07

2B

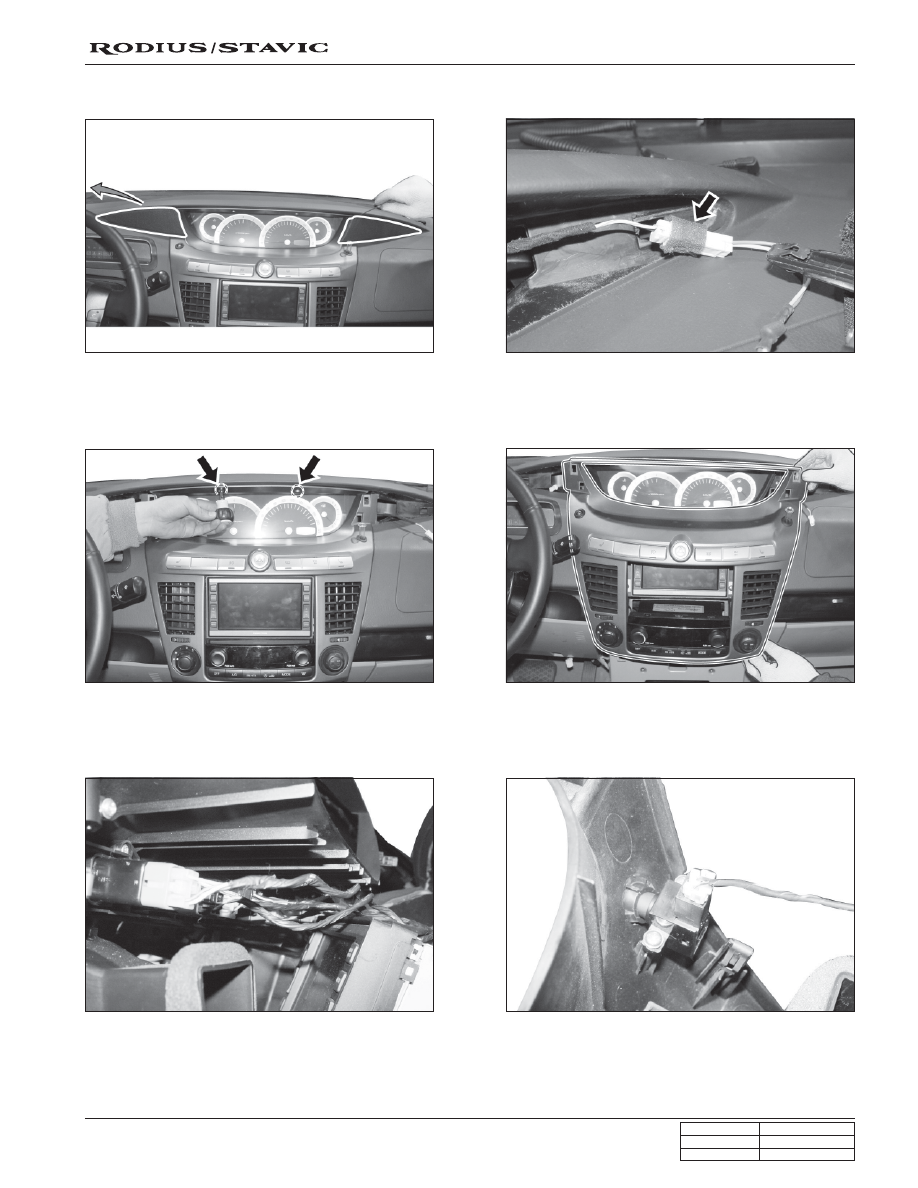

4. Carefully pull out the center speakers and disconnect the connectors.

5. Remove the screws and take out the front cover from the instrument panel.

6. Disconnect all switch connectors including TRIP switch connector (2) during removal of the front cover.
