SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 208

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

STAVIC - 2004.09

32

2A

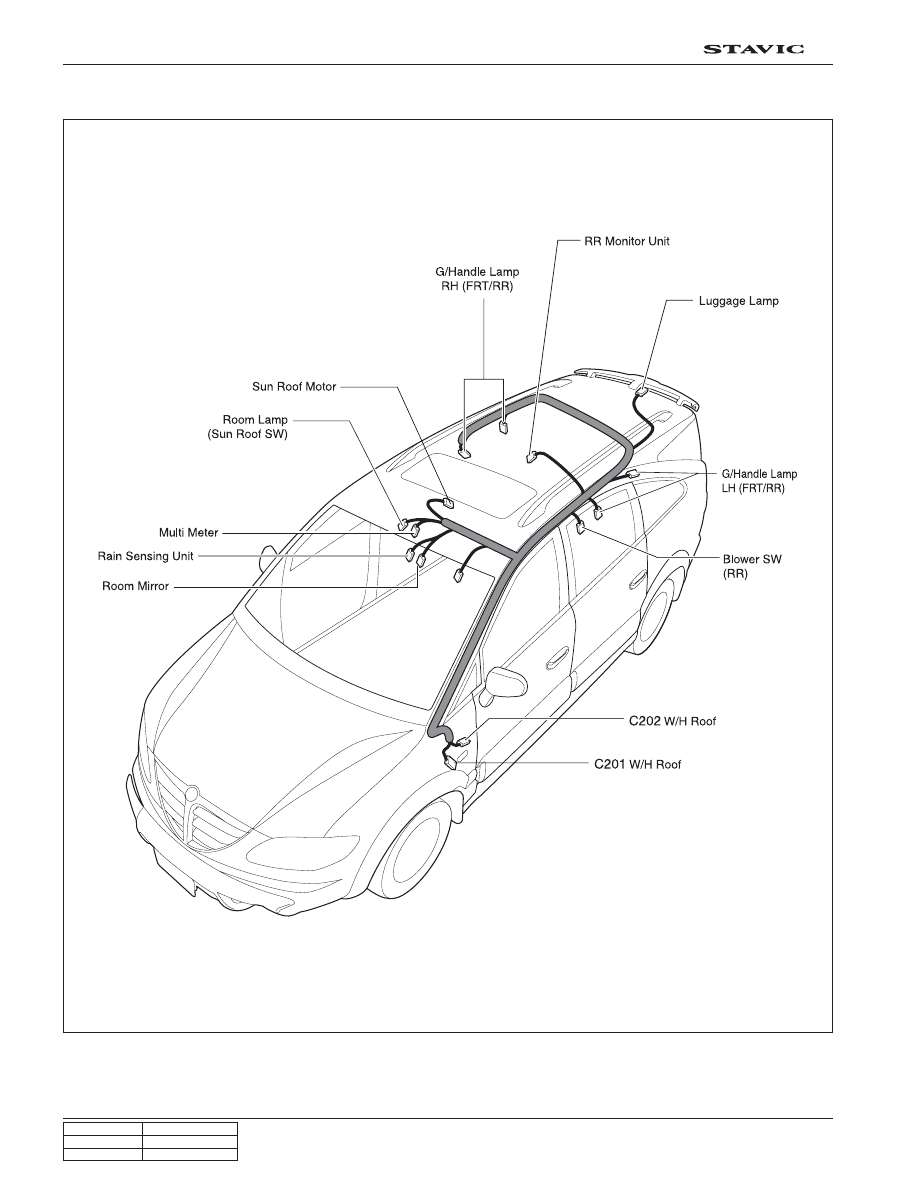

7) W/H Roof

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

STAVIC - 2004.09

33

2A

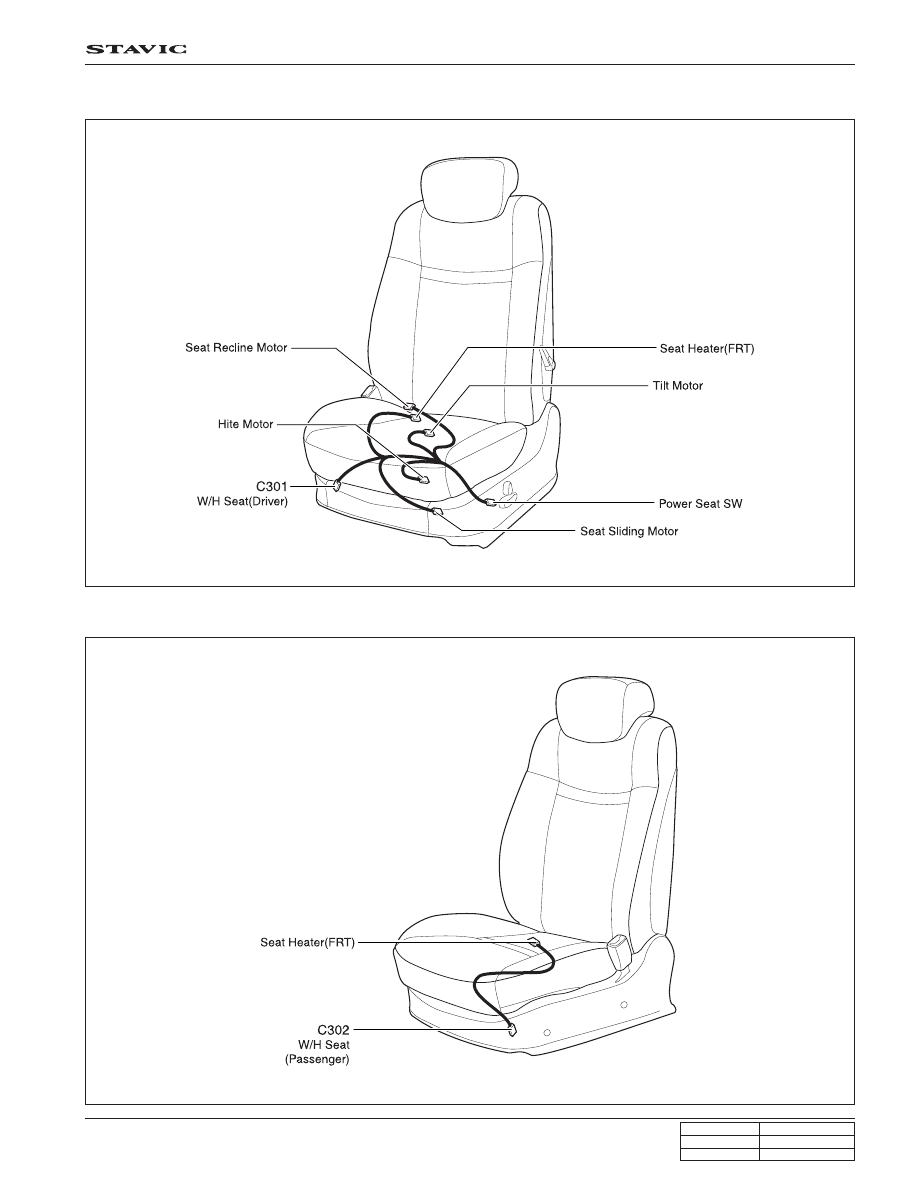

8) W/H Seat

Driver’s

Passenger’s

MEMO

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRICAL SYSTEM

RODIUS /STAVIC - 2005.07

1

2A

ELECTRIC SYSTEM LAYOUT .......................... 2A-2

1. Locations of units and sensors in passenger compartment

....................................................................................... 2A-2

2. Switches, units and sensors in engine compartment

(except engine related sensors and units) ................... 2A-4

3. Switches in passenger compartment ........................... 2A-6

4. System layout (based on DVD system equipped vehicle)

....................................................................................... 2A-8

ELECTRIC COMPONENTS AND LAYOUT .... 2A-10

1. Wiring harness arrangement ..................................... 2A-10

2. Components locator ................................................... 2A-11

FUSES AND RELAYS ..................................... 2A-12

1. Engine cmpartment fuse and relay box ..................... 2A-12

2. Interior fuse and ICM box .......................................... 2A-14

Table of Contents

2A - Electrical System (2005 ~)
