DI10-195
CHANGED BY
EFFECTIVE DATE
AFFECTED VIN
DIAGNOSIS
DI ENG SM - 2004.9
1. When performing the static test for injector back leak Volume, the fuel pressure leakage test with SCAN-100
should be done simultaneously. And, the fuel pressure leakage test with SCAN-100 can be done separately.
2. Test Conditions:
• No defective or faulty sensors and components in fuel system: checked by Scan-i
• Coolant temperature: over 60°C
3. The diagnosis procedures with SCAN-100 are as below:
1) Install the SCAN-100 to the diagnostic connector. Select
“DIAGNOSTICS” and press “ENTER” in “MAIN MENU”
screen. Select “STAVIC” and press “ENTER” in “VEHICLE
SELECTION” screen.
2) Select “ECU” and press “ENTER” in “CONTROL UNIT
SELECTION” screen.
PRESSURE LEAKAGE TEST WITH SCAN-100

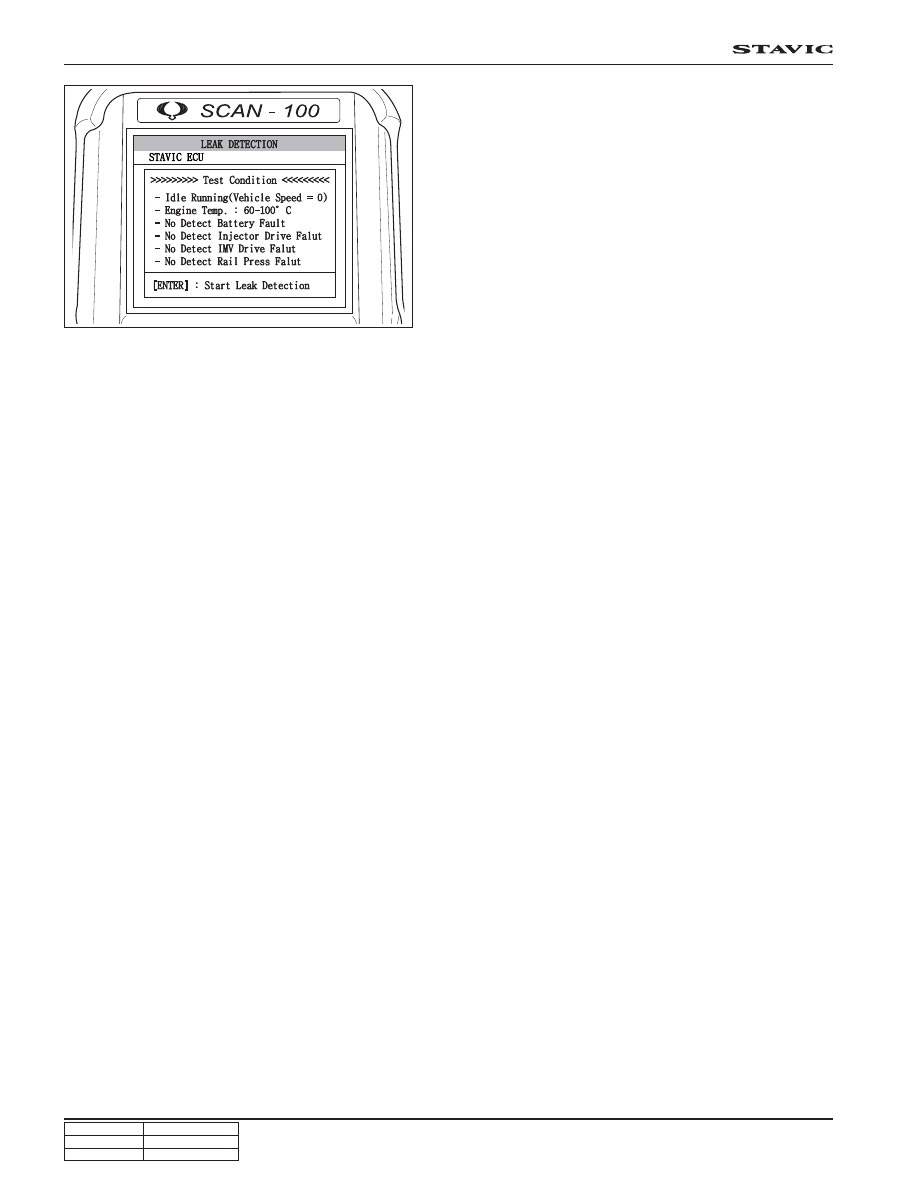

3) Select “LEAK DETECTION” and press “ENTER” in
“FUNCTION SELECTION” screen.
