COOLING SYSTEM

DI ENG SM - 2004.9

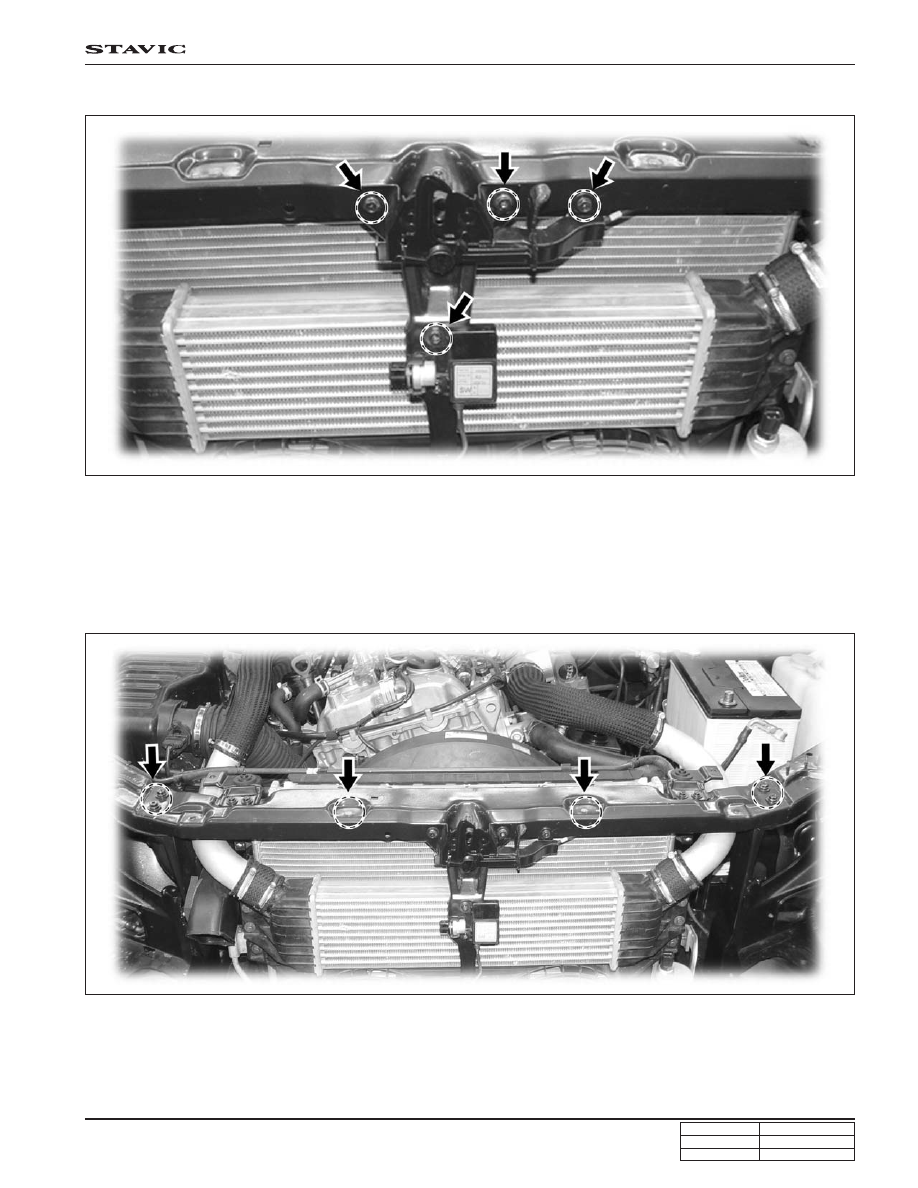

2. Remove the front end center member.

3. Remove the hood latch cable and remove the radiator support upper member.

DI06-24

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

COOLING SYSTEM

DI ENG SM - 2004.9

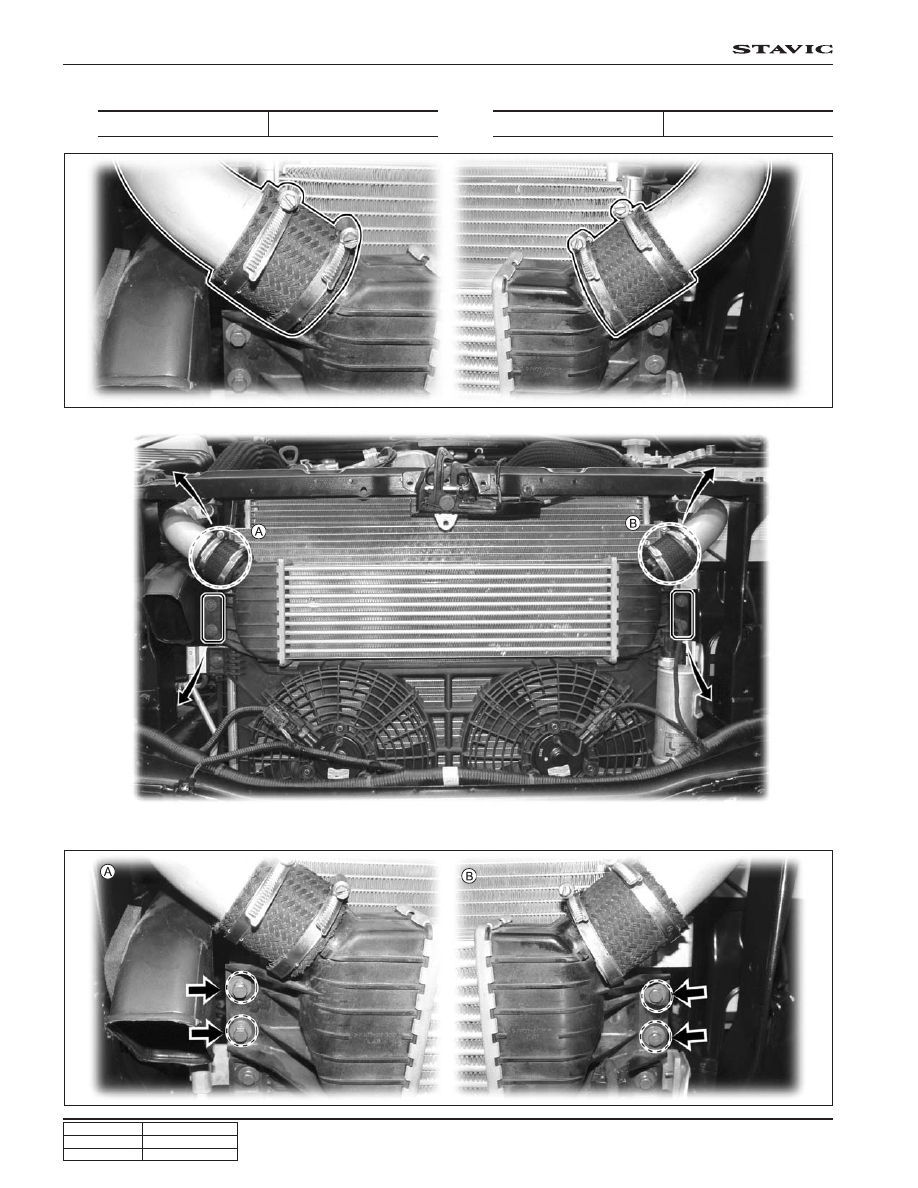

4. Remove the intercooler inlet hose.

6. Unscrew the bolts and remove the intercooler assembly.

5. Remove the intercooler outlet hose.

Tightening torque

6 ~ 7 Nm

Tightening torque

6 ~ 7 Nm

DI06-25

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

COOLING SYSTEM

DI ENG SM - 2004.9

Electric Fans

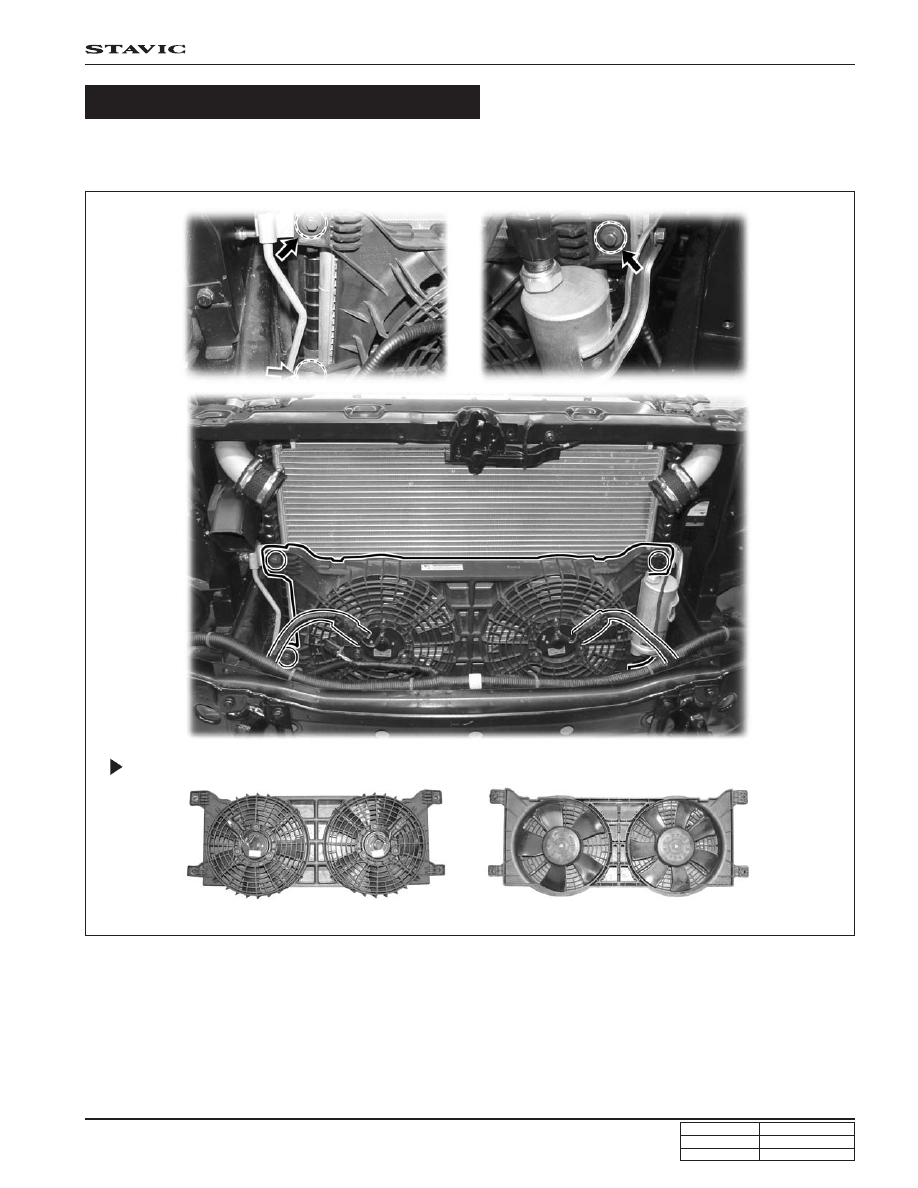

1. Disconnect the electric fan connectors.

2. Unscrew the bolts at both sides and remove the electric fan assemblies.

Appearance

Front view

Rear view

DI06-26

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

COOLING SYSTEM

DI ENG SM - 2004.9

Condenser Assembly

Appearance

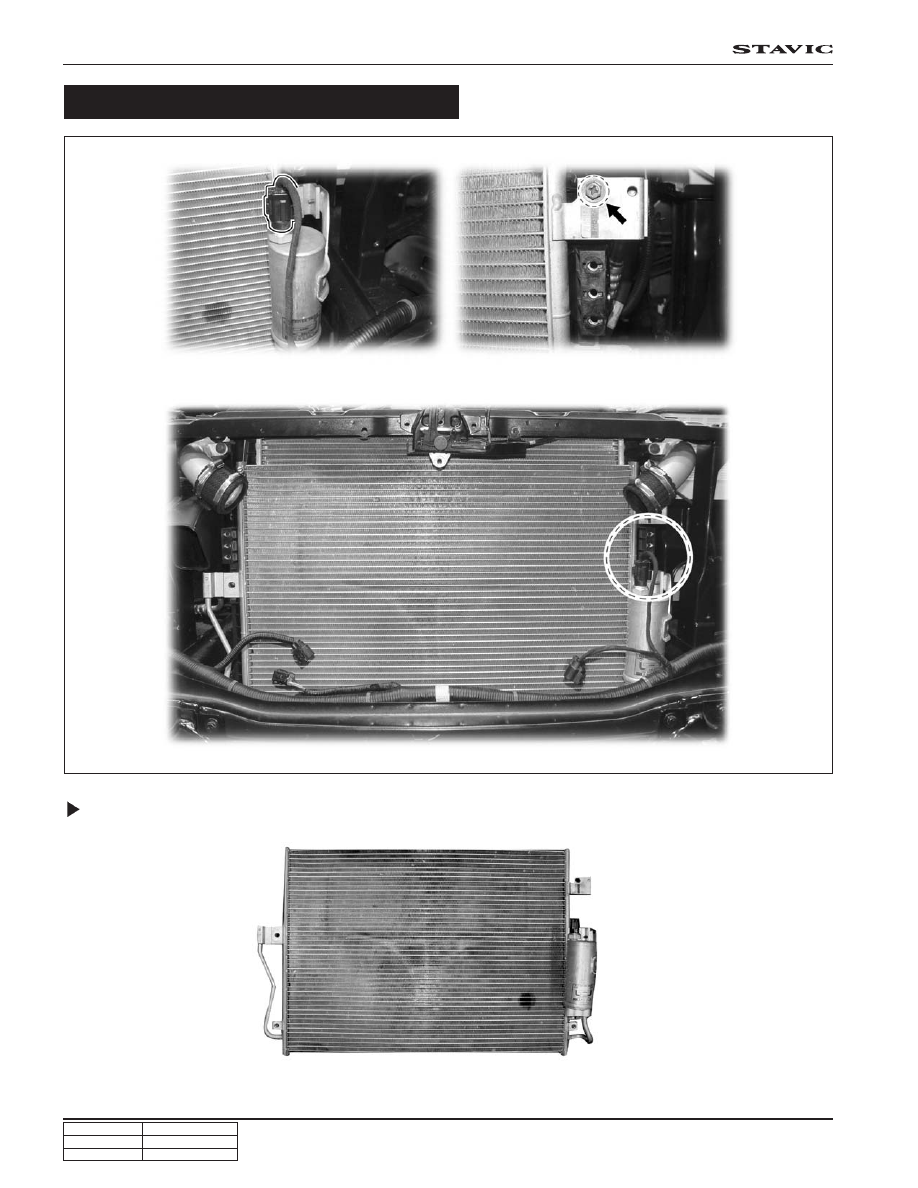

1. Disconnect the receiver drier connector.

2. Remove the air conditioner inlet pipe bolt.
