DI02-27

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE HOUSING

DI ENG SM - 2004.9

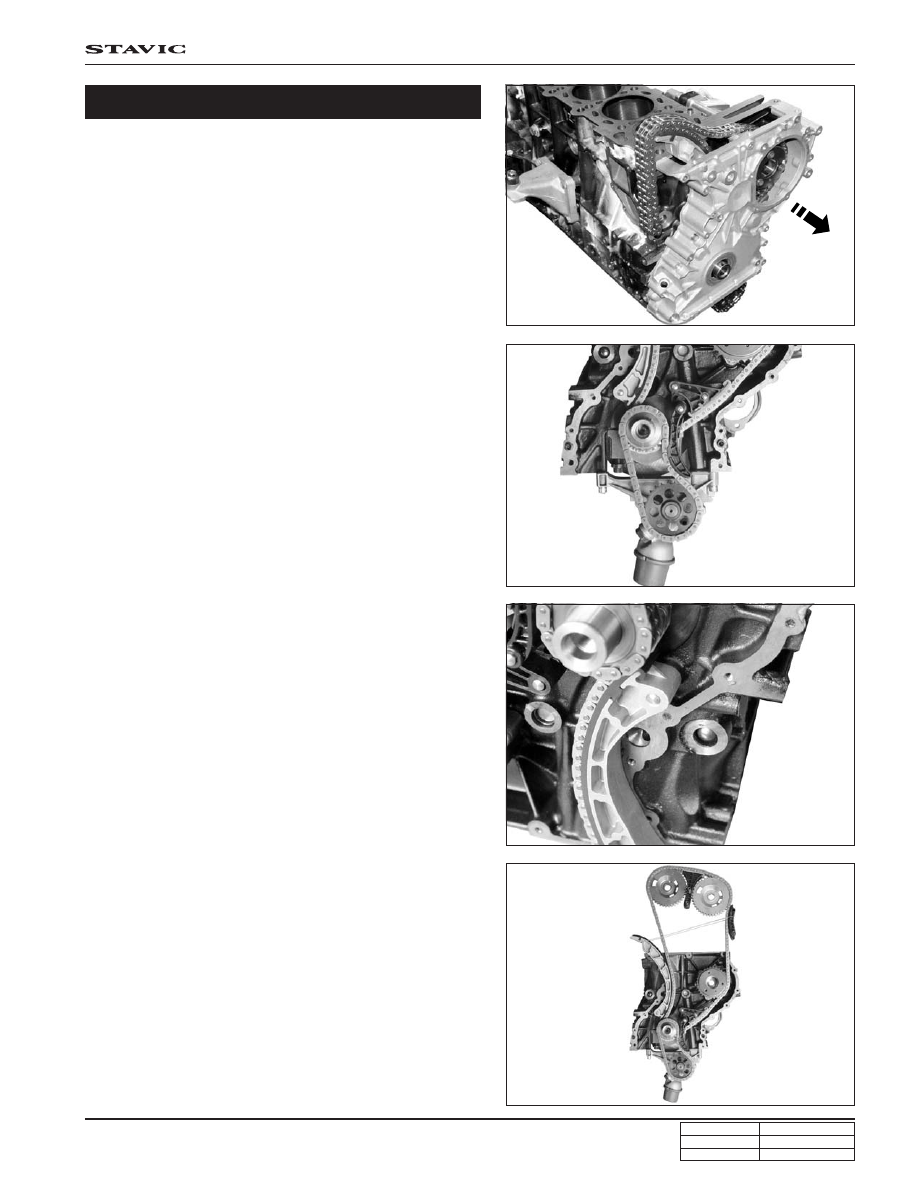

1. Remove the cylinder head assembly.

2. Remove the oil pan.

3. Remove the chain guide rail with a sliding hammer.

4. Remove the chain cover.

Removal and Installation

9. Remove the tensioner guide rail.

5. Remove the oil pump drive chain.

6. Remove the upper guide rail while pushing the retaining

spring with a screwdriver.

7. Remove the lower guide rail.

8. Remove the oil pump drive chain.

10. Remove the timing chain.

11. Install in the reverse order of removal.

Notice

Thoroughly clean the removed components before
installing.

DI02-28

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE HOUSING

DI ENG SM - 2004.9

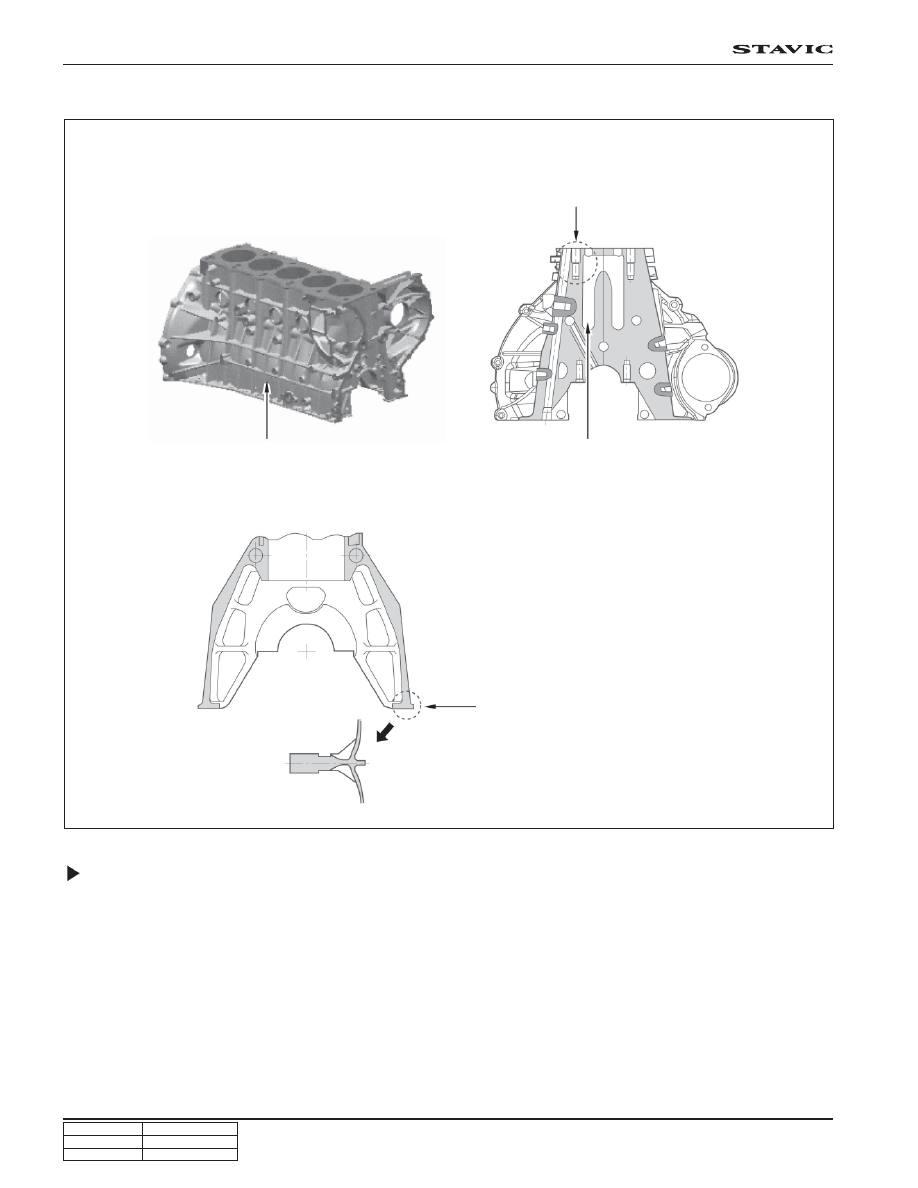

CYLINDER BLOCK

System Characteristics

• Rib design by considering strength against engine

vibrations and weight

• Cambering type skirt design on case housing wall to

reduce the engine noise

• Water jacket design to increase the cooling efficiency

of cylinder bore bridge

• Deep head bolt thread to prevent the deformation at

cylinder bore surfaces

• Reinforcement of strength

- Main bearing housing / Main bearing cap

- Extended main bearing cap bolt

• Reducing the noise, vibration and harshness (NVH)

- Minimize the vibration by adding external ribs

- Adding the ribs around oil pan mating surface

Water jacket design to increase

the cooling efficiency

Internal and external ribs considered

vibration and strength

Deep head bolt thread to prevent the

deformation at cylinder bore surfaces

Cambering type skirt to reduce the noise

DI02-29

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE HOUSING

DI ENG SM - 2004.9

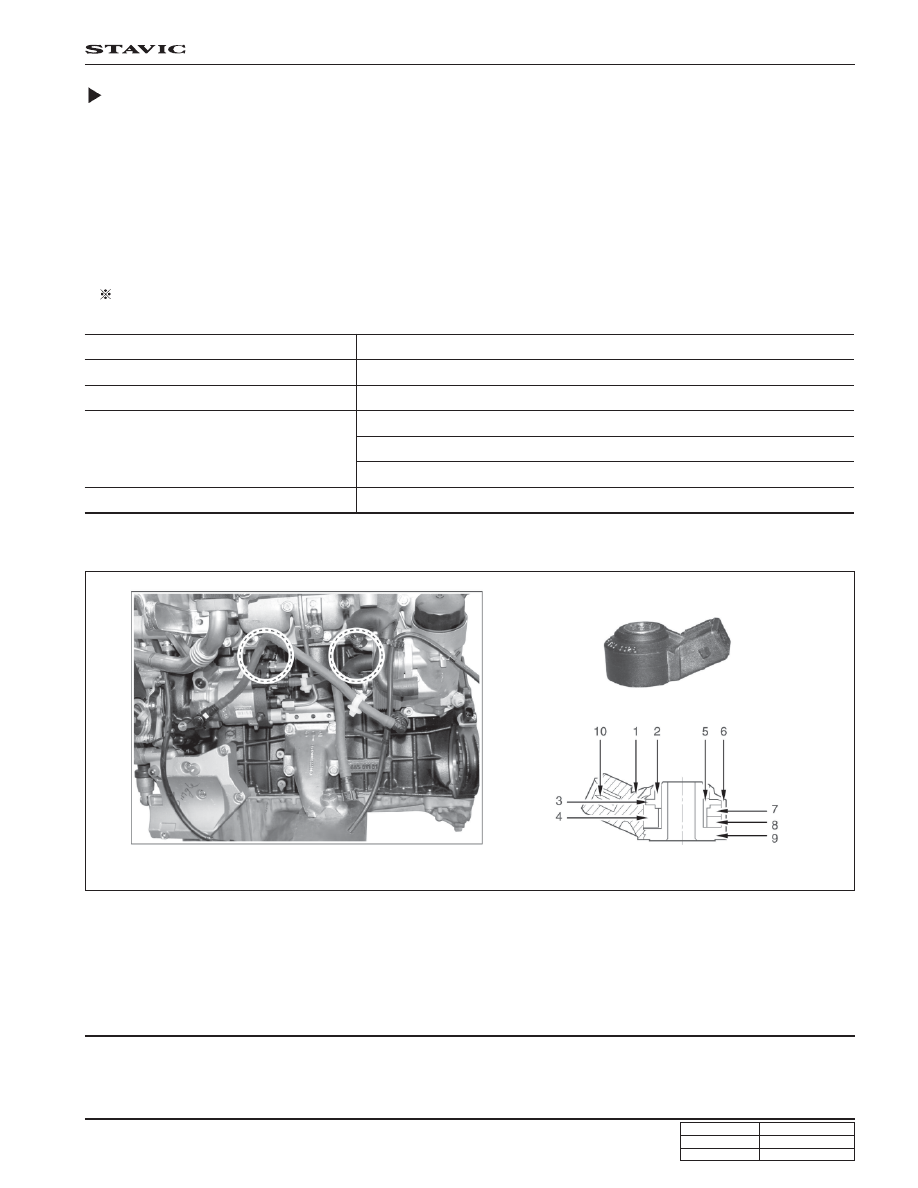

Knock Sensor

Two knock sensors are located on the cylinder block (intake manifold side).
To detect engine vibration under abnormal combustion, knock sensor has piezoelectric element fixed on the
vibration plate and this vibration plate is fixed on the base. If happens knocking, pistons or connecting rods
vibrate and occurs heavy sounds that hit metal. Knock sensor is used to detect those knockings caused by
abnormal combustions. It controls idling stabilities and turns on the engine warning light when detects injector
damages. And also controls pilot injection very precisely during MAP learning.
When knock sensor is defective, engine ECU corrects injection timing based on MAP values like engine speed,
intake air volume and coolant temperature.

Before checking the knock sensor unit, be sure to check the tightening torque of the sensor and connector
connecting conditions.

1. Sensor housing

2. Nut

3. Disc spring

4. Weight

5. Insulation disc

6. Upper contact plate

7. Piezo element

8. Lower contact plate

9. Body

10. Terminal

<Location of knock sensor>

Insulating resistance

Resonance frequency

Operating temperature

Output voltage

Tightening torque

Min. 1M

Ω

25 kHz

- 40 ~ 150°C

26 ± 8 mV/g (at 5 kHz)

22 ~ 37 mV/g (3 ~ 10 kHz)

22 ~ 57 mV/g (10 ~ 20 kHz)

20 ± 5 Nm

DI02-30

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE HOUSING

DI ENG SM - 2004.9

<Circuit diagram of knock sensor>

Ground

Signal

Signal

Ground

Notice

The knock sensor should be tightened with the specified tightening torque. Otherwise, the engine output may
be decreased and the “ENGINE CHECK” warning lamp may come on. The internal resistance of the sensor is
approx. 4.7 k

Ω

Ω

Ω

Ω

Ω.

Knock sensor

Knock sensor
