ENGINE HOUSING

DI ENG SM - 2004.9

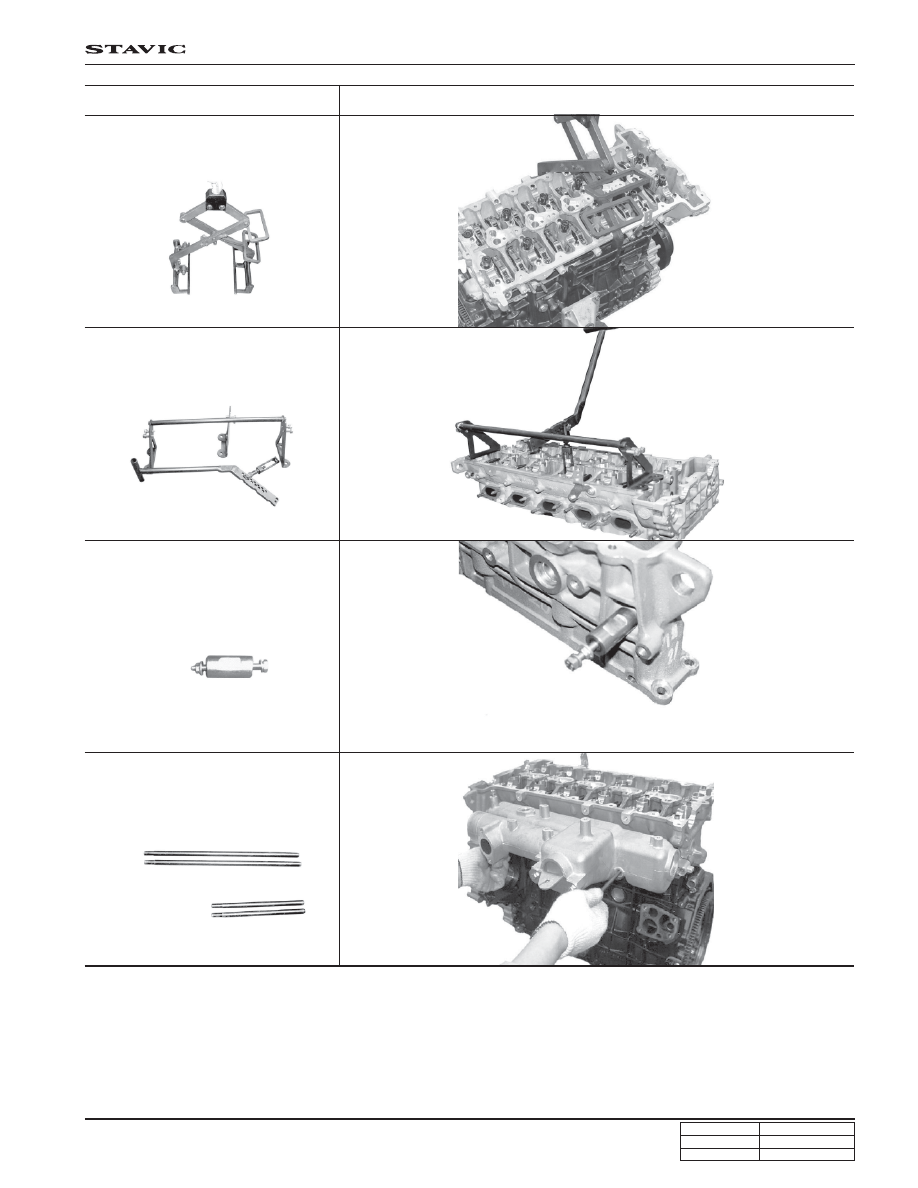

Name and Part Number

Application

Cylinder head hanger

Supporting bar and lever

Y99220082B

Guide pin extractor

Y99220162B

Intake manifold guide pin

Y99220112B

DI02-16

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE HOUSING

DI ENG SM - 2004.9

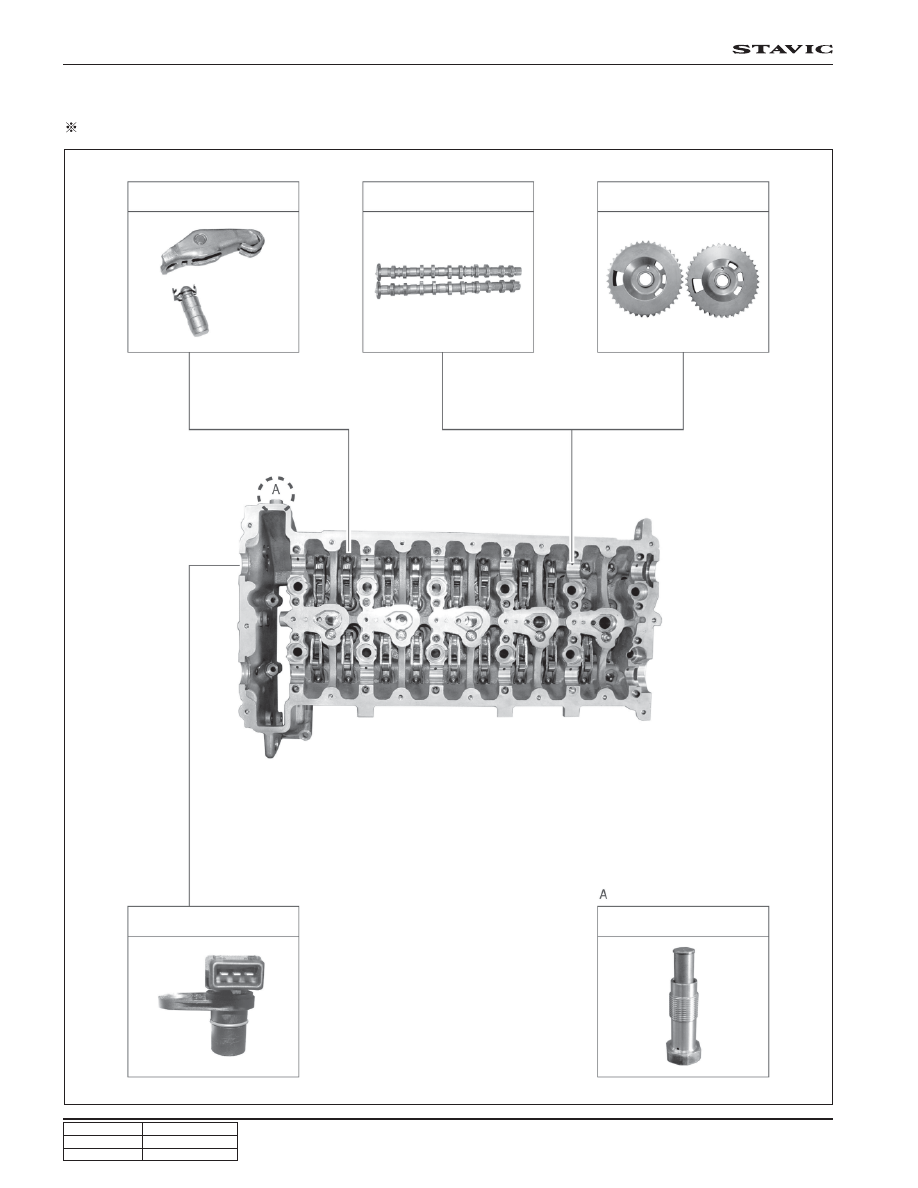

CAMSHAFT ASSEMBLY

Preceding Work: Removal of cylinder head cover

Finger follower and HLA

Intake camshaft and

exhaust camshaft

Camshaft position sensor

Chain tensioner

Camshaft sprockets

Cylinder head

DI02-17

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE HOUSING

DI ENG SM - 2004.9

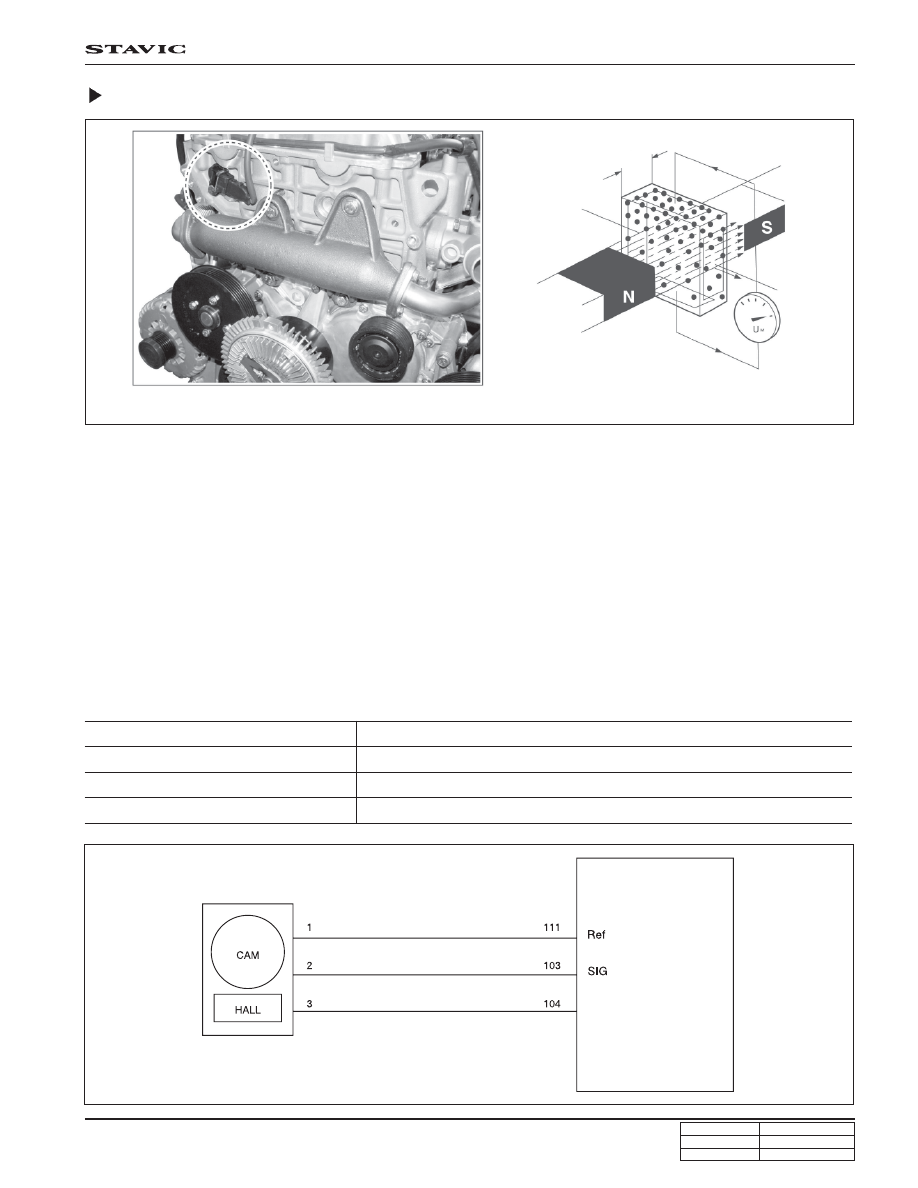

<Circuit diagram of camshaft position sensor>

Camshaft Position Sensor

The camshaft position sensor uses hall-effect to set the camshaft position and metallic-magnetic-material sensor end is
attached on the camshaft and then rotates with it. If sensor protrusion passes camshaft position sensor’s semi-conduc-
tor wafer, magnetic field changes direction of electron on the semi-conductor wafer to the current flow direction that
passes through wafer from the right angle. When operation power is supplied from camshaft position sensor, camshaft
hall sensor generates signal voltage. The signal voltage will be 0V if protrusion and camshaft position sensor are near
and 5 V if apart.

ECU can recognize that the No. 1 cylinder is under compression stroke by using this voltage signal (hall voltage).

The rotating speed of camshaft is half of the crankshaft and controls engine’s intake and exhaust valves. By installing
sensor on the camshaft, can recognize specific cylinder’s status, compression stroke or exhaust stroke, by using
camshaft position when the piston is moving toward TDC (OT). Especially when started first, it is difficult to calculate the
stroke of a specific cylinder with only crankshaft position sensor.

Accordingly, camshaft position sensor is necessary to identify the cylinders correctly during initial starting. However,
when engine is started, ECU learns every cylinder of the engine with crankshaft position sensor signals so can run the
engine even though the camshaft position sensor is defective during engine running.

<Location of camshaft position sensor>

<Operation principle of hall sensor>

Gap

Hall voltage

Pulse generation

Sensor air gap

Tightening torque

Operating temperature

Cam angle ± 6°

0.2 ~ 1.8 mm

10 ~ 14 Nm

- 40 ~ 130°C

Camshaft sensor

Ground

DI02-18

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE HOUSING

DI ENG SM - 2004.9

Preceding Works:

- Removal of fan belt

- Removal of fuel supply and return lines

- Removal of intake manifold mounting bracket

- Removal of EGR pipe and oil dipstick tube

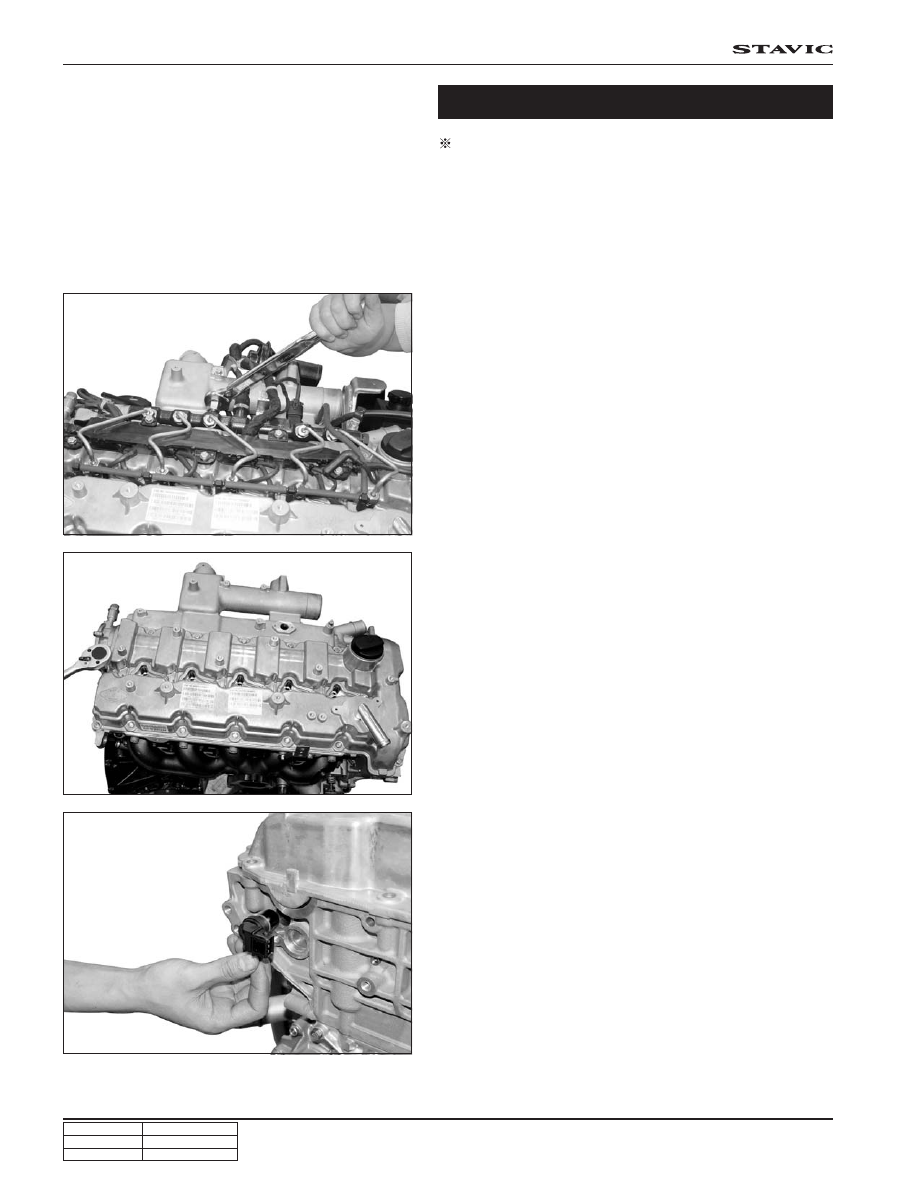

Removal

1. Remove the injector fuel line and connector, and glow

plug connector

2. Remove the cylinder head cover.

3. Remove the camshaft position sensor.

Notice

Plug the openings of injector holes and common rail
with the protective caps.
