SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 77

DI01-3

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE ASSEMBLY

DI ENG SM - 2004.9

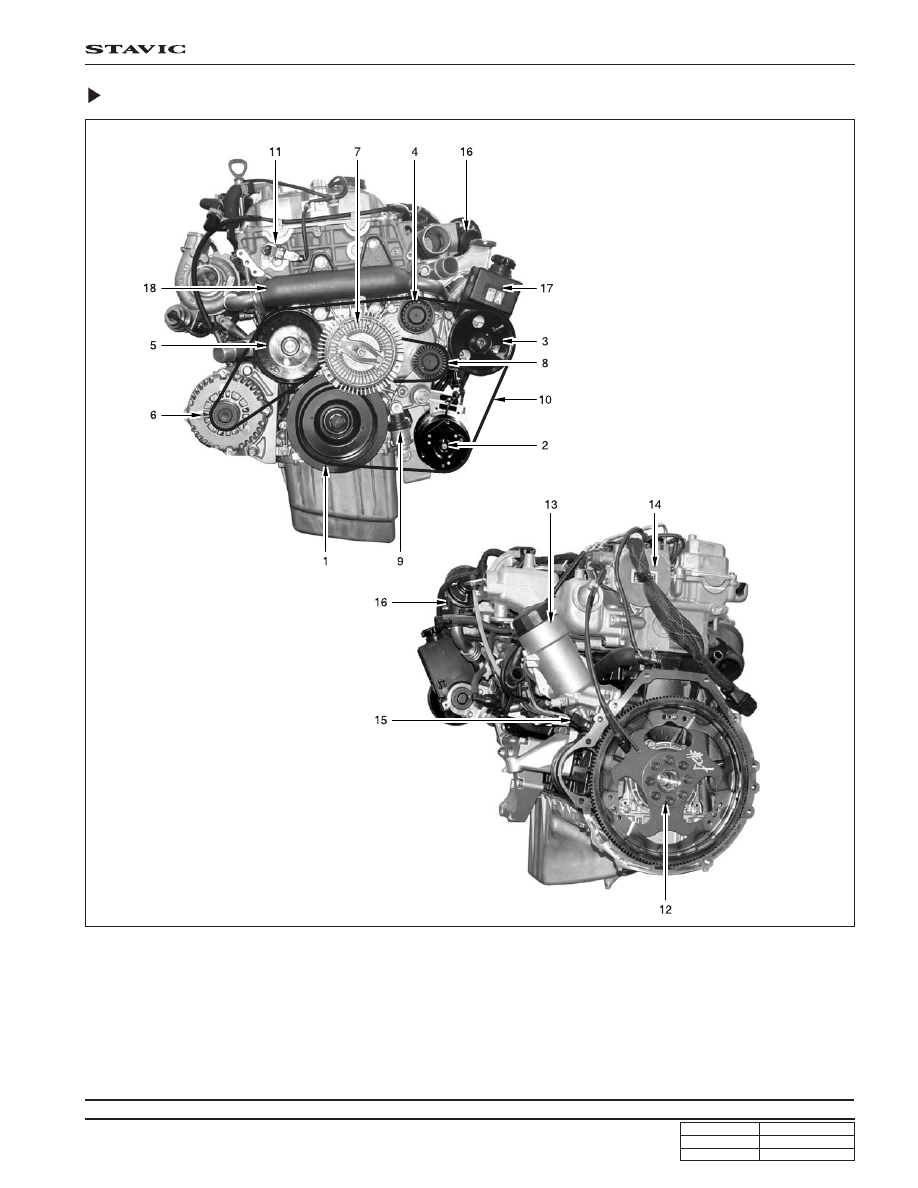

Engine Structure

1. TVD (Torsional Vibration Damper)

2. Air conditioner compressor

3. Power steering pump pulley

4. Idle pulley

5. Water pump pulley

6. Alternator

Front View

Rear View

7. Viscos clutch

8. Auto tensioner pulley

9. Auto tensioner

10. Poly-grooved belt

11. Cam position sensor

12. Drive plate (M/T: DMF)

13. Oil filter

14. Vacuum pump

15. Crank position sensor

16. EGR valve

17. Power steering pump

18. EGR center pipe

DI01-4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE ASSEMBLY

DI ENG SM - 2004.9

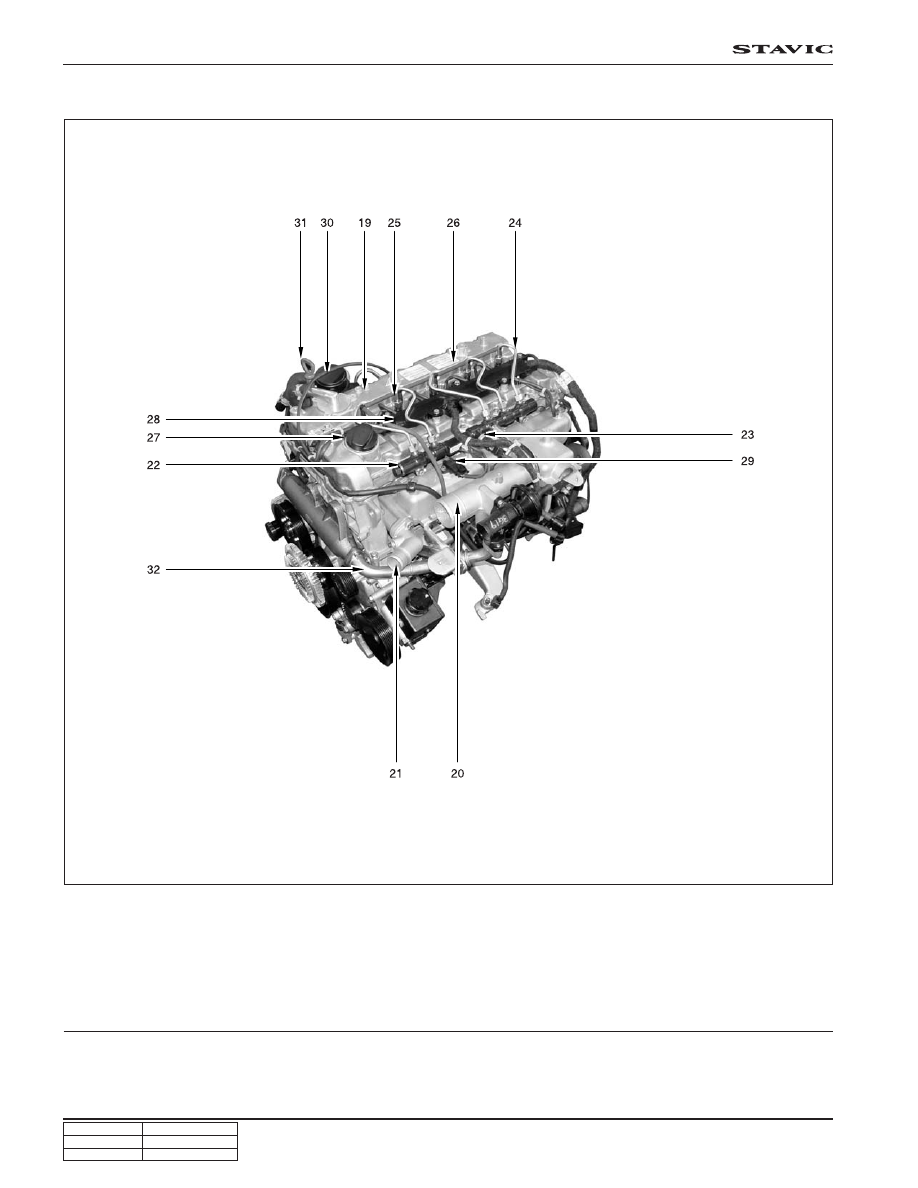

Top View

19. Cylinder head cover

20. Intake manifold

21. Water outlet port

22. Common rail

23. Fuel pressure sensor

24. Fuel pipe

25. Injector

26. Fuel return line

27. Oil filler cap

28. Glow plug

29. Booster pressure sensor

30. PCV valve and oil separator

31. Oil dipstick

32. EGR-LH pipe

DI01-5

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE ASSEMBLY

DI ENG SM - 2004.9

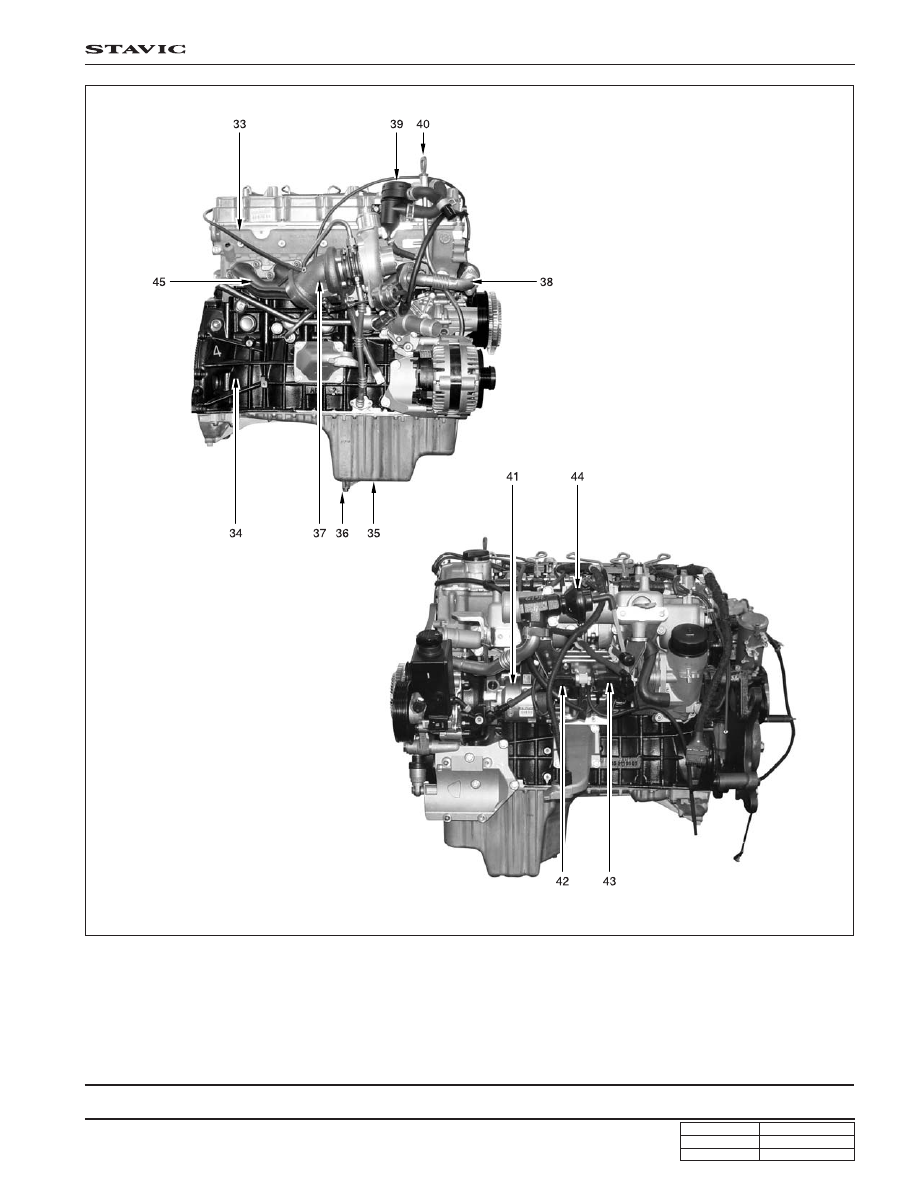

Right Side View

Left Side View

33. Cylinder head

34. Cylinder block

35. Oil pan

36. Drain plug

37. Turbo charger

38. EGR-RH pipe

39. PCV valve and oil separator

40. Oil dipstick

41. High pressure pump

42. Turbo charger booster vacuum

modulator

43. EGR valve vacuum modulator

44. EGR valve

45. Exhaust manifold

DI01-6

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE ASSEMBLY

DI ENG SM - 2004.9

Specifications

Engine

Cylinder

Type / Number of cylinders

Inner diameter (mm)

Stroke (mm)

Description

Specification

Opens (BTDC)

Closes (ABDC)

Opens (BBDC)

Closes (ATDC)

D27DT / 5-cylinder

86.2

92.4

2696

18:1

170/4,000

34.7/1,800

750 ± 20 rpm

750 ± 20 rpm

16°

33°

46°

21°

DOHC

Low sulfur diesel

Vane pump in HP pump

HP pump inlet port: max. 400 mbar

HP pump outlet port (with IMV fully open):
over 1,050 bar

at every 10,000 km

80

SAE 10W40, 5W40

(MB Sheet 229.1, 229.3 approved oil)

Forced delivery

Full flow, filter element type

6.8 ~ 8.3

Water cooling type

Belt operated type

85

WAX pellet type

 11.5

Idle speed

Valve

Camshaft

Fuel system

Lubrication system

Cooling system

Displacement (cc)

Compression ratio

Maximum output (ps/rpm)

Maximum torque (kg.m/rpm)

Intake

Exhaust

For Manual Transmission

For Automatic Transmission

Opening
temperature (°C)

Type

Thermostat:  Fully
(Open: 100°C)

Type

Fuel type

Fuel pump type

Fuel supply pressure

Water separation in fuel filter

Fuel tank capacity ( )

Oil specification

Lubrication type

Oil filter type

Oil capacity ( )

Cooling type

Cooling fan operation type

Coolant capacity ( )
