ELECTRICAL COMPONENTS AND PRE HEATING SYSTEM

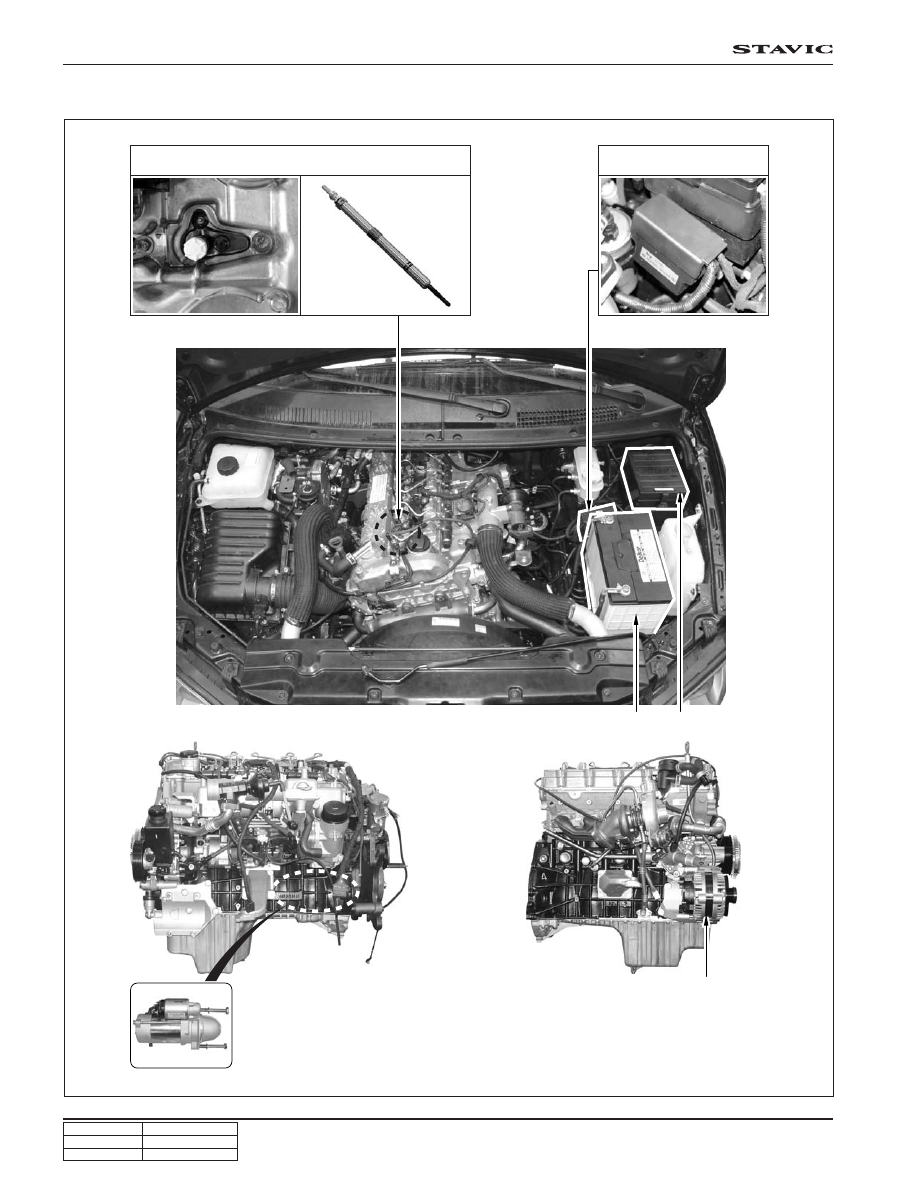

Glow plug

Pre heating time relay

Battery

Fuse box

Alternator

Starter motor

DI0A-13

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.9

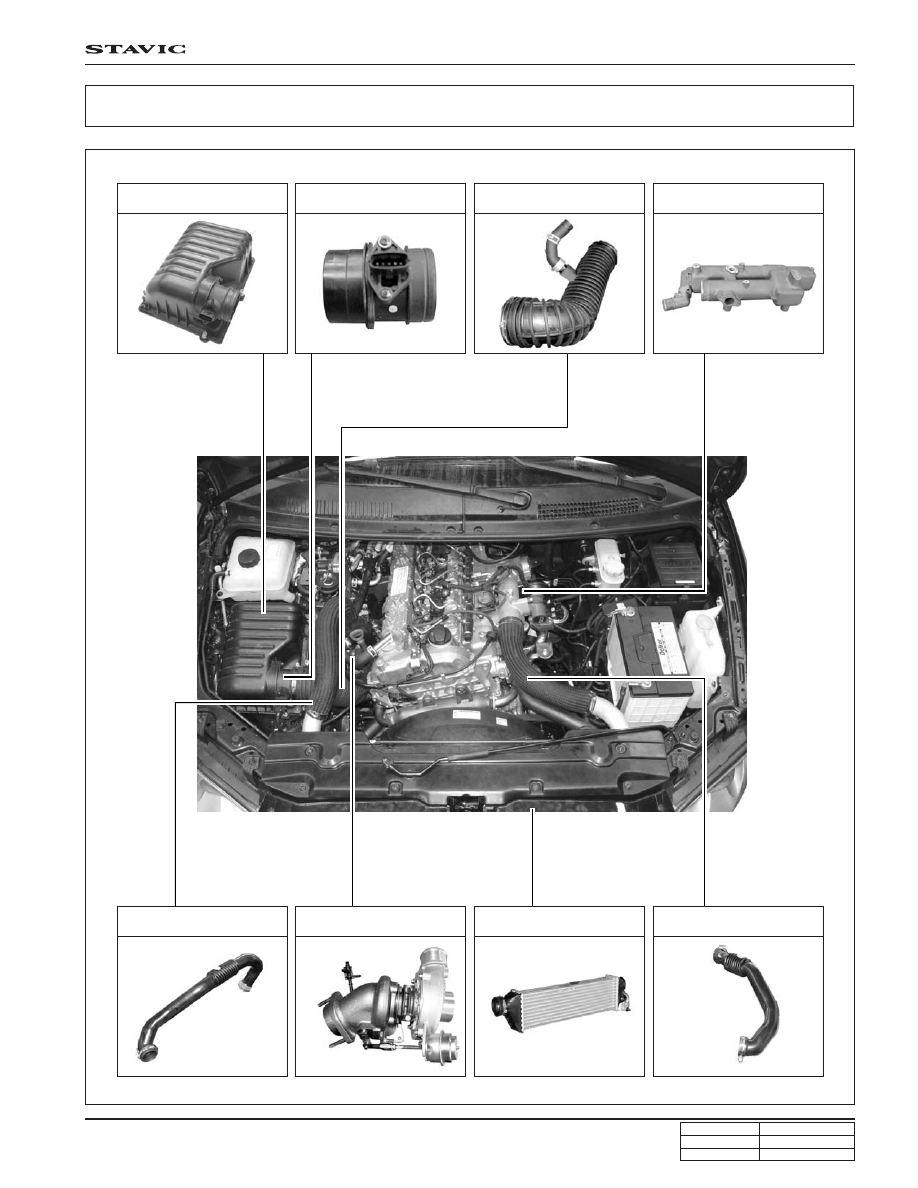

Air cleaner assembly

Intake duct hose

HFM sensor

Intake manifold

Intake outlet hose

Turbocharger

Intercooler

Inlet hose

INTAKE SYSTEM

DI0A-14

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.9

Intake valve (in combustion chamber)

Intake manifold

Intake hose (inner)

Intake hose (outlet)

Intercooler

HFM sensor

Turbo-
charger
(compressor)

Air cleaner side

Engine

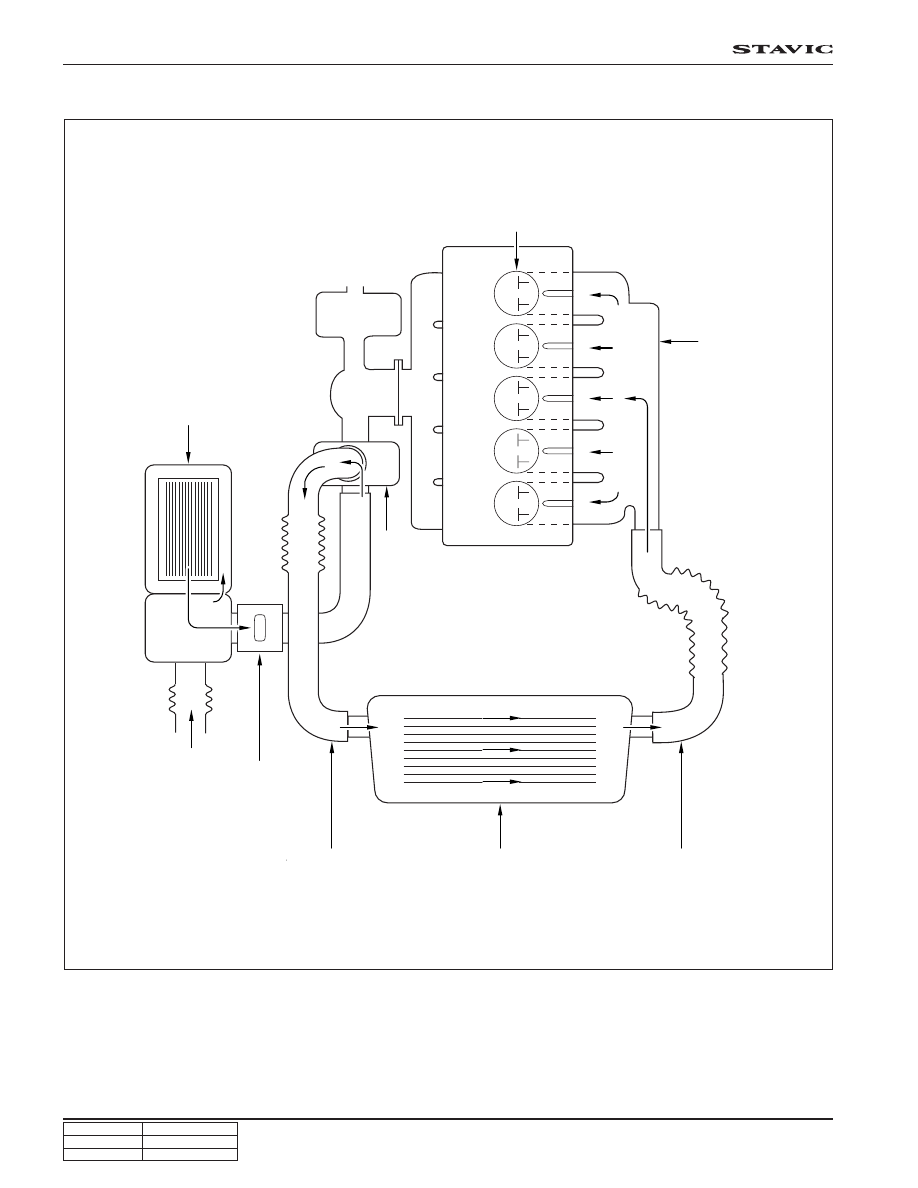

INTAKE AIR FLOW CHART

DI0A-15

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.9

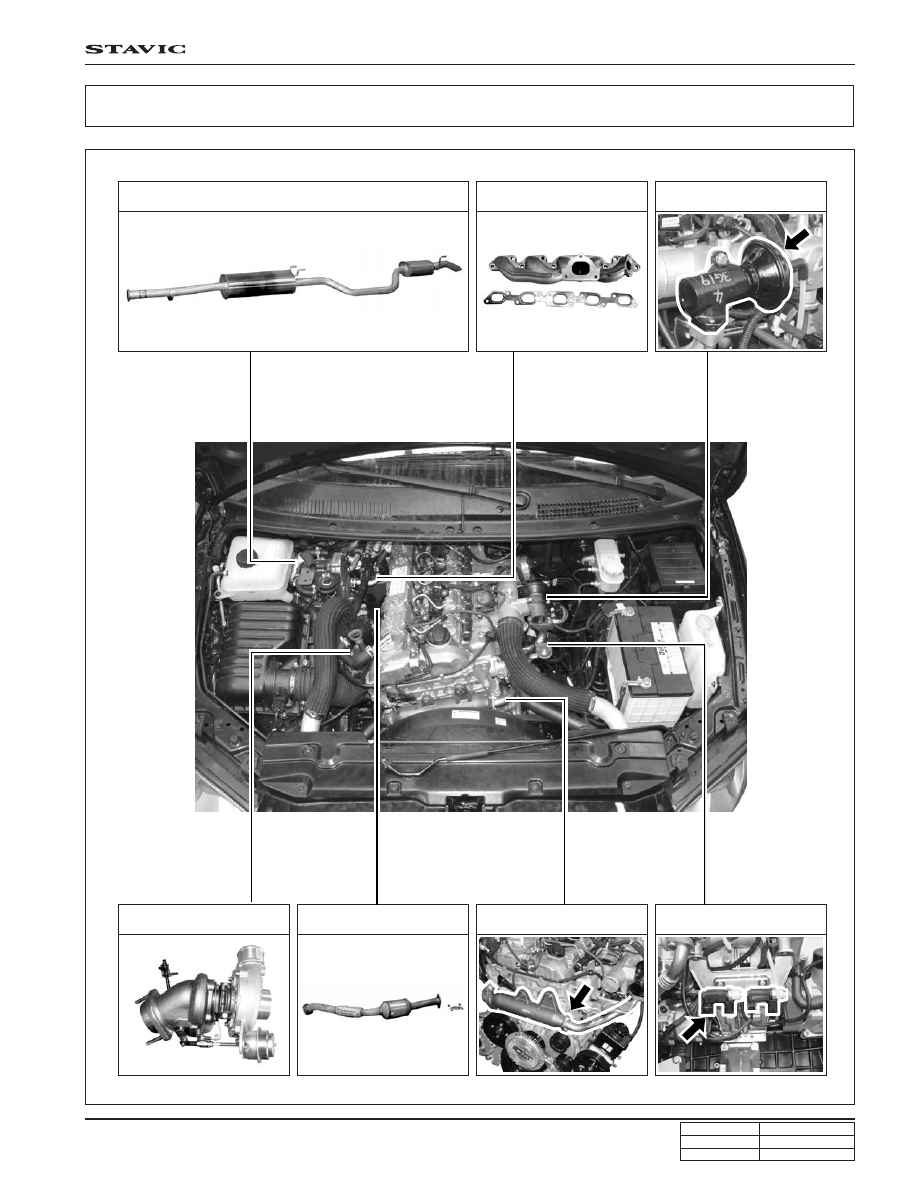

Muffler

Exhaust manifold

EGR valve

Vacuum modulator

Turbocharger

Catalytic converter

EGR pipe

EXHAUST SYSTEM
