1F-86

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

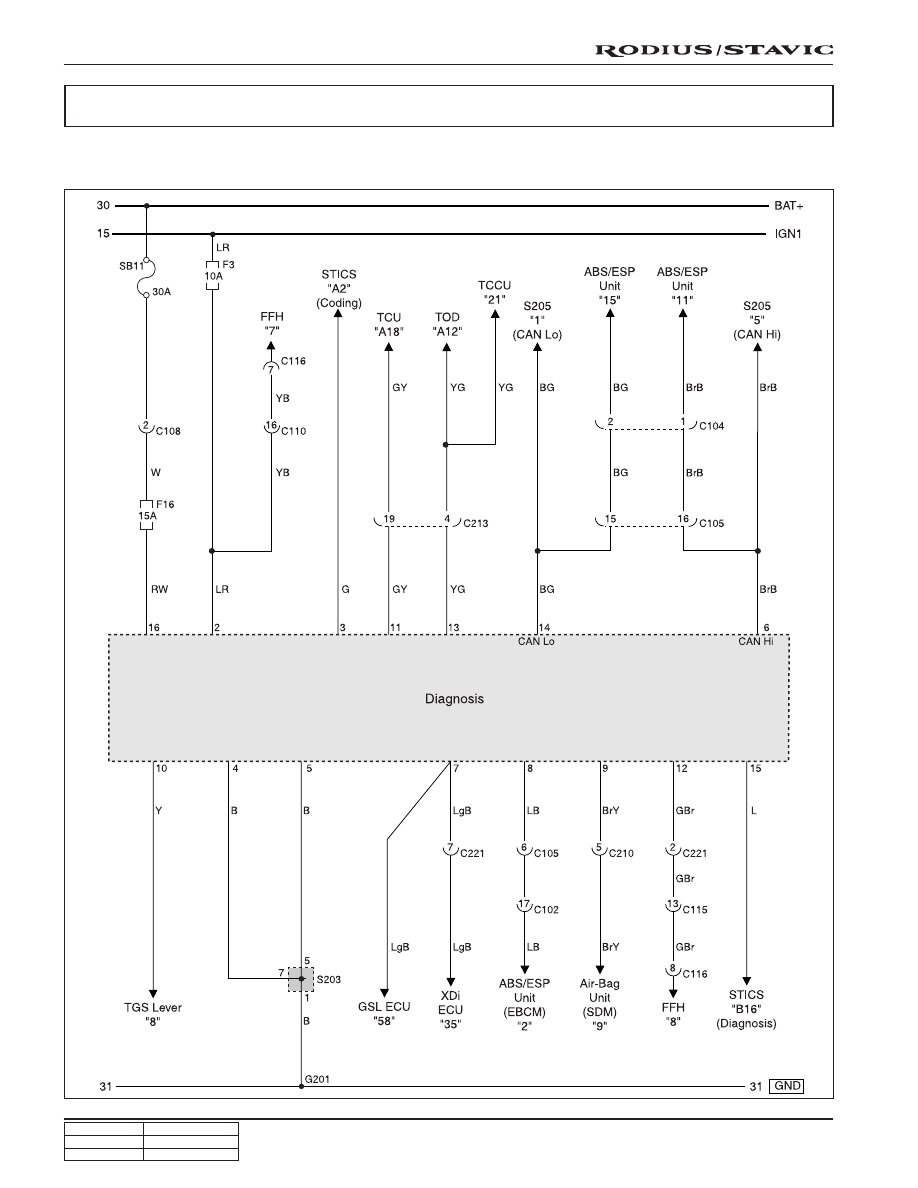

DIAGNOSIS CIRCUIT

SCHEMATIC AND ROUTING DIAGRAMS

1F-87

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

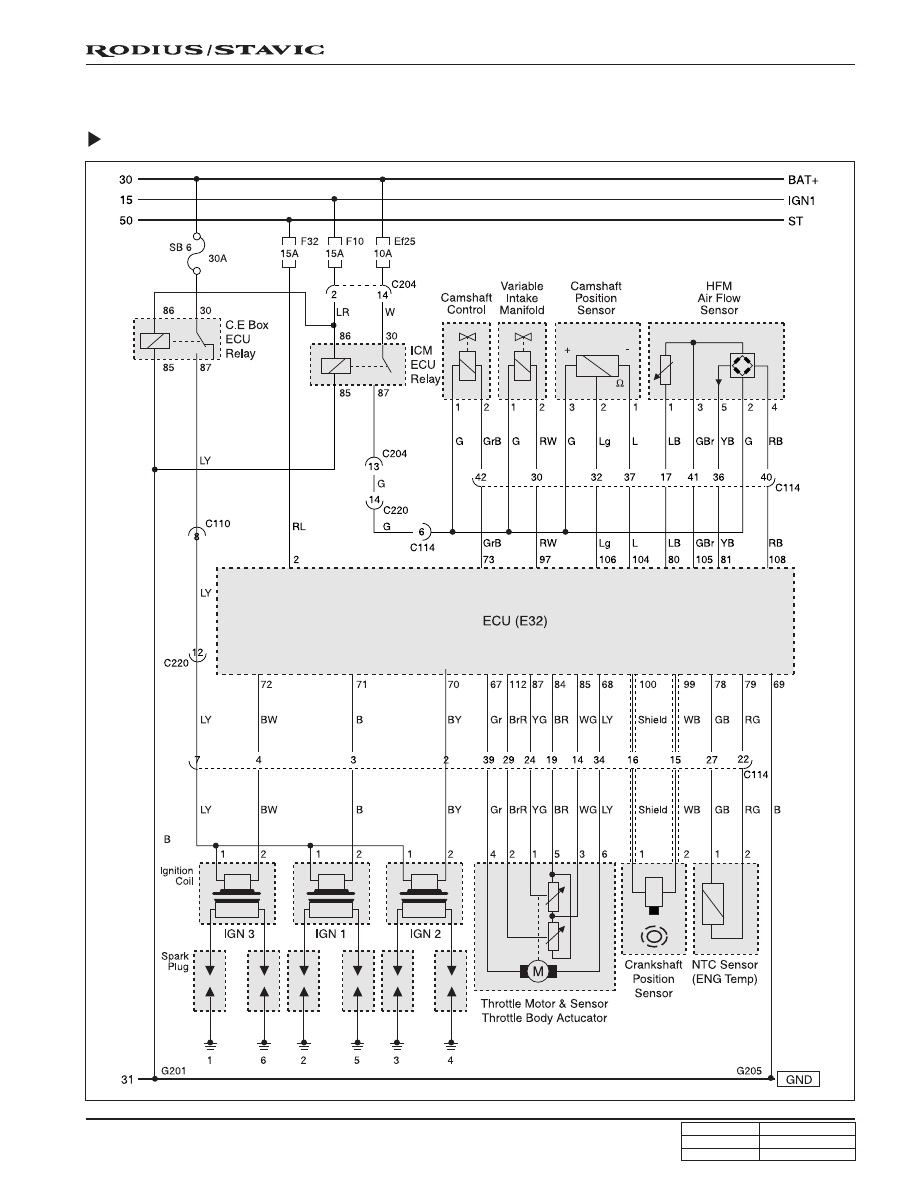

ECU (GSL G32)

IGN COIL, CPS, AIR FLOW SENSOR, THROTTLE SENSOR, TPS

1F-88

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

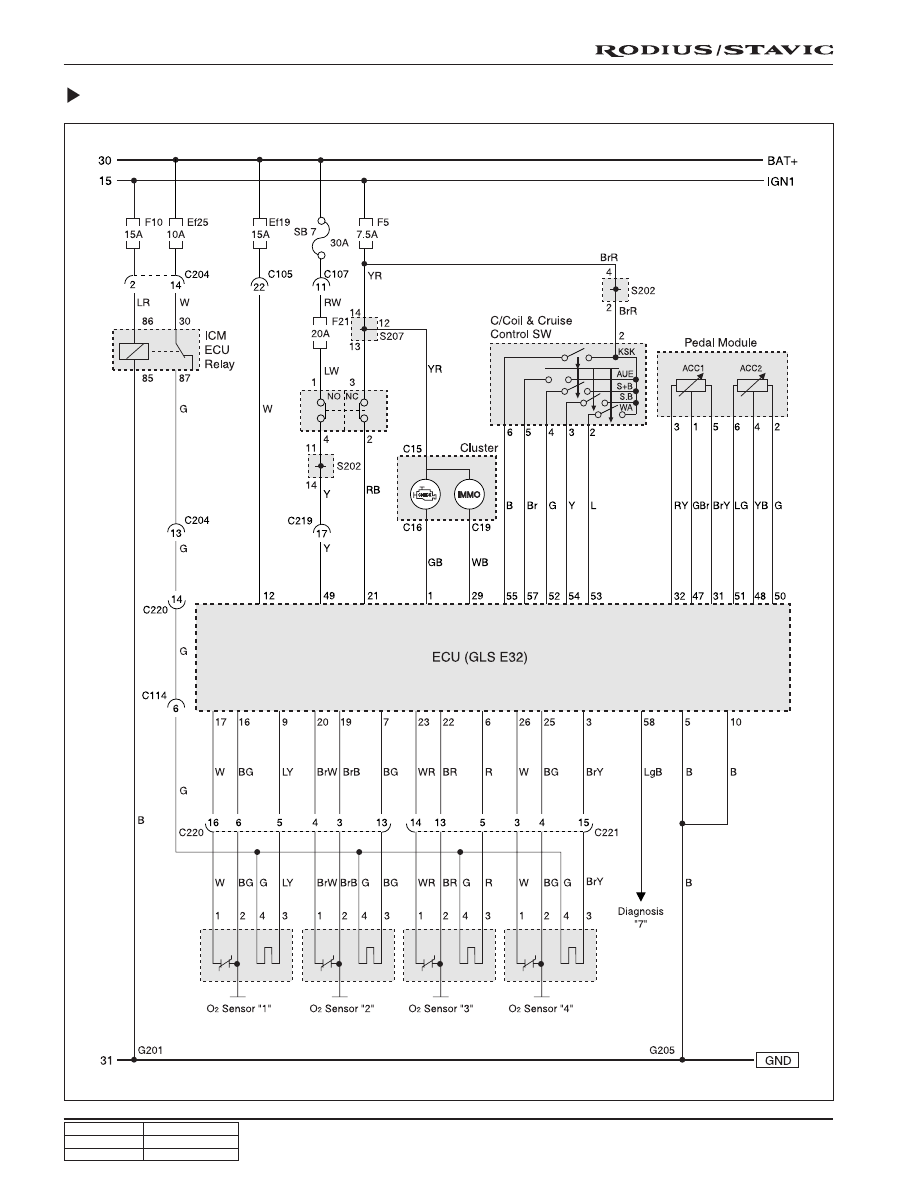

O

2

 SENSOR, PEDAL MODULE, CRUISE CONTROL SW, STOP LAMP SW

1F-89

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

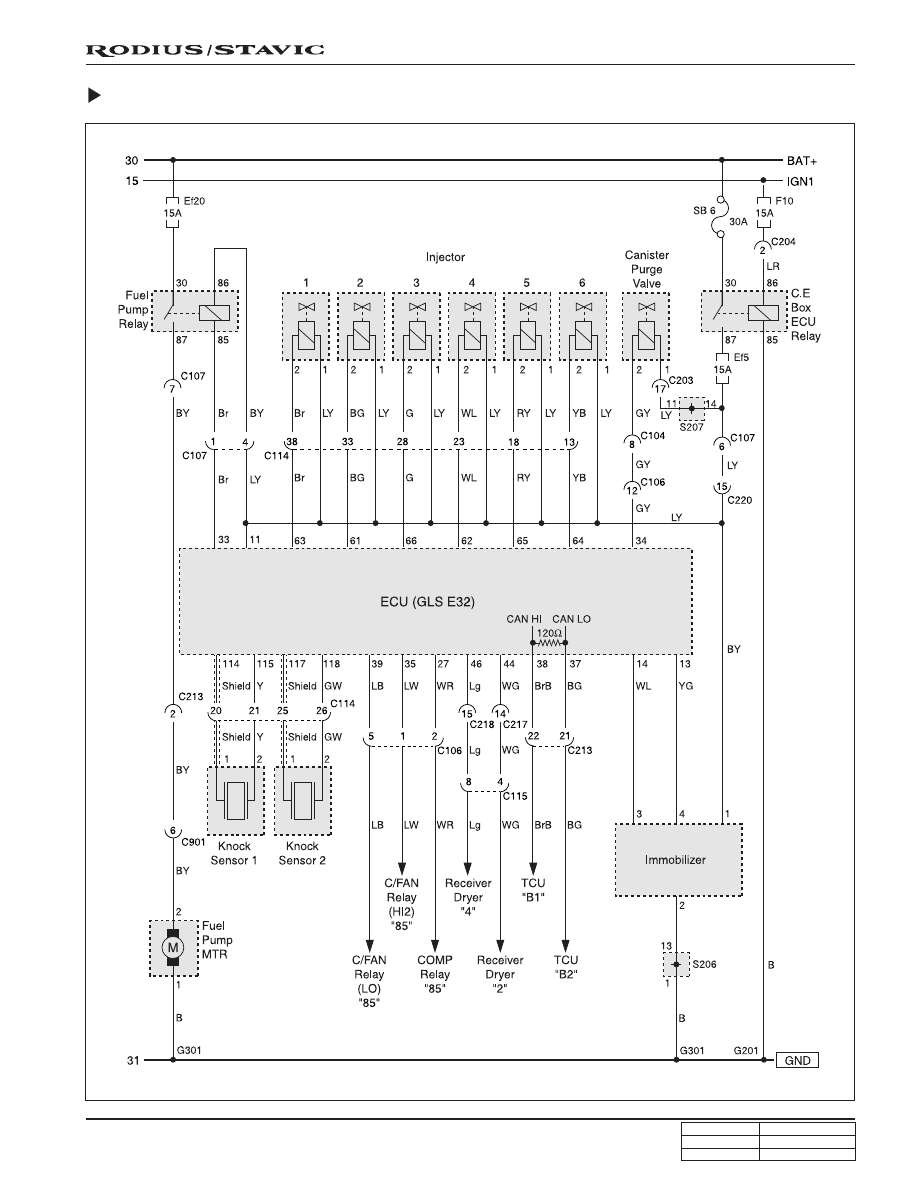

INJECTOR, KNOCK SENSOR, IMMOBILIZER, CANISTER PURGE VALVE
