1F-62

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

1F-63

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

Failur Code

Description

Trouble Area

Maintenance Hint

• Monitoring the actual output

signal through scan tool

• Inspection the ECM pin 16, 17

about short circuit or open with
bad contact

• Inspection the oxygen sensor

• Inspection the ECM

• Monitoring the heating status

through scan tool

• Inspection the ECM pin 9 about

short circuit or open with bad contact

• Inspection the heating power source

• Inspection the heating circuit of

oxygen sensor

• Inspection the ECM

Oxygen sensor high

voltage

When recognition the output that

more than nominal threshold,

malfunction of sensing voltage.

80

Oxygen sensor low

voltage

When recognition the output that

more than nominal threshold,

malfunction of sensing voltage.

89

Oxygen sensor no

activity detected

When recognition the output that

not active the sensor etc.

82

Oxygen sensor not lean

after overrun fuel

shut-off

When recognition the output that

no lean signal after overrun fuel

shut-off

83

Oxygen sensor slow

response

When slow response of sensor

signal

84

Oxygen sensor heater

failure

When recognition the heating

circuit

85

Oxygen sensor heater
short circuit to battery

When recognition the heating

currents that more or less than

set values (less than 0.2A or

more than 2A)

86

Oxygen sensor heater

short circuit to ground

or open

When recognition the heating

voltages than less than set

values (less than 2V)

87

1F-64

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

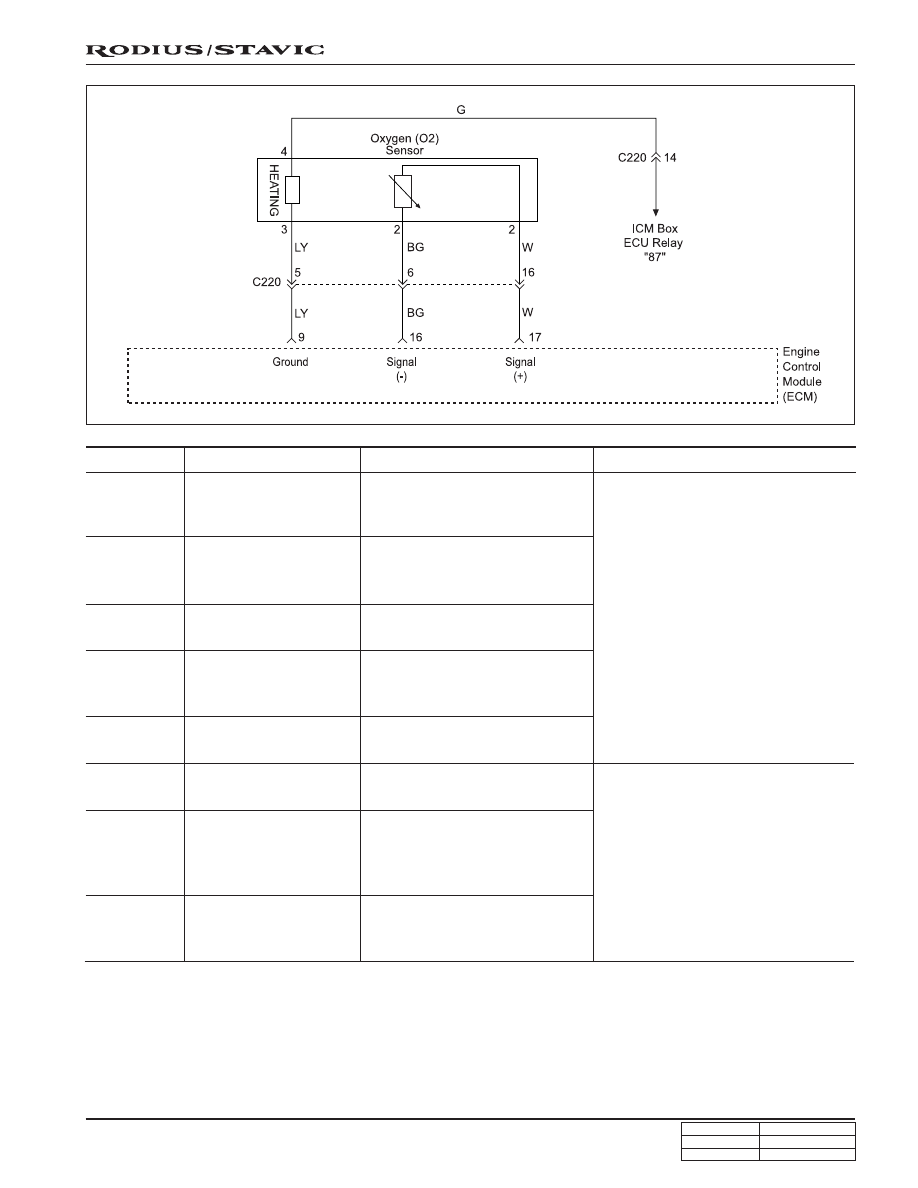

Circuit Description

In order to control emissions, a catalytic converter is used to covert harmful emissions into harmless water vapor and
carbon dioxide. The ECM has the ability to monitor this process by using a oxygen sensor. The oxygen sensor produces
and output signal which indicates the storage capacity of the catalyst. This in turn indicates the catalyst’s ability to
convert exhaust emission effectively. If the oxygen sensor pig tail wiring, connector, or terminal is damaged. Do not
attempt to repair the wiring, connector, or terminals. In order for the sensor to function properly, it must have a clean air
reference provided to it. This clean air reference is obtained by way of the oxygen sensor wire(s). Any attempt to repair
the wires, connector, or terminal and degrade the oxygen sensor performance.

Failur Code

Description

Trouble Area

Maintenance Hint

• Inspection the intake air leakage

• Inspection the injection quantities

with injector block or leakage

• Inspection the exhaust leakage

• Inspection the ECM

Bank 1 system short

term fuel trim

adaptation below lean

threshold

When recognition the value less

than nominal control threshold, it

means that when big deviation in

control range of adaptation

values through fuel and air

mixture formation

81

Bank 1 system short

term fuel trim

adaptation above rich

threshold

When recognition the value more

than nominal control threshold, it

means that when big deviation in

control range of adaptation

values through fuel and air

mixture formation

93

Bank 1 system short

term fuel trim at rich

stop

When recognition the short term

fuel trim that more than nominal

threshold

96

Bank 1 system short

term fuel trim at lean

stop

When recognition the short term

fuel trim that less than nominal

threshold

97

Bank 1 system idle

adaptation failure

(above rich threshold)

When recognition the long term
fuel trim exceeds rich threshold

98

Bank 1 system idle

adaptation failure

(below rich threshold)

When recognition the long term

fuel trim exceeds lean threshold

99

Bank 1 system learning

control failure

(lean, low load)

When recognition the long term

fuel trim exceeds lean threshold

101

Bank 1 system learning

control failure

(rich, high load)

When recognition the long term
fuel trim exceeds rich threshold

102

Bank 1 system learning

control failure

(rich, low load)

When recognition the long term

fuel trim exceeds lean threshold

103

Bank 1 system learning

control failure

(rich, low load)

When recognition the long term
fuel trim exceeds rich threshold

100

1F-65

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

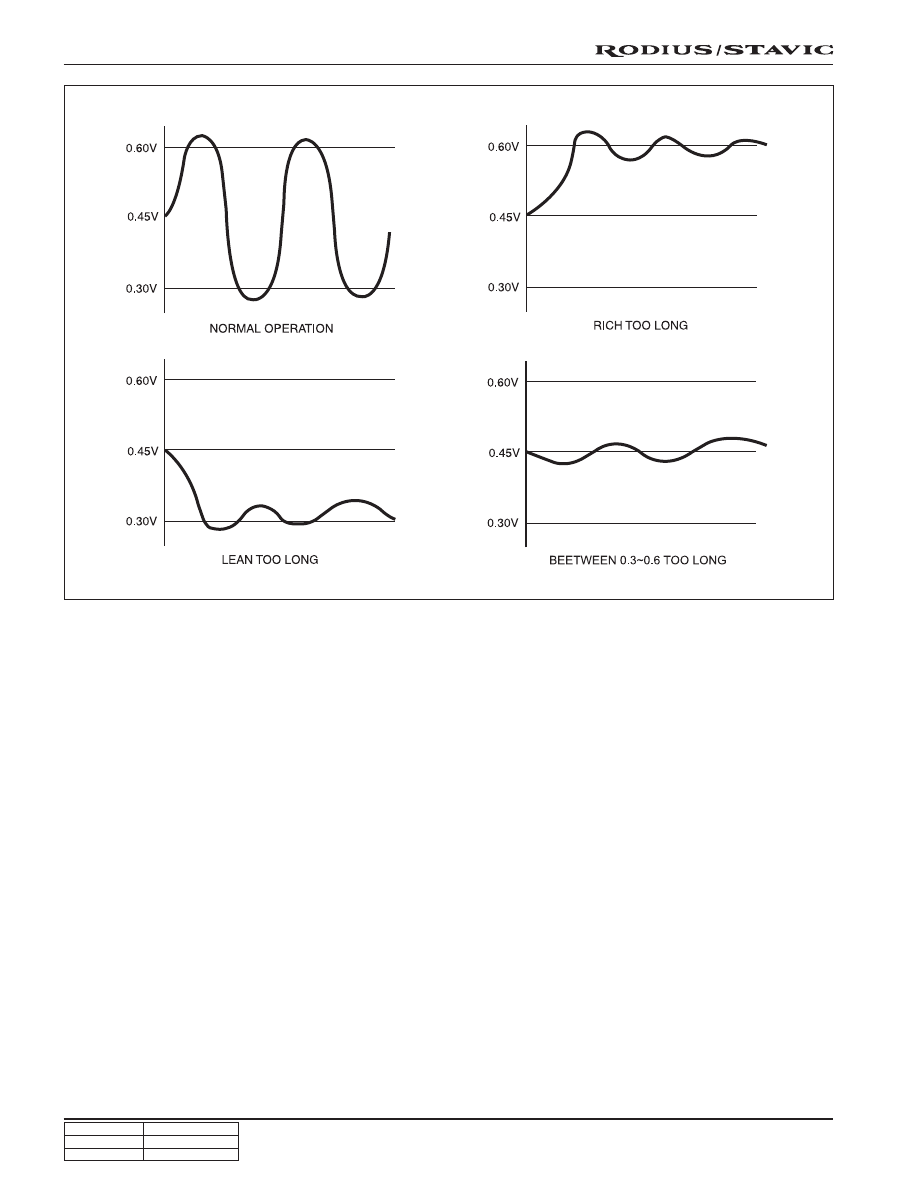

Oxygen Sensor Signal Voltage Inspection

1. Maintain the engine speed is at idle while the coolant temperature is over 80 °C.

2. Measure the oxygen sensor signal voltage between the ECM terminal No. 16 and No. 17.

Notice

If the measured value is not within the specified value, the possible cause may be in cable, oxygen sensor
or ECM.

Oxygen Sensor Heating Voltage Inspection

1. Maintain the engine speed is at idle while the coolant temperature is over 80 °C.

2. Measure the oxygen sensor signal voltage between the ECM terminal No. 11 and No. 9.

Notice

If the measured value is not within the specified value, the possible cause may be in cable, oxygen sensor
or ECM.

Oxygen Sensor Heating Current Consumption Inspection

1. Turn the ignition switch to “ON” position.

2. Measure the oxygen sensor heating current consumption between the ECM terminal No. 9 and No. 5.

Notice

If the measured value is not within the specified value, the possible cause may be in cable, oxygen sensor
or ECM.

Specified value

0.2 ~ 1.0 V

Specified value

11 ~ 14 V

Specified value

0.2 ~ 2.0 A
