SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 13

1B-31

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

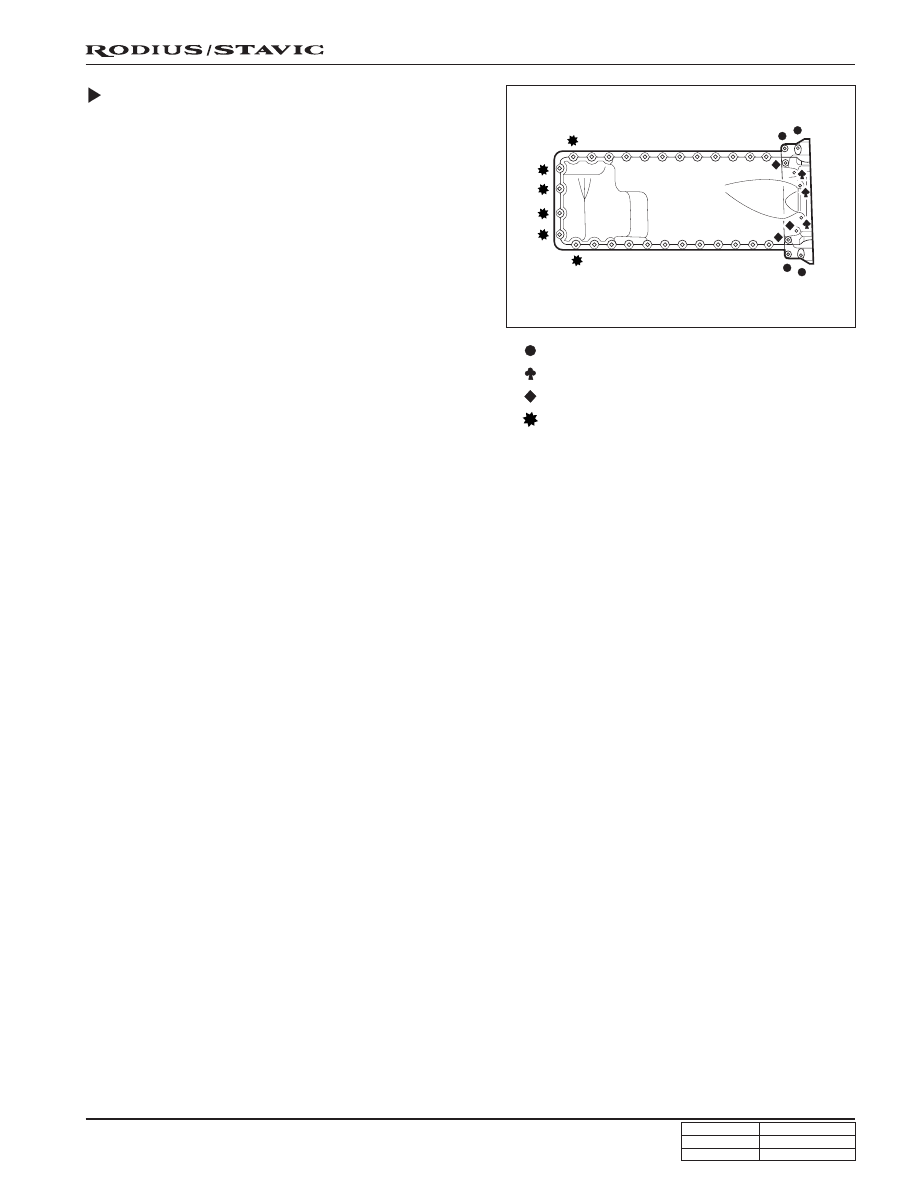

Removal & Installation Procedure

1. Remove the drain plug and drain the oil completely.

2. Unscrew the bolts and remove the oil pan and gasket.

Notice

Arrange the bolts according to each size.

3. Clean the inside of oil pan and sealing surface, then apply

the sealant.

4. Replace the gasket with new one.

5. Install the oil pan with gasket, and tighten each bolt in

specified torque.

6. Check for oil leaks while running the engine.

M8 X 40, 4 pieces

M6 X 85, 3 pieces

M6 X 35, 3 pieces

M6 X 22, 6 pieces

M6 X 20, 28 pieces

Others

1B-30

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

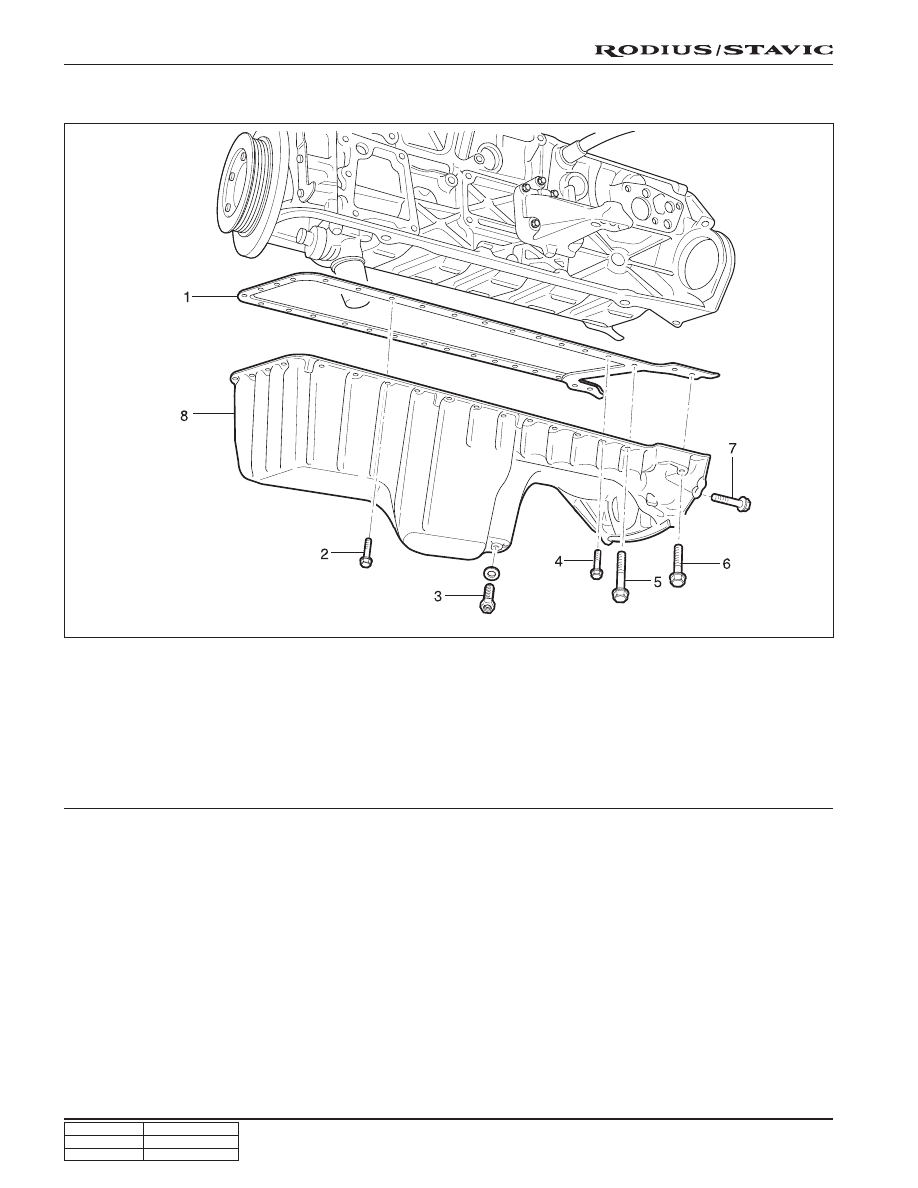

OIL PAN

1. Gasket ...................................................... Replace

2. Bolt (M6 x 22, 6 pieces)

...................................... 9 ~ 11 Nm (80 ~ 97 lb-in)

3. Drain plug ...... 22.5 ~ 27.5 Nm (16.6 ~ 20.3 lb-ft)

4. Bolt (M6 x 20, 22 pieces)

...................................... 9 ~ 11 Nm (80 ~ 97 lb-in)

5. Bolt (M6 x 85, 3 pieces)

...................................... 9 ~ 11 Nm (80 ~ 97 lb-in)

6. Bolt (M8 x 40, 4 pieces)

....................... 22.5 ~ 27.5 Nm (16.6 ~ 20.3 lb-ft)

7. Bolt (M10) ................................... 40 Nm (30 lb-ft)

8. Oil pan

1B-31

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

Removal & Installation Procedure

1. Remove the drain plug and drain the oil completely.

2. Unscrew the bolts and remove the oil pan and gasket.

Notice

Arrange the bolts according to each size.

3. Clean the inside of oil pan and sealing surface, then apply

the sealant.

4. Replace the gasket with new one.

5. Install the oil pan with gasket, and tighten each bolt in

specified torque.

6. Check for oil leaks while running the engine.

M8 X 40, 4 pieces

M6 X 85, 3 pieces

M6 X 35, 3 pieces

M6 X 22, 6 pieces

M6 X 20, 28 pieces

Others

1B-32

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE MECHANICAL

M162 GSL ENG SM - 2005.7

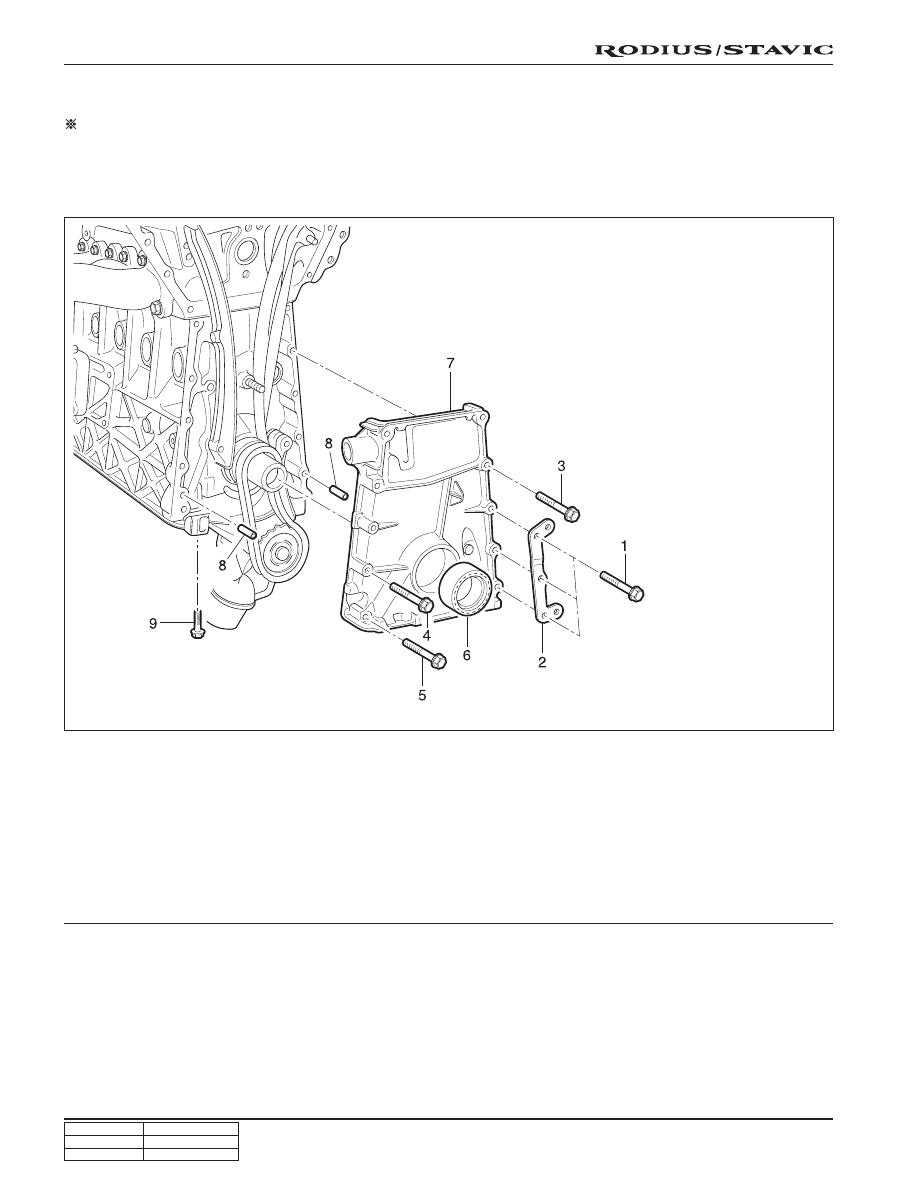

TIMING GEAR CASE COVER

Preceding Work: Removal of cylinder head front cover

Removal of generator bracket

Removal of tensioning device

Removal of belt pulley and vibration damper

1. Bolt (M8 x 60, 3 pieces)

....................... 22.5 ~ 27.5 Nm (16.6 ~ 20.3 lb-ft)

2. A/C bracket

3. Bolt (M8 x 65, 3 pieces)

....................... 22.5 ~ 27.5 Nm (16.6 ~ 20.3 lb-ft)

4. Bolt (M8 x 40, 1 piece)

....................... 22.5 ~ 27.5 Nm (16.6 ~ 20.3 lb-ft)

5. Bolt (M8 x 60, 1 piece)

....................... 22.5 ~ 27.5 Nm (16.6 ~ 20.3 lb-ft)

6. Seal

7. Timing gear case cover

8. Roll pin

9. Bolt (M6 x 22, 6 pieces)

...................................... 9 ~ 11 Nm (80 ~ 97 lb-in)
