02-7

8810-03

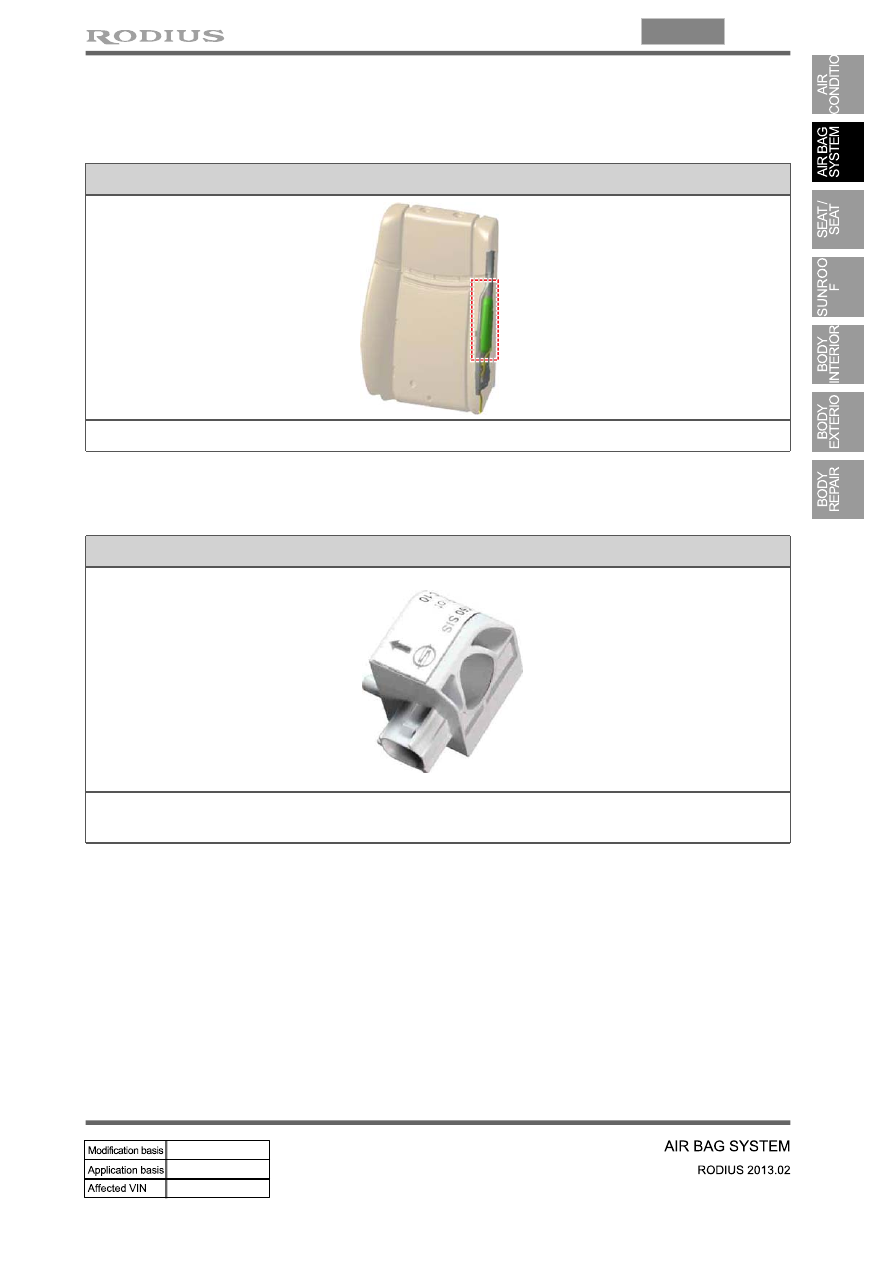

3. MAJOR CHANGES

1) Seat Air Bag Module

Seat air bag module

Seat air bag module used for driver and front passenger seats

2) Side Impact Sensor

Side impact sensor

Side impact sensor fitted to lower side of B-pillars for driver and passenger sides due to newly
adopted seat air bag system

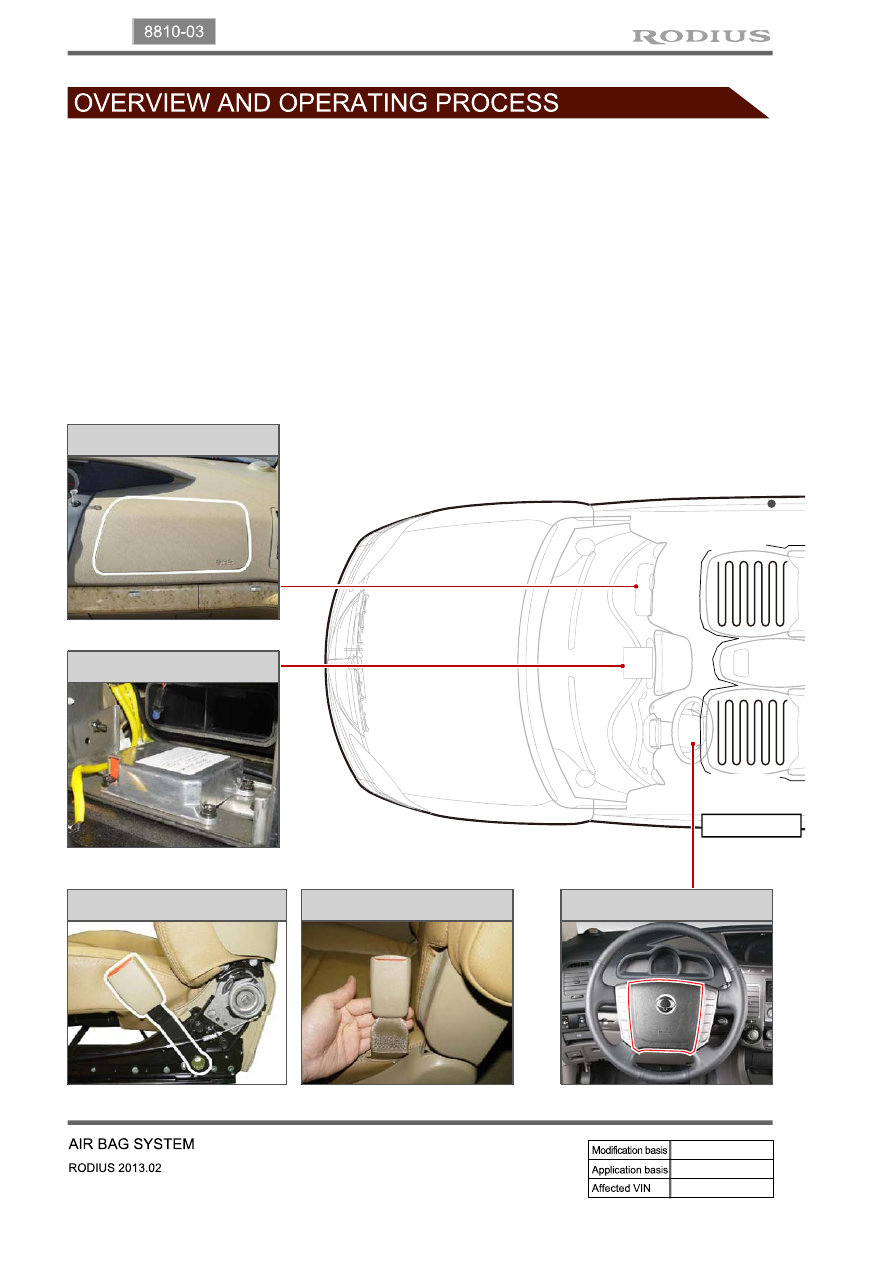

02-8

Driver's Air Bag

Passenger's Air Bag

Air Bag Unit

Webbing Type Buckle

Steel Strap Type Buckle

1. OVERVIEW

Front Seat

Driver’s

Passenger’s

The air bag unit (SDM) includes the lateral G sensor and longitudinal G sensor. The side air bag

sensor is installed in both B pillars.

The front air bag module, side air bag module and seat belt pretensioner are installed for each

seat.

The pretensioner operates with the front seat. The side air bag operates according to the signal

from the lateral G sensor, longitudinal G sensor and side air bag sensor.

The front air bags operate independently.

-

-

-

-

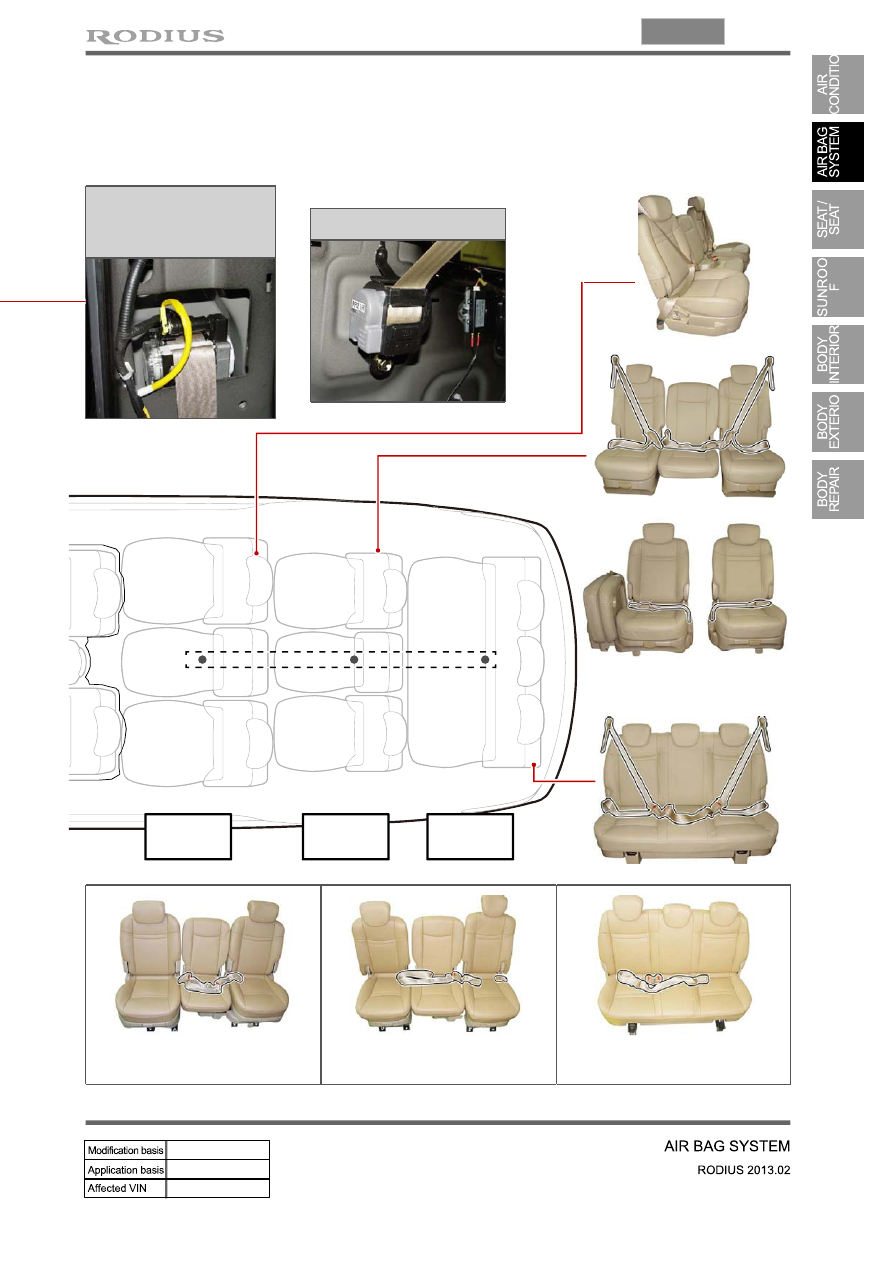

2. COMPONENTS

02-9

8810-03

Retractor

Pre-tensioner

(Driver's/

Passenger's)

Seat Belt (2-point) for rear 1st

row seat (swiveled)

Center Seat in Rear

1st Row Seat

Center Seat in Rear

2nd Row Seat

Center Seat in Rear

3rd Row Seat

Rear 1st

Row Seat

Rear 2nd

Row Seat

Rear 3rd

Row Seat

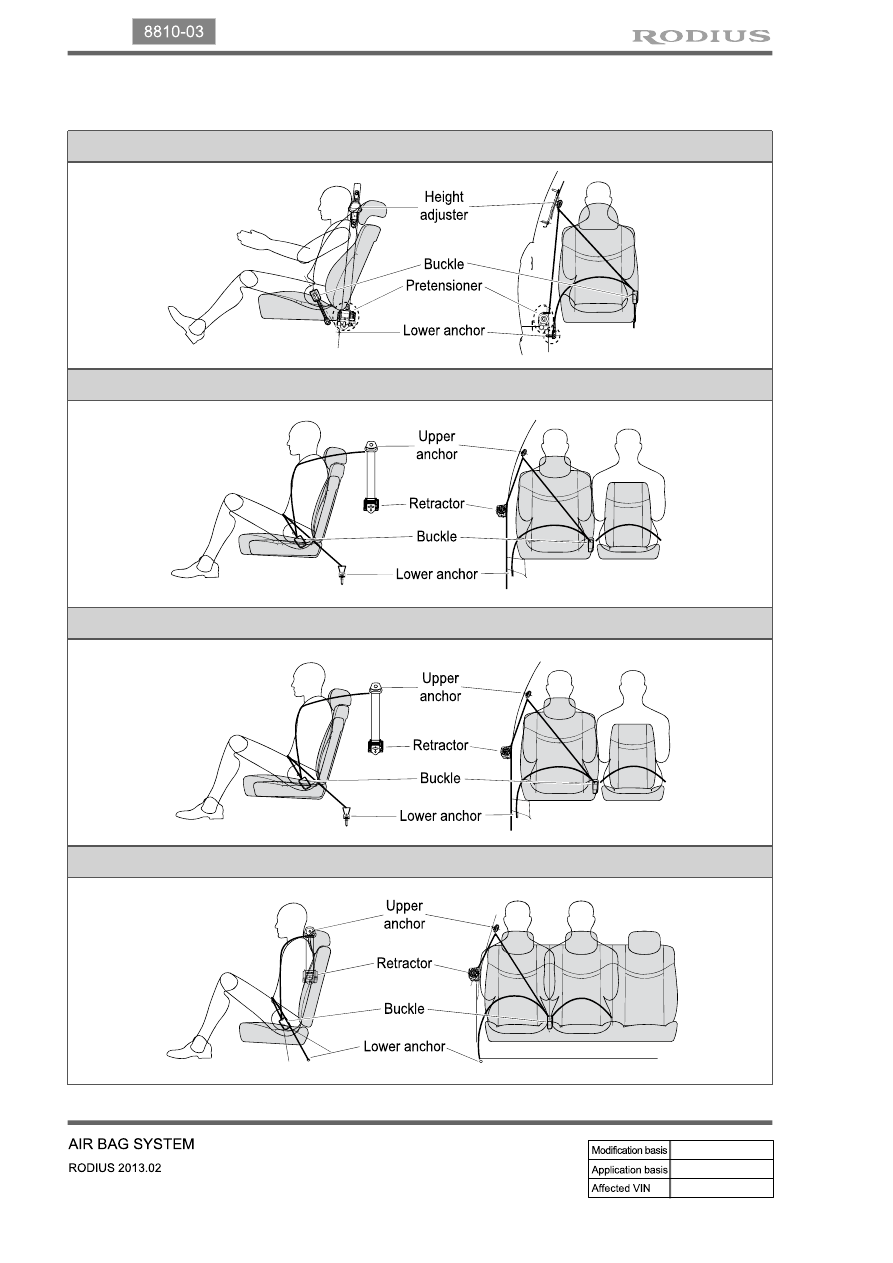

02-10

Front Seat (3-point)

Rear 1st Row Seat (3-point + 2-point)

Rear 2nd Row Seat (3-point + 2-point)

Rear 3rd Row Seat (3-point + 2-point)

2) Seat Belt Arrangement
