01-18

5. CIRCUIT DIAGRAM

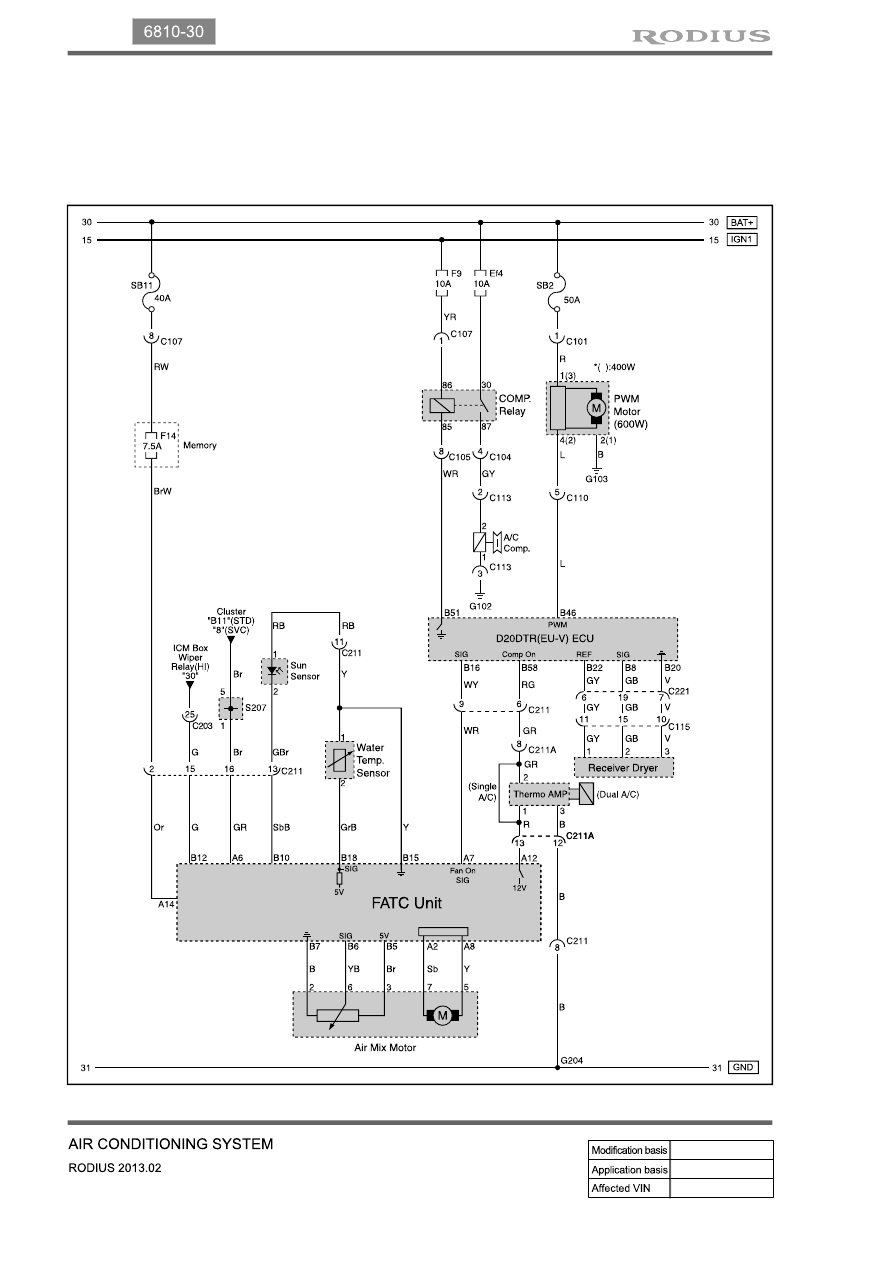

1) FATC (Full Auto Temperature Control)

D20DTR, PWM Motor, Compressor relay

▶

01-19

6810-30

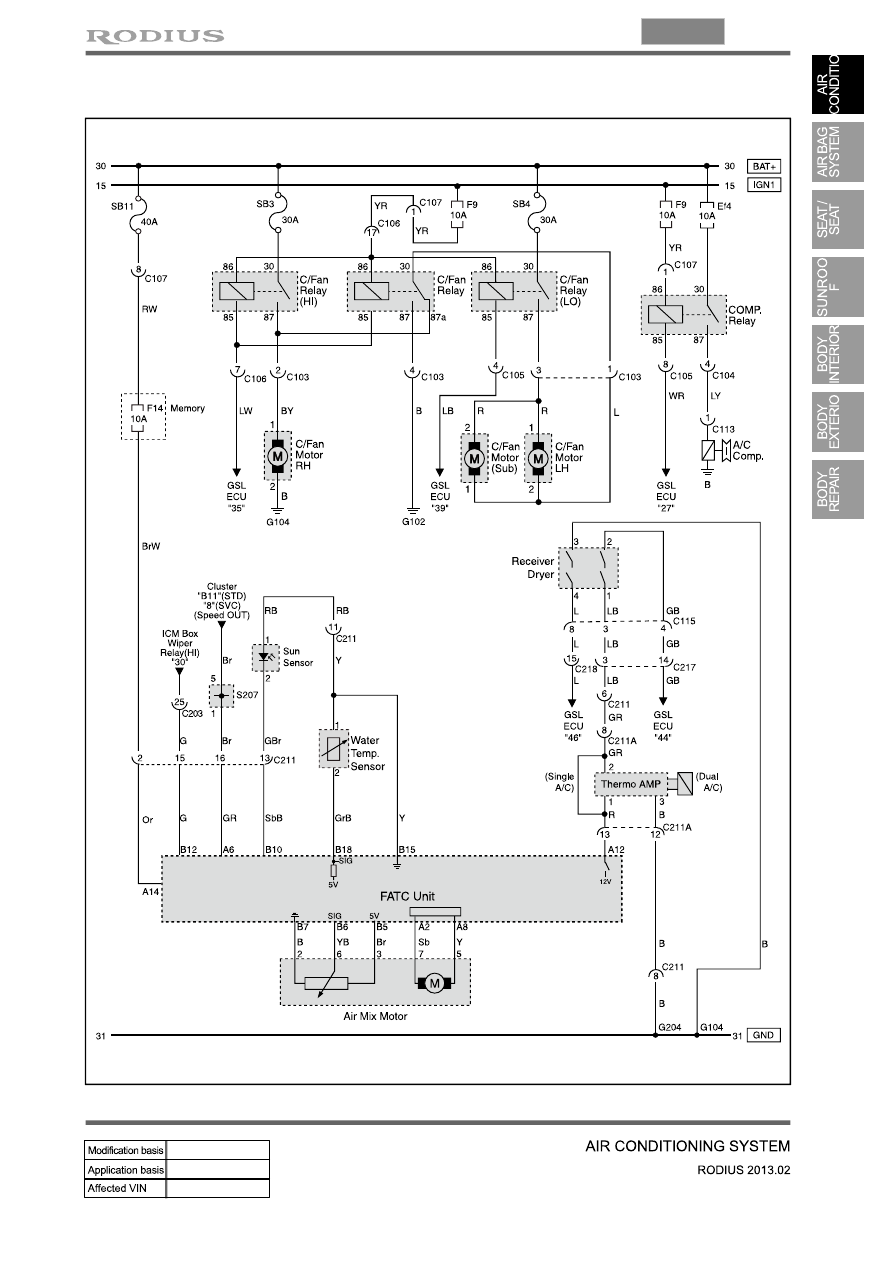

GSL 3.2,  Condenser Fan Relay

▶

01-20

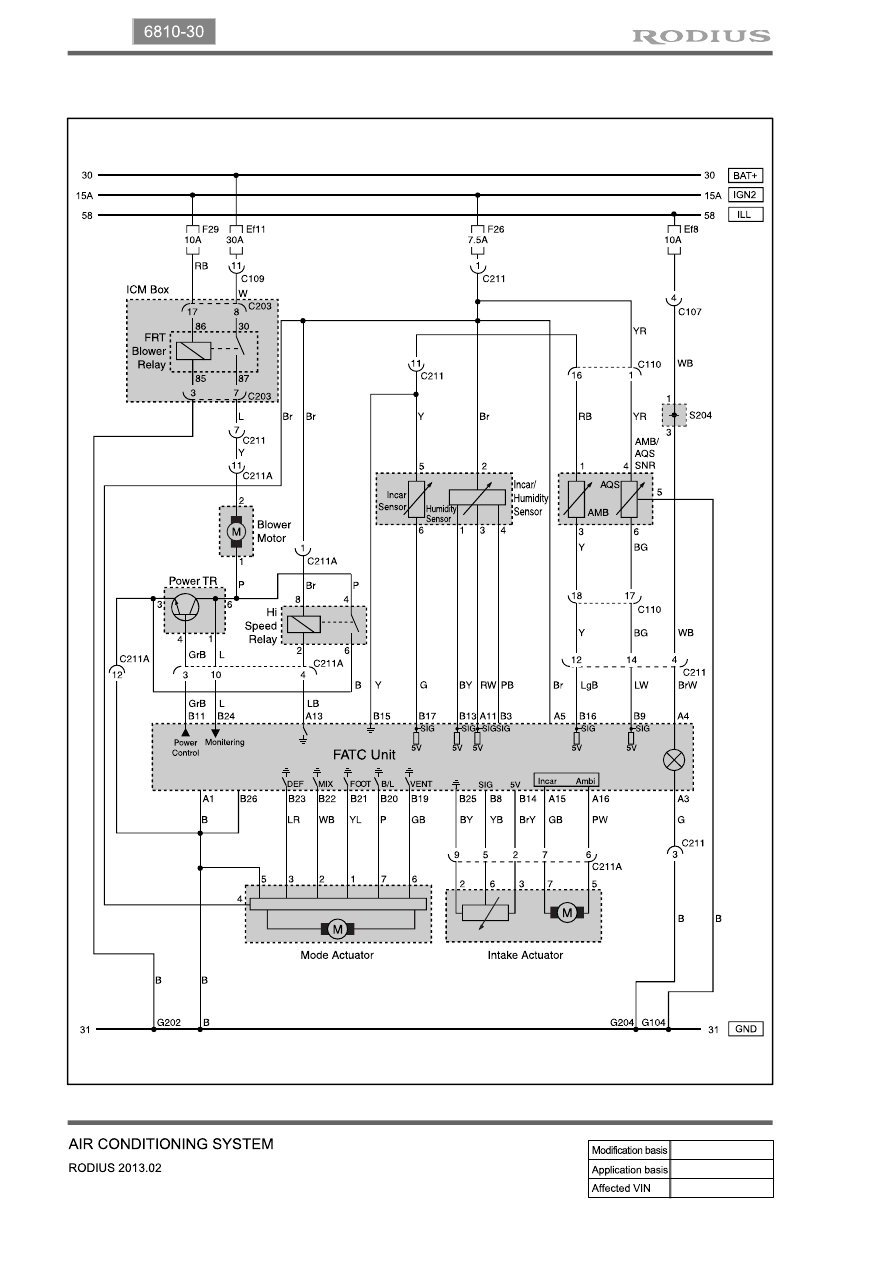

Actuator (mode, intake) AQS sensor

▶

01-21

6810-30

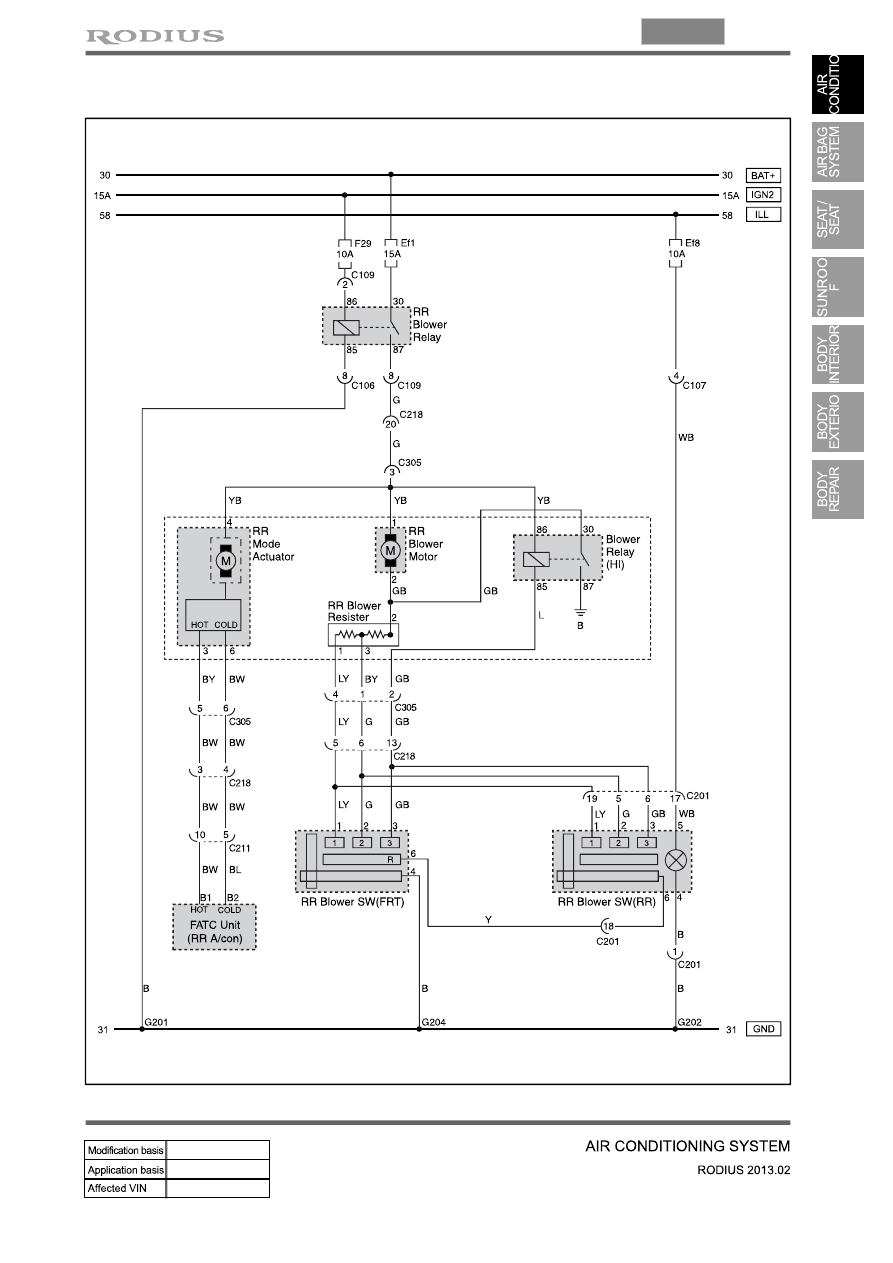

Rear Air Conditioner (Blower, Mode Actuator)

▶
