SsangYong Rodius (2013 year). Manual - part 156

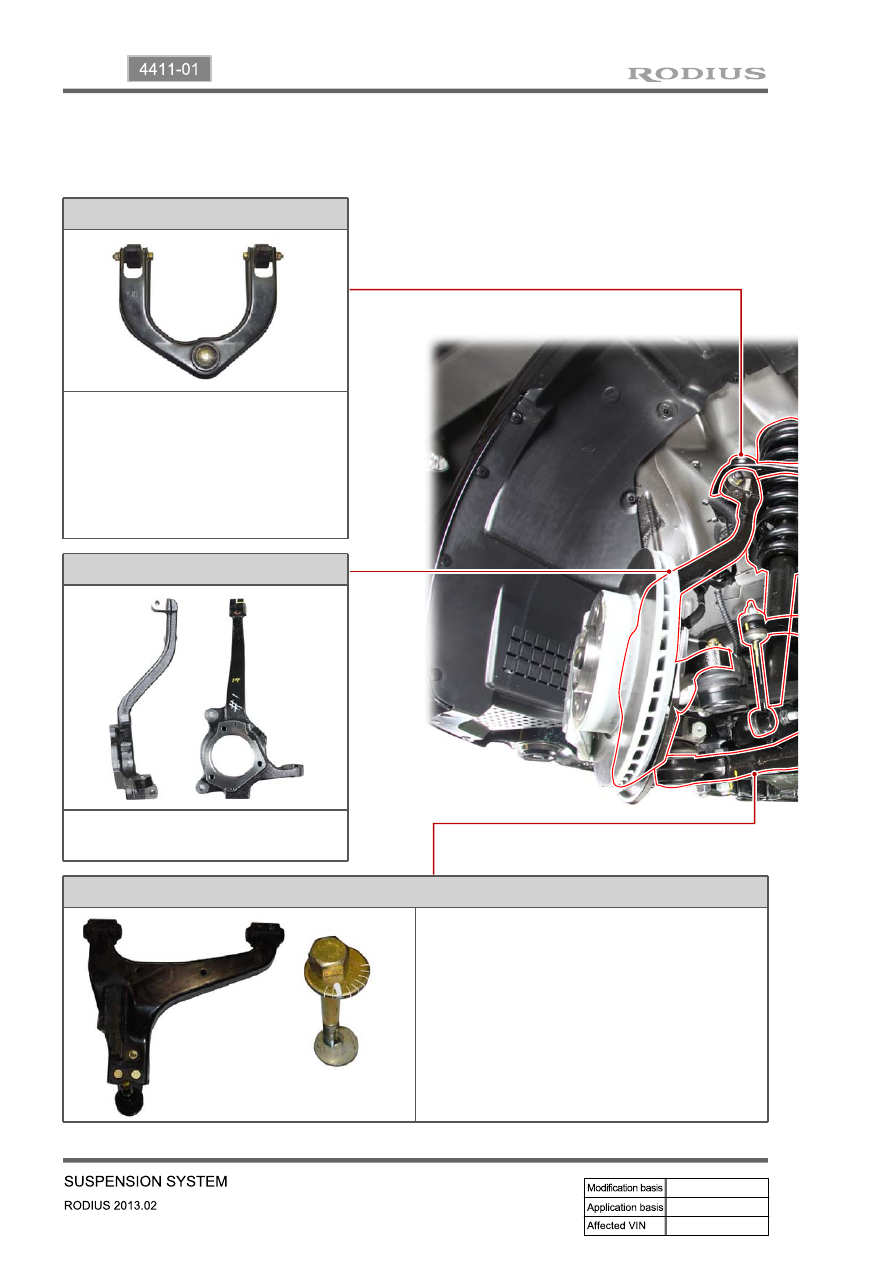

07-8

Upper Arm

The upper arm is mounted to the frame
and the knuckle and it relieves the load
delivered from the tire to the knuckle.
This enables to absorb the various
impacts according to the load shapes
and to ensure the drivability.

Lower Arm

Knuckle

There are two types of knuckle (4WD,
2WD)

Cam bolt

1) Front Suspension (Double Wishbone)

The lower arm is mounted to the knuckle, the

shock absorber and the lower arm assembly. It

relieves the load delivered from the tire to the

knuckle. This enables to absorb the various

impacts according to the load shapes and to

ensure the drivability.

2. COMPONENTS

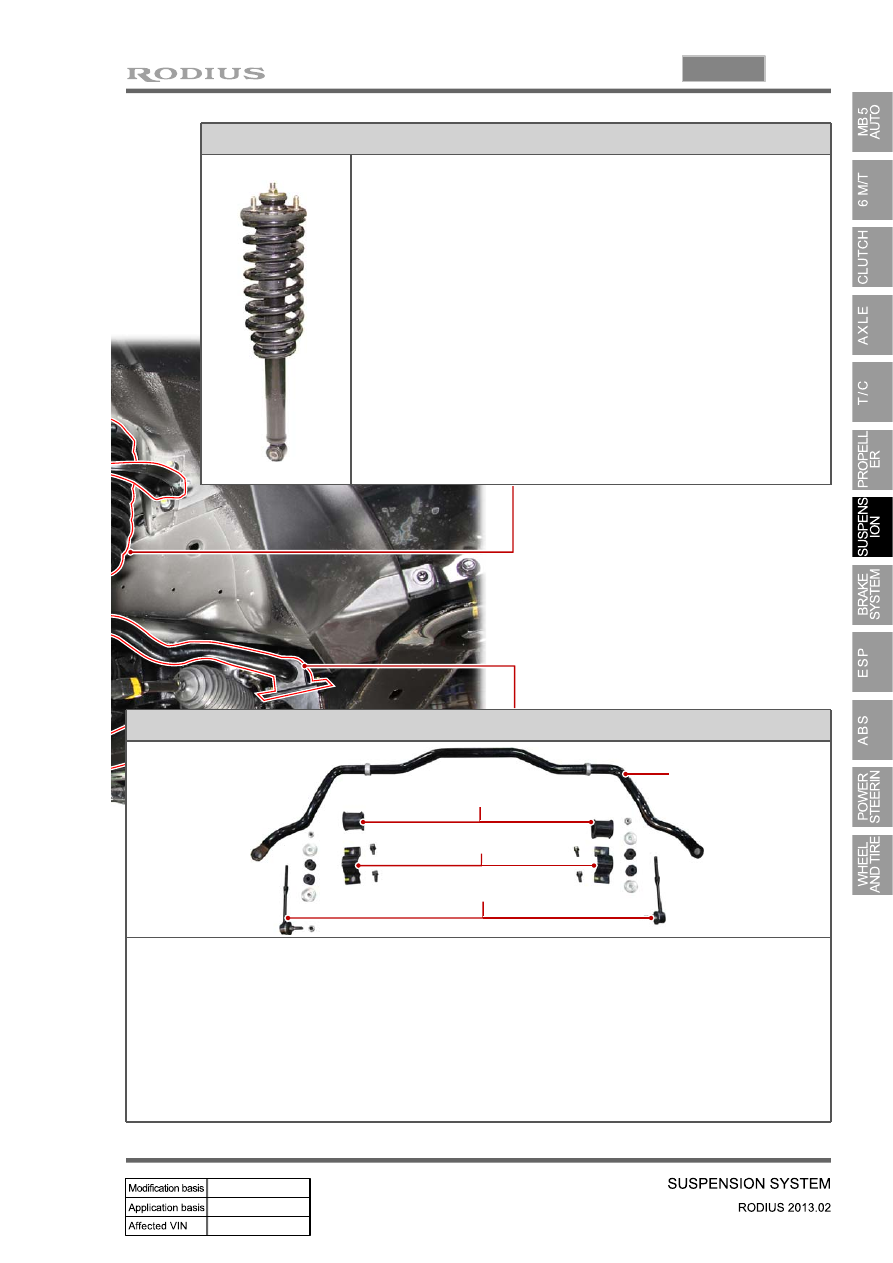

07-9

4411-01

Shock Absorber Assembly

Stabilizer Bar Assembly

The stabilizer bar is intended to force each side of the vehicle to lower, or rise, to similar heights, to
reduce the sideways tilting (roll) of the vehicle on curves, sharp corners, or large bumps. The basic
function is to force the opposite wheel's shock absorber, spring or suspension rod to lower, or rise, to a
similar level as the other wheel. In a fast turn, a vehicle tends to drop closer onto the outer wheels, and
the sway bar will soon force the opposite wheel to also get closer to the vehicle. As a result, the vehicle
tends to "hug" the road, closer in a fast turn, where all wheels are closer to the body. After the fast turn,
then the downward pressure is reduced, and the paired wheels can return to their normal height against
the vehicle, kept at similar levels by the connecting stabilizer bar.

Stabilizer bar

Stabilizer bar

Bracket

Stabilizer bar link

Coil spring

-

The shock absorber assembly reduces the effect of traveling over

rough ground, leading to improved ride quality and increases in

comfort. While shock absorber serves the purpose of limiting

excessive suspension movement, their intended sole purpose is to

dampen spring oscillations. The shock absorber in this vehicle uses

the gas to absorb excess energy from the spring.

Shock absorber

-

Keep the clearance to drive shaft.

To prevent the transverse force to shock absorber, the upper

center line and the lower center line of shock absorber are

placed on same line.

1.

2.

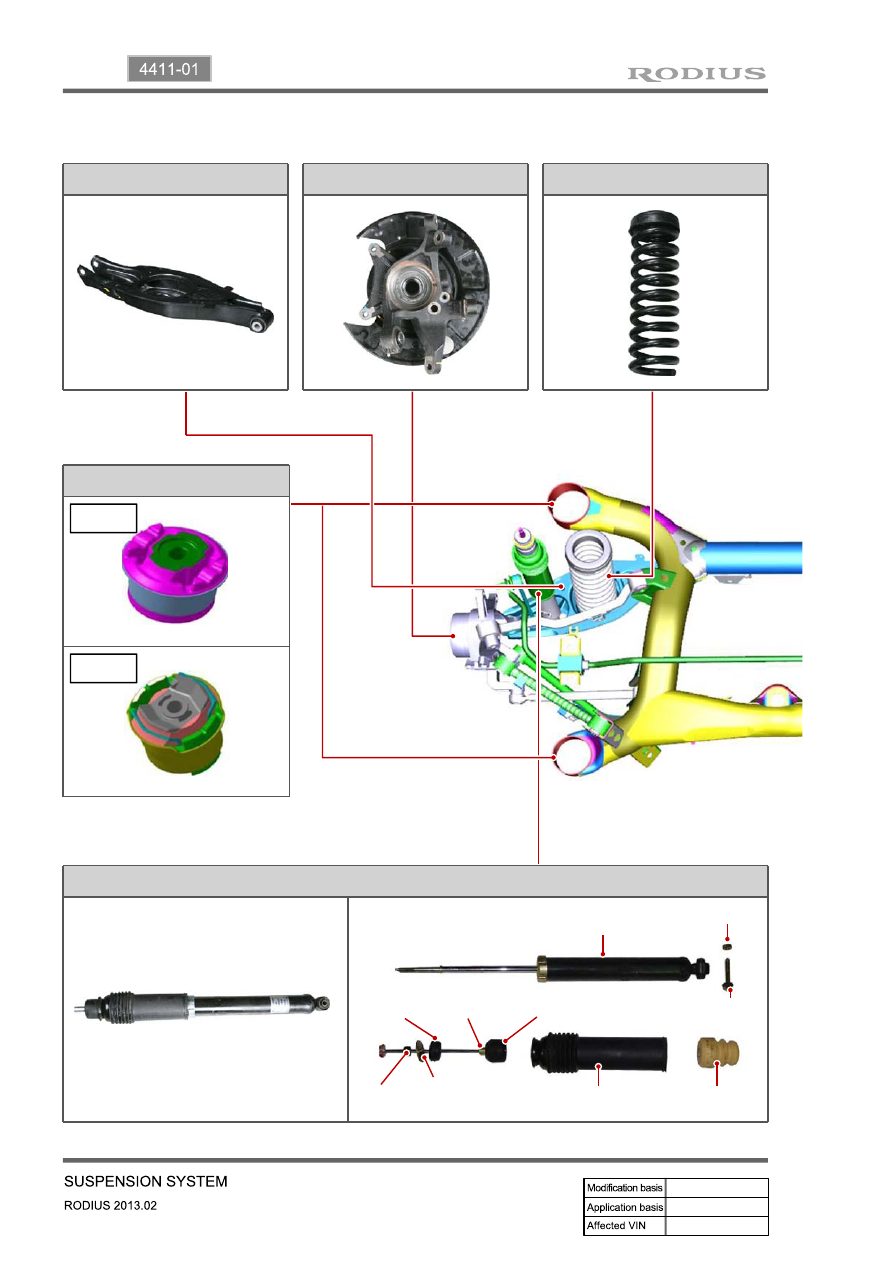

07-10

Spring link

2) Rear Suspension

Rear coil spring

Wheel carrier assembly

Rear sub frame bush

Nut

Upper washer

Upper

bush

Bumper stopper

Lower bush

Dust cover

Shock absorber

Bolt

Nut

Collar

Front

Rear

Rear shock absorber assembly

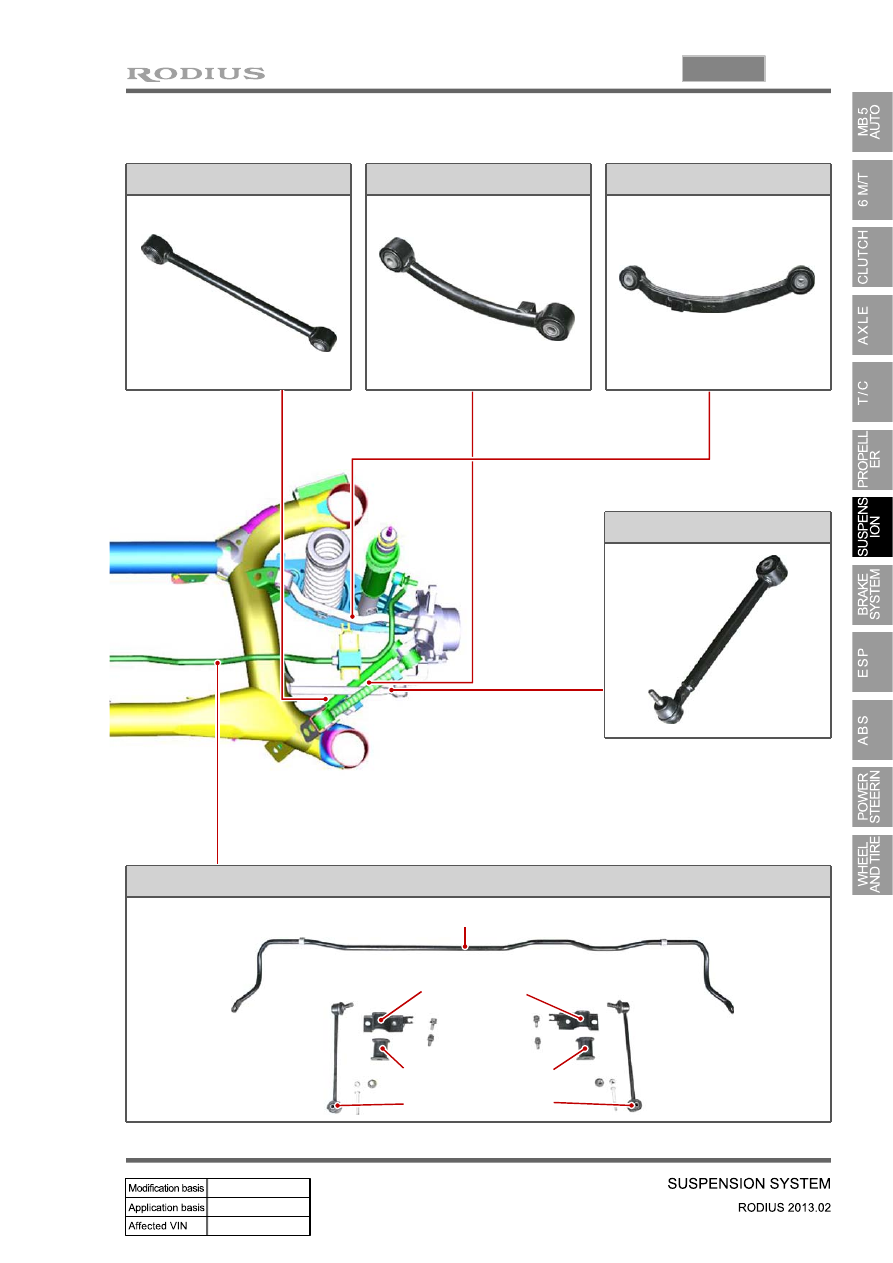

07-11

4411-01

Thrust link

Camber link

Tension link

Track rod

Rear stabilizer bar assembly

Stabilizer bar

Stabilizer bar mounting bracket

Stabilizer bush

Stabilizer link
