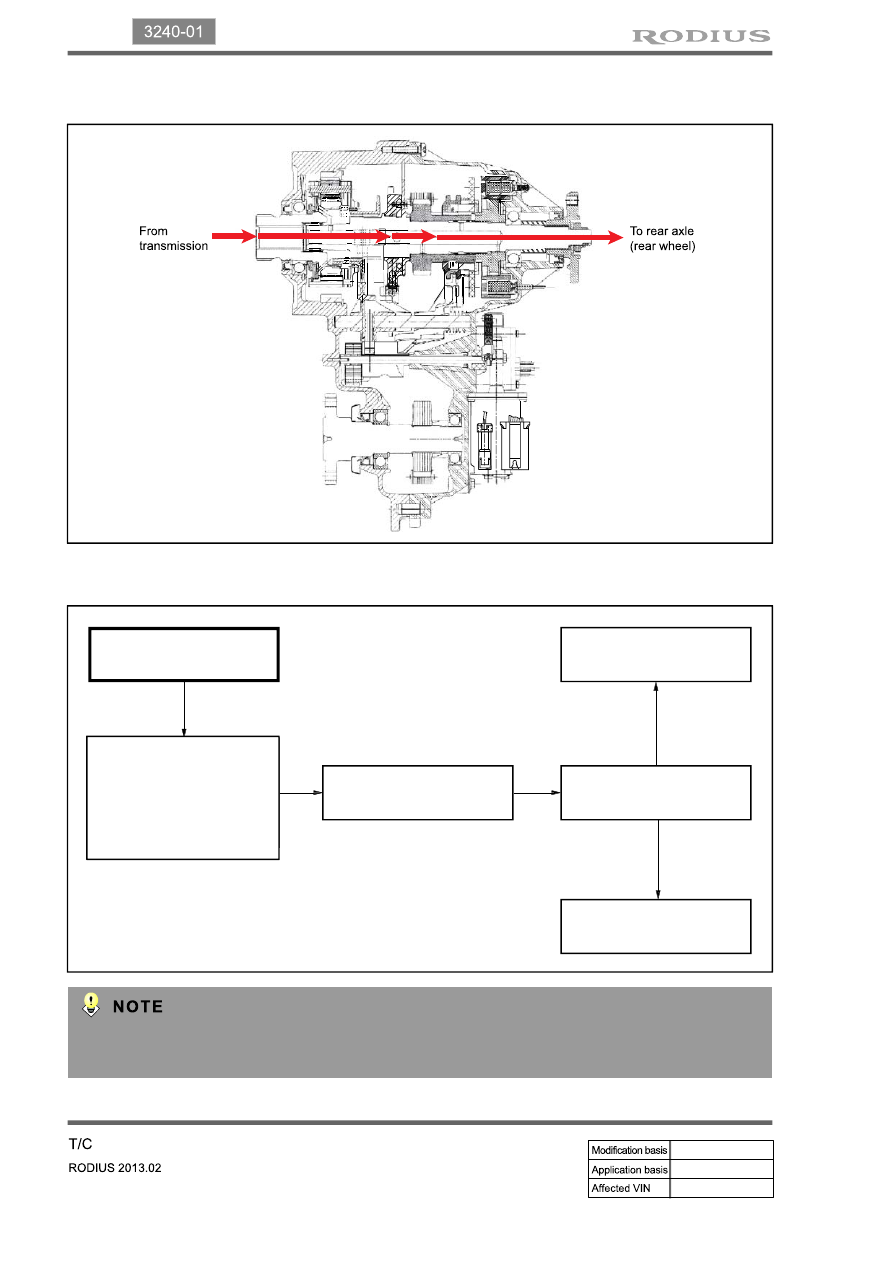

1) 2H Mode (2 Wheel Drive)

Power Flow

▶

Output shaft of

transmission

Rear propeller shaft

Rear wheel

Rear axle

Rear wheel

The driving force is directly engaged (1:1) to rear axle and is transferred only to the rear wheels.

Input shaft of transfer

case

↓

Output shaft of transfer

case

05-13

3240-01

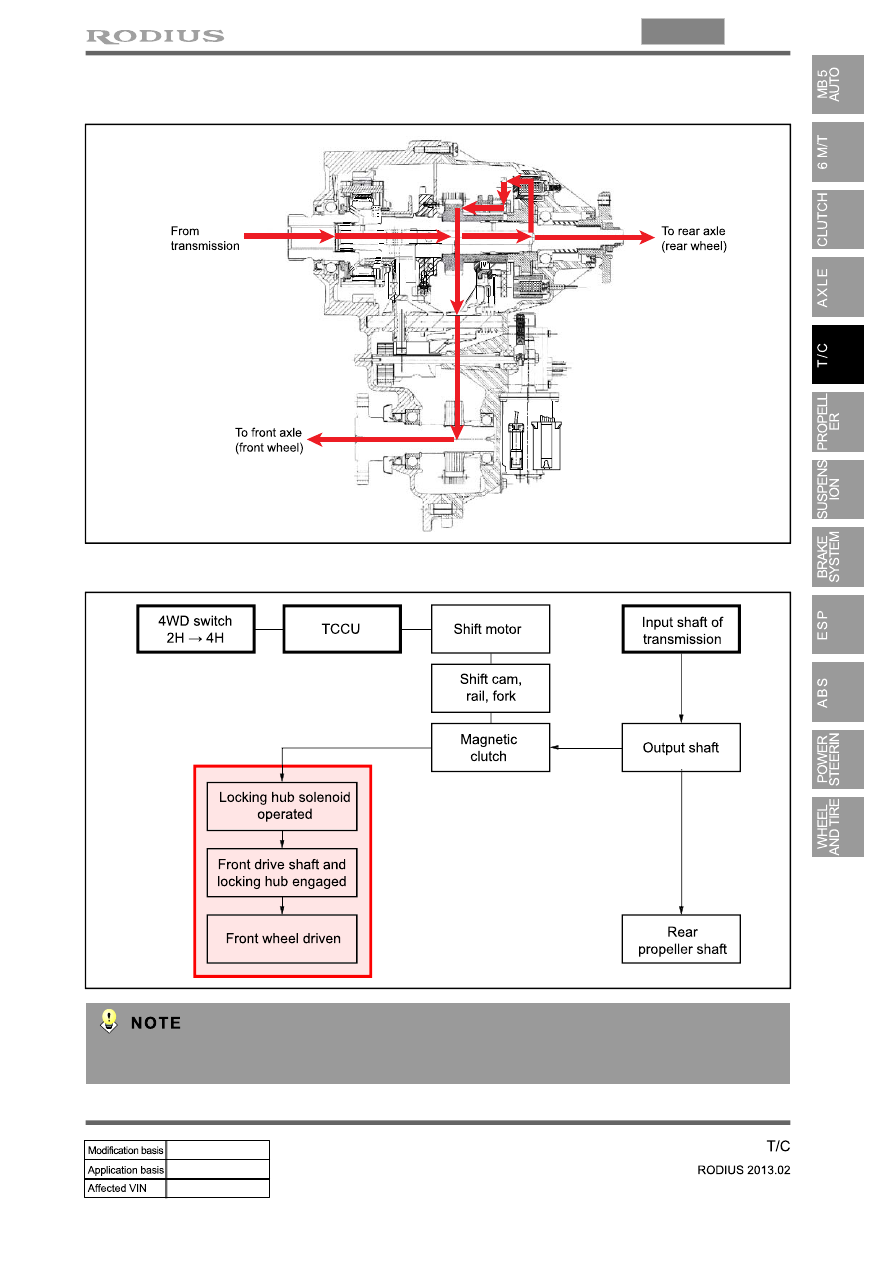

2) 4H Mode (4 Wheel Drive - High Speed)

Power Flow

▶

The driving force is pass through 4WD High magnetic clutch in transfer case and is distributed

on front wheels and rear wheels (50;50).

05-14

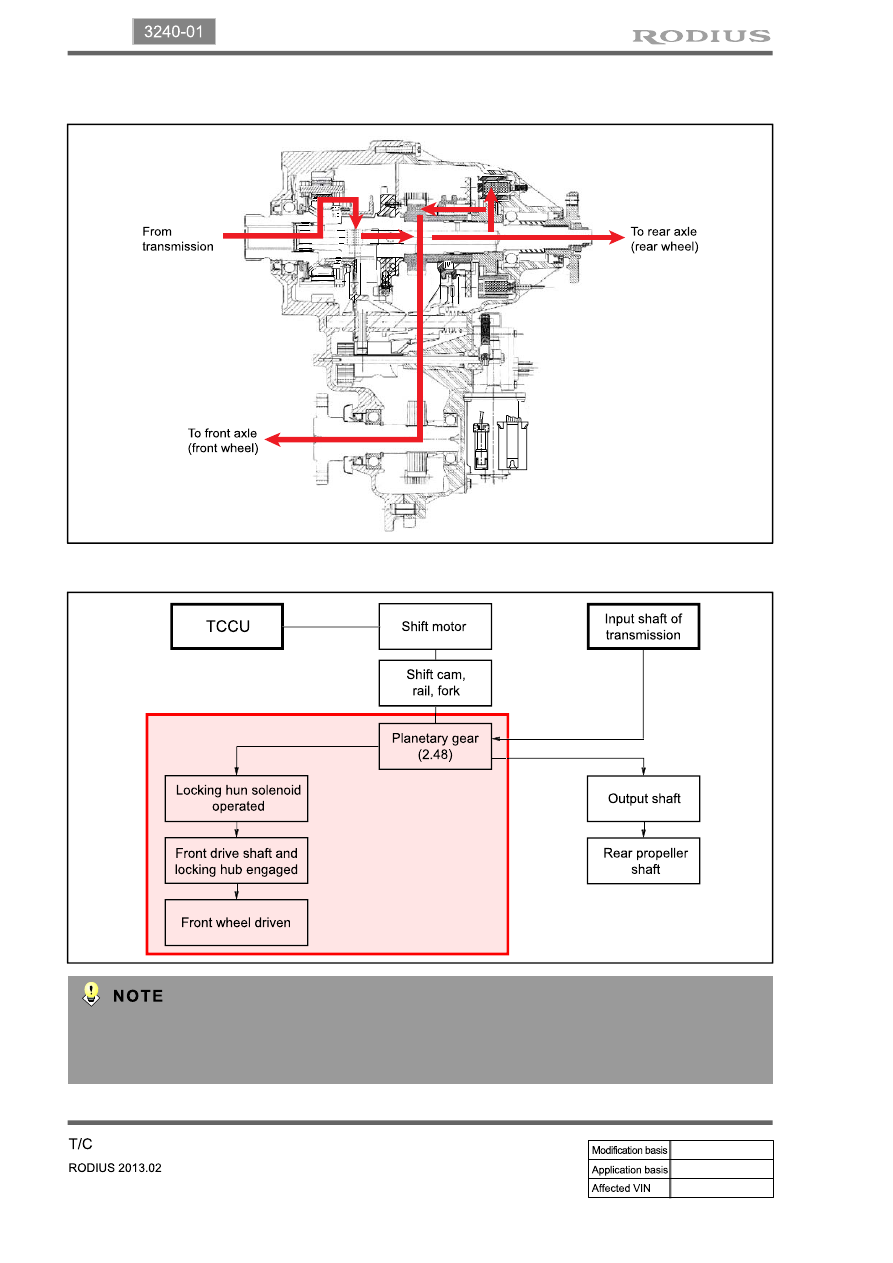

3) 4L Mode (4 Wheel Drive - Low Speed)

Power Flow

▶

The gear ratio is reduced to 2.48;1 while passing through 4WD Low range and planetary gear set

in transfer case and the driving force is distributed on front wheels and rear wheels (50;50).

06-3

3310-01

1. SPECIFICATIONS

Description

Specification

Structure

Universal joint with yoke arm and spider and CV joint

Front propeller shaft (4WD)

One universal joint and one CV joint

Rear propeller shaft

Two universal joint and one CV joint

Run-out

below 0.4 mm

Unbalance

Max. 18g·cm / 4,500rpm

Length of front propeller

shaft

4WD A/T

531.2 ± 1.0 mm

Length of rear propeller

shaft

2WD

M/T

1892.1 ± 2.0 mm

A/T

1975.1 ± 2.0 mm

4WD A/T

1593.1 ± 2.0 mm
