08-15

8610-11

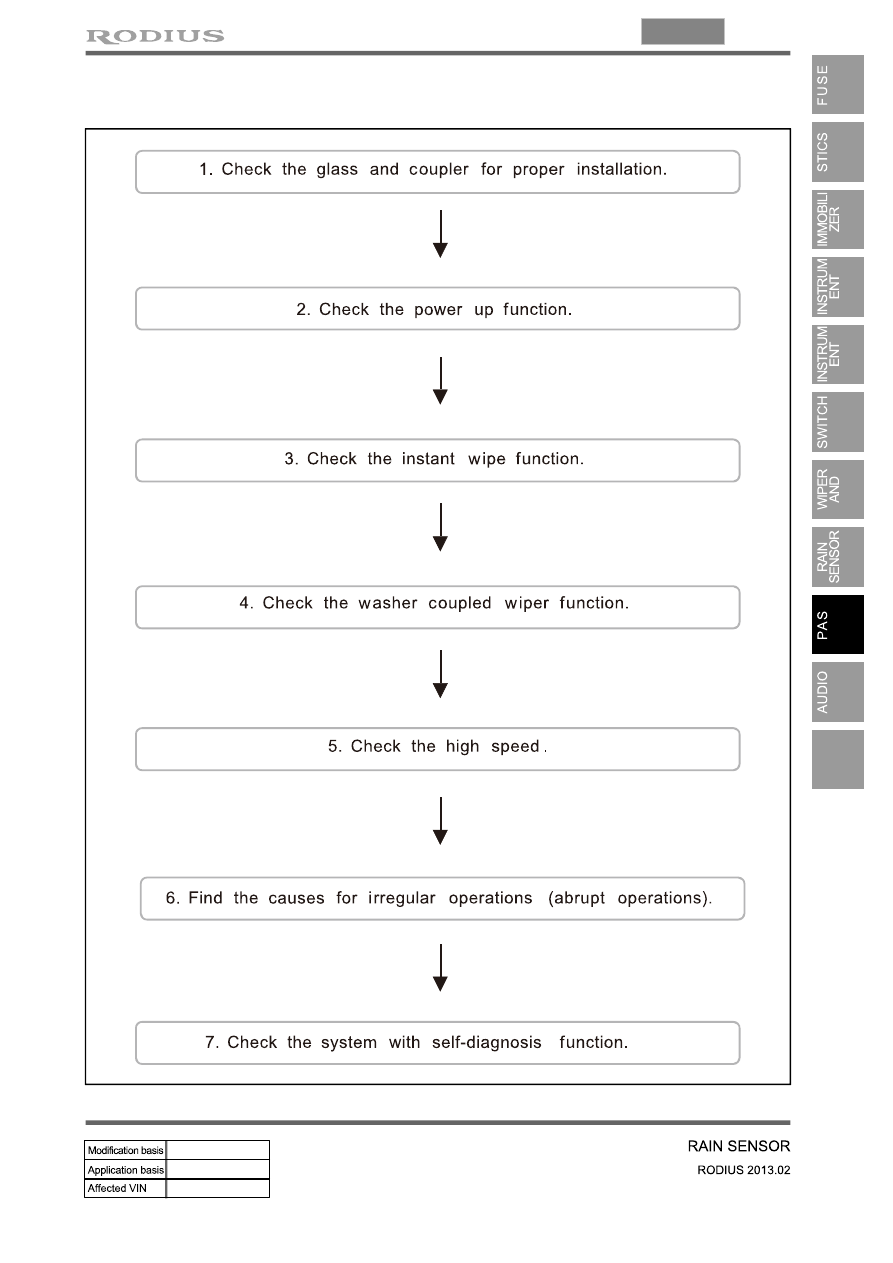

5. DIAGNOSIS PROCEDURES

08-16

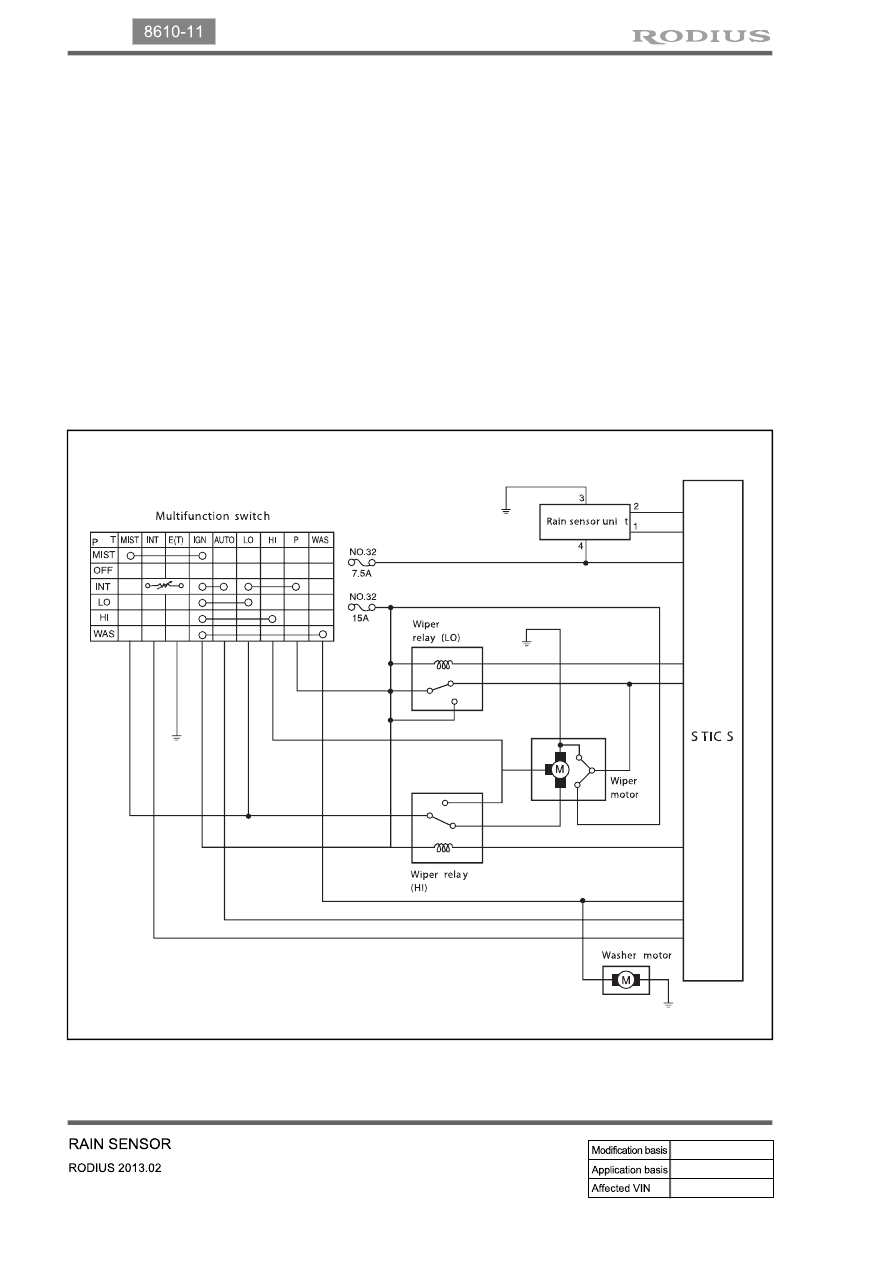

6. RAIN SENSOR RELATED CIRCUIT

The rain sensor has one connector with 4 pins and each pin has following function as shown in the

circuit diagram.

However, in this vehicle, the terminal No. 1 and No. 2 are for communications between STICS and the

rain sensor; the No. 1 terminal sends the detected value from the rain sensor to STICS then the STICS

drives wiper motor.

to the rain sensor to recognize whether it is actual rain or it is in rain sensing wiper operation mode.

No.2 terminal sends the wiper and washer operation information such as

washer operation mode,

MIST mode, or

AUTO wiper position

-

-

-

08-17

8610-11

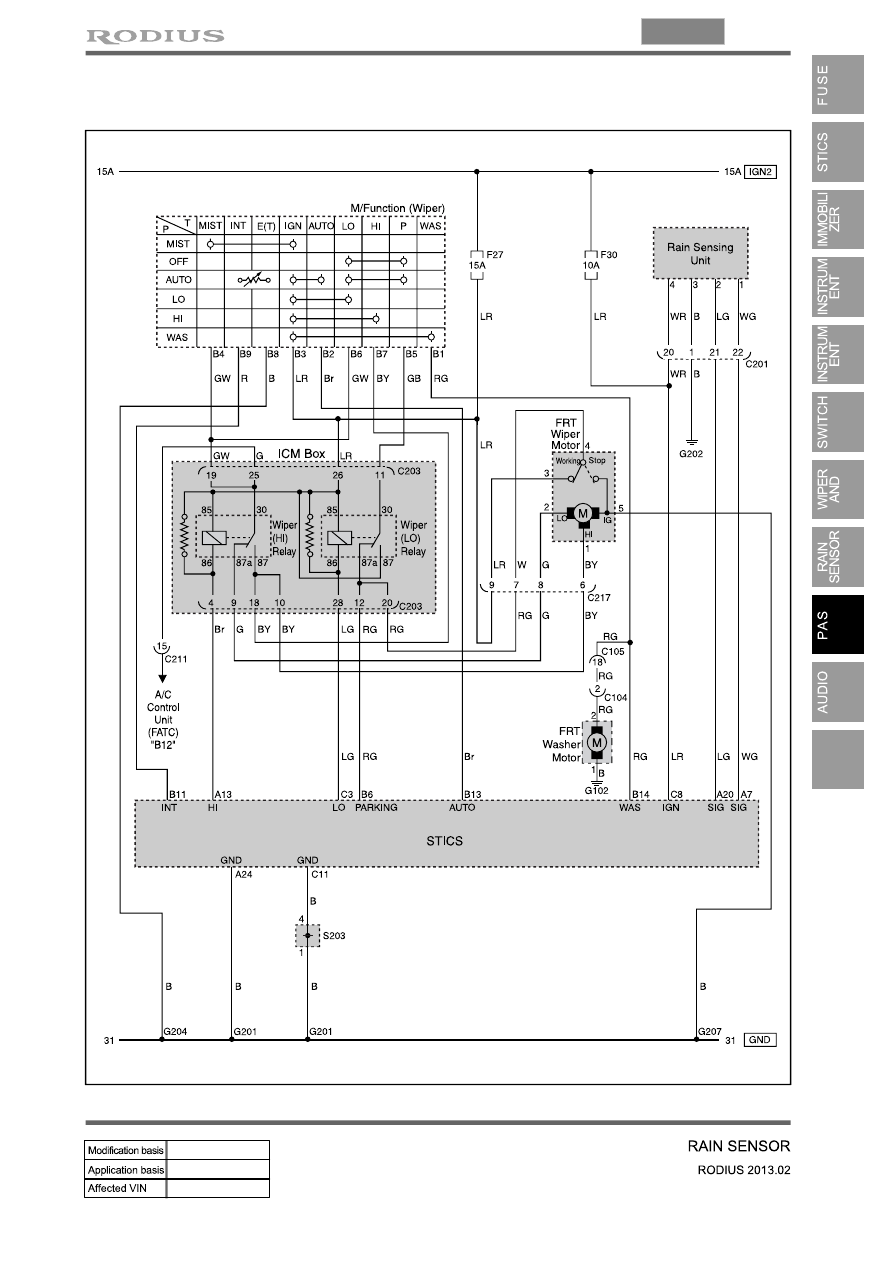

7. RAIN SENSING WIPER

09-3

8790-01

1. SPECIFICATIONS FOR PAS

Item

Item

Specification

PAS unit

Rated voltage

DC 13.6 V

(IGN power)

Operating voltage

DC 9.0 V ~ 16.0 V

Operating temperature

-30℃ ~ +80℃

Maximum humidity

95%

High internal pressure

24 V

Insulation resistance

No heat & fire due to current leak

Max. permissible current

Unit: 100 mA or less

Sensor: 35 mA or less

PAS sensor

Operating frequency

58 KHz

Detection range

30 cm~120 cm

(based on lineal distance between sensor

and obstacle)

Tolerance

± 10 cm

Operating voltage range

DC 8 V
