1. SPECIFICATIONS

1) Center Fascia Switch

Item

Specifications

Center fascia switch &

bezel assembly

Hazard warning flasher switch

DC 12 V 10 A(lamp load)

Windshield heated glass switch

DC 12 V 1 A(inductive load)

Rear heated glass switch

ESP OFF switch

Driver/front passenger seat warmer

switch

Fog lamp switch

2) 4WD Switch & HLLD Switch & Rear Wiper Operation Switch

Item

Specifications

4WD switch &

HLLD switch &

rear wiper operation

switch assembly

Washer switch

DC 12 V 3.8 A(lamp load)

Wiper switch

DC 12 V 3.0 A (max. 10 A)

4WD switch

DC 12 V 300 mA

HLLD switch

DC 12 V 1 A (inductive load)

3) Steering Wheel Switch

Item

Specifications

Steering wheel switch

Rated voltage

DC 5 V 0.1 A(rated load)

Operation temperature

-30℃~+80℃

06-4

4) Multifunction Switch

Description

Description

Multifunction

switch

Rated voltage

DC 12 V

Operating temperature

-30℃~+80℃

Rated load

Light switch

ON: 1A (Relay load)

Dimmer and passing switch

High beam/low beam/passing:

0.3 A (Relay load)

Turn signal switch

6.6±0.5 A (Lamp load)

Wiper switch

Low: 5 A (Motor load)

High: 7 A (Motor load)

Auto: 0.22±0.05 A (Relay load)

Fixed: max. 28 A (Motor load)

Washer switch

4 A (Motor load)

Intermittent wiper switch

max. 25 mA

Mist switch

5 A (Motor load)

06-5

8510-00

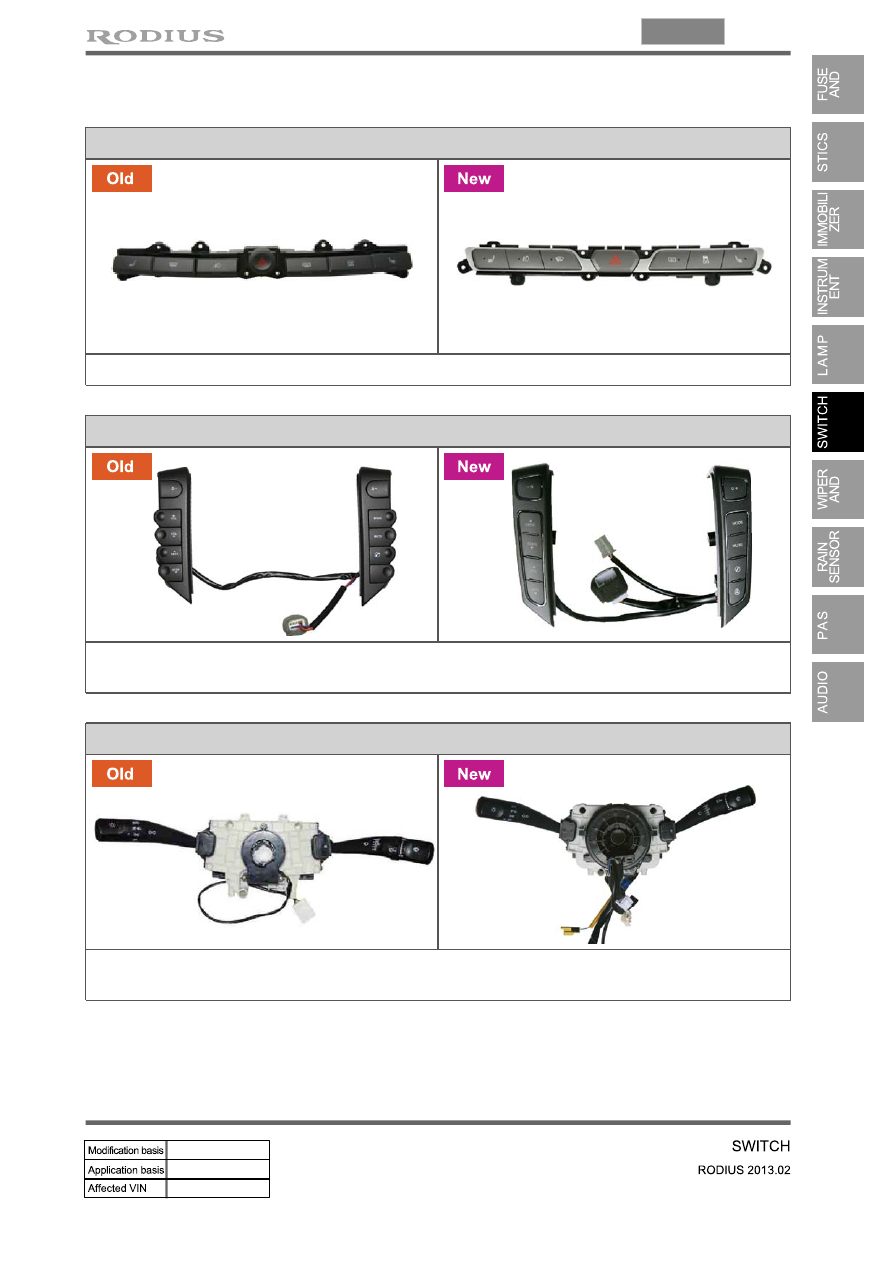

2. MAJOR CHANGES

Center fascia switch

- Design changed

Steering wheel switch assembly

- Power button deleted, steering wheel heating (option) switch added
- Design changed

Multifunction switch assembly

- Connector pin layout changed due to newly added steering wheel heating (option) circuit
- Contact coil and steering wheel angle sensor changed

06-6

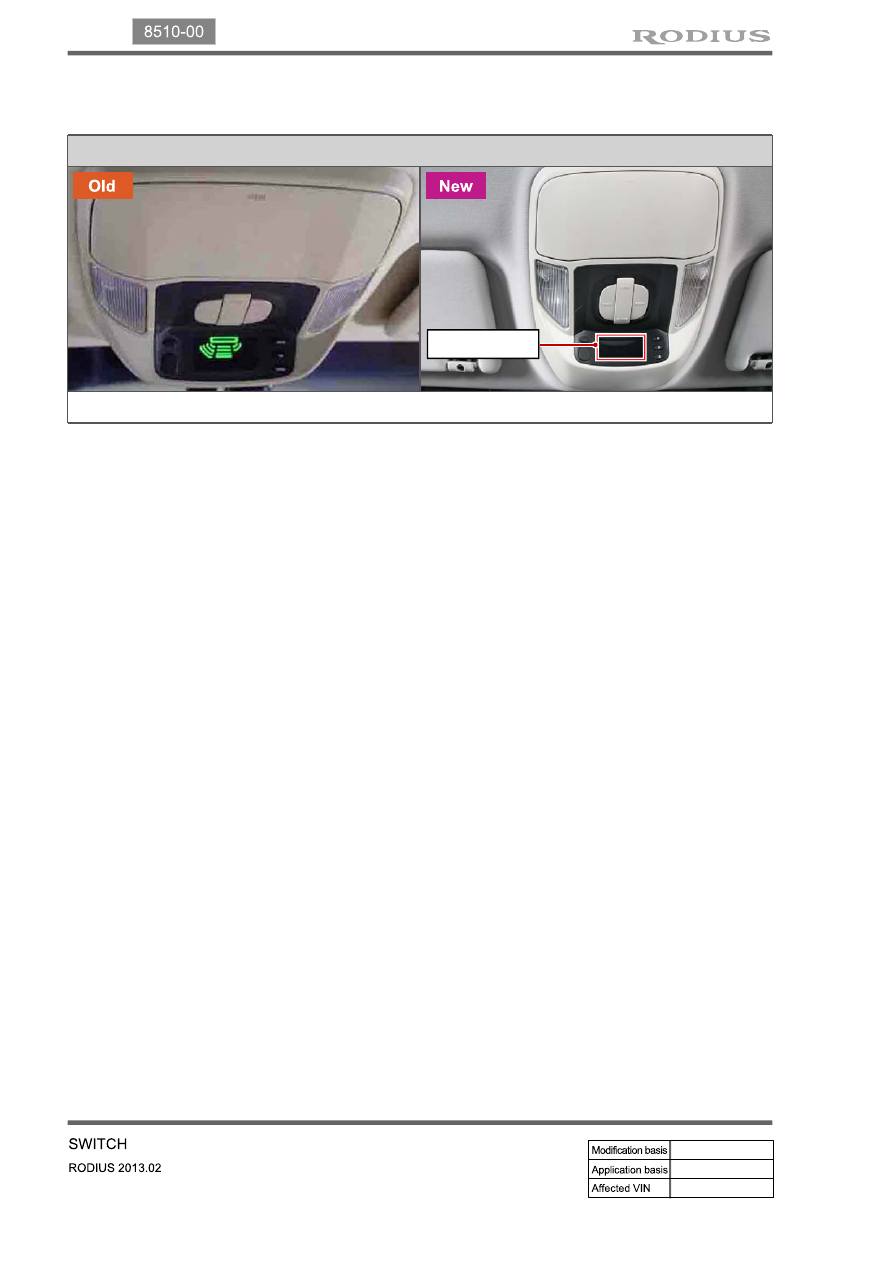

Overhead console switch

- Multimeter function deleted (maintain digital clock)

Digital clock
