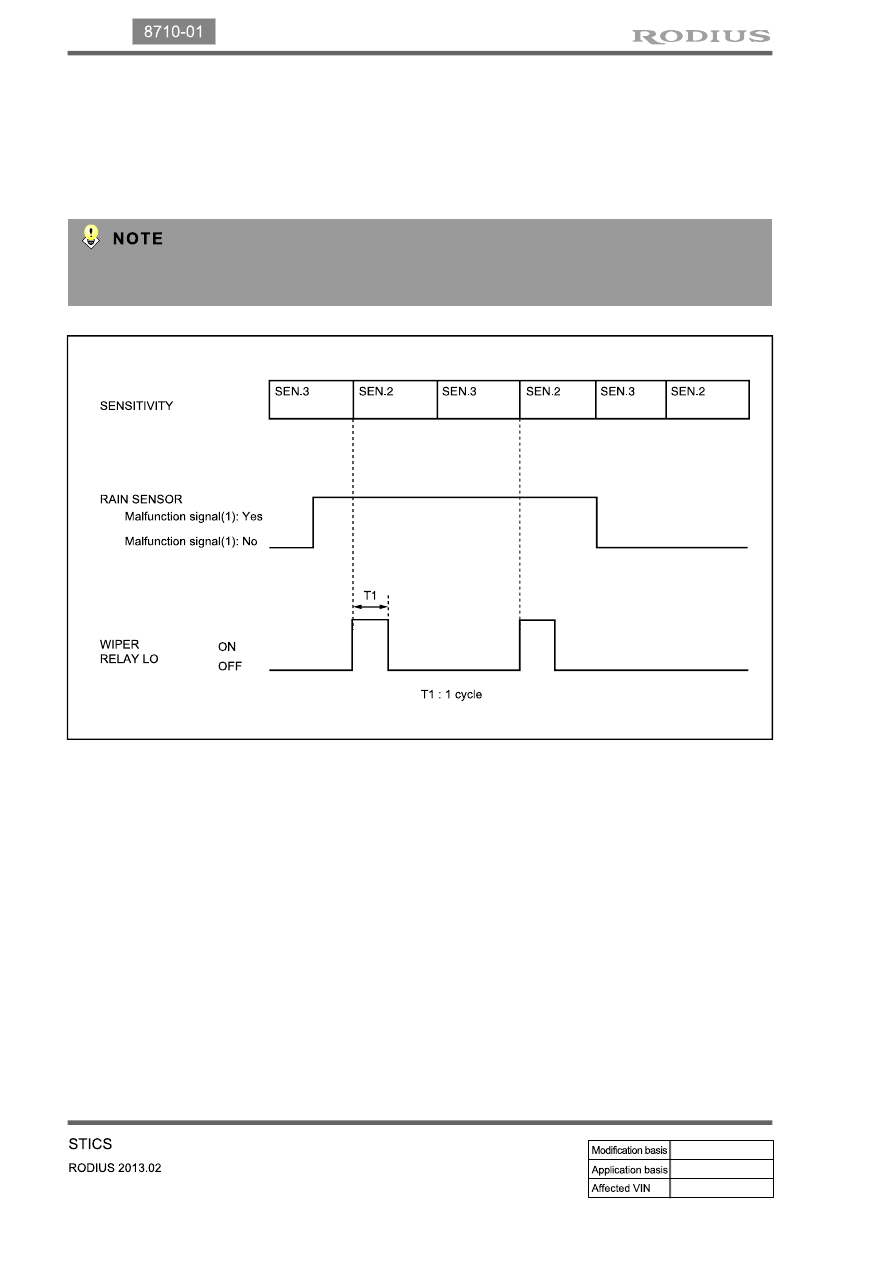

The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper sensitivity is

changed to 2 from 3 during receiving the malfunction signal (1) from the rain sensor. However, the

wiper motor can be operated only when the rain sensor detects the "Rain Detected" signal.

1)

If the volume sensitivity is changed more than 2 stages within 2 seconds, the wiper motor runs

only one cycle.

▶ Defective rain sensor

02-13

8710-01

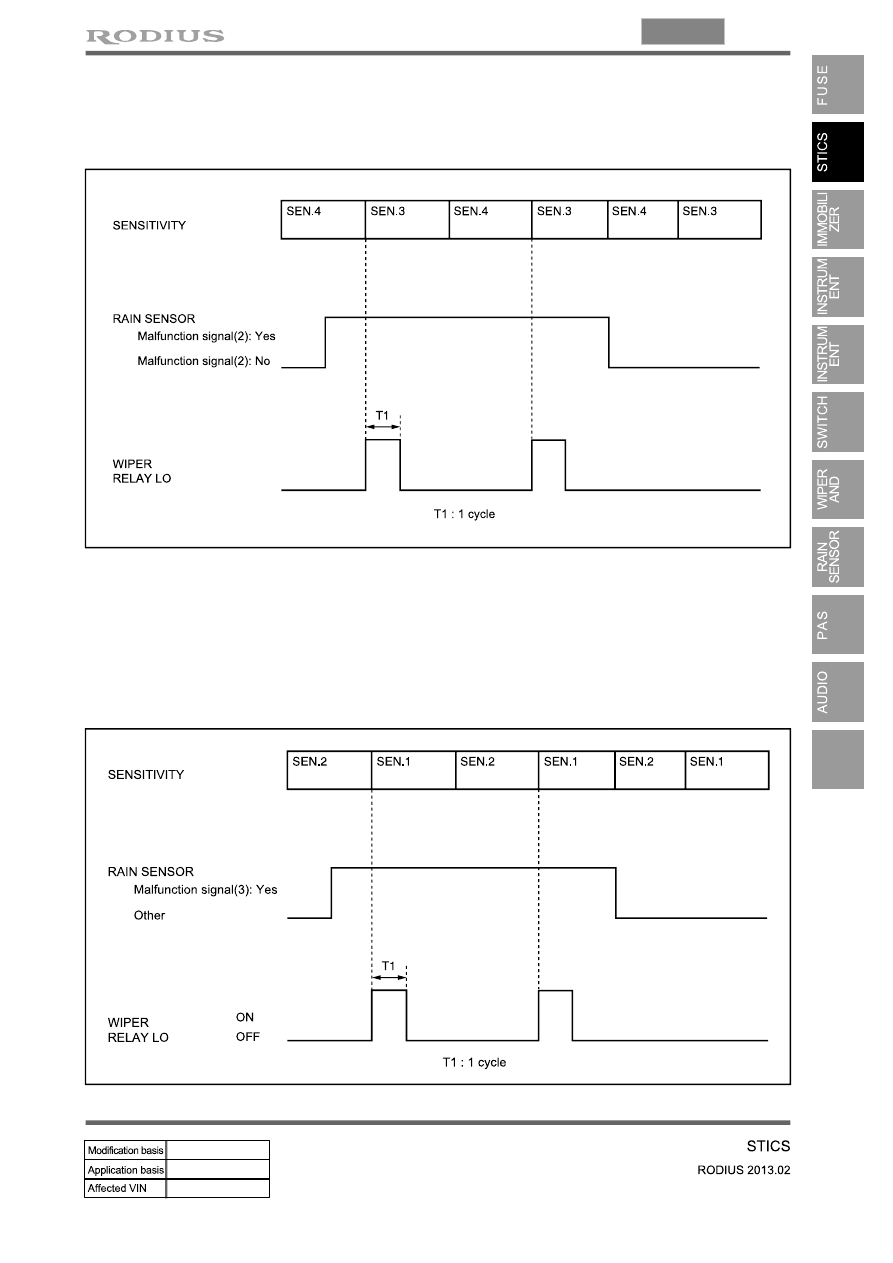

The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper sensitivity is

changed to 3 from 4 during receiving the malfunction signal (2) from the rain sensor (while the
ignition key is in “ON” position and the wiper switch is in “AUTO” position).

2)

The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper sensitivity is

changed to 2 from 1 during receiving the malfunction signal (3) from the rain sensor (while the
ignition key is in “ON” position and the wiper switch is in “AUTO” position). Also, the wiper

relay (LO) is turned on and the wiper motor runs one cycle when the wiper sensitivity is changed to 2

from 1 during receiving the ground fixed or IGN fixed signal from the rain sensor.

3)

02-14

▶ Speed Sensitive INT (Intermittent) Wiper

For STICS without rain sensor, perform the following operation:

1. Controls the wiper intermittent operation by the values from vehicle speed and volume.

Calculates and converts the Intermittent interval automatically by using the vehicle speed and INT
VOLUME when the ignition switch is in “ON” position and the INT switch is in “ON”

position (the engine is running).

The wipers are operated in vehicle speed sensitive mode when turning the INT switch to
“ON” position with the engine running or starting the engine with the INT switch positioned
“ON”.
Intermittent interval (at 0 km/h): 3 ± 0.5 ~ 19 ± 2 seconds

-

-

-

2. Vehicle speed calculation

[Input the vehicle speed]

It is calculated by the numbers of input pulses for one second.

1 [pulses/sec] = 60 [km/h] x 60 [sec] / 637 pulses = 1.41 [km/h]

3. VOLUME calculation

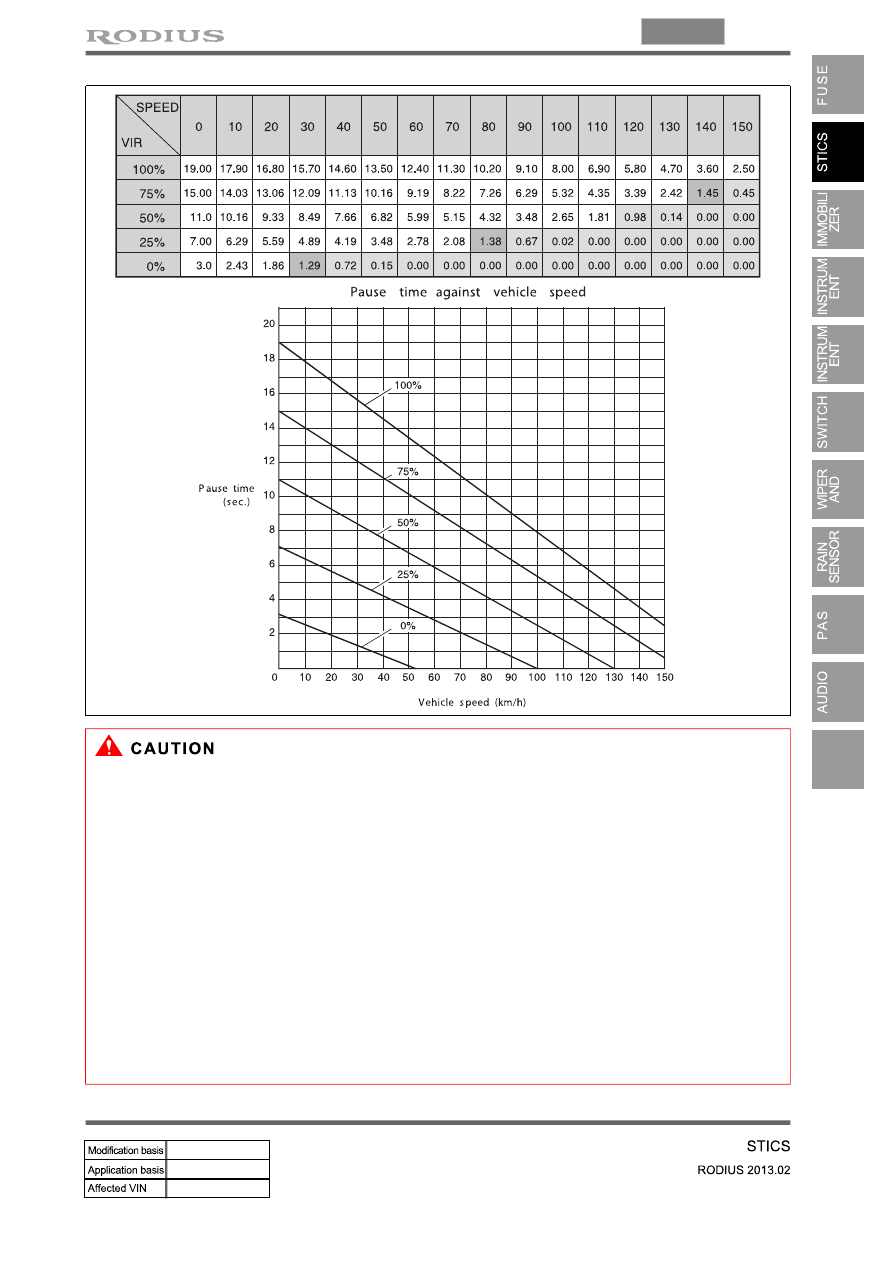

Calculates the INT VOLUME with 5 grades as shown in the table in next page.

-

4. Pause time calculation

Pause time: the duration that wipers are stopped at parking position

Elapsed time: the duration after the wiper motor started to operate from parking position

The pause time is calculated by the vehicle speed and VOLUME value as shown in the table in

next page.

-

-

-

If the pause time is below 1.0 second, the wipers operate without pause.

If the pause time is over 1.5 seconds, the wipers operate intermittently.

·
·

02-15

8710-01

The wiper relay continues to output when the parking terminal is fixed at the ground or IGN
while the wiper relay is “ON” (INT switch = ON or Washer switch = ON) (The output

stops immediately after turning off the switch)

-

(1) Wiper MIST and washer coupled wiper

When turning on the washer switch while the wiper relay is operating.

1)

If the wiper relay “ON” request time is shorter than the remained “ON” time, it is

disregarded.

-

(2) Speed sensitive INT (intermittent) wiper

The wiper relay continues to output for remaining “ON” time even when the INT switch is

turned off.
IGN 2 switch “ON”, INT switch “OFF”: resume the intermittent time when turning “ON
IGN 2 switch “OFF”, INT switch “ON”: resume the intermittent time when turning “ON

1)

2)

3)

(3) Controls when the wiper motor parking is defective
