01-4

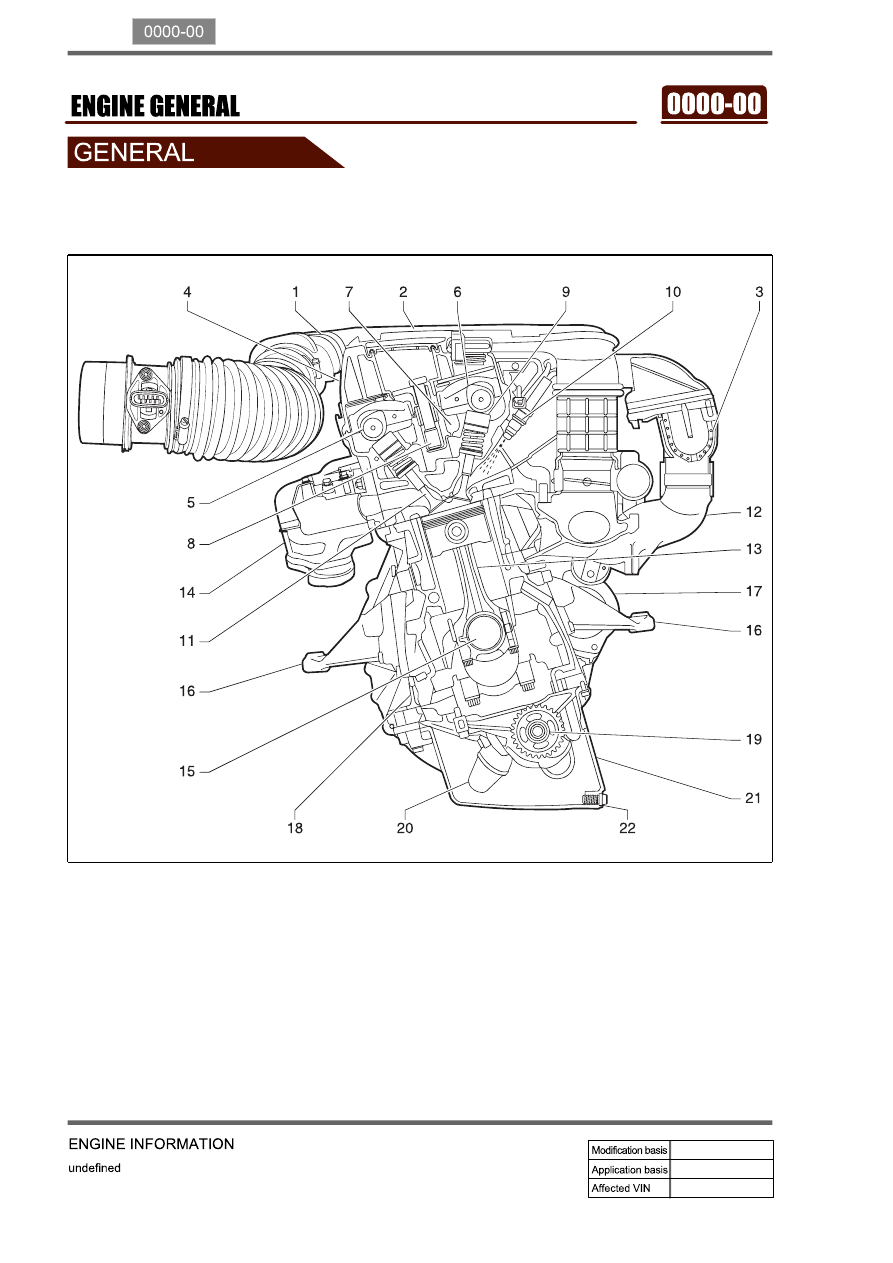

1. COMPONENT LOCATOR

1) Front View

01-5

0000-00

No.

FUNCTION

No.

FUNCTION

1

HFM sensor

12

Intake manifold

2

Intake air duct

13

Connecting rod

3

Resonance flap

14

Exhaust manifold

4

Cylinder head cover

15

Crankshaft

5

Exhaust camshaft

16

Engine mounting

6

Intake camshaft

17

Starter

7

Cylinder head

18

Crankcase

8

Spark plug connector

19

Oil pump sprocket

9

Valve tappet

20

Oil strainer

10

Injector

21

Oil pan

11

Exhaust valve

22

Drain plug

Front View

▶

01-6

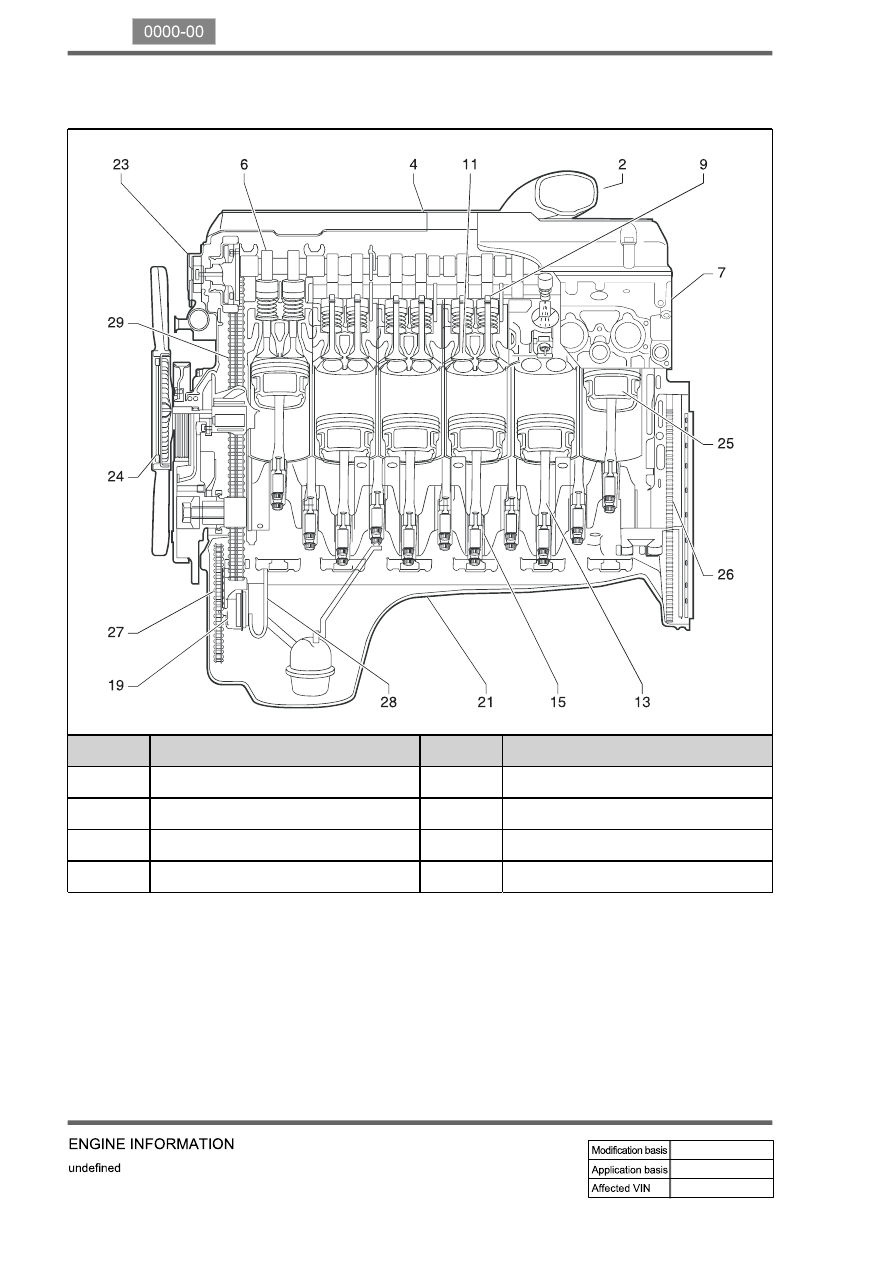

2) Side View

No.

FUNCTION

No.

FUNCTION

23

Camshaft adjuster

27

Oil pump drive chain

24

Cooling fan and viscous clutch

28

Oil return pipe

25

Piston

29

Timing chain

26

Flywheel of drive plate

01-7

0000-00

2. DESCRIPTION AND OPERATION

1) Cleanliness and Care

An automobile engine is a combination of many machined, honed, polished and lapped surfaces with

tolerances that are measured in the ten-thousandths of an inch. When any internal engine parts are

serviced, care and cleanliness are important. A liberal coating of engine oil should be applied to friction

areas during assembly, to protect and lubricate the surfaces on initial operation.

Proper cleaning and protection of machined surfaces and friction areas is part of the repair procedure.

This is considered standard shop practice even if not specifically stated.

Whenever valve train components are removed for service, they should be kept in order.

They should be installed in the same locations, and with the same mating surfaces, as when they were

removed. Battery cables should be disconnected before any major work is performed on the engine.

Failure to disconnect cables may result in damage to wire harness or other electrical parts.

2) On-Engine Service

Disconnect the negative battery cable before removing or installing any electrical unit, or when a

tool or equipment could easily come in contact with exposed electrical terminals.

Disconnecting this cable will help prevent personal injury and damage to the vehicle.

The ignition must also be in LOCK unless otherwise noted.

Notice Any time the air cleaner is removed, the intake opening

-

Any time the air cleaner is removed, the intake opening should be covered. This will protect

against accidental entrance of foreign material, which could follow the intake passage into the

cylinder and cause extensive damage when the engine is started.

-
