2. TROUBLESHOOTING

Problem

Possible Cause

Action

Engine will not crank

Low battery voltage

Charge or replace

Loose, corroded or damaged battery cable

Repair or replace

Faulty starter or open circuit

Faulty ignition switch or blown fuse

Repair or replace

Poor engine ground

Repair

Engine cranks too

slow

Low battery voltage

Charge or replac

Loose, corroded or damaged battery cable

Repair or replace

Faulty starter

Starter does not

stop

Faulty starter

Faulty ignition switch

Replace

Engine cranks

normally, but does

not start

Broken pinion gear or faulty starter

Replace the starter

Broken flywheel ring gear

Replace

Open circuit

Repair

11-5

1461-01

1. SYSTEM DESCRIPTION

The starter (start motor) starts the engine with rotational power by converting the electric energy to the

mechanical energy.

When the engine is cranking, the pinion gear meshes with the ring gear. If the ring gear overruns, the

pinion gear clutch overruns to protect the pinion gear.

2. OPERATING PROCESS

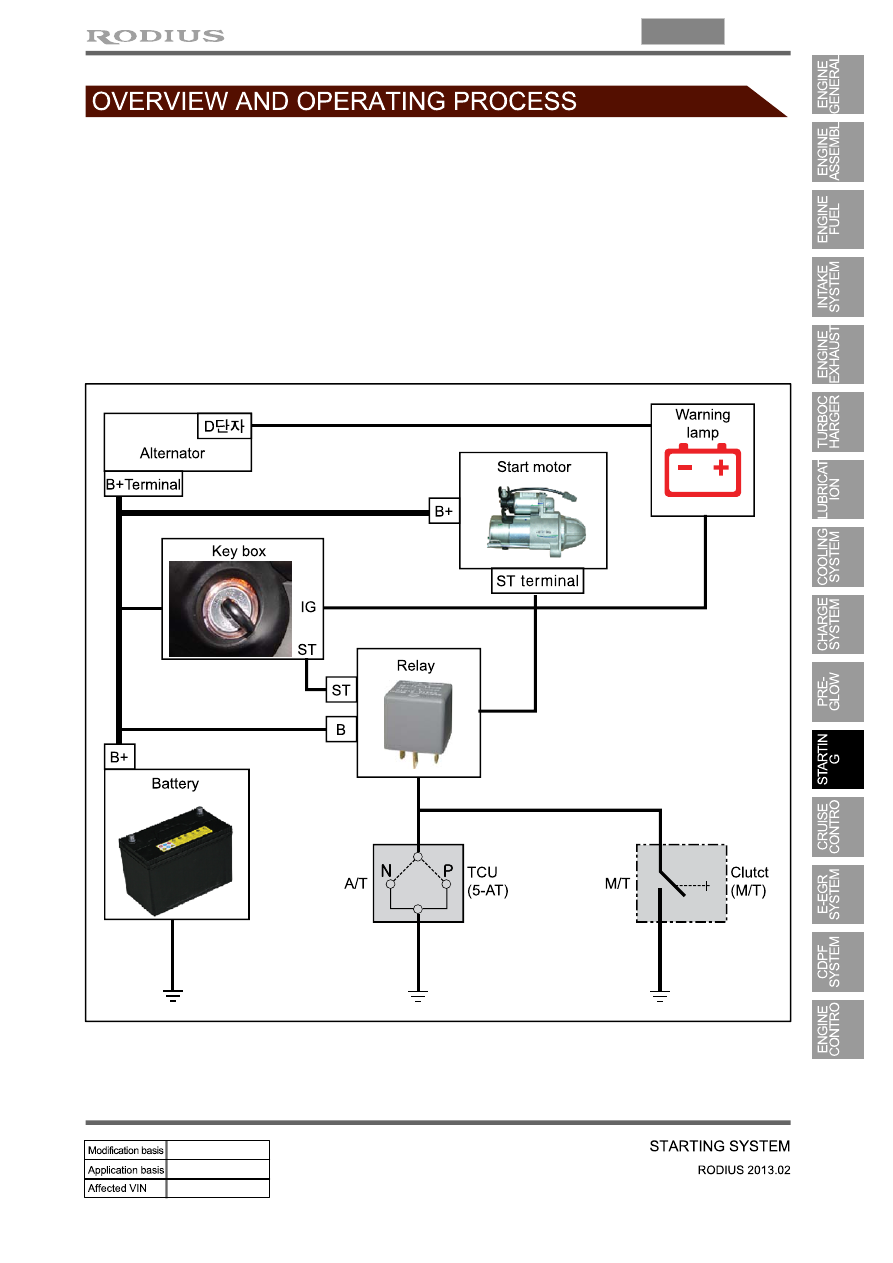

1) System Layout

11-6

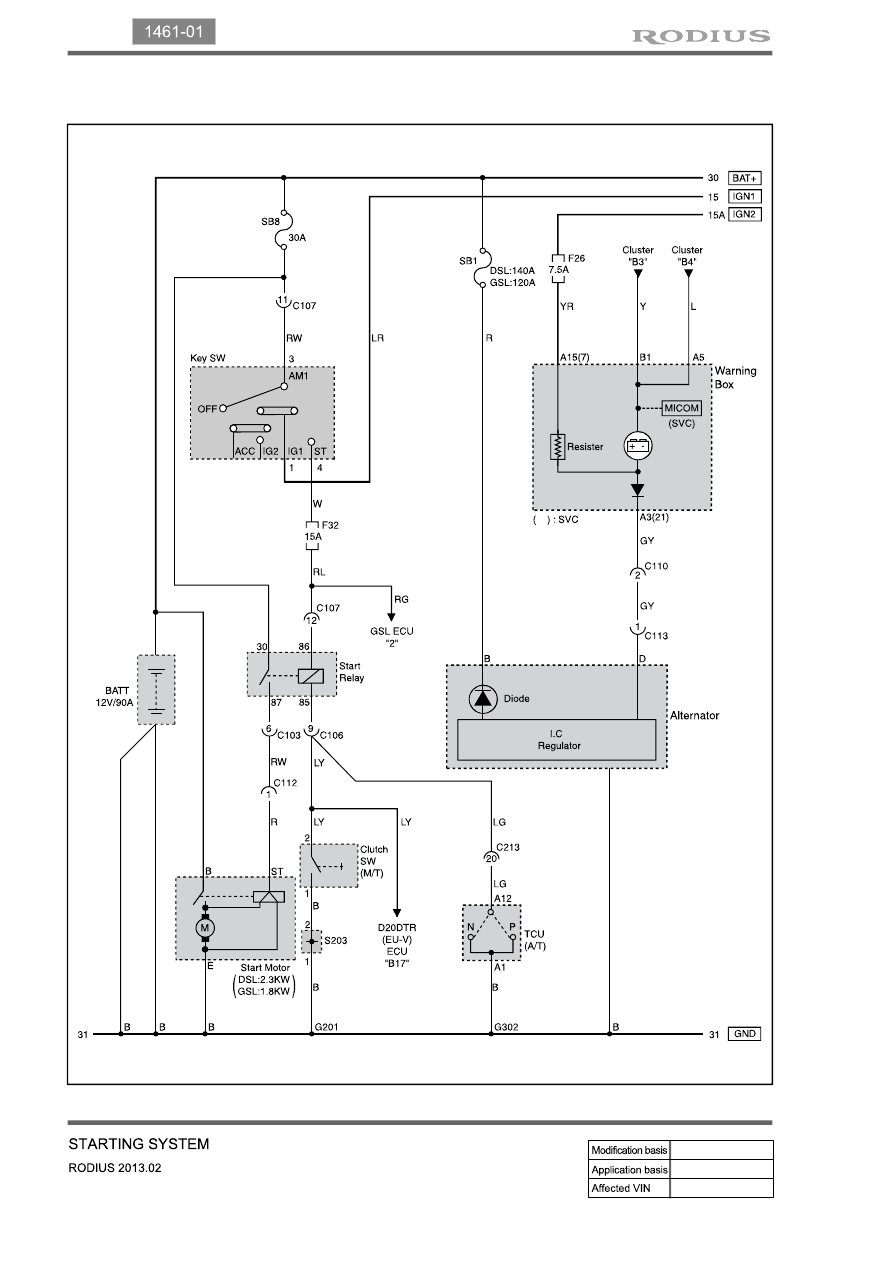

2) Circuit Diagram

12-3

8510-23

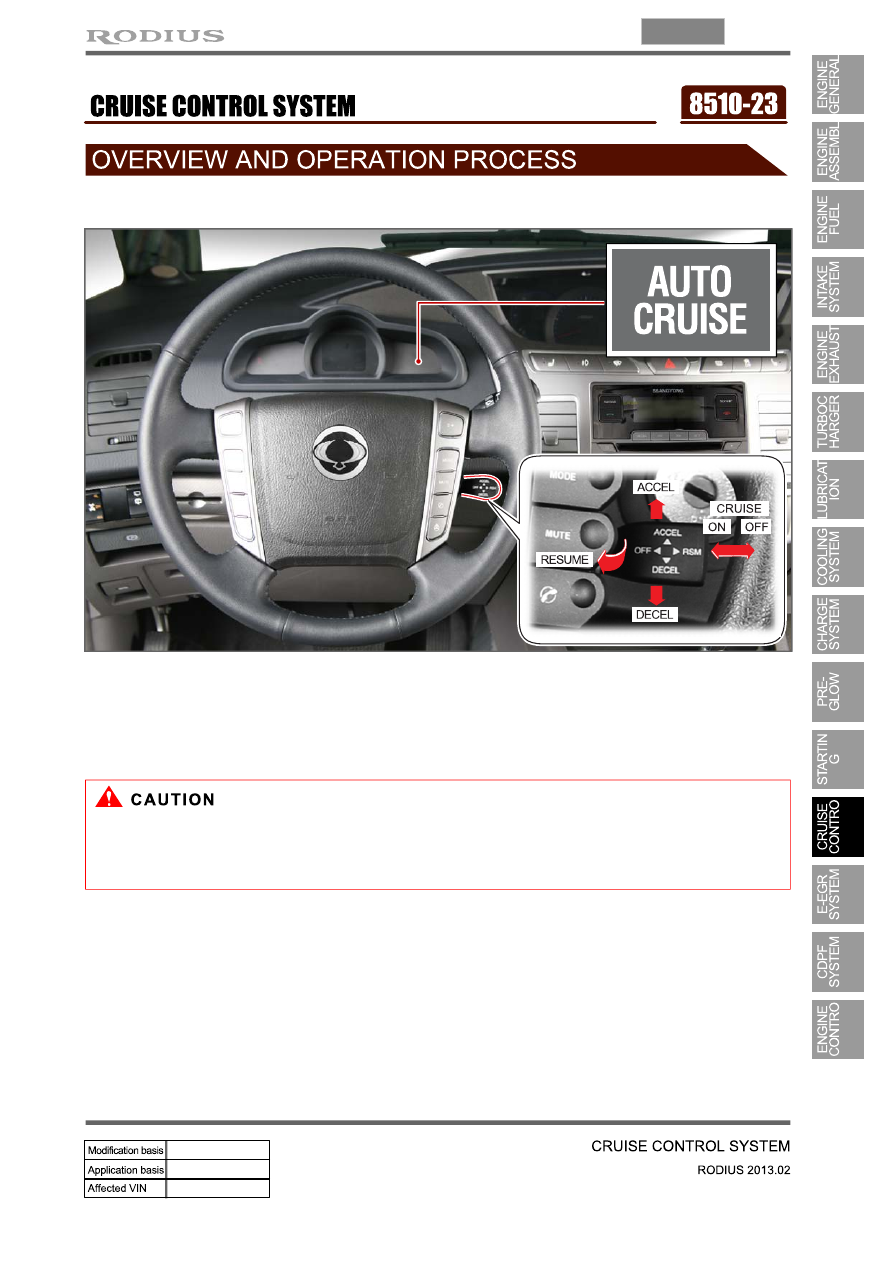

1. CRUISE CONTROL SWITCH

The cruise control is an automatic speed control system that maintains a desired driving speed without

using the accelerator pedal.

The vehicle speed must be greater than 36 km/h to engage the cruise control. This feature is

especially useful for motorway driving.

The cruise control system is a supplementary system, which helps the driver to drive the vehicle at

a desired speed without using the accelerator pedal under the traffic condition where the vehicle-to-

vehicle distance meets the legal requirement.
