01-3

0000-00

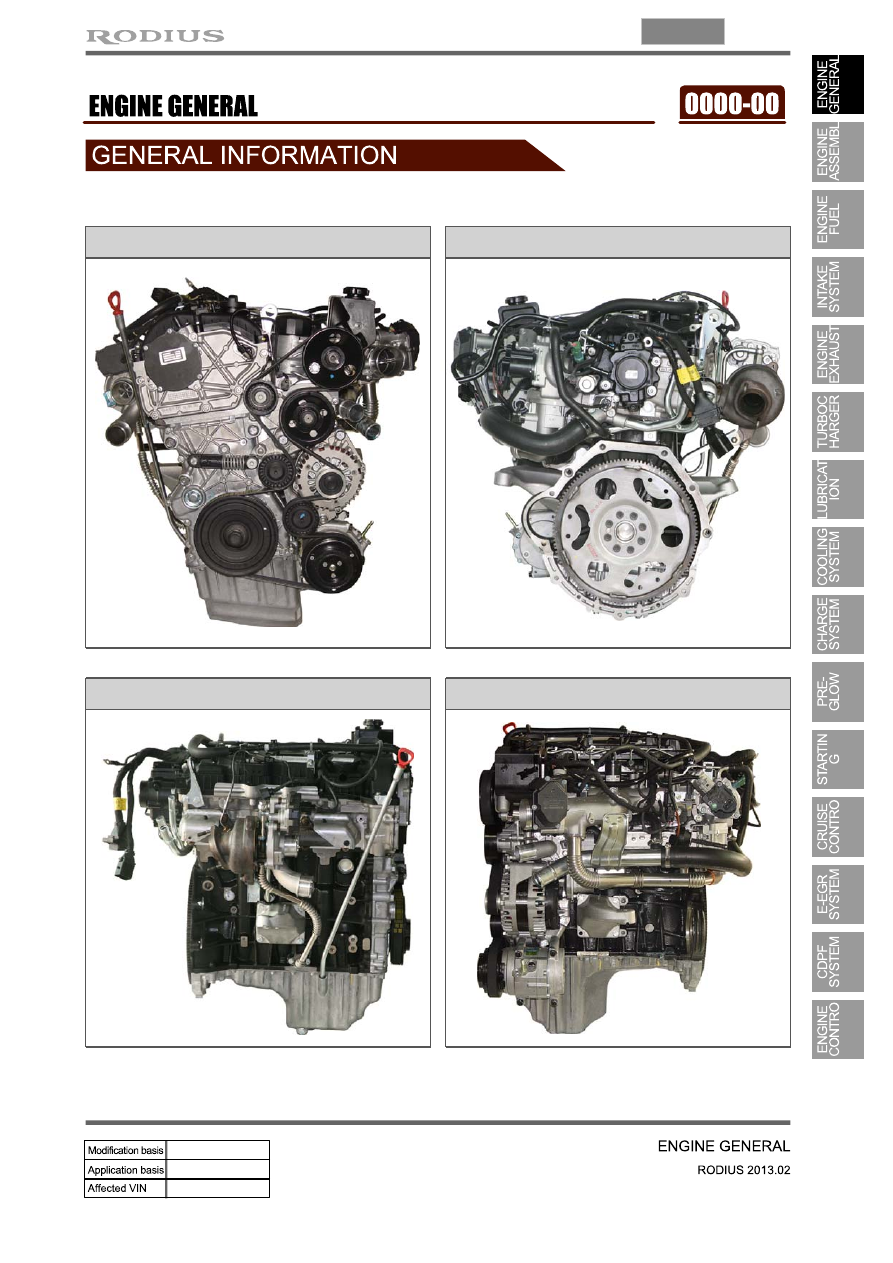

Left view

Right view

Rear view

Front view

1. ENGINE LAYOUT

01-4

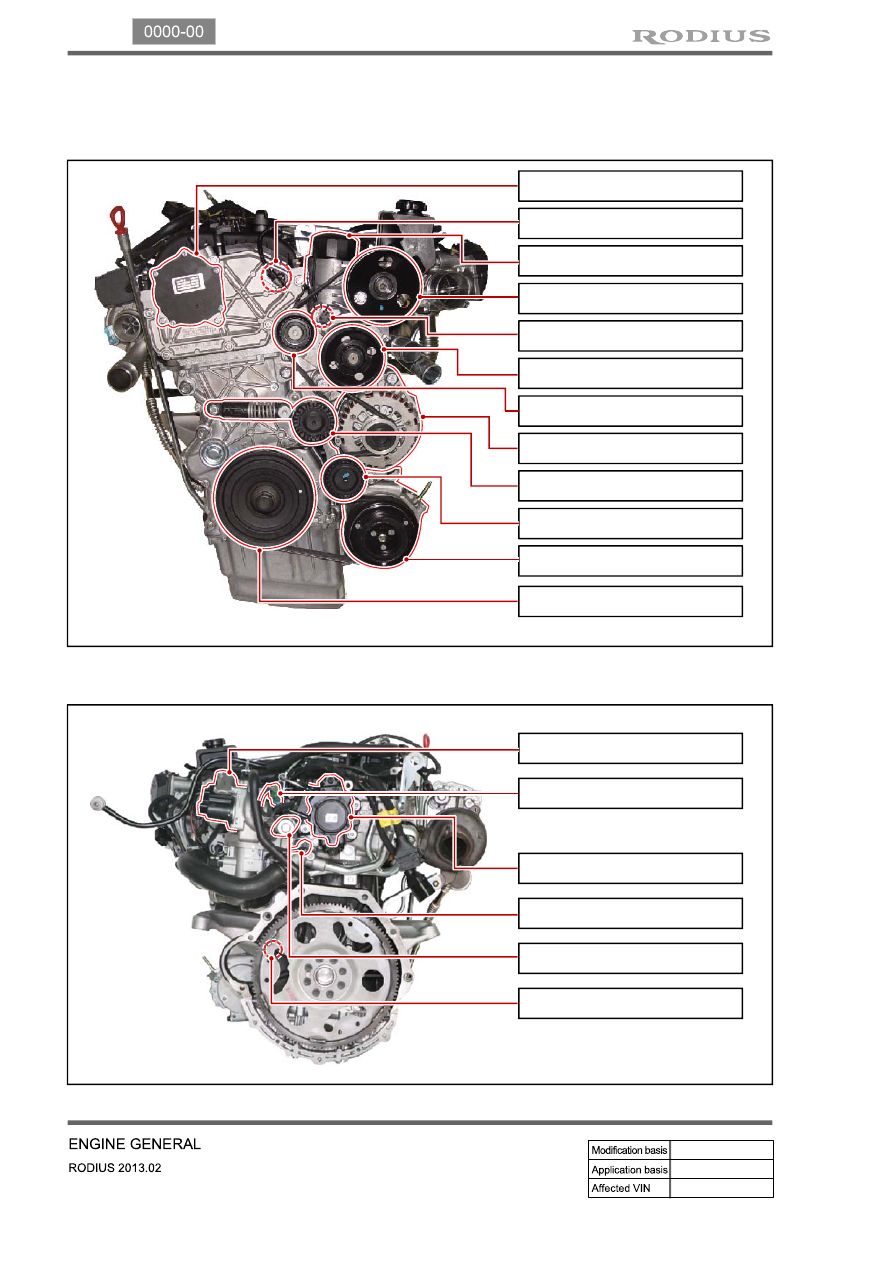

2. MAJOR COMPONENTS

Front view

▶

Vacuum pump

Camshaft position sensor

Oil filter assembly

Power steering pump pulley

Oil pressure switch

Water pump pulley

Idler pulley No. 22

Alternator pulley

Auto tensioner

Idler pulley No. 1

A/C compressor pulley

Rear view

▶

E-EGR valve

Fuel temperature sensor

Fuel HP pump assembly

Coolant temperature sensor

Crankshaft position sensor

IMV valve

Isolation damper

01-5

0000-00

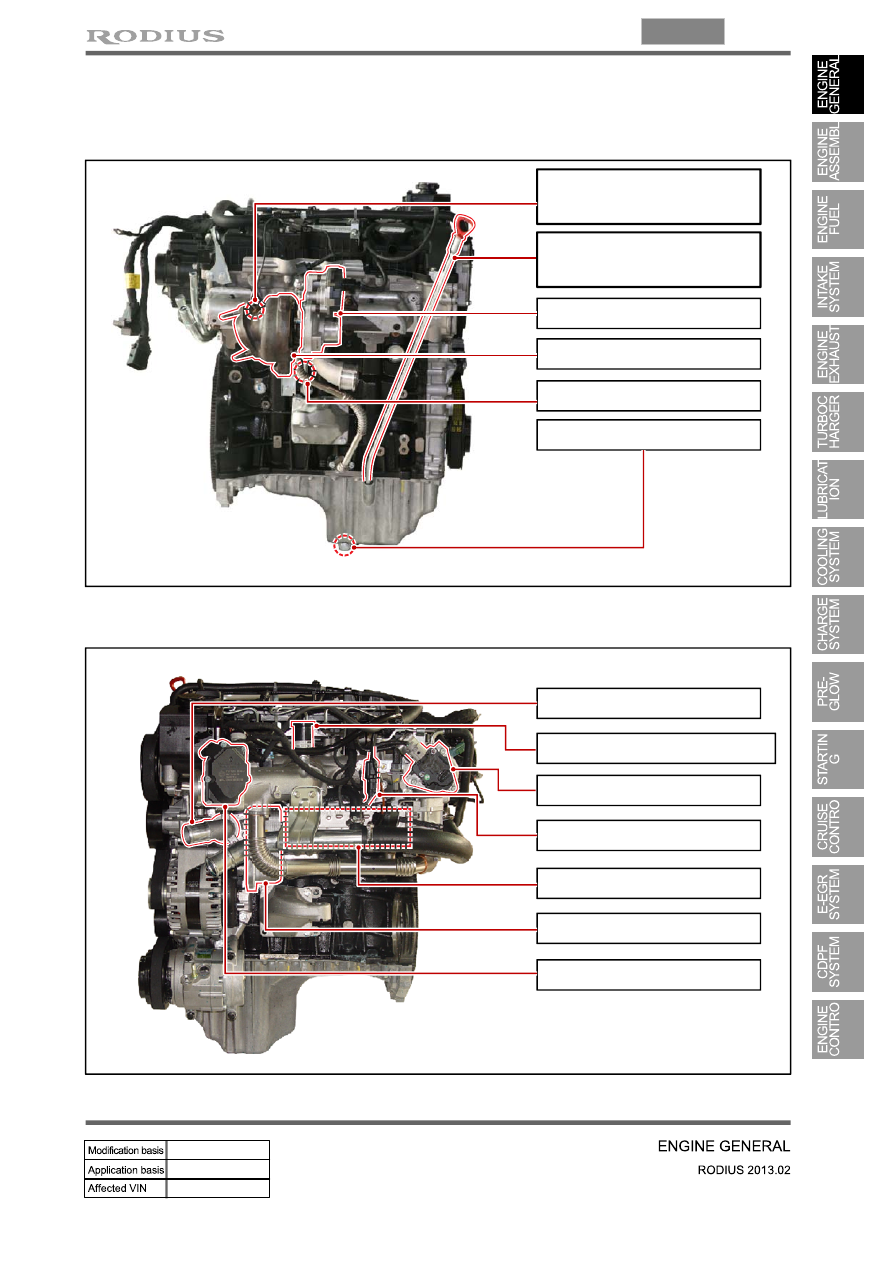

Right view

▶

Front exhaust gas temperature

sensor

Oil dipstick tube &

gauge assembly

E-VGT actuator

E-VGT turbocharger

Coolant screw plug

Oil drain plug

Left view

▶

Thermostat assembly

Variable swirl valve assembly

EGR cooler

E-EGR valve

E-EGR solenoid valve

Oil cooler assembly

Electronic throttle body

01-6

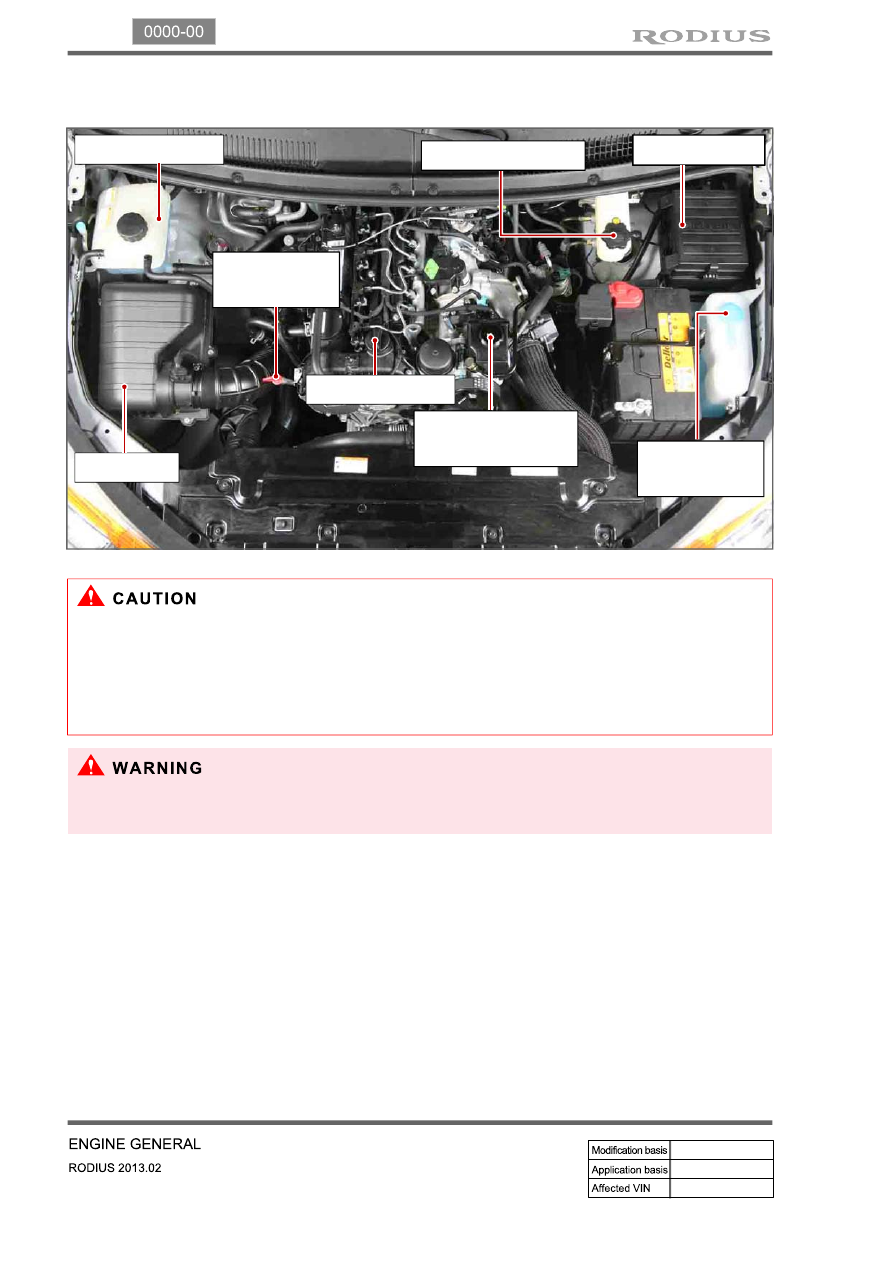

3. ENGINE COMPARTMENT LAYOUT

Do not work on the engine compartment while the engine, radiator, exhaust manifold, muffler or

catalytic converter is hot. Always turn the engine off and allow it to cool before starting the

maintenance.

Regularly check the engine oil level and add Ssangyong genuine engine oil if necessary.

Clean the dipstick with clean cloth so that any foreign materials cannot get into the engine.

-

-

-

Power steering fluid

reservoir

Brake fluid reservoir

Engine oil dipstick

gauge

Washer fluid

reservoir cap

Engine oil filler cap

Air cleaner

Operating vehicle with insuffi cient amount of oil can damage the engine. Make sure the engine

oil level is correct and add oil if necessary.

Coolant reservoir

Fuse & relay
