01-10

Jack-up points and setup

(rear side)

Jack-up points and setup

(front side)

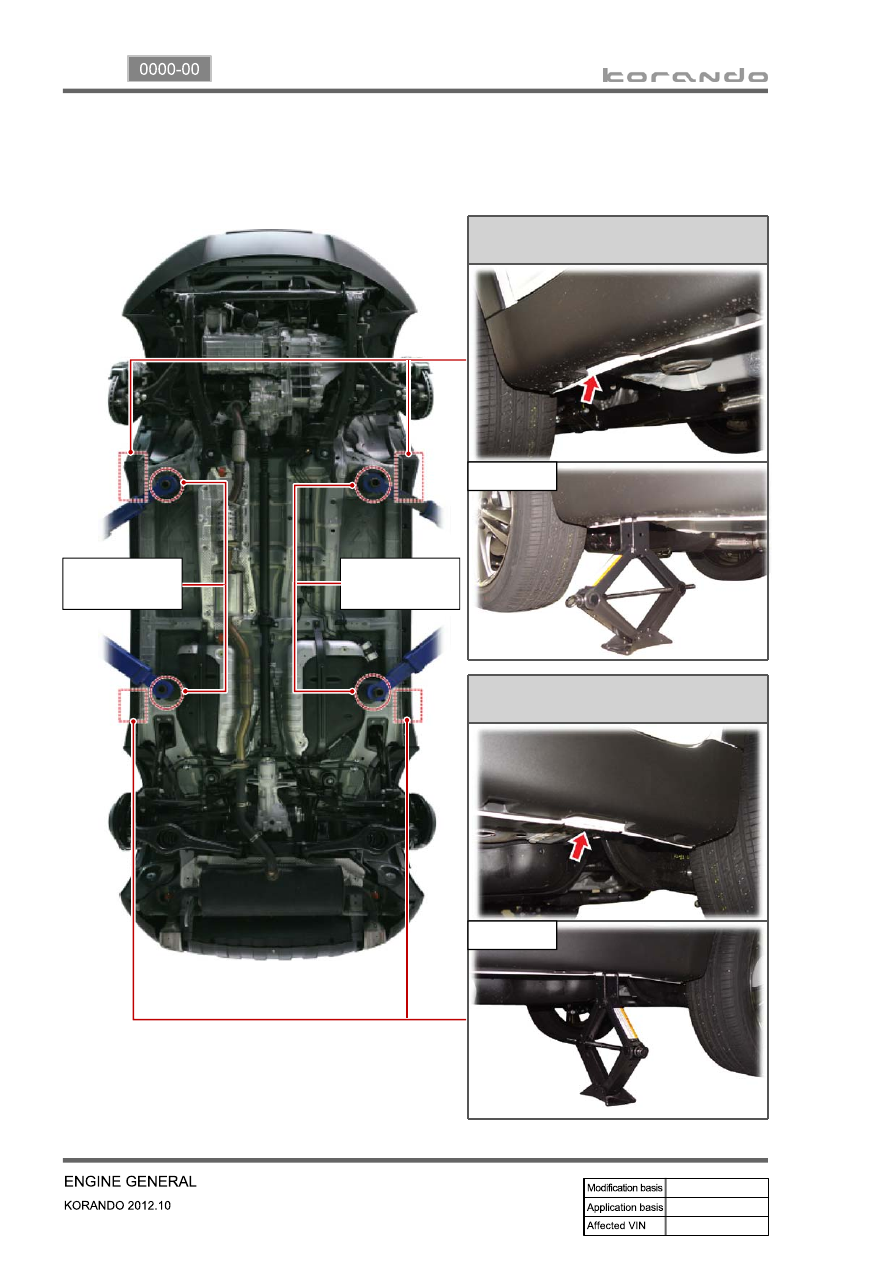

2. JACK-UP POINTS

Stand jack-up points and installation status (front side)

▶

Jack-up points

for 2-post lift

Jack-up points

for 2-post lift

Supporting

Supporting

01-11

0000-00

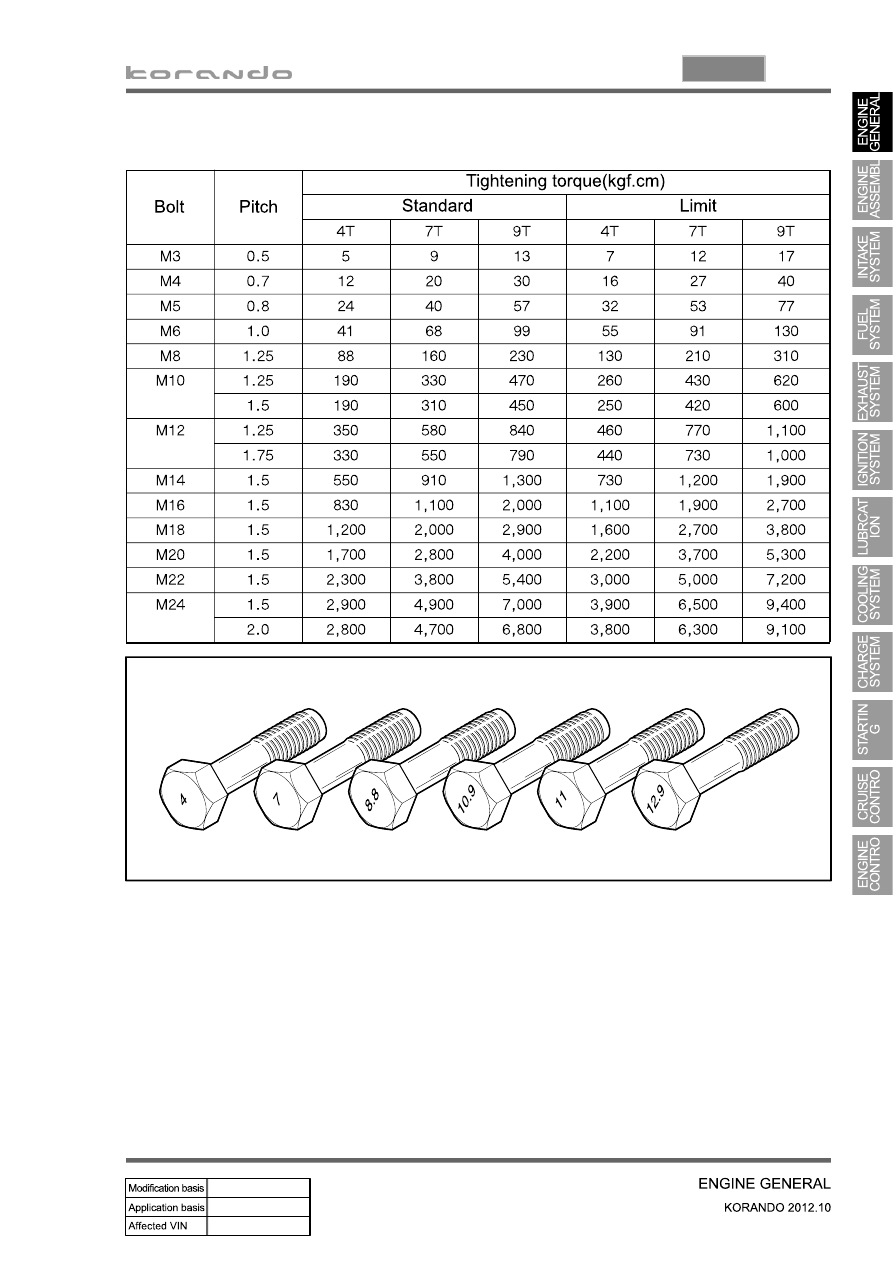

3. STANDARD BOLTS SPECIFICATIONS

Metric bolt strength is embossed on the head of each bolt. The strength of bolt can be classified as

4T, 7T, 8.8T, 10.9T, 11T and 12.9T in general.

Observe standard tightening torque during bolt tightening works and can adjust torque to be proper

within 15 % if necessary. Try not to over max. allowable tightening torque if not required to do so.

Determine extra proper tightening torque if tightens with washer or packing.

If tightens bolts on the below materials, be sure to determine the proper torque.

1)

2)

3)

4)

Aluminum alloy: Tighten to 80 % of above torque table.

Plastics: Tighten to 20 % of above torque table.

-

-

01-12

4. CODING AND SETUP

1) Engine Variant Coding

Description

Coding

Vehicle speed input to ECU

CAN

with ABS or ESP: CAN

WIRE

Fan

3 Relays

3 Relays

PWM fan

Auto cruise

NO

with Auto cruise system: YES

YES

Engine level control

NO

without Engine level control system: NO

(Korando)

YES

G-sensor

NO

with 2WD ABS and non-ABS: NO

with 4WD ABS and ESP: YES

YES

Smart key

NO

with Smart key: YES

YES

01-13

0000-00

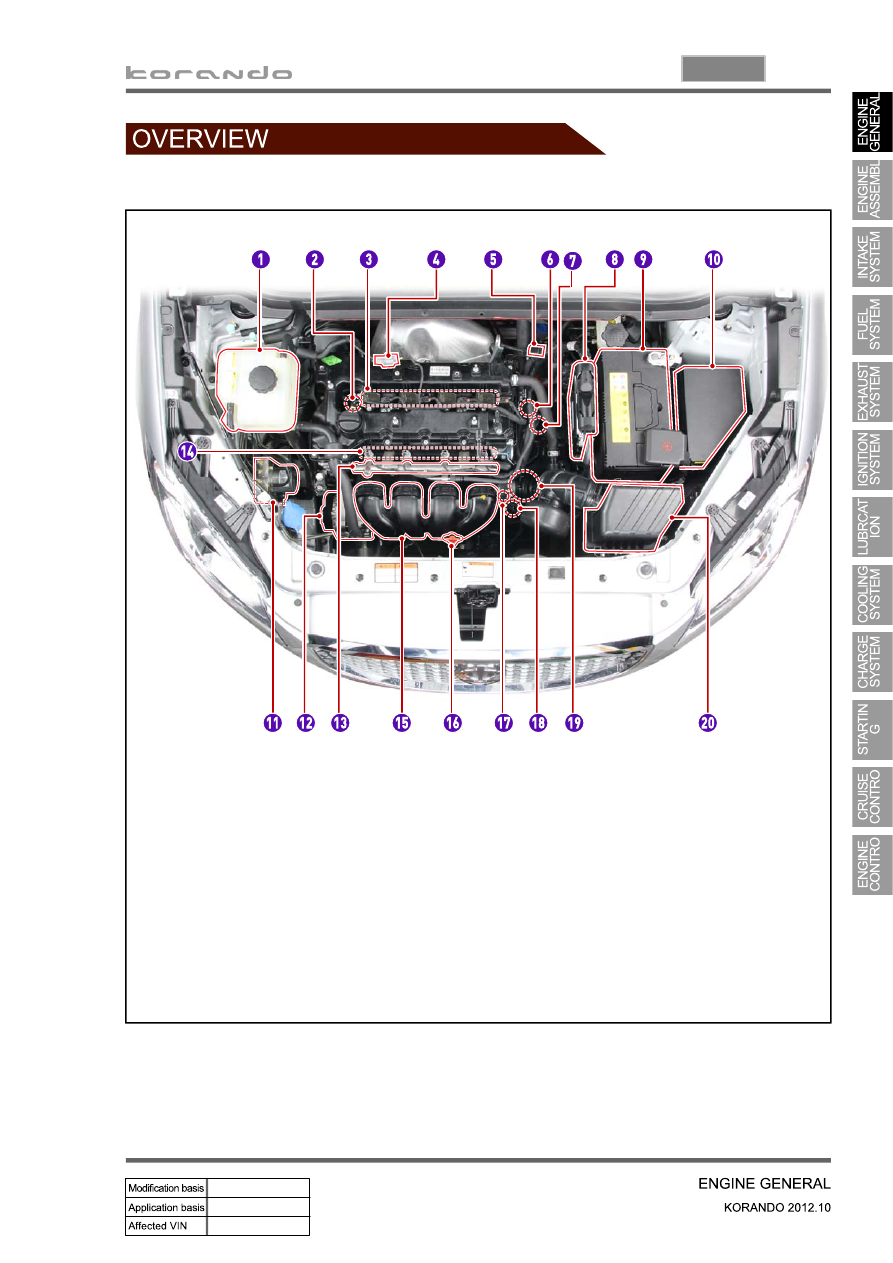

1. ENGINE COMPARTMENT

Coolant reservoir

OCV

Ignition coil

Rear oxygen sensor connector

Front oxygen sensor connector

Coolant temperature sensor

Purge control solenoid valve

Engine ECU

Battery

Fuse box

1.

2.

3.

4.

5.

6.

7.

8

9.

10.

HECU assembly

Alternator

Fuel rail assembly

Injector

Intake manifold

Oil dipstick gauge

VIS solenoid valve

T-MAP sensor

Electronic throttle body

Air cleaner assembly

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.
